Add Workbench widgets to an in-line dashboard

  • Rversion finale: Australia
  • Mis à jour 12 mars 2026
  • 1 minute de lecture

    • You can place Core UI workbench widgets on an inline dashboard. They are added in compatibility mode.

    Avant de commencer

    Role required: Any user can add workbench widgets from the library to a dashboard they have edit rights on. Users with admin or pa_admin roles can create new workbench widgets in Core UI.

    The system property com.snc.pae.workbench_enabled must be set to true.

    Procédure

    1. Navigate to All > Platform Analytics > Library > Dashboards.
    2. Either create a dashboard or open the dashboard you want to edit.
    3. If the dashboard has an Edit button, select it.
      A new dashboard is automatically in editing mode. A technical dashboard has an Open in UI Builder button instead of an Edit button. For more information about technical dashboards, see Technical dashboards.
    4. Expand Add New Element.
    5. Select the Workbench element.

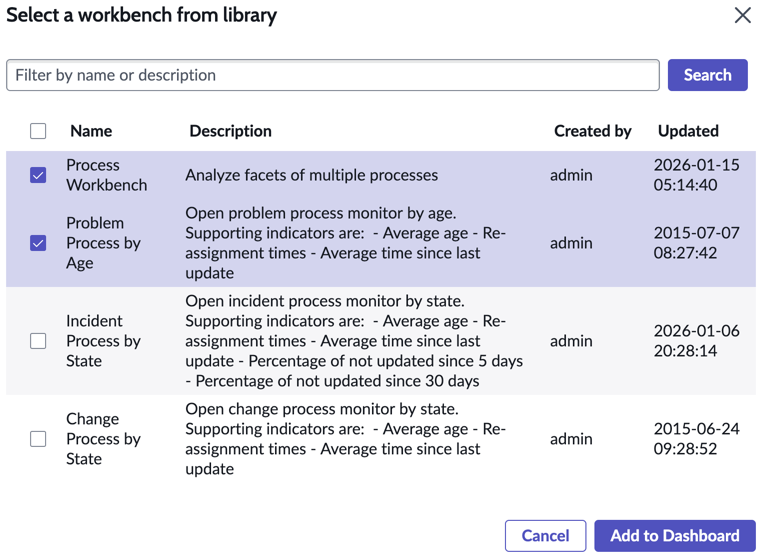

    6. Choose one or more workbenches from the library and select Add to Dashboard.Select a workbench from the library modal showing four elements with name, description, creator, and last updated timestamp
      Users with the admin or pa_admin roles see the option to create new workbench widgets in Core UI. For more information, see Monitor a workflow with a workbench process widget.

    Résultats

    The Core UI workbench widgets are added to the inline dashboard in compatibility mode.
