Add or delete edges to a Knowledge Graph schema

Add, edit, or delete edges that connect the nodes to customize a Knowledge Graph schema.

始める前に

Role required: kg_admin

手順

1. Navigate to All > Knowledge Graph > Knowledge Graph Designer.
   The UI displays a list of all the Knowledge Graph schemas on the landing page.
2. Select a Knowledge Graph schema from the list.
   The Knowledge Graph schema​ opens in the canvas.
3. From the Knowledge Graph schema, select a node to edit.

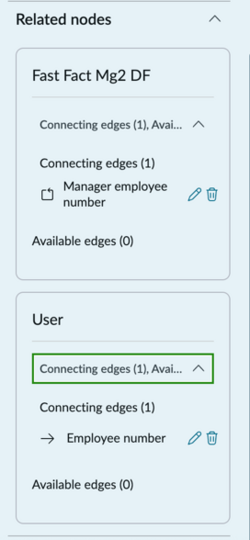

4. In the side navigation pane, select Related nodes.

   Each related node displays a list of connecting edges and available edges.



5. To establish a connection to an available edge, select the plus icon () against the edge.
   The available edge is moved to Connecting edges. Select an edge to see its parent node and grandparent nodes in the hierarchy.
6. To reconfigure a connecting edge, select the edit icon ( and update the following:
   • Edge type
   • Edge description
7. To delete an edge and move it to available edges, select the remove edge (
8. To delete the edge, select Remove edge when prompted.
9. To save your changes, select Save or to undo all your changes, select Discard.
