Create a system-derived entity

  • リリースバージョン: Australia
  • 更新日 2026年03月12日
  • 所要時間：5分

    • Create a custom entity that's derived from a default system entity such as date, time, duration, or location.

    始める前に

    このタスクについて

    System entities are pre-built in your ServiceNow instance by default, and appear on the Entities section of the Model screen. These entities, such as DATE, TIME, and DATE_TIME, are enabled by default. You can disable and re-enable them if needed by clicking Enable.

    System-derived entities extend your system entities, providing more context. For example, your model already understands date formats thanks to the system entity DATE. However, you can create system-derived entities, such as startdate and enddate, to extract more information from user utterances regarding dates.

    For the following example scenario, you're creating a model for booking flights, cars, hotels, and events. You want your intent #FlightBooking to interpret utterances with your users flight requests. Your model contains the system entity LOCATION, but flight plans usually involve two locations.

    In this example procedure, you create two system-derived entities to gather the departure and arrival locations of the flight.

    手順

    1. Navigate to All > NLU Workbench > Models.
      The Virtual Agent tab opens by default.
    2. Select the tab for your model's application, then the name of your model.
    3. In the model details page, select Intents.
    4. Select the name of the intent.
      For this example, you select the #FlightBooking intent.
    5. On the Utterances tab, select a word or phrase from one of the utterances.
      In this example scenario, you have an example utterances book a flight from San Diego to San Francisco. For this step, click from San Diego.

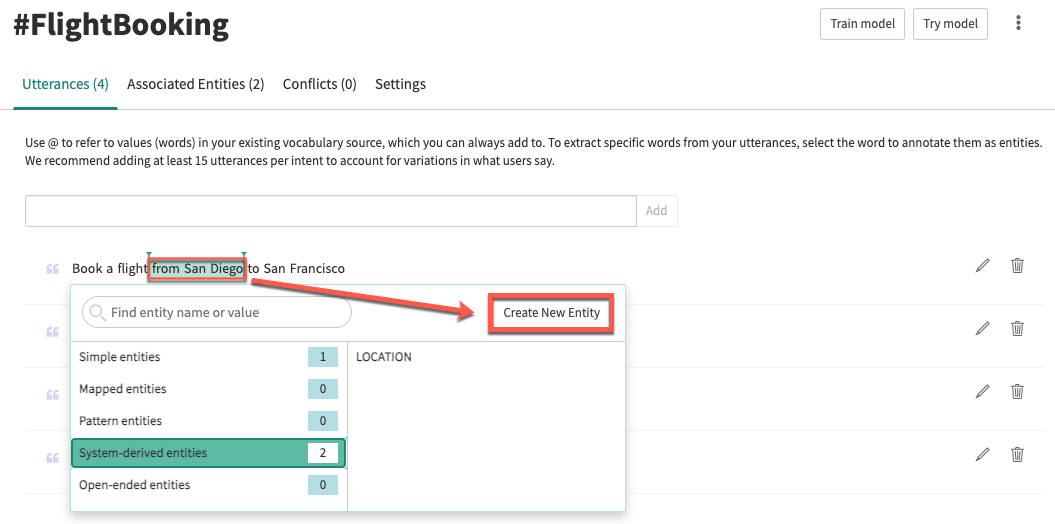

      Entity window on the Utterances tab of the Intent details page.
    6. Select Create New Entity.
    7. In the Create a new entity screen, configure the fields.
      For this example, use these configurations.
      • Entity Name: Enter FromLocation
      • Type: Select System-derived
      • Model Availability: Select this check box if you want this entity to be included in all intents in your model
      • Parent Entity: Select LOCATION

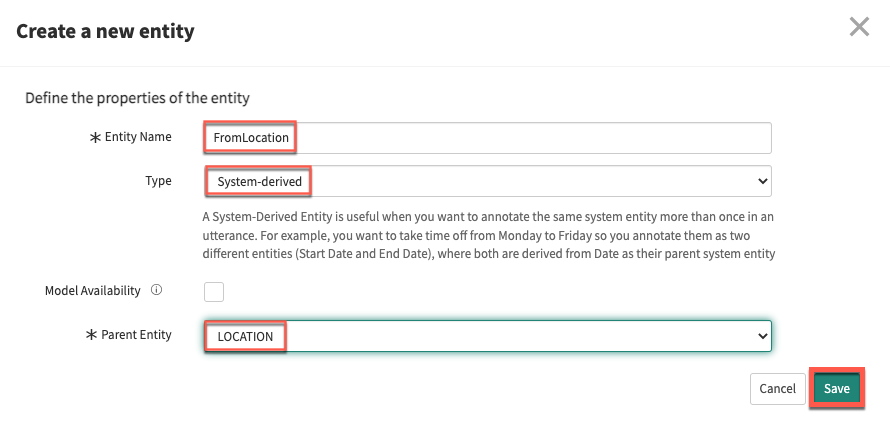

      Create a new entity window for a system-derived entity.
    8. Select Save.
    9. On the same utterance, select another word or phrase.
      In this example scenario, you click to San Francisco.

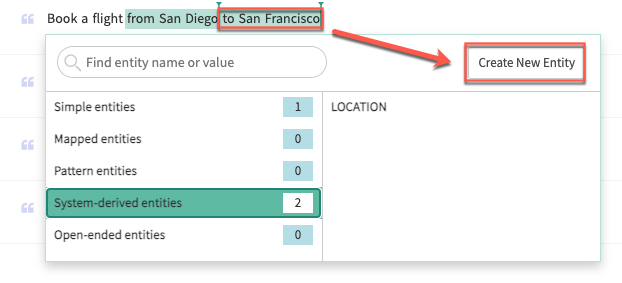

      Entity window on the Utterances tab of the Intent details page. Make sure to select the correct part of the utterance.
    10. Select Create New Entity.
      For this example, use these configurations.
      • Entity Name: Enter ToLocation
      • Type: Select System-derived
      • Model Availability: Select this check box if you want this entity to be included in all intents in your model
      • Parent Entity: Select LOCATION

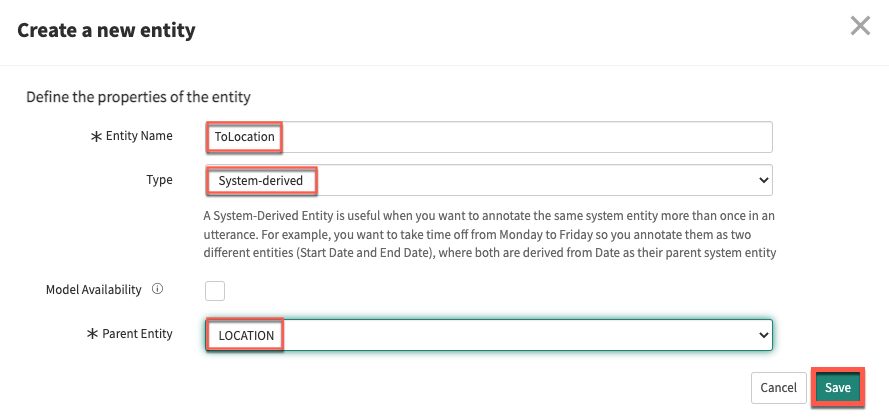

      Create a new entity window for a system-derived entity.
    11. Select Save.
      Result: Your two system-derived entities appear in the entity window.

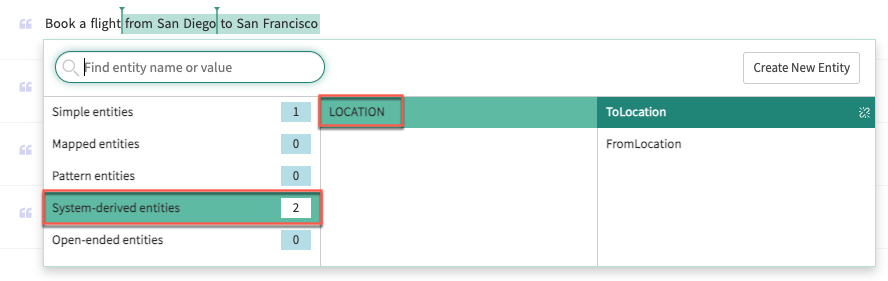

      Entity window for system-derived entities.

    次のタスク

    Train your model to save the entities. You can try your model to see if it recognizes and interprets variations of the entities that you created.

    For this example, you can test your model with a different departure and arrival location.
    1. Select Try model.
    2. Enter book a flight from Dallas to San Jose.
    3. Select Go.

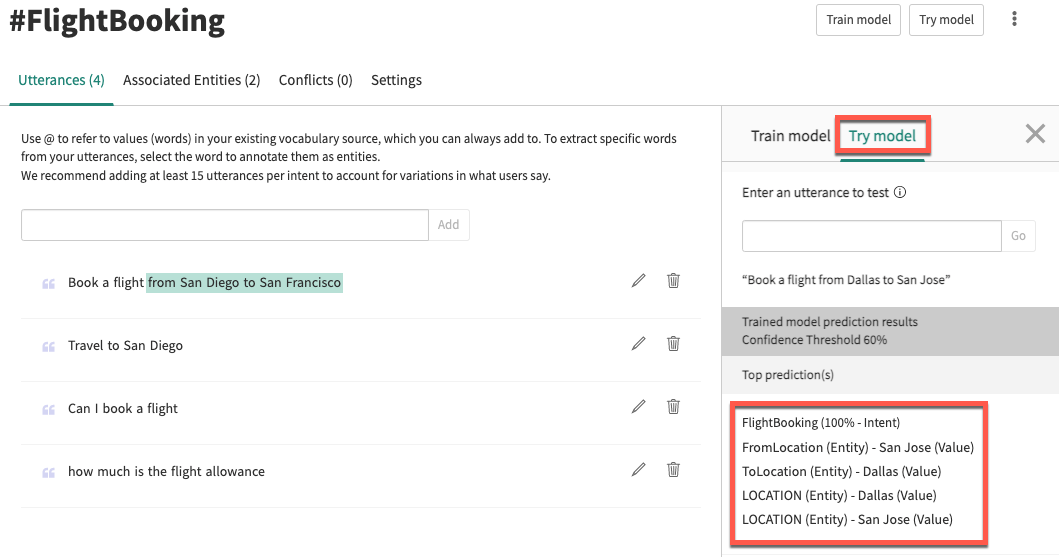

    図 : 1. Intents details page with the test panel
    Intents details page with the test panel open. Train and try your model to assess your new entities.
    The model predicts the intent, showing the entities it used to determine the values. Notice how it uses both the system entity and system-derived entity when predicting.
