View IBM PVU mappings for the legacy IBM PVU Process Pack

Every rule listed in the IBM PVU Table is represented by one PVU mapping record in the legacy Software Asset Management (com.snc.software_asset_management) plugin.

시작하기 전에

Role required: sam

이 태스크 정보

For example, in the IBM PVU Table there is one line with processor name POWER5 QCM and in IBM PVU mappings there is a line representing POWER5 QCM.

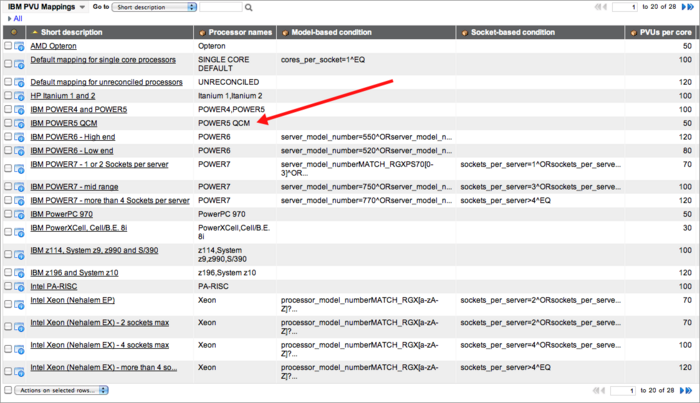

그림 1. PVU mappings list

프로시저

1. Navigate to All > Software Asset > Reconciliation > IBM PVU Mappings.

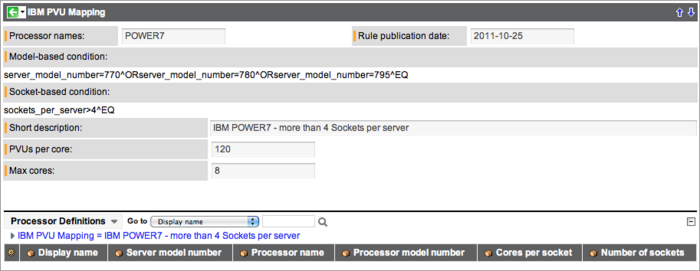

2. Click a Short Description for detailed information about the mapping.



   The fields are for information only and cannot be edited.

   표 1. IBM PVU mappings

   Field	Description
   Processor names	Names of running processors. Processor names are separated by commas.
   Model-based condition	Regular expression used to determine whether the server model number of a computer's processor definition matches that of the PVU entry.
   Socket-based condition	Regular expression used to determine whether the number of sockets of a computer's processor definition matches that of the PVU entry.
   Short description	A short description of this PVU mapping.
   PVUs per core	Number of processor value units consumed (according to the IBM PVU chart) by each core.
   Max cores	Maximum number of cores on the processor family, as shown in the IBM PVU Table (rightmost column under cores per socket).
   Rule publication date	Date published by IBM on the PVU Rules table.
