Configure trend for a native Data snapshots indicator in KPI Details

  • Release version: Australia
  • Updated March 12, 2026
  • 1 minute to read

    • Select a calendar and period by which to aggregate scores on the chart. You can also choose whether to include scores from incomplete periods.

    Before you begin

    Role required: None. However, upgraded instances may require pa_viewer.

    About this task

    Important:
    Only native Data snapshots indicators have this feature. Classic indicators, including ones with Data snapshots enabled, have a time aggregation instead. For more information, see Select time aggregation in KPI Details.

    Procedure

    1. Open KPI Details for a native Data snapshots indicator, as described in View KPI Details.
    2. Expand the Trend by menu, which has a label matching the currently selected aggregation period.

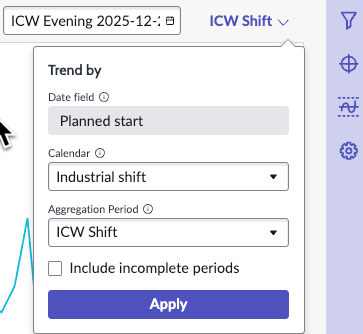

      The control for expanding the trend by menu
    3. Note the read-only Date field.

      This field shows the optional date field from the Trend by section on the automated indicator record. When specified, it narrows the scores to changes per field value instead of an aggregate total. For example, if you trend by the Actual End field on a Resolved Incidents indicator, you show the number of incidents whose state changed to Resolved each day. If you don't specify a Trend by field on the indicator, you instead see the cumulative total of Resolved incidents each day.

      Important:

      A date field can be specified only for automated indicators. For a formula indicator, you can show only an aggregate total for the selected time period.

    4. Select a calendar.
      The calendar you select doesn’t have to be the same as the calendar selected on the indicator record. You’re selecting the calendar only to organize the scores, not collect them. Your selection determines which aggregation periods are available.
    5. Select the Aggregation period.
      The period you select doesn’t have to match the calendar frequency on the indicator record. You’re only organizing the display of scores.
    6. Optional: Turn on Include incomplete periods.
    7. Press Apply.
