Exploring the Data Visualizations library
Summarize
Summary of Exploring the Data Visualizations library
The Data Visualizations library in Platform Analytics on Australia instances enables ServiceNow customers to find, create, and manage data visualizations that help share data insights with stakeholders. This library includes both Core UI reports and Platform Analytics experience visualizations. Access to features depends on user roles, with visualization creation and advanced management reserved for users with specific analytics admin roles.
Show less
Access and Navigation
To access the Data Visualizations library, navigate via All > Platform Analytics > Library > Data Visualizations. The library interface includes a navigation pane for seamless movement between other Platform Analytics libraries and the Usage Insights page, aiding workflow continuity.
Roles and Permissions
Access to library elements depends on assigned roles. Key roles include reportadmin, paadmin, platformanalyticsadmin, admin, with vizadmin as the minimum required for basic access. Users with lower roles have limited access, primarily to Dashboards, Data Visualizations, and Indicators.
Key Features
- Create Data Visualizations: Authorized roles can create new visualizations to represent real-time data trends.
- Filtering Options: Users can filter visualizations by bookmarked, certified, owned, or shared status to quickly locate relevant content.
- Single Scores: Displays key statistics such as visualizations not used in dashboards, inactive for specific periods, or recently updated, enabling smarter management.
- Search and Condition Builder: Search by name or description, and apply complex filter conditions to refine the visualization list.
- Personalize List: Customize visible columns in the visualization list for tailored views.
- Manage Visualizations: Options to delete, activate/deactivate visualizations, and show/hide condition builder labels.
- Saved Filters: Save custom filter conditions for repeated use and control their visibility.
- Column Filters: Apply filters directly to columns within the visualization list to quickly narrow down results.
- Application Navigator: Provides direct access to related Platform Analytics libraries and Usage Insights, streamlining navigation.
Practical Benefits
ServiceNow customers can efficiently find and manage data visualizations, improving data-driven decision making by:
- Sharing critical insights with stakeholders via real-time data visualizations.
- Keeping visualizations certified and up-to-date to ensure data accuracy and trust.
- Utilizing role-based access to maintain secure and appropriate control over visualization content.
- Personalizing and filtering visualization lists to quickly find relevant reports and dashboards.
Find any data visualization in the Platform Analytics Data Visualizations library so that you can share information about your data with stakeholders and other users to evaluate the trends with real-time data. With the appropriate role, you can also create a visualization.
Data Visualizations Library overview
On Australia instances, you can find both Core UI reports and Platform Analytics experience data visualizations in the Data Visualizations library.
When you edit Core UI dashboards and their content, you do so in the Core UI tools including Report Designer. For more information, see Reporting, dashboards, and Performance Analytics in the Core UI and Using reporting.
To open the data visualizations library, navigate to . You can also navigate to this library from other Platform Analytics library pages.
Library pages like this one include a navigation pane that provides access to the other libraries and the Usage Insights page. Use it to navigate between the libraries without interrupting your workflow.
Data Visualizations library elements
Access to certain elements in the Data Visualizations library is based on whether the user is associated with specific admin roles. For Data Visualizations, the analytics admin roles include report_admin, pa_admin, platform_analytics_admin, and admin. The lowest required role is viz_admin. For users with the lowest role, the application navigator provides a direct access only to the Dashboards, Data Visualizations, and Indicators from the Platform Analytics library. For more information on user roles in Data Visualizations, see Data visualization roles.

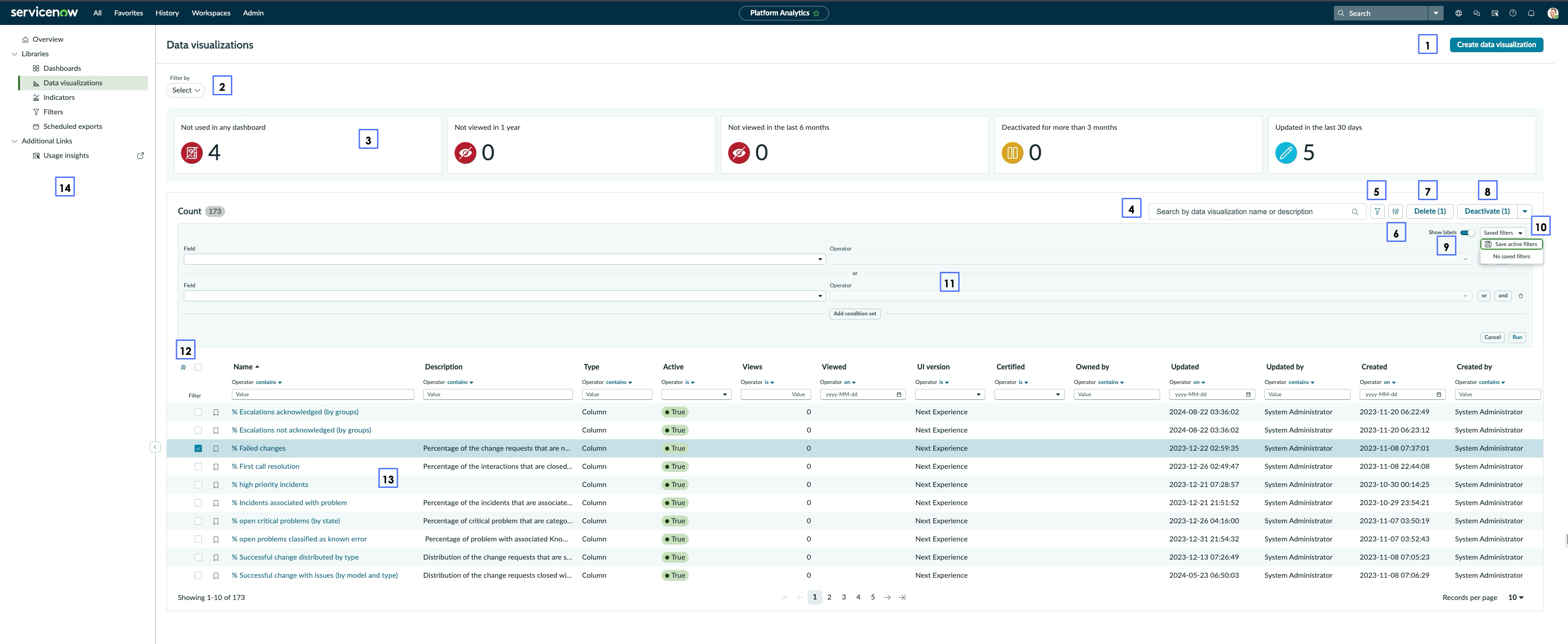

The following image shows the Data Visualizations library elements that are accessible for users with analytics admin roles.

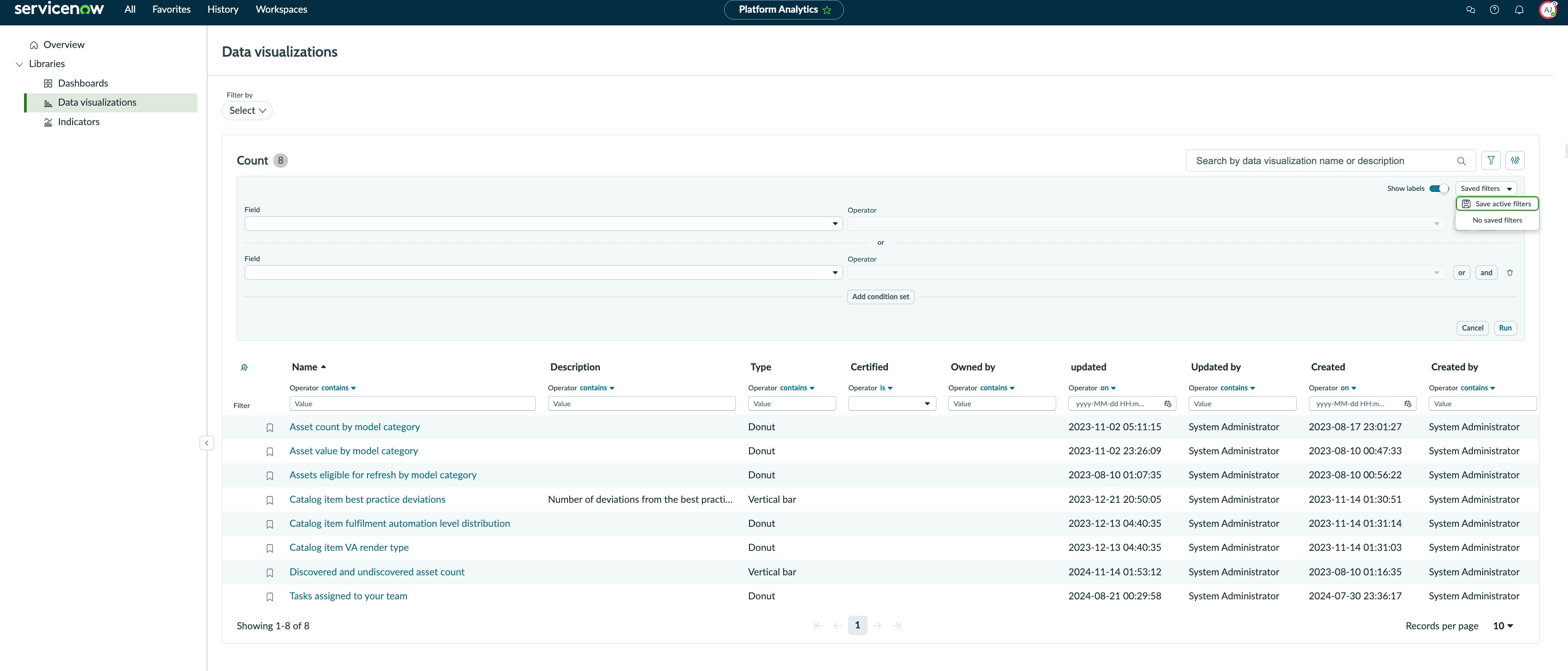

The following example shows the Data Visualizations library elements that are accessible for users with lower roles.
The following table lists the Data Visualizations library elements. Refer to the numbered call-outs in the image and their descriptions in the table.
| No. | Field (or) Element name | Accessible to users with roles | Description |
|---|---|---|---|
| 1 | Create data visualization |
|
Option to create data visualizations. |
| 2 | Filter by |
|
Option for filtering the data visualizations list to display
the data based on the following predefined conditions:
|
| 3 | Single scores |
|
Data visualization scores. These scores highlight the key data visualization statistics that are based on the following filter conditions:
Select a score to filter and display the dashboards that match the condition. |
| 4 | Search |
|
Search box with a list filter to filter the list of data visualizations by name or description. For example, by searching the word Data, you can see the list of visualizations that contain Data in the Name or Description columns. |
| 5 | Filter list condition builder |
|
Launches the condition builder for the Data Visualizations library. |
| 6 | Personalize List |
|
Option to add or remove columns in the data visualizations
list ( |
| 7 | Delete |
|
Option to delete the selected data visualizations. |
| 8 | Deactivate/Activate |
|
Option to deactivate or activate the selected data visualizations . |
| 9 | Show/Hide labels |
|
Option to show or hide labels for the fields
Field and
Operator in the condition
builder. Note: The Show/Hide labels
option is visible only on selecting the Condition
Filter icon. |

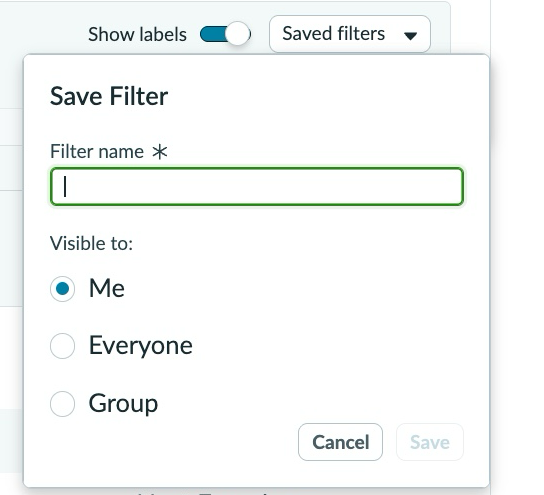

| 10 | Saved filters |
|
Option to save the current condition filters that are set using the condition builder. You can select the visibility of the filter. Note:
The Saved filters option is visible only on selecting the Condition Filter icon. |
| 11 | Condition builder |
|
Build condition set to filter data visualizations in the library. Note: The Condition builder option is visible only on selecting the Condition Filter
icon. |
| 12 | Column Filter |
|
Option for displaying the column filters in the data visualizations to filter the data in the columns based on the specified condition. By default, the Column Filter is turned off. |
| 13 | Data visualization List |
|
List of all data visualizations. You can personalize and also sort the list by Name, Description, Views, and Certified. |
| 14 | Application navigator |
|
Provides direct access to the Dashboards, Data Visualizations, Indicators, Filters, and Scheduled exports from the Platform Analytics library and the Usage Insights page. Note: Users with non-admin roles can only access Dashboards, Data Visualizations, and Indicators from the Platform Analytics library using the application navigator. |
