Collected scores and com.snc.pa.breakdown_element_cutoff

  • Release version: Australia
  • Updated March 12, 2026
  • 3 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Collected scores and com.snc.pa.breakdownelementcutoff

    This document explains how the parametercom.snc.pa.breakdownelementcutoffaffects which breakdown elements are displayed in the Analytics Hub and KPI Details for a selected date. It clarifies the behavior differences between automated indicators’ collected scores, real-time scores, and formula indicators, helping ServiceNow customers control visibility of breakdown elements in performance analytics dashboards.

    Show full answer Show less

    Key Features

    • Breakdown element cutoff parameter: Defines a threshold for the number of elements shown in breakdowns based on how many elements have ever had a score.
    • Behavior for automated indicators’ collected scores:
      • If elements with scores are fewer than the cutoff, all elements are displayed for any date, including those with null scores.
      • If elements with scores exceed the cutoff, only elements with a score or change value on the selected date are shown; elements with null values on that date are excluded.
    • Behavior for formula indicators: Displays all elements that have ever had scores in all contributing automated indicators, regardless of date.
    • Behavior for real-time scores: Elements with null scores may still appear regardless of cutoff settings.
    • Tip for managing null scores: Setting a low value (e.g., 0 or 1) for com.snc.pa.breakdownelementcutoff can help minimize elements with null scores appearing for automated indicators.

    Practical Application Example

    Using the Assignment Group breakdown for the "Number of open incidents" indicator, the impact of different cutoff values is illustrated:

    • Cutoff = 50: Since the number of elements (~50) is less than or equal to cutoff, all elements are displayed regardless of date.
    • Cutoff = 10: Although the breakdown has more elements than 10, only six have ever had scores, so all six are shown for any date, even if some scores are null.
    • Cutoff = 5: Fewer than the number of elements with scores, so on each selected date only elements with non-null or change scores are shown. Elements with consecutive null scores are omitted, while a null score following a non-null score displays as zero with a change icon.

    This example shows how adjusting the cutoff value controls dashboard clarity by limiting or expanding which elements appear, enabling customers to tailor their analytics views based on data volume and relevance.

    The elements of a breakdown that the Analytics Hub and KPI Details display for a selected date depend on the number of elements and the value of com.snc.pa.breakdown_element_cutoff.

    In general, when the number of elements for a breakdown exceeds com.snc.pa.breakdown_element_cutoff, the Analytics Hub and KPI Details display only the elements that have ever had a score.

    For a formula indicator, the elements that have ever had a score for all the contributing automated indicators are displayed. These scores do not need to be on the same date. The requirement is only that for each contributing indicator, on some date, there was a score for the element.

    For collected scores of an automated indicator—that is, for all scores other than real-time scores—there are two behaviors:
    • If the number of elements that have ever had a score is less than the limit set in com.snc.pa.breakdown_element_cutoff, all of these elements are listed for any selected date. Elements that do not have a score for the selected date are still listed for that date. This behavior is the same as the behavior for real-time scores.
    • If the number of elements that have ever had a score is greater than the limit set in com.snc.pa.breakdown_element_cutoff, only elements that have a score or a Change value for a selected date are listed for that date. Elements that do not have a score or Change value for that date are not listed regardless of whether they have a score for any other date.
    Tip:

    To prevent elements with null scores appearing in the Analytics Hub or KPI Details for automated indicators, consider setting a low value for com.snc.pa.breakdown_element_cutoff, such as 0 or 1. Elements with null scores may still appear however for real-time scores and formula indicators.

    Scores appearing for automated indicators with different values of com.snc.pa.breakdown_element_cutoff

    This example uses KPI Details to explore the Assignment Group breakdown for the "Number of open incidents" indicator. The Assignment Group breakdown on the instance used in the example has just under 50 elements.

    First is the default case, where com.snc.pa.breakdown_element_cutoff=50. This value is higher than the number of elements of Assignment Group. Therefore, for any selected date, all elements of the breakdown group are displayed.

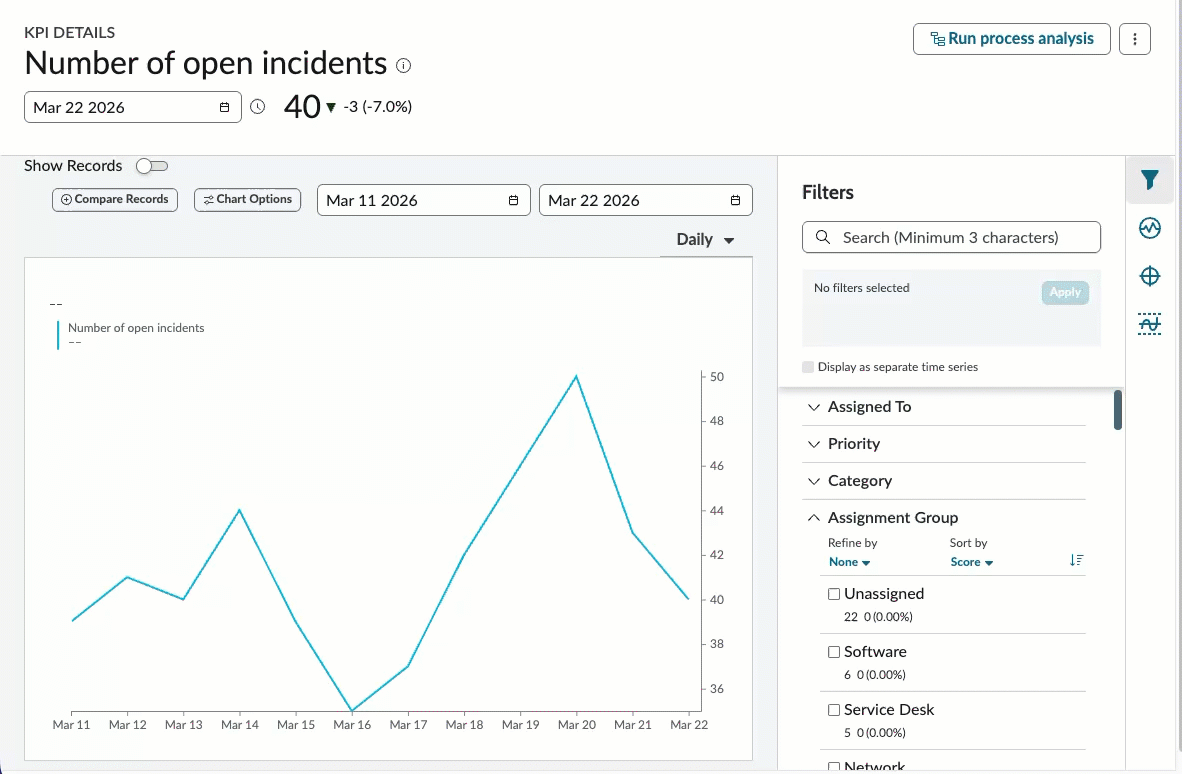

    Figure 1. All elements of Assignment Group shown in KPI Details
    All elements of the Assignment Group breakdown being displayed.

    The next case is where com.snc.pa.breakdown_element_cutoff=10. The number of elements in the Assignment Group breakdown far exceeds this value. However, only six elements have ever had a score. This number is less than the cutoff value of 10, so for any date, all six elements are shown, even when null.

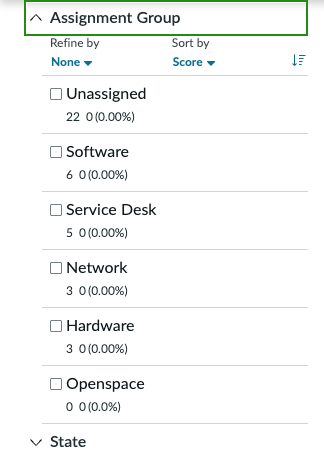

    Figure 2. All elements shown that were never null
    All elements of Assignment Group that ever had a score being displayed.

    Finally, there is the case where com.snc.pa.breakdown_element_cutoff=5. This number is less than the number of elements that have ever had a score. Now only the elements with a non-null value or a change value on the selected date are shown on that date. Different elements are thus shown for different dates. If there is a null value for the collection period after one with a value, a value of zero and a change symbol appears for that day.

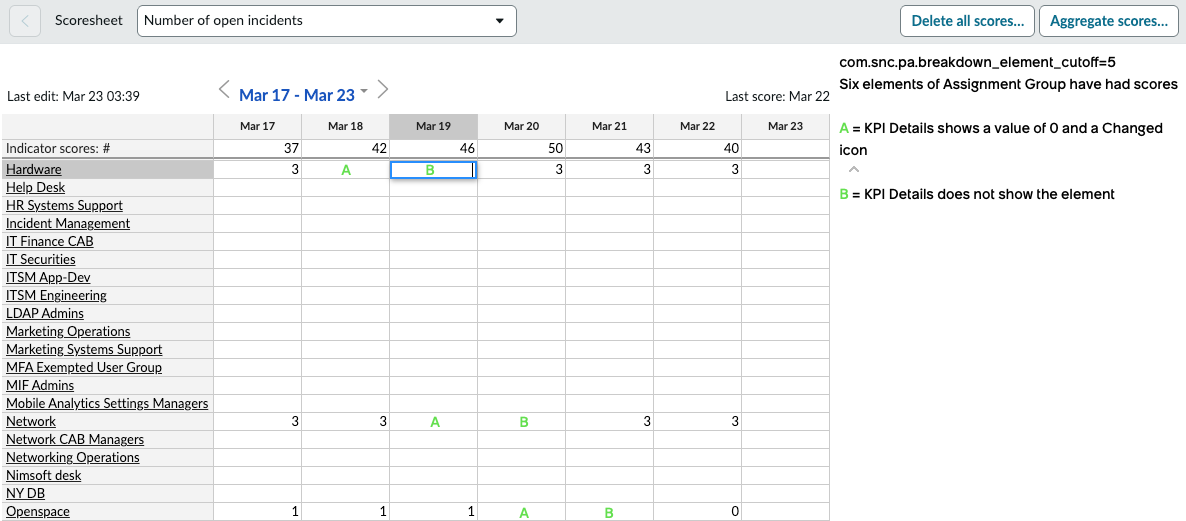

    Figure 3. Scoresheet for Number of Open Incidents showing which null scores are shown as 0 with a change icon and which are not shown at all
    Scoresheet for Number of Open Incidents showing which null scores are shown as 0 with a change symbol and which are not shown at all.

    On March 18, six elements are shown. The Hardware element, which has a null value, shows a value of 0 and a symbol that it declined.

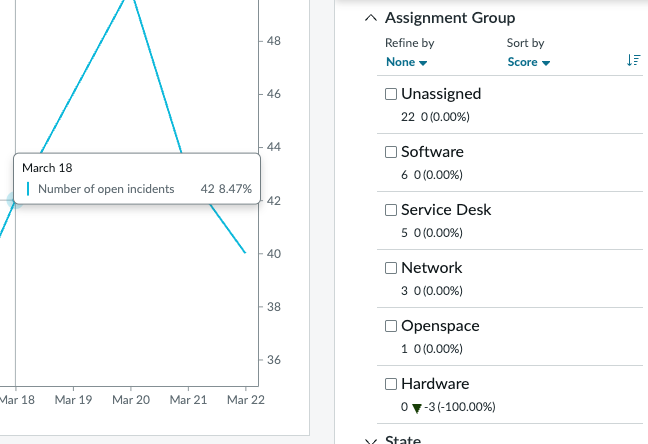

    Figure 4. Assignment Group elements shown on March 18
    Assignment groups shown on March 18.
    On March 19, five elements are shown. Hardware is not shown, because it has had a null value for two days running. The Network element, which now has a null value, shows a value of 0 and a symbol that it declined.

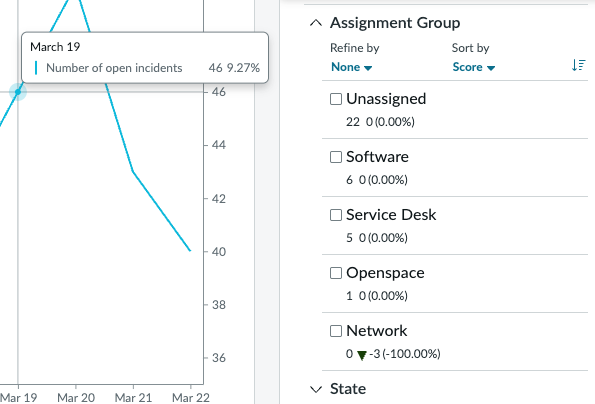

    Figure 5. Assignment Group elements shown on March 19
    Assignment Group elements shown on March 19.
    On March 20, five different elements are shown. Network is not shown, because it has had a null value for two days running. The Openspace element, which now has a null value, shows a value of 0 and a symbol that it declined.

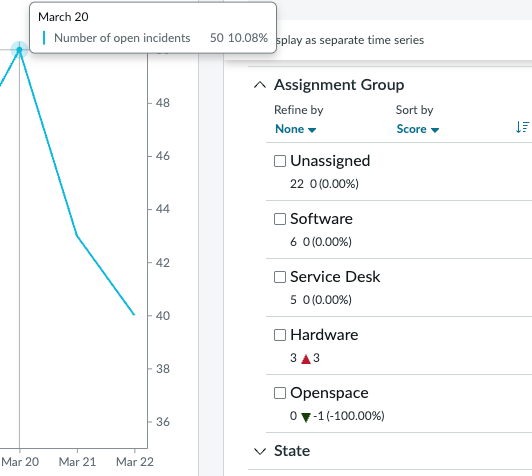

    Figure 6. Assignment Group elements shown on March 20
    Assignment Group elements shown on March 20
    On March 21, five different elements are shown. Network now has a value and is shown. Openspace has had a null value for two days running, so is not shown.

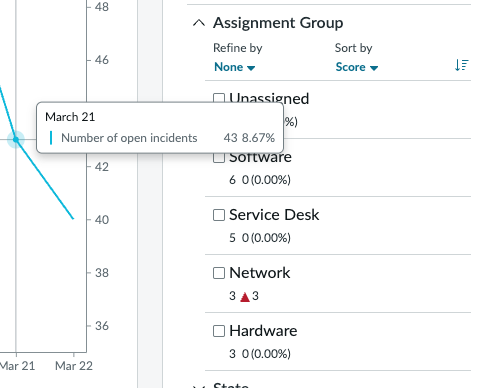

    Figure 7. Assignment Group elements shown on March 21
    Assignment Groups shown on March 21.
    On March 22, six elements are shown. Openspace now has a non-null value so is shown again.

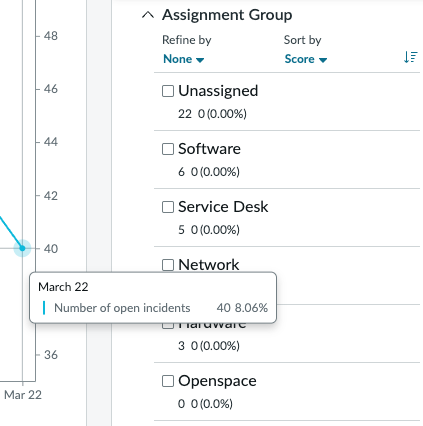

    Figure 8. Assignment Group elements shown on March 22
    Assignment Group elements shown on March 22
