Third party token workflow for user accounts

  • Release version: Zurich
  • Updated June 16, 2026
  • 1 minute to read

    • This workflow is based on the token federation concept. It allows client applications to obtain tokens directly from an IdP and use them to access ServiceNow APIs.

    Before you begin

    Role required: oauth_admin, mi_admin, admin

    About this task

    The third-party client application requests tokens directly from your identity provider (IdP). The authentication method between the client and the IdP is flexible and can be configured to meet your specific requirements. After successful authentication, the IdP issues an ID token or access token, and optionally a refresh token. These tokens are sent directly to the client application, which then uses them to access ServiceNow APIs.
    Note:
    ServiceNow validates the token using the public key configured during setup and grants access to the requested APIs. Ensure that the token is in JSON Web Token (JWT) format.

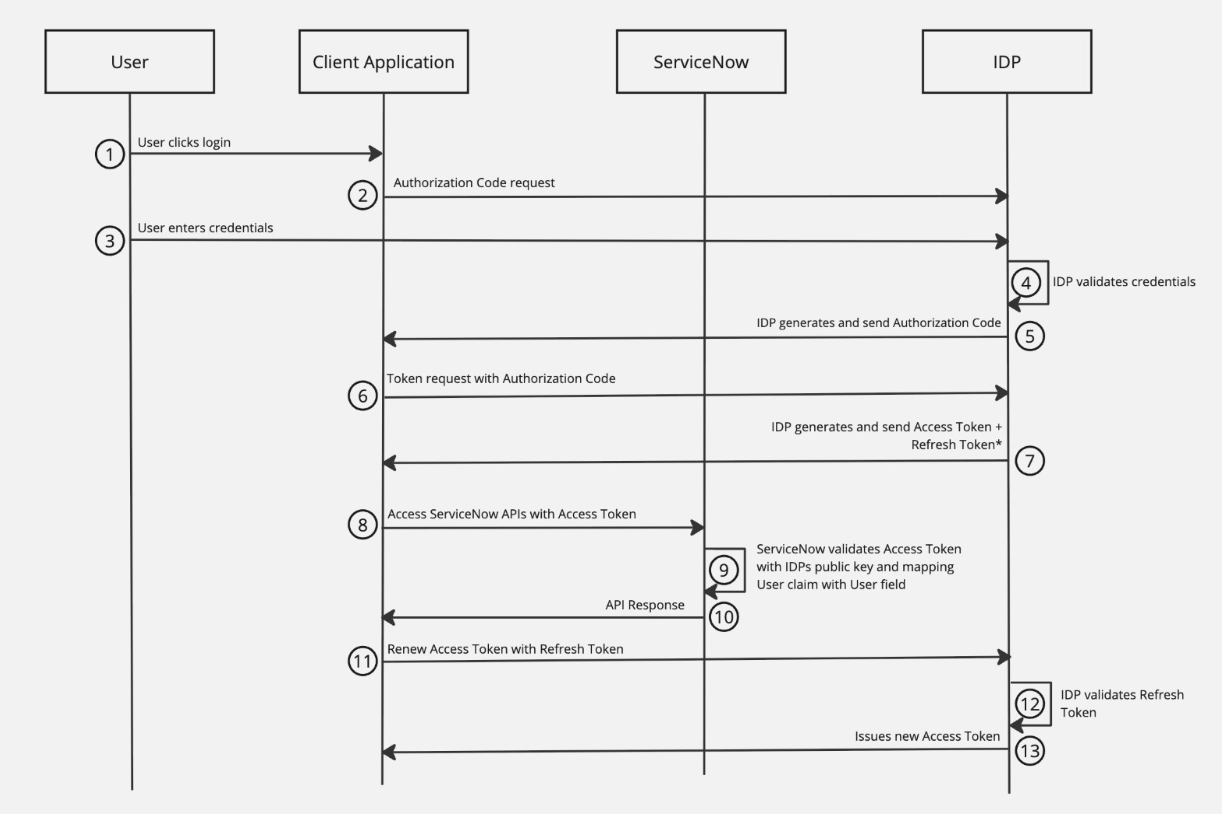

    Figure 1. User Account Workflow
    User Account Workflow
    Note:
    This diagram is for illustrative purpose. It shows the Authorization code grant flow between your client application and the identity provider. The workflow is flexible. You can use a different flow based on your requirements.

    Procedure

    1. Configure your third party client application.

      Set up your third party client application to request tokens directly from your identity provider (IdP). Select an authentication method that best fits your security and integration requirements.

    2. Create an OAuth client in ServiceNow.

      Provide the required details to enable validation of incoming tokens from your identity provider (IdP). For more information on how to configure, see Configure a third party ID token
