Configure a template for OAuth JWT Bearer grant type

  • Release version: Zurich
  • Updated July 31, 2025
  • 3 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Configure a template for OAuth JWT Bearer grant type

    This configuration template enables ServiceNow customers to set up OAuth 2.0 JWT Bearer grant type authentication for integrating with Docusign. It automates the creation of necessary Credential and Connection records, which manage authentication and connection details respectively. This template is designed to simplify and standardize the OAuth JWT Bearer setup process, ensuring secure token-based access to Docusign APIs.

    Show full answer Show less

    Key Features

    • Credential Record Configuration: Defines OAuth entity profiles with JWT Bearer grant type, client credentials, OAuth scopes, token URLs, and JWT provider details including keystore and claim validations (iss, sub, aud, scope).
    • Connection Record Configuration: Specifies the base URL for the Docusign service endpoint and connection parameters without requiring a MID server.
    • Dynamic Data Schema: Collects user input via a structured form, mapping values such as connection URL, OAuth client ID, redirect URL, JWT claim values, and key store information to the appropriate fields in the template.
    • Post Processing Script: Inserts custom account information (name, email, account ID) into the sndocusignspokeaccounts table based on user inputs, linking these records with the created alias for easy management.

    Practical Benefits

    • Streamlines the OAuth JWT Bearer authentication setup for Docusign integration, reducing manual configuration steps.
    • Ensures all required OAuth parameters and JWT claims are properly configured to meet Docusign’s security requirements.
    • Supports secure key management by linking JWT signing keys and algorithms through the keystore configuration.
    • Improves user experience by providing a dynamic input form that maps directly to backend configuration records.
    • Automates account record creation for easier tracking and management of Docusign accounts within ServiceNow.

    What to Expect

    After implementing this template and completing the input form, ServiceNow customers can create Docusign Connection & Credential aliases that are fully configured for OAuth JWT Bearer grant type authentication. This enables secure API calls to Docusign using JWT tokens signed with configured keys, facilitating seamless and secure integration workflows.

    This example configuration template sets up Credential and Connection records using the JWT Bearer grant type to authenticate requests to Docusign.

    Default data template

    Each top-level item in the default data template creates an associated record. The template includes these sections:

    • Credential: Creates a record in the Credentials table.
    • Connection: Creates a record in the Connections [sys_connection] table and any associated connection records.
    • Additional: Optionally creates records in a custom table. The post processing script tells the system what to do with these records.

    The following example creates the records required for OAuth JWT Bearer grant type authentication.

    {
  "credential": {
    "oauth_entity": {
      "oauth_entity_profile": [
        {
          "grant_type": "urn:ietf:params:oauth:grant-type:jwt-bearer",
          "name": "Docusign Profile",
          "default": true,
          "oauth_entity_profile_scope": [
            "users:read.email"
          ]
        }
      ],
      "code_challenge_method": "S256",
      "type": "consumer",
      "oauth_entity_scope": [
        {
          "oauth_entity_scope": "users:read.email",
          "name": "email"
        }
      ],
      "client_id": "<provider-client-id>",
      "use_mutual_auth": false,
      "revoke_token_url": "https://<provider-domain-name>.com/oauth2/revoke",
      "default_grant_type": "urn:ietf:params:oauth:grant-type:jwt-bearer",
      "public_client": false,
      "oauth_api_script": "3e3a3a11c333210016194ffe5bba8f70",
      "name": "Docusign Spoke OAuth",
      "client_secret": "<provider-client-secret>",
      "auth_url": "https://<provider-domain-name>.com/oauth2/auth",
      "token_url": "https://<provider-domain-name>.com/oauth2/token",
      "redirect_url": "https://<instance-name>.service-now.com/oauth_redirect.do"
    },
    "jwt_provider": {
      "jwt_keystore_aliases": {
        "kid": "<provider-key-id>",
        "name": "Docusign Spoke JWT Key",
        "signing_keystore": "<signing-keystore-sys-id>",
        "signing_algorithm": "rsa_256",
        "signing_key_password": "password"
      },
      "jwt_claim_validation" : [ {
        "name" : "iss",
        "is_standard" : true,
        "data_type" : "string",
        "value":"<docusign-iss-claim>"
      }, {
        "name" : "sub",
        "is_standard" : true,
        "data_type" : "string",
        "value":"<docusign-sub-claim>"
      }, {
        "name" : "aud",
        "is_standard" : true,
        "data_type" : "string",
        "value":"<docusign-aud-claim>"
      }, {
        "name" : "scope",
        "is_standard" : false,
        "data_type" : "string",
        "value" : "signature impersonation"
      } ],
      "name": "Docusign Spoke JWT Provider",
      "jwt_api_script": "9ef6af86ff10330001d3cd6bd53bf144"
    },
    "name": "Docusign Spoke Credential",
    "table": "oauth_2_0_credentials"
  },
  "connection": {
    "use_mid": false,
    "connection_url": "https://<provider-domain-name>.com",
    "name": "Docusign Spoke Connection",
    "table": "http_connection"
  },
"additional":{
    "docusign_account_name": "<docusign-account-name>",
    "docusign_account_email": "<docusign-account-email>"
}
}

    Dynamic data schema

    The dynamic data schema defines what the user sees when they create a Connection & Credential alias and collects their input. Use dot-walking syntax to map user input to fields created in the default data template. For example, connection_fields maps user input to the connection_url field in the connection object created by the default data template.

    {
  "connection_fields": [
    {
      "name": "connection.connection_url",
      "label": "Connection URL",
      "type": "text",
      "defaultValue": "https://demo.docusign.net",
      "hint": "Connection URL for Docusign"
    }],
"additional_fields":[
    {
      "name": "additional.docusign_account_id",
      "label": "Docusign Account Number",
      "type": "text",
      "hint": "Docusign Account Number"
    },
    {
      "name": "additional.docusign_account_name",
      "label": "Docusign Account Name",
      "type": "text",
      "hint": "Name to identify the Docusign account"
    },
    {
      "name": "additional.docusign_account_email",
      "label": "Docusign Account Email",
      "type": "text",
      "hint": "Docusign Account Email"
    }
  ],
  "credential_fields": [
    {
      "name": "credential.oauth_entity.client_id",
      "label": "OAuth Client ID",
      "type": "text",
      "hint": "Client ID for Docusign"
    },
    {
      "name": "credential.oauth_entity.redirect_url",
      "label": "OAuth Redirect URL",
      "type": "text",
      "defaultValue": "https://<instance-name>.service-now.com/oauth_redirect.do",
      "hint": "Callback URL for Docusign"
    },
 {
      "name": "credential.jwt_provider.jwt_claim_validation[0].value",
      "label": "Issuer (iss) Claim value",
      "type": "text",
      "hint": "The integrator key (also known as client ID) of the application"
    },
 {
      "name": "credential.jwt_provider.jwt_claim_validation[1].value",
      "label": "Subject (sub) Claim value",
      "type": "text",
      "hint": "The user ID of the user to be impersonated"
    },
 {
      "name": "credential.jwt_provider.jwt_claim_validation[2].value",
      "label": "Audience (aud) Claim value",
      "type": "text",
      "defaultValue": "account-d.docusign.com",
      "hint": "The URI of the authentication service instance to be used e.g. account.docusign.com"
    },
    {
      "name": "credential.jwt_provider.jwt_keystore_aliases.kid",
      "label": "Key ID (kid)",
      "type": "text",
      "hint": "Indicates which key was used to secure the JWS"
    },
    {
      "name": "credential.jwt_provider.jwt_keystore_aliases.signing_keystore",
      "label": "Key Store",
      "type": "file"
    }
  ]
}

    Post processing script

    The following post processing script maps user input to fields in the sn_docusign_spoke_accounts table.

    (function execute(aliasId, connectionSysId, jsonDefaultData, jsonDynamicData) {
	var jsonDynamicDataP = JSON.parse(jsonDynamicData);
	var accountGR = new GlideRecord("sn_docusign_spoke_accounts");
    accountGR.setValue("account_name", jsonDynamicDataP["additional.docusign_account_name"]);
    accountGR.setValue("alias", aliasId);
    accountGR.setValue("email", jsonDynamicDataP["additional.docusign_account_email"]);
    accountGR.setValue("id", jsonDynamicDataP["additional.docusign_account_id"]);
    accountGR.insert();
})(aliasId, connectionSysId, jsonDefaultData, jsonDynamicData);

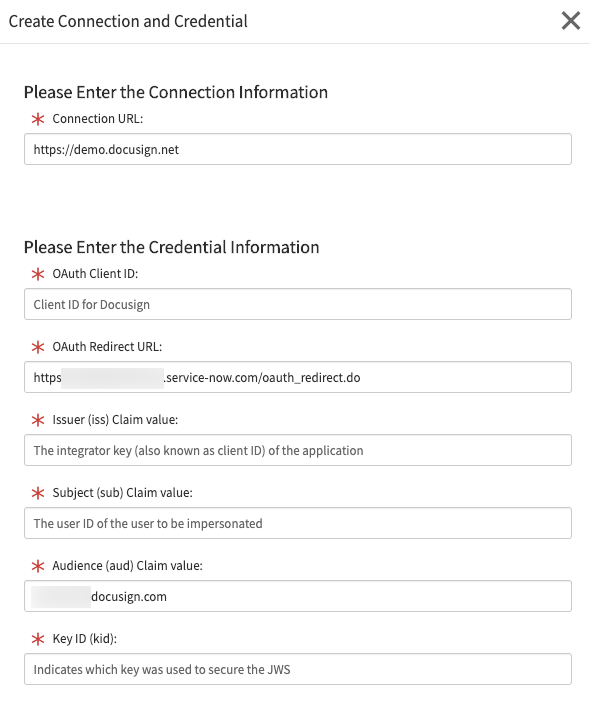

    Resulting Docusign Connection and Credential configuration form

    When the user navigates to the associated Docusign Connection & Credential Alias and selects Create New Connection & Credential, the following dialog appears.

    Docusign form requiring user input.
