OAuth 2.0 credentials

  • Release version: Zurich
  • Updated June 16, 2026
  • 3 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of OAuth 2.0 credentials

    OAuth 2.0 credentials in ServiceNow allow your instance to securely obtain access tokens for user accounts on HTTP services. These credentials enable integrations with OAuth providers by managing authentication details such as grant types, scopes, and token requests. The credentials form in ServiceNow provides configurable fields to define and control OAuth 2.0 authentication behavior.

    Show full answer Show less

    Key Features

    • Name: Assign a unique, descriptive name to identify each OAuth 2.0 credential record.
    • Active: Enable or disable the credential as needed.
    • OAuth Entity Profile: Links the credential to an OAuth profile that includes grant types (e.g., Client Credentials, Authorization Code) and scopes.
    • Connect to Auth Server via MID Server: Allows your ServiceNow instance to connect to OAuth servers behind firewalls or cloud-based servers through a MID Server. This option is available when using specific grant types (Client Credentials, Authorization Code, Resource Owner Password Credentials).

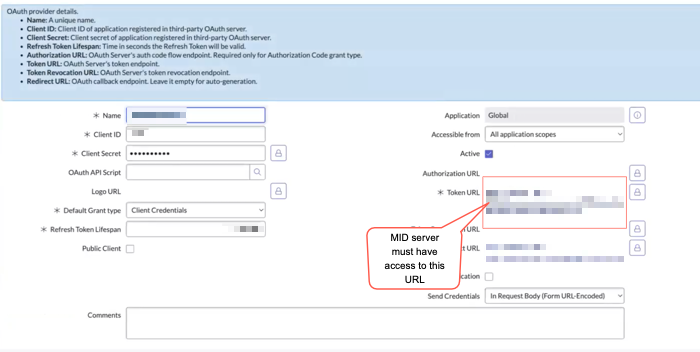

    • Applies to: Defines whether the credential applies to all MID Servers or specific ones. When connecting via MID Server, ensure selected MID Servers can communicate with the OAuth provider’s token URL, are up, validated, and have REST or ALL capability enabled.
    • Order: Sets the priority sequence for credential use during device login attempts, important for managing multiple credentials and preventing account lockouts.
    • Credential Alias: Associates an alias with the OAuth 2.0 credential for easier reference.
    • Integration Type: Specifies how the token is used:
      • System: Retrieves token information based on the requester profile, supporting SAML and JWT authentication mechanisms.
      • Personal: Retrieves user-specific token information; requires the MID Server user to have the oauthadmin role. Supports Authorization Code and Resource Owner Password Credentials grant types.

    Practical Considerations

    • Use Personal integration type to access user-related data requiring user-specific tokens.
    • When invoking APIs with OAuth tokens, ensure the correct integration type and grant type align with your use case.

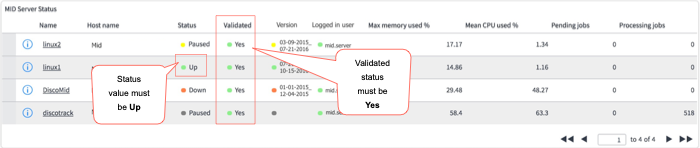

    • If using MID Server connectivity, verify MID Server status and capabilities to ensure successful token requests.
    • To use session user tokens in Flow Designer, set the Run As property to "User who initiates session."

    OAuth 2.0 credentials enable ServiceNow to obtain access to user accounts on an HTTP service.

    These fields are available in the Credentials form for OAuth 2.0.
    Table 1. OAuth 2.0 credentials form
    Field Input value
    Name Enter a unique and descriptive name for this credential. For example, you might call it OAuth2 credential.
    Active Specify whether this credential is active.
    OAuth Entity Profile An OAuth profile is a combination of a grant type and at least one scope.
    Connect to Auth Server via MID Server Connects your ServiceNow instance to an on-premise OAuth server that resides behind a firewall through a MID Server. It can also connect your ServiceNow instance to a cloud-based OAuth server through a MID server. When this option is enabled, the request for an OAuth token is sent through the MID Server.
    Important:
    • The option appears when the value in the Grant type field in the OAuth Entity Profile is set to eitherClient Credentials, Authorization Code, or Resource Owner Password Credentials. To learn how to set an OAuth entity profile for a third-party OAuth provider, see Connect to a third-party OAuth provider.
    • If you select the Connect to Auth Server via MID Server checkbox, you must identify the required MID Server or MID Servers from the Applies to list.
    Applies to

    Specify if the credential record is applicable for all MID Servers, or a specific MID Server. If specific, add the MID servers as necessary.

    Important:

    Ensure that you are aware of these considerations if you have selected the Connect to Auth Server via MID Server check box.
    Order

    Order (sequence) in which Discovery tries this credential as it attempts to log on to devices. The smaller the number, the higher in the list this credential appears. Establish credential order when using large numbers of credentials or when security locks out users after three failed login attempts. If all the credentials have the same order number (or none), the instance tries the credentials in a random order.
    Credential alias Specify the credential alias that you want to tie to the OAuth 2.0 credential.
    Integration Type Indicates the integration type for the credential. Invoke an API of a third-party with an OAuth request that generates an OAuth token that is system or user specific. Following are the integration types:
    • System: Pull the token information based on the requester profile. The System integration type supports the following authentication mechanisms:
      1. Security Assertion Markup Language (SAML)
      2. JSON Web Token (JWT)
    • Personal: Pull the token information that is user-specific. The MID Server user must have the oauth_admin role. The Personal and System integration types support the following grant types:
      1. Authorization Code
      2. Resource Owner Password Credentials

    If this Personal is selected on the OAuth Requestor Profile page, an additional flag called as Personal is displayed.

    Note:
    • Any information that is related to a user can only be accessed with user-specific OAuth tokens with the Integration Type as Personal.
    • To use the session user-related token, you have to select the Run As filed in the Flow properties as User who initiates session.
