Configure integration services for Coupa

  • Rversion finale: Australia
  • Mis à jour 12 mars 2026
  • 1 minute de lecture

    • Configure integration services for Coupa. Provide the connection end point and the Coupa ERP credentials that you set up for your authentication profile. Also, create a separate web service record for each service request that you want to customize.

    Avant de commencer

    • Verify that the application scope is set to Coupa spoke.
    • Verify that the MID Server is installed and configured in your ServiceNow instance to connect to the ERP server. For more details, see Installing the MID Server.
      Remarque :
      The MID Server integration is required only for a Coupa integration using SOAP services.
    • For REST type service, REST API details, as provided by ERP.

    Role required: admin

    Pourquoi et quand exécuter cette tâche

    If the application requires multiple Coupa ERP instances, create separate web services for each ERP instance. You can create Integration Service records for entities using the sn_fcms_intg_service table.

    Procédure

    1. Navigate to All > Finance – ERP Integration > ERP Source Configuration.
    2. Open the ERP source for which you need to configure Integration services.
      For example, Coupa.
    3. In the Integration Services list, select the service that you want to configure.

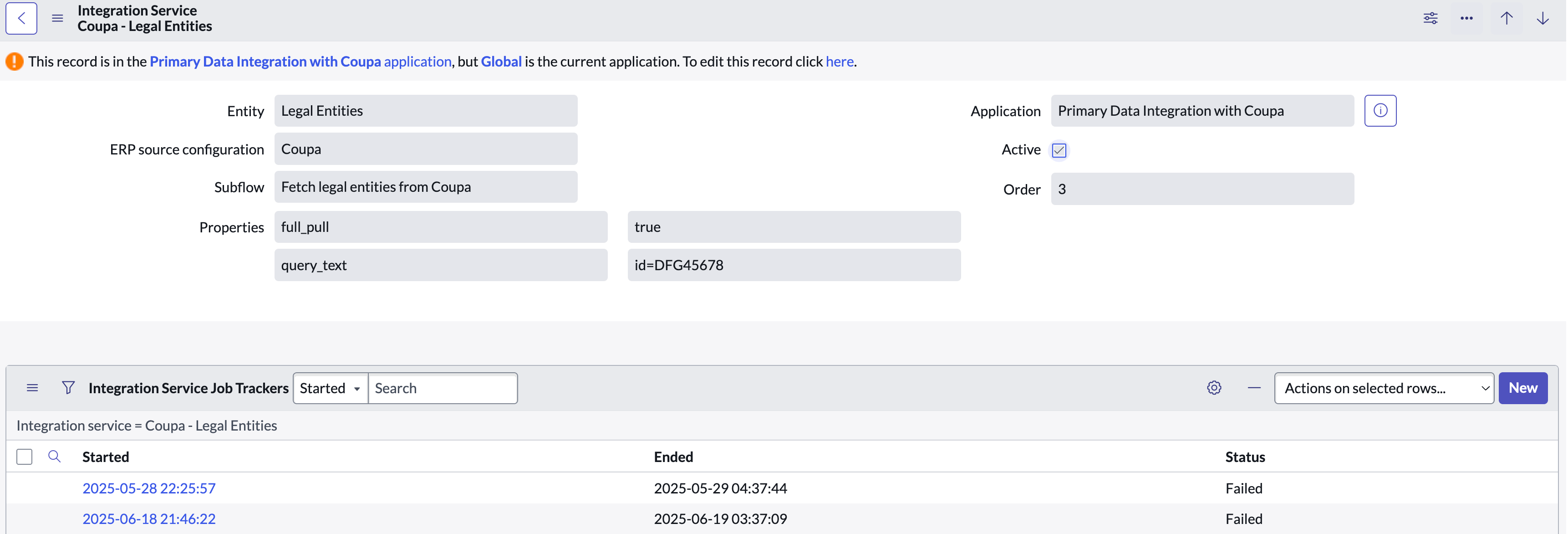

      Figure 1. Look up Legal Entities from Coupa
      Look up Legal Entities from Coupa
    4. On the integration service record, fill in the fields.
      Tableau 1. Integration service record
      Field Description
      Entity Type of entity for which you want to configure the integration service.
      Application Name of the application. For example, Coupa.
      ERP Source configuration The ERP source mapped to the entity. For example, Coupa.
      Active Option to activate the interaction service. By default, the service is inactive.
      Subflow Subflow used to fetch primary data.
      Properties

      Properties of the service.

      The property creates a JSON record in the integration service, which is then passed to the ERP subflows to retrieve complete data.

      To pass JSON into the subflow, create a property named "query" and assign it a JSON query as its value, like this:
      [
  {
    "parameter": "LEGAL_ENTITY_NAME",
    "operator": "=",
    "value": "Vision ADB",
    "operand": "NONE"
  }
]
      • Enabling Full Pull:

        Create a property named "full_pull" and set its value to true

      • Enabling Delta Pull:

        Use this property to fetch the incremental data.

        Set the value of the "full_pull" property to false.
      Order Order in which the entity should be displayed.
    5. Select Update.
