Maximizing code reuse with topic blocks

  • Release version: Zurich
  • Updated August 6, 2025
  • 3 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Maximizing Code Reuse with Topic Blocks

    Topic blocks are reusable components designed for Virtual Agent conversations, enabling users to execute common tasks and streamline the authoring process. By leveraging topic blocks, ServiceNow customers can simplify maintenance and enhance efficiency in their conversational applications.

    Show full answer Show less

    Key Features

    • Reusable Components: Topic blocks serve as subflows that perform specific actions or conversational tasks, such as creating or retrieving records.
    • Virtual Agent Designer: Users can create, test, and publish topic blocks using this tool, which allows for property settings and control definitions.
    • Pre-built Topic Blocks: A variety of pre-built blocks are available, including options for transferring to a live agent, conducting surveys, gathering geolocation data, and more.
    • Nesting Capability: Topic blocks can call other blocks, allowing for complex flows, but cannot call themselves to prevent infinite loops.

    Key Outcomes

    By using topic blocks, ServiceNow customers can:

    • Enhance productivity by reusing common functions across multiple conversations.
    • Quickly build and maintain conversational components, reducing development time.
    • Receive notifications in Virtual Agent Designer when updates to topic blocks may require alterations to calling topics.
    • Utilize a more organized approach to conversation flows, leading to improved user experiences.

    Next steps involve creating, adding, and maintaining topic blocks within your Virtual Agent conversations, ensuring efficient and effective communication processes.

    Topic blocks are reusable components that you can create to run common tasks and conversational elements in Virtual Agent conversations. Topic blocks simplify the topic authoring and maintenance process by enabling you to reuse standard procedures or actions across conversation topics.

    How reusable topic blocks work

    A topic block is basically a subflow that performs certain actions or conversational tasks in a topic. For example, you can build a topic block that creates or retrieves certain types of records. You create topic blocks with Virtual Agent Designer, similar to the way that you build conversation topics. With Virtual Agent Designer, you can do the following:
    • Set topic block properties.
    • Define the controls (nodes) used in the block.
    • Test or preview the block.
    • Publish the block to make it available for use in topics or other topic blocks.

    Unlike topics, topic blocks are not discoverable by a large language model (LLM), Natural Language Understanding (NLU), or keywords. The topic block's functionality can only be accessed by a topic.

    A conversation that uses (consumes) a topic block is referred to as the calling topic. A topic block can call another topic block, but it cannot call itself. You can "nest" topic blocks in this manner, even if the flow returns to the initial topic, as in this example:

    Note:
    If Virtual Agent detects an infinite loop, the conversation ends.

    The Virtual Agent platform and applications provide pre-built topic blocks for common tasks or subflows. You can use these pre-built topic blocks in your conversation topics "as is" in the appropriate application scope by duplicating them. You can then customize these pre-built topic blocks as needed. Some of the common topic blocks include the following.

    Table 1. Examples of pre-built topic blocks
    Pre-built topic blocks Application scope
    • Transfer to Live Agent: Transfers a bot conversation to a live agent.
    • Survey: Presents a survey for collecting feedback for an agent.
    • Geolocation: Gathers information about the user's location.
    • Pause: Insert a pause (in seconds) in the conversation.
    • Deflection: Tracks deflection metrics for the Virtual Agent.
    		 Global. Provided with the Glide Virtual Agent plugin (com.glide.cs.chatbot).
    Contextual search: Uses a search phrase to return search results in a card format, such as knowledge articles and catalog items.

    Common topic block used by the CSM, HR Service Delivery, and ITSM business applications. Provided with the Service Management Virtual Agent Topic Blocks plugin (com.glideapp.cs.sm_topic_blocks). This plugin is included with the Virtual Agent conversation plugins for these business applications.
    Note:
    An updated Assistant Designer Asset library user interface is available when you install Now Assist in Virtual Agent and turn on the Now Assist Topics skill. This content assumes that you have activated this skill and can see the list view. If this skill is not activated, you see the legacy UI and topics page. For more information, see Virtual Agent Designer legacy topics page.

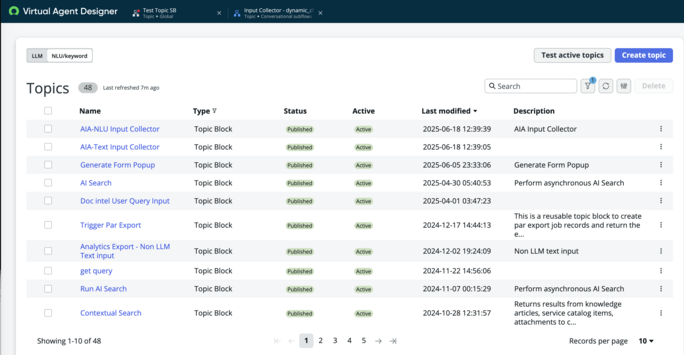

    On the home page, you can use the filter icon Filter icon. to filter and view only the topic blocks.

    Filtered list of topic blocks.

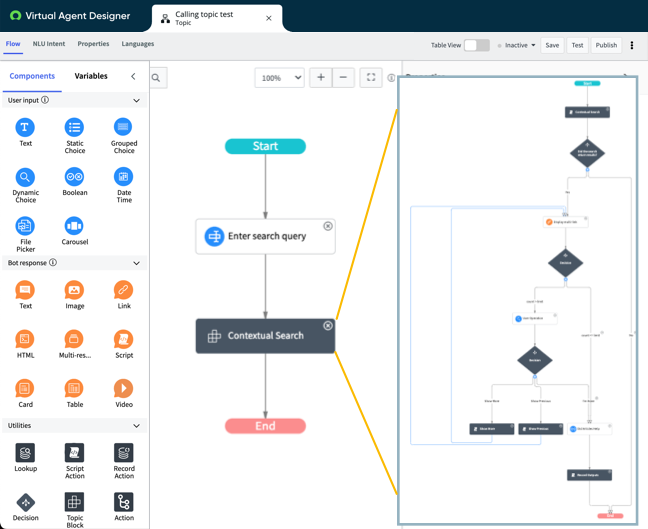

    After you create and publish a topic block, the block is available for use as a Topic Block utility in Virtual Agent Designer. You can add the topic block to a calling topic or to another topic block. In the following example, the calling topic uses the Contextual Search topic block. When a topic calls the Contextual Search topic block, the conversation flow contained in the topic block executes.

    Contextual Search topic block.

    What to do next

    Working with topic blocks involves the following steps:
    1. Create a reusable topic block.

      Build a conversation component that performs a common function that can be reused in Virtual Agent conversations.

    2. Add a reusable topic block to a calling topic or topic block.

      To run a specific subflow, add a reusable topic block to a calling (parent) topic or topic block. Specify the inputs that are used in the topic block and review outputs that are returned from the topic block.

    3. Maintain topic blocks and associated calling topics (as needed).

      When you update a published topic block, Virtual Agent Designer performs certain checks. Displayed messages inform you of changes that you may want to make to calling topics that use the updated block.
