Diagnostic Topic Executor utility
Use the Diagnostic Topic Executor utility in Virtual Agent to ensure the proper function of components in a topic.

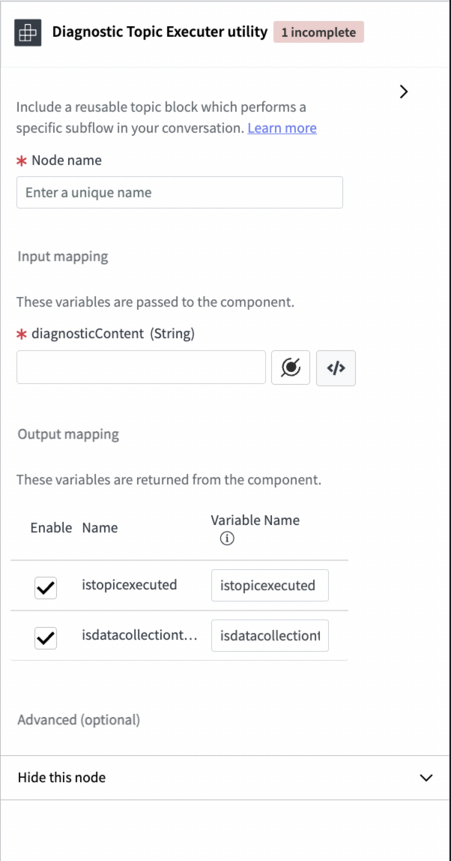

Diagnostic Topic Executor utility properties
Specify the flow action properties for the node that you want to create.
| Property | Description |
|---|---|
| Node name | Name of the node. |
| Input mapping | |
| Diagnostic content | String that is passed to the component being diagnosed. |
| Output mapping | |
| Is topic executed | Option to confirm that the topic executed properly, with variable data returned by the component. Select Enable to activate, and enter a custom variable name for the value if desired. |
| Is data collection topic executed | Option to confirm that the data collection executed properly, with variable data returned by the component. Select Enable to activate, and enter a custom variable name for the value if desired. |
| Advanced | |
| Hide this node | |
| Conditionally show this node if | No-code condition statement or low-code script that specifies a condition for presenting this node in the conversation. The condition must evaluate to true. |
