CdmApplicationsApi

The CdmApplicationsApi provides endpoints that enable you to uploadzoominsoftware.io/utah-devops/ configuration data to the component, collection, deployable, and component variable folders found in the DevOps Config Workspace UI. It also has endpoints that enable you to export deployable configuration data to your DevOps pipeline and manage shared components and shared applications.

The export and upload endpoints use an asynchronous queuing implementation. With this type of implementation, you first call the desired export or upload request endpoint. These endpoints queue your request and return a request identifier. You then use this request identifier to call the appropriate status endpoint, one for uploads and a different one for exports, to obtain the status of the upload/export. For export requests, once the export is complete, you can also request the content of the export.

This API does not provide endpoints that perform simple retrieval of application records. To retrieve these records, use the Table API.

You must have one of the following roles to access this API:

• Scripted REST CDM View ACL (sn_cdm.cdm.viewer)
• Scripted REST CDM Editor ACL (sn_cdm.cdm_editor)

In addition, the Configuration Data Management (CDM) plugin must be activated for this API to be available in an instance.

For additional information on Configuration Data Management and the DevOps Config Workspace UI, see Uploading your config data.

For additional information on shared components and shared libraries, see Sharing components among applications — Component libraries.

CdmApplicationsApi - DELETE /sn_cdm/applications/deployables

Deletes a specified Configuration Data Management (CDM) deployable.

The caller of this endpoint must have the CDM Admin role.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/deployables

Default URL: /api/sn_cdm/applications/deployables

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 1. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 2. Query parameters

Name	Description
appName	Required. Name of the CDM application to which the deployable is associated. Data type: String Table: CDM Deployable [sn_cdm_deployable]
name	Name of the deployable to delete. Data type: String Table: CDM Deployable [sn_cdm_deployable]

Table 3. Request body parameters

Name	Description
None

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 4. Request headers

Header	Description
Accept	Data format of the response body. Only supports application/json.

Table 5. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 6. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad Request. A bad request type or malformed request was detected.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters

Name	Description
None

cURL request

The following code example shows how to remove a deployable.

curl "http://instance.servicenow.com/api/sn_cdm/applications/deployables?appName=testApp&name=Dep-1" \
--request DELETE \
--header "Accept:application/json" \
--user 'username':'password1'

For a successful deletion of the deployable, no response is returned other than the HTTP status code.

None - results defined by the HTTP status code

CdmApplicationsApi - DELETE /sn_cdm/applications/shared_components

Removes the shared component usage reference from a specified Configuration Data Management (CDM) application.

The CDM Admin role is required to access this endpoint.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/shared_components

Default URL: /api/sn_cdm/applications/shared_components

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 7. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 8. Query parameters

Name	Description
appName	Required. Name of the application from which to remove the specified shared component association. The specified application must have the type field set to "shared_library". Data type: String Table: CDM Application [sn_cdm_application]
changesetNumber	Required. Unique identifier of the associated changeset, such as "Chset-10". Data type: String Table: CDM Changeset [sn_cdm_changeset]
sharedComponentName	Required. Unique name of the shared component to remove from the specified application. Data type: String Table: CDM Shared Component [sn_cdm_shared_component]

Table 9. Request body parameters

Name	Description
None

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 10. Request headers

Header	Description
Accept	Data format of the response body. Supported types: application/json or application/xml. Default: application/json

Table 11. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 12. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad Request. A bad request type or malformed request was detected.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters

Name	Description
result	Empty. The HTTP status code indicates the result of the call.
error	If an error occurred during processing, the details about the error. Data type: Object "error": { "detail": "String", "message": "String" }
error.detail	Additional information about the error. Data type: String
error.message	Error message that was generated while trying to process the request. Data type: String
status	Error status of the request. Possible values: failure Data type: String

cURL request

The following code example shows how to delete the "paymentService-V1.1" shared component from the "App1" application.

curl "https://instance-name.service-now.com/api/sn_cdm/applications/shared_components?appName=App1&sharedComponentName=paymentService-V1.1&changesetNumber=Chset-25" \
--request DELETE \
--header "Accept:application/json" \
--user 'username':'password'

Response:

""

CdmApplicationsApi - GET /sn_cdm/applications/deployables/exports/{export_id}/content

Returns the content associated with a specified configuration data export request.

Only call this endpoint once you have received a complete response from the CdmApplicationsApi - GET /sn_cdm/applications/deployables/exports/{export_id}/status endpoint. If you call this endpoint before the export is complete, a 400 status error is returned.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/deployables/exports/{export_id}/content

Default URL: /api/sn_cdm/applications/deployables/exports/{export_id}/content

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 13. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String
export_id	Unique identifier for the export request whose configuration data to return. This value is returned by the CdmApplicationsApi - POST /sn_cdm/applications/deployables/exports endpoint.

Table 14. Query parameters

Name	Description
None

Table 15. Request body parameters (XML or JSON)

Name	Description
None

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 16. Request headers

Header	Description
Accept	Data format of the response body. Only supports application/json.

Table 17. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 18. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad Request. A bad request type or malformed request was detected.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters (JSON or XML)

Name	Description
errors	Description of the errors encountered during export. Data type: String
export_id	Export request ID. Same as that passed into the endpoint. Data type: String
exporter_result	Content of the specified configuration data export. Data type: JSON object: If the request was to export data in JSON format. String: If the request was to export data in any other format.
request_id	Export request ID. Same as that passed into the endpoint. Data type: String
state	Current state of the specified export. Possible values: completed error in_progress new ready Data type: String Table: In state column of the CDM Request Queue [sn_cdm_request_queue] table.

cURL request

The following example requests the configuration data of an export request with the ID of 3ab14a7d53b1301096edddeeff7b12f.

curl "http://instance.servicenow.com/api/sn_cdm/applications/deployables/exports/3ab14a7d53b1301096edddeeff7b12f/content" \
--request GET \
--header "Accept:application/json" \
--user 'username':'password'

The following shows the possible return results.

// Successful completion of the export request
{
  "result": {
    "export_id": "3ab14a7d53b1301096edddeeff7b12f"
    "exporter_result": "DEP1.COMP.cdi_1=cdi-1-value"
  }
}

// Response when an incorrect export_id is passed. Note: Status code is 200.
{
  "result": {
    "request_id": "3ab14a7d53b1301096edddeeff7b12e",
    "state": "error",
    "errors": "Invalid requestId '3ab14a7d53b1301096edddeeff7b12fe'",
    "export_id": "3ab14a7d53b1301096edddeeff7b12e"
  }
}

CdmApplicationsApi - GET /sn_cdm/applications/deployables/exports/{export_id}/status

Returns the current status of the specified configuration data export request.

Use the CdmApplicationsApi - POST /sn_cdm/applications/deployables/exports endpoint to make an export request.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/deployables/exports/{export_id}/status

Default URL: /api/sn_cdm/applications/deployables/exports/{export_id}/status

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 19. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String
export_id	Sys_id of the export request whose status to return. This value is returned by the CdmApplicationsApi - POST /sn_cdm/applications/deployables/exports endpoint.

Table 20. Query parameters

Name	Description
None

Table 21. Request body parameters (XML or JSON)

Name	Description
None

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 22. Request headers

Header	Description
Accept	Data format of the response body. Only supports application/json.

Table 23. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 24. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad Request. A bad request type or malformed request was detected.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters (JSON or XML)

Name	Description
errors	Description of the errors encountered during export. Data type: String
export_id	Export request ID. Same as that passed into the endpoint. Data type: String
exporter_result	Details about the associated error. Data type: Object
exporter_result.errors	Description of the error(s) encountered during export. Data type: Array
exporter_result.execution_id	Unique identifier for the exporter execution record. Data type: String Table: CDM Exporter Execution [sn_cdm_exporter_execution]
exporter_result.state	Current state of the specified export. Possible values: complete error in_progress new Data type: String Table: CDM Exporter Execution [sn_cdm_exporter_execution]
request_id	Export request ID. Same as that passed into the endpoint. Data type: String
state	Current state of the specified export. Possible values: completed error in_progress new ready Data type: String Table: In state column of the CDM Request Queue [sn_cdm_request_queue] table.

cURL request

The following example requests the status of an export with the ID of 3ab14a7d53b1301096edddeeff7b12f.

curl "http://instance.servicenow.com/api/sn_cdm/applications/deployables/exports/3ab14a7d53b1301096edddeeff7b12f/status" \
--request GET \
--header "Accept:application/json" \
--user 'username':'password'

The following are the possible return results.

// Successful completion of the export request
{
  "result": {
    "state": "completed",
    "export_id": "3ab14a7d53b1301096edddeeff7b12f0"
  }
}

// Response when an incorrect export_id is passed. Note: Status code is 200.
{
  "result": {
    "request_id": "3ac8e1b05311301096edddeeff7b123c",
    "state": "error",
    "errors": "Invalid requestId '3ac8e1b05311301096edddeeff7b123c'",
    "export_id": "3ac8e1b05311301096edddeeff7b123c"
  }
}

// Response when the export encounters an error. The exporter_result array contains the error information. Note: Status code is 200.
{
  "result": {
    "state": "completed",
    "export_id": "24536c3353f9301096edddeeff7b12b1",
    "exporter_result": {
      "execution_id": "81536c3353f9301096edddeeff7b129e",
      "state": "failure",
      "errors": [
        "Snapshot 'SNA-001-published-non_compliant' has not passed validation. All snapshots of deployable '/ApplicationA/deployables/DEP3' are required to pass validation"
      ]
    }
  }
}

CdmApplicationsApi - GET /sn_cdm/applications/shared_components

Returns the list of shared components used by a specified application. You can also specify to only return those shared components that have a new version available.

The CDM Admin role is required to access this endpoint.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/shared_components

Default URL: /api/sn_cdm/applications/shared_components

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 25. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 26. Query parameters

Name	Description
appName	Required. Name of the application whose list of shared components you want returned. The type field of the application must be set to shared_library. Data type: String Table: CDM Application [sn_cdm_application]
withUpdatesOnly	Flag that indicates whether to only return shared components that have a new updated version available. Valid values: true: Only return shared components that have a new updated version available. false: Return all shared components used by the specified application. Default: false

Table 27. Request body parameters (XML or JSON)

Name	Description
None

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 28. Request headers

Header	Description
Accept	Data format of the response body. Supported types: application/json or application/xml. Default: application/json

Table 29. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 30. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad Request. A bad request type or malformed request was detected.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters

Name	Description
currentVersion	Current version of the CDM application. Data type: Number (Integer)
currentVersionName	Name of shared component version currently in use. Data type: String
description	Description of shared component. Data type: String
error	If an error occurred during processing, the details about the error. Data type: Object "error": { "detail": "String", "message": "String" }
error.detail	Additional information about the error. Data type: String
error.message	Error message that was generated while trying to process the request. Data type: String
name	Unique name of the shared component. Data type: String
sharedLibraryName	Name of shared library to which the shared component belongs. Data type: String
status	Error status of the request. Possible values: failure Data type: String
updateVersionName	Name of shared component version available for update. Data type: String

cURL request

The following code example shows how to call this endpoint to retrieve the shared components that have a new version used by "App1".

curl "https://instance-name.service-now.com/api/sn_cdm/applications/shared_components?updatesOnly=true&appName=App1" \
--request GET \
--header "Accept:application/json" \
--user 'username':'password'

Response:

{
  "result": [
    {
      "name": "Component_Name",
      "description": "”,
      "sharedLibraryName": "Shared Library",
      "currentVersion": "2",
      "currentVersionName": "Component_A-v2.shc",
      "updateVersionName": "Component_A-v3.shc"
    }
  ]
}

CdmApplicationsApi - GET /sn_cdm/applications/shared_libraries/components/applications

Returns a map of shared components and the applications that use them that are within a specified library.

The CDM Admin role is required to access this endpoint.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/shared_libraries/components/applications

Default URL: /api/sn_cdm/applications/shared_libraries/components/applications

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 31. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 32. Query parameters

Name	Description
sharedComponentName	Required. Name of the shared component to include in the map. Data type: String Table: CDM Shared Component [sn_cdm_shared_component]
sharedLibraryName	Required. Name of the shared library to include in the map. The specified application must have the type field set to "shared_library". Data type: String Table: CDM Application [sn_cdm_application]

Table 33. Request body parameters

Name	Description
None

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 34. Request headers

Header	Description
Accept	Data format of the response body. Supported types: application/json or application/xml. Default: application/json

Table 35. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 36. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad Request. A bad request type or malformed request was detected.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters

Name	Description
description	Description of application using shared component Data type: String
error	If an error occurred during processing, the details about the error. Data type: Object "error": { "detail": "String", "message": "String" }
error.detail	Additional information about the error. Data type: String
error.message	Error message that was generated while trying to process the request. Data type: String
managed_by_group	Comma-separated list of sys_ids of the groups that can manage the application. Data type: String
name	Unique name of the application using the component. Data type: String
status	Error status of the request. Possible values: failure Data type: String
sys_id	Sys_id of the application utilizing the shared component. Data type: String

cURL request

The following code example shows how to call this endpoint to retrieve the map that shows the applications in the "OracleG-Library-10" shared library that use the "paymentService-V1.1" shared component.

curl "https://instance-name.service-now.com/api/sn_cdm/applications/shared_libraries/components/applications?sharedLibraryName=OracleG-Library-10&sharedComponentName=paymentService-V1.1" \
--request GET \
--header "Accept:application/json" \
--user 'username':'password'

Response:

{
  "result": {
    "component_name": [
      {
        "name": "App Name",
        "description": "desc",
        "managed_by_group": null,
        "sys_id": "4e7808bb1b371110636e0fe0604bcb08"
      },
      {
        "name": "Config App",
        "description": "desc",
        "managed_by_group": null,
        "sys_id": "55a75cfb1b771110636e0fe0604bcb5c"
      },
      {
        "name": "Database App",
        "description": "desc",
        "managed_by_group": null,
        "sys_id": "2eb7503f1b771110636e0fe0604bcb06"
      }
    ]
  }
}

CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id}

Returns the current status of the specified configuration data upload request.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/upload-status/{upload_id}

Default URL: /api/sn_cdm/applications/upload-status/{upload_id}

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 37. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String
upload_id	Sys_id of the upload request whose status to return. This value is returned by the various CdmApplications upload request endpoints.

Table 38. Query parameters

Name	Description
None

Table 39. Request body parameters (XML or JSON)

Name	Description
None

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 40. Request headers

Header	Description
Accept	Data format of the response body. Only supports application/json.

Table 41. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 42. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad Request. A bad request type or malformed request was detected.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters (JSON or XML)

Name	Description
errors	Description of the error(s) encountered during upload. Data type: String
output	Description of the uploaded data or if an error occurred during the upload, an error message describing the error that was encountered. Data type: Array of String "output": { "auto_validate": "String", "cdm_application": "String", "committed_at": "String", "committed_by": "String", "description": "String", "last_conflict_detection_time": "String", "number": "String", "publish_option": "String", "snapshot_description": "String", "snapshot_name": "String", "state": "String", "sys_created_by": "String", "sys_id": "String", "title": "String" }
output.auto_validate	Indicates whether to invoke validation after the commit. Data type: String
output.cdm_application	Name of application under which the upload was performed. Data type: String
output.committed_at	Date and time that the uploaded content was committed. Data type: String
output.committed_by	Sys_id of the record of the entity that performed the commit. Data type: String
output.description	Not currently used. Data type: String
output.last_conflict_detection_time	Date and time conflict detection invocation. Data type: String
output.number	Unique number of the changeset. Data type: String
output.publish_option	Publish option for the associated configured snapshots. Valid values: publish_none: Don't publish any snapshots. publish_valid: Publish only those snapshots that pass validation after the commit. For additional information on publishing snapshots, see Publish or unpublish a snapshot. Data type: String Default: publish_none Note: This option is only available if the value for the autoCommit parameter is true.
output.snapshot_description	Description of the associated snapshot. Data type: String
output.snapshot_name	Name of the associated snapshot. Data type: String
output.state	State of the upload content. Possible values: blocked checking_for_conflict commit_failed commit_in_progress committed open Data type: String
output.sys_created_by	Sys_id of the entity that created the record. Data type: String
output.sys_id	Sys_id of the record containing the changeset. Data type: String
output.title	Title of changeset created as part of the upload. Data type: String
processing_state	Current processing state of the upload request. Possible values: NOT_PROCESSED PROCESSED Data type: String
state	Current state of the upload request. Possible values: completed error in_progress new ready
type	Type of upload request. Possible values: commit upload_and_commit Data type: String
upload_id	Sys_id of the upload request. Use this ID to call the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} endpoint to obtain the status of the upload. Data type: String

cURL request

The following example show requesting the status for an upload with the ID of 5560a6895326301096edddeeff7b1230.

curl "http://instance.servicenow.com/api/sn_cdm/applications/upload-status/5560a6895326301096edddeeff7b1230" \
--request GET \
--header "Accept:application/json" \
--user 'username':'password'

The following are the possible return results.

// Successful completion of the upload request
{
  "result": {
    "type": "upload_and_commit",
    "state": "completed",
    "output": {
      "sys_id": "be681dc95362301096edddeeff7b12ba",
      "number": "Chset-102",
      "title": "admin2021-09-10 08:09:07",
      "description": null,
      "committed_at": "2021-09-10 20:23:37",
      "committed_by": "6816f79cc0a8016401c5a33be04be441",
      "sys_created_by": "admin",
      "state": "committed",
      "publish_option": "publish_none",
      "auto_validate": false,
      "snapshot_name": null,
      "snapshot_description": null,
      "cdm_application": "Demo_App1631126164773",
      "last_conflict_detection_time": "1631305417894"
    },
    "processing_state": "PROCESSED",
    "upload_id": "5560a6895326301096edddeeff7b1230"
  }
}

// Response when an incorrect upload_id is passed. Note: Status code is 200.
{
  "result": {
    "state": "error",
    "errors": "Invalid requestId '5560a6895326301096edddeeff7b1240'",
    "upload_id": "5560a6895326301096edddeeff7b1240"
  }
}

// Response when the upload encounters an error. The exporter_result array contains the error information. Note: Status code is 200.
{
  "result": {
    "type": "upload_and_commit",
    "state": "error",
    "output": "Error encountered during execution of request.\nError: Node 'dbSettings' of type 'sg_cdm_node_component' cannot create child 'dbSettings' of type 'sg_cdm_node_folder'",
    "processing_state": "PROCESSED",
    "upload_id": "272f8a415326301096edddeeff7b1232"
  }
}

CdmApplicationsApi - POST /sn_cdm/applications/deployables

Creates a new deployable and automatically connects it to a specified Configuration Data Management (CDM) application.

You can create a deployable for any one of three environment types: Development, Test, or Production.

To access this endpoint the caller must have the CDM Admin role.

If you need to create multiple deployables, use the CdmApplicationsApi - POST /sn_cdm/applications/deployables/create endpoint.

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/deployables

Default URL: /api/sn_cdm/applications/deployables

Supported request parameters

Table 43. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 44. Query parameters

Name	Description
appName	Required. Name of an existing, active CDM application to associate with the deployable. Data type: String Table: CDM Application [sn_cdm_application]
envType	Required. Environment type for the deployable. Valid values (case-sensitive): Development Production Test Note: The deployable environment type can't be changed after creation. Data type: String
name	Required. Name of the CDM deployable. Should not be more than 255 chars. Default allowed characters are 0-9, A-Z, a-z, _,-,., %, $, whitespace, :, #. Data type: String Maximum length: 255 characters Allowable characters: 0-9, A-Z, a-z, _, -, ., %, $, whitespace, :, and #
returnFields	List of fields to return as part of the response. Pass the record column names such as sys_id, sys_updated_by, or state. Data type: Array Default: All fields as determined by the endpoint

Table 45. Request body parameters

Name	Description
None

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 46. Request headers

Header	Description
Accept	Data format of the response body. Only supports application/json.
Content-Type	Data format of the request body. Only supports application/json.

Table 47. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 48. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad Request. A bad request type or malformed request was detected.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters

Name	Description
cdi_count	Number of configuration data items (CDIs) contained in the associated CDM application. Data type: Number (Integer)
cdi_usage	Percentage of the CDIs used by the deployable. Data type: Number (Integer)
cdm_app	CDM application object associated with the deployable. Data type: Object "cdm_app": { "link": "String", "value": "String" }
cdm_app.link	Call to use to access the CDM application record using the REST Table API. Data type: String
cdm_app.value	Sys_id of the associated CDM application record. Data type: String Table: CDM Application [sn_cdm_application]
cdm_ci	Application service object associated with the deployable. Data type: Object "cdm_ci": { "link": "String", "value": "String" }
cdm_ci.link	Call to use to access the application service record using the REST Table API. Data type: String
cdm_ci.value	Sys_id of the associated application service record. Data type: String Table: Configuration Item [cmdb_ci]
description	Description of the generated CDM deployable. Data type: String
environment_type	Environment type of the deployable. Possible values: Development Production Test Data type: String
error	Only returned if an error occurred during processing. Data type: Object "error": { "detail": "String", "message": "String" }
error.detail	Additional information about the error. Data type: String
error.message	Error message that was generated while trying to process the request. Data type: String
name	Name of the CDM deployable. Data type: String
node	Details about the deployable node. Data type: Object "node": { "link": "String", "value": "String" }
node.link	Call to use to access the deployable node record using the REST Table API. Data type: String
node.value	Sys_id of the deployable node record. Data type: String Table: CDM Deployable [sn_cdm_deployable]
snapshot_version_counter	Number of snapshots created for the deployable. Data type: Number (Integer)
state	Current state of the deployable. Possible values: active deleted Data type: String
sys_created_by	User name of the user that created the CDM deployable. For example, able.tuter. Data type: String
sys_created_on	Date and time when the CDM deployable was created. Data type: String Format: YYYY-mm-DD hh:mm:ss
sys_id	Sys_id of the created deployable. Data type: String Table: CDM Deployable [sn_cdm_deployable]
sys_updated_by	User name of the user that last updated the CDM deployable. For example, able.tuter. Data type: String
sys_updated_on	Date and time when the CDM deployable was last updated. Data type: String Format: YYYY-mm-DD hh:mm:ss

cURL request

The following code example shows how to create and associate a deployable to a CDM application.

curl "http://instance.servicenow.com/api/sn_cdm/applications/deployables?name=Dep-1&returnFields=name%2Csys_id%2Cstate&appName=testApp&envType=Test" \
--request POST \
--header "Accept:application/json" \
--user 'username':'password1'

Return results:

{
  "result": [
    {
      "cmdb_ci": {
        "value": "f5b9e00b53901110a1d3ddeeff7b12b8",
        "link": "http://192.168.0.233:8080/api/now/table/cmdb_ci_service_auto/f5b9e00b53901110a1d3ddeeff7b12b8"
      },
      "cdi_count": "0",
      "snapshot_version_counter": "0",
      "description": null,
      "sys_updated_on": "2022-06-29 12:53:57",
      "environment_type": "Test",
      "node": {
        "value": "7db9e00b53901110a1d3ddeeff7b12b6",
        "link": "http://192.168.0.233:8080/api/now/table/sn_cdm_node/7db9e00b53901110a1d3ddeeff7b12b6"
      },
      "sys_id": "39b9e00b53901110a1d3ddeeff7b12b7",
      "sys_updated_by": "admin",
      "cdm_app": {
        "value": "62b517a953b70110a1d3ddeeff7b128c",
        "link": "http://192.168.0.233:8080/api/now/table/sn_cdm_application/62b517a953b70110a1d3ddeeff7b128c"
      },
      "sys_created_on": "2022-06-29 12:53:57",
      "cdi_usage": "0",
      "name": "Dep-2",
      "state": "active",
      "sys_created_by": "admin"
    }
  ]
}

CdmApplicationsApi - POST /sn_cdm/applications/deployables/create

Creates one or more new deployables.

You can create one of two types of deployables:

• Deployables that must be manually connected to an Application Model (CI Service).
• Deployables that are automatically connected to new, dynamically created Application Models (CI Services).

You can create a deployable for any one of three environment types: Development, Test, or Production. When creating multiple deployables, the auto-generated names of the deployables follow the pattern: DeployableType_Number, where Number is a running sequence number based on the creation of a new deployable. For example, if you create three deployables of type Test in an endpoint call, they are named Test_1, Test_2, and Test_3. If you then call the endpoint again, and create a different Test deployable, its auto-gen'd name is Test_4. These numbers are never reused, even if a deployable is deleted.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/deployables/create

Default URL: /api/sn_cdm/applications/deployables/create

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 49. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 50. Query parameters

Name	Description
appSysId	Required. Sys_id of an active CDM Application to associate with the deployables. Data type: String
autoConnect	Required. Flag that determines whether to automatically connect the newly created deployables to dynamically generated Application Models. Valid values: true: Connect the newly created deployables to dynamically generated Application Models. false: Just create the deployables. These deployables must be manually mapped to Application Models using the UI. Data type: Boolean
envType	Required. Environment type for the deployable. Valid values (case-sensitive): Development Production Test Note: The deployable environment type can't be changed after creation. Data type: String
quantity	Required. Number of deployables to create. Data type: Number

Table 51. Request body parameters (XML or JSON)

Name	Description
None

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 52. Request headers

Header	Description
Accept	Data format of the response body. Only supports application/json.
Content-Type	Data format of the request body. Only supports application/json.

Table 53. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 54. Status codes

Status code	Description
200	Successful. The request was successfully processed.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters

Name	Description
error	If an error occurred during processing, the details about the error. Data type: Object "error": { "detail": "String", "message": "String" }
error.detail	Additional information about the error. Data type: String
error.message	Error message that was generated while trying to process the request. Data type: String
result	Sys_ids of the created deployables. Data type: Array
status	Error status of the request. Possible values: failure Data type: String

cURL request

The following example shows how to create a single deployable and associate it with and existing CDM application.

curl "http://instance.servicenow.com/api/sn_cdm/applications/deployables/create?envType=Production&appSysId=5e118055b712011054c1e5a6ce11a9d4&quantity=5&autoConnect=true" \
--request POST \
--header "Accept:application/json" \
--header "Content-Type:application/json" \
--user 'username':'password'

The following shows the possible responses to this call, both as a success and an error.

// Successful completion of the upload request
{
  "result": [
    "8ba43a3db7d6011054c1e5a6ce11a9a4",
    "93a47a3db7d6011054c1e5a6ce11a90d",
    "dba47a3db7d6011054c1e5a6ce11a91d",
    "6fa47a3db7d6011054c1e5a6ce11a921",
    "efa47a3db7d6011054c1e5a6ce11a925"
  ]
}

// Error response
{
  "error": {
    "message": "Error: CDM Application with SysID 5e118055b712011054c1e5a6ce11a9d1 was not found. (sys_script_include.8cf0fbf453626010a1d3ddeeff7b12fe.script; line 211)",
    "detail": ""
  },
  "status": "failure"
}

CdmApplicationsApi - POST /sn_cdm/applications/deployables/exports

Submits a request to export the current snapshot for a specified application and one or more deployables into the CDM Exporter Cache [sn_cdm_exporter_cache] table.

This endpoint returns a unique identifier for the request, which you then use to call the CdmApplicationsApi - GET /sn_cdm/applications/deployables/exports/{export_id}/status endpoint to retrieve the status of the export. Once the export is complete, you can use the CdmApplicationsApi - GET /sn_cdm/applications/deployables/exports/{export_id}/content endpoint to retrieve the associated application's configuration data.

A snapshot is the complete data model of a deployable at the time a configuration change is committed. This includes any included components, collections, and vars, as well as deployable-specific vars and overrides. For additional information on deployables, see Create and update a deployable.

Note:

Snapshots cannot exceed 10,000 configuration data items (CDIs) per deployable or 100,000 CDIs per application.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/deployables/exports

Default URL: /api/sn_cdm/applications/deployables/exports

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 55. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 56. Query parameters

Name	Description
additionalDeployables	Non-primary deployables to export. Data type: Array of Objects "additionalDeployables": [ { "app_name": "String", "deployable_name": "String" } ] For example: [{'app_name':'TestApp', "deployable_name:'DEP-1'}] Default: Empty array - []
additionalDeployables.app_name	Required if additionalDeployables array is specified. Name of the application associated with the deployable whose configuration data you want to export. Data type: String
additionalDeployables.deployable_name	Required if additionalDeployables array is specified. Name of the non-primary deployable whose configuration data you want to export. Data type: String
appName	Required. Name of the application whose configuration data you want to export. Data type: String
args	A JSON object containing key-value pairs for custom arguments. Data type: Object
dataFormat	Output format of the exported data. Valid values (case-sensitive): ini json properties raw (Data is returned in String format) xml yaml Data type: String Default: json
deployableName	Required. Name of the deployable whose configuration data you want to export. Data type: String
exporterName	Required. Name of the exporter to use to export the snapshot data. Exporters are custom to the implementer. For details on creating a custom exporter, see Create a custom exporter. Data type: String
restrictExport	Flag that indicates whether the endpoint validates snapshots when exporting the data. Valid values: true: Validate snapshots. false: Don't validate snapshots. Data type: Boolean Default: false
snapshotName	Name of the snapshot to export. This can only be one of the snapshot names associated with the deployable as specified in the deployableName or additionalDeployables.deployable_name parameters. Default: The endpoint exports the latest published snapshot. If there is not a published snapshot, the system throws the error “Failed to find latest published snapshot for deployable '{0}'”

Table 57. Request body parameters (XML or JSON)

Name	Description
None

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 58. Request headers

Header	Description
Accept	Data format of the response body. Only supports application/json.
Content-Type	Data format of the request body. Only supports application/json.

Table 59. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 60. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad Request. A bad request type or malformed request was detected. Possible error messages: Error: Missing required param 'appName' Error: User does not have necessary permission to create Export request Error: Invalid Boolean value (<xyz>).
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters

Name	Description
error	Details about the error that occurred. Data type: Array "error": { "detail": "String", "message": "String" }
error.detail	Additional information about the error. Data type: String
error.message	Error message that was generated while trying to process the request. Data type: String
export_id	Unique identifier of the export request. Use this ID when calling the CdmApplicationsApi - GET /sn_cdm/applications/deployables/exports/{export_id}/status endpoint to check the current status of the export request. Data type: String
status	Error status of the request. Possible values: failure Data type: String

cURL request

The following example requests the export of the configuration data for the following: application name = TestAppA, deployable name = DEP, using the exporter = exporter-1-primary_deployable.

curl "http://instance.servicenow.com/api/sn_cdm/applications/deployables/exports?appName=TestAppA&args=%7B%22arg_A_required%22%20%3A%20%22value%20A%22%7D&exporterName=exporter-1-primary_deployable&deployableName=DEP1" \
--request POST \
--header "Accept:application/json" \
--header "Content-Type:application/json" \
--user 'username':'password'

Returns the unique identifier of the export request.

{
  "result": {
    "export_id": "64b5f79f5379301096edddeeff7b12eb"
  }
}

CdmApplicationsApi - POST /sn_cdm/applications/shared_components

Associates the specified shared component to the application within a specified changeset.

The CDM Admin role is required to access this endpoint.

Note:

The specified shared component must have an associated published version (snapshot).

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/shared_components

Default URL: /api/sn_cdm/applications/shared_components

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 61. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 62. Query parameters

Name	Description
appName	Required. Name of the application to associate with the shared component. Data type: String
changesetNumber	Required. Unique identifier of the changeset associated with the component. Data type: String
returnFields	List of fields to return as part of the response. Pass the record column names such as sys_id, sys_updated_by, or state. Data type: Array Default: All fields as determined by the endpoint
sharedComponentName	Required. Name of the shared component to associate with the specified application. Data type: String Table: CDM Shared Component [sn_cdm_shared_component]
sharedLibraryName	Required. Name of the shared library under which to create the component. The shared library must have the following fields defined as follows: state = active available = true type = shared_library Data type: String Table: CDM Application [sn_cdm_application]

Table 63. Request body parameters

Name	Description
None

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 64. Request headers

Header	Description
Accept	Data format of the response body. Supported types: application/json or application/xml. Default: application/json

Table 65. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 66. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad Request. The passed changeset doesn't exist.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters

The response fields depend on what fields were specified in the returnFields parameter in the request. The following describes some of the more important fields.

Name	Description
changeset_id	Details of the changeset record associated with the node. Data type: Object "changeset_id": { "link": "String", "value": "String" }
changeset_id.link	Call syntax for querying this changeset record using the Table REST API. Data type: String
changeset_id.value	Unique identifier of the changeset record. Data type: String Table: CDM Changeset [sn_cdm_changeset]
description	Description of the CDM node. Data type: String
error	Only returned if an error occurred during processing. Data type: Object "error": { "detail": "String", "message": "String" }
error.detail	Details about the error that occurred. Data type: String
error.message	Message that provides an overview of the error. Data type: String
linked_to	ID of the main node associated with the shared component. Data type: String
linked_to_version	Details of the CDM snapshot record associated with the node. Data type: Object "linked_to_version": { "link": "String", "value": "String" }
linked_to_version.link	Call syntax for querying this version record using the Table REST API. Data type: String
linked_to_version.value	Sys_id of the version record. Data type: String
main	Flag that indicates whether the associated snapshot was published. Valid values: true: Snapshot was published. false: Snapshot wasn't published.
main_id	Unique ID of the newly created main node. Data type: String
main_id_encoded	Encoded ID of the newly created main node. Data type: String
name	Name of the CDM node. Data type: String
node	Sys_id of the shared component node. Data type: String
node_path	Path to the new linked node created when adding the shared component. Data type: String
status	Status of the node. Possible values: New Data type: String
sys_created_by	User name of the user that create the CDM node. For example, able.tuter. Data type: String
sys_created_on	Date and time when the CDM node was created. Format: YYYY-mm-DD hh:mm:ss Data type: String
sys_id	Sys_id of the node. Data type: String Table: CDM Node [sn_cdm_node]
sys_updated_by	User name of the user that last updated the CDM node. For example, able.tuter. Data type: String
sys_updated_on	Date and time when the CDM node was last updated. Format: YYYY-mm-DD hh:mm:ss Data type: String
type	Node type. Data type: String

cURL request

The following example shows how to call this endpoint to associate the application "App1" with the shared component "paymentService-V1.1" under the shared library "OracleG-Library-10" within the "Chset-20" changeset.

curl "https://instance.servicenow.com/api/sn_cdm/applications/shared_components?appName=App1&changesetNumber=Chset-20&sharedLibraryName=OracleG-Library-10&sharedComponentName=paymentService-V1.1" \
--request POST \
--header "Accept:application/json" \
--user 'username':'password'

Response:

{
  "result": {
    "changeset_id": {
      "value": "74b7ff6fc33711100c257e2cc840dd6b",
      "link": "http://instance.servicenow.com/api/now/table/sn_cdm_changeset/74b7ff6fc33711100c257e2cc840dd6b"
    },
    "node_path": "!,0!,1!/D",
    "description": null,
    "sys_updated_on": "2022-12-22 17:07:29",
    "type": "sn_cdm_node_linked_shared_component",
    "sys_class_name": "sn_cdm_node",
    "sys_id": "ff8b37ebc3b711100c257e2cc840ddba",
    "sys_updated_by": "admin",
    "previous_version": null,
    "sys_created_on": "2022-12-22 17:07:29",
    "value": null,
    "effective_from": null,
    "linked_to": "210",
    "sys_created_by": "admin",
    "restricted_to": null,
    "linked_to_version": {
      "value": "581fc3e9c3b311100c257e2cc840dd17",
      "link": "http://instance.servicenow.com/api/now/table/sn_cdm_snapshot/581fc3e9c3b311100c257e2cc840dd17"
    },
    "level": "2",
    "conflict_type": null,
    "main_id": "483",
    "effective_to": null,
    "secure_value": null,
    "node_classifier": "/application/components",
    "main_id_encoded": "/D",
    "name": "LIB2_C",
    "position": null,
    "reason_for_conflict": null,
    "system_folder": false,
    "status": "new",
    "conflict": false
  }
}

CdmApplicationsApi - POST /sn_cdm/applications/uploads/components

Submits a request to upload the passed-in configuration data for a specific component, within the system components folder, for the specified application.

This endpoint returns the ID of the upload request. Use this ID to call the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} endpoint to obtain the status of the upload.

Note:

The maximum default upload content size is 2 MB. You can modify this default by updating the property sn_cdm.max_allowed_upload_file_size.

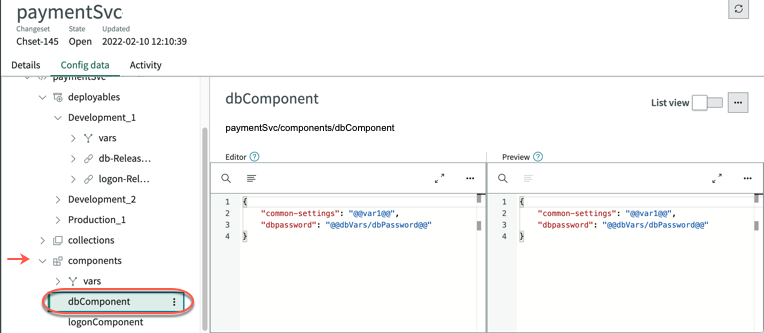

The following image shows an example of where the component configuration data is uploaded in reference to the ServiceNow DevOps Config UI. Assumes the component is dbComponent and the application is paymentSvc.

Note:

This upload method cannot be used to modify nodes. Use the alternative CdmApplicationsApi - POST sn_cdm/applications/uploads/components/file method to modify nodes.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/uploads/components

Default URL: /api/sn_cdm/applications/uploads/components

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 67. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 68. Query parameters

Name	Description
appName	Name of the application to associate with the configuration data. This application must be in the active state. Data type: String Table: CDM Application [sn_cdm_application]
autoCommit	Flag that indicates whether the changeset identified in the changesetNumber parameter is committed to the data model after upload. Valid values: true: Changeset is committed after upload. false: Changeset isn't committed after upload. Data type: Boolean Default: false
autoDelete	Flag that indicates whether the existing nodes, that aren’t part of the upload content, are deleted after the processing is complete. Valid values: true: Automatically delete existing nodes. false: Don't automatically delete existing nodes. Data type: Boolean Default: false
autoValidate	Flag that indicates whether the snapshots created when committed are validated. Valid values: true: Validate the snapshots. false: Don't validate the snapshots. Note: This option is only available if the autoCommit parameter is true. Data type: Boolean Default: false
changesetNumber	String that uniquely identifies the changeset associated with the application, such as Chset-102. This changeset must be in the "Open" state. Data type: String Default: Creates a changeset to use. The changeset details are returned as part of the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} results. Table: CDM Changeset [sn_cdm_changeset]
dataFormat	Required. Format of the configuration data. Valid values: csv ini json properties raw xml yaml Data type: String
dataFormatAttributes	Only supported when the dataFormat parameter is set to csv. Attributes that define the CSV data format. For additional information, see Parsing of CSV files in CDM. Data type: Object "dataFormatAttributes" { "containsHeader": Boolean, "delimeter": "String" "headers": [Array], "securedHeaders": [Array] }
dataFormatAttributes.containsHeaders	Flag that indicates whether the data contains a header row. Valid values: true: Data contains a header row. The first row in the data is considered the header row. false: Data doesn't contain a header row. You must pass the header information in the dataFormatAttributes.headers parameter. Data type: Boolean Default: false
dataFormatAttributes.delimeter	Character to use to delineate fields within the data. Data type: String Default: Comma ","
dataFormatAttributes.headers	Required if dataFormatAttributes.containsHeaders parameter is false. Fields in the data that comprise the header. These headers are converted to the key names of the CDIs in the JSON format. The number of headers must match the number of record fields. Data type: Array Default: Empty array
dataFormatAttributes.securedHeaders	Fields in the data that are secure fields and must be encrypted in the data uploaded to CDM. The name of the secured headers must match the name of the headers in the headers attribute or data file. These fields are stored in a column of type Password (2 Way Encrypted). Note: You can only secure fields using this attribute. You can't unsecure the secured fields. Data type: Array Default: Empty array
deleteRedundantOverrides	Flag that indicates whether to create an override where redundant values are present. Valid values: true: If redundant values are present, an override isn’t created. false: If redundant values are present, proceeds with an override. Default: true
fileName	Name of the file to upload. This name can differ from than the actual file name and contain the file extension. For example, .txt/.scv/.jar. The fileName value is applied when downloading the file. Data type: String
fileNodeName	Name of the file node. This file name is used in the configuration data when exporting it. This name doesn’t require a file extension nor does it affect the download. Data type: String
identifierKeys	List of names that indicate which key in an array child to use to identify the same node. For example, if you’re uploading: [ {"name" : "Allan, "city" : "Paris"}, {"name" : "Karen, "city" : "Sydney"} ] in the following existing model: [ {"name" : "Karen, "city" : "Manila"}, {"name" : "Allan, "city" : "Brussels"} ] and you set identifierKeys to name, it produces the following output: [ {"name" : "Karen, "city" : "Sydney"}, {"name" : "Allan, "city" : "Paris"} ] Otherwise, it produces the following output: [ {"name" : "Karen, "city" : "Manila"}, {"name" : "Allan, "city" : "Brussels"}, {"name" : "Allan, "city" : "Paris"}, {"name" : "Karen, "city" : "Sydney"} ] Data type: Array of Strings
ignoreAttributes	Flag that indicates whether the given data format supports attributes (currently only XML). Valid values: true: If the given data format supports attributes, any attributes in the input data are skipped during the upload. false: If the given data format supports attributes, any attributes in the input data are included in the upload. Data type: Boolean Default: false
namePath	Path of the targeted node under which the configuration data should be uploaded. This path is relative to the components, collection, or deployable folder (depending on the endpoint being called). You can pass the name path in any of the following formats. For example, to define the name path for the node testApp/deployables/Development1/cdi1: Backslash format: testApp/deployables/Development1/cdi1 Note: If your node name contains a backslash ("/"), you can’t use this format. Backend name path with replacement characters: testApp�deployables�​Development1​�​cdi1 Array: ['testApp','deployables','Development1','cdi1'] Note: If the specified component doesn't exist at the specified path, the system automatically creates the component at the specified path and then uploads the data. Data type: String
sharedLibraryName	Required. Name of the shared library where the component to delete is located. Data type: String Table: CDM Application [sn_cdm_application]

Table 69. Request body parameters (XML or JSON)

Name	Description
Variable upload data	Configuration data to upload. This can be any data in the format defined by the dataFormat parameter of the query parameters.

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 70. Request headers

Header	Description
Accept	Data format of the response body. Only supports application/json.
Content-Type	Data format of the request body. Supported types: text/plain and application/x-www-form-urlencoded. Default: text/plain

Table 71. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 72. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad request. Upload request has been rejected. Possible issues: Size of configuration payload is greater that the allowed maximum - 2 MB by default. Required parameters are missing from the call.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters (JSON or XML)

Name	Description
error	If an error occurred during processing, the details about the error. Data type: Object "error": { "detail": "String", "message": "String" }
error.detail	Additional information about the error. Data type: String
error.message	Error message that was generated while trying to process the request. Data type: String
status	Error status of the request. Possible values: failure Data type: String
upload_id	Sys_id of the upload request. Use this ID to call the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} endpoint to obtain the status of the upload. Data type: String

cURL request

The following example shows an upload request for the application Demo_App1631126164773.

curl "http://instance.servicenow.com/api/sn_cdm/applications/uploads/components?namePath=%2FSettings%2FdbSettings&dataFormat=json&appName=Demo_App1631126164773&changesetNumber=Chset-8&autoCommit=false&publishOption=publish_none&autoValidate=false&autoDelete=true" \
--request POST \
--header "Accept:application/json" \
--header "Content-Type:text/plain" \
--data "{
  \"dbIPAddress\": \"10.10.10.110\",
  \"dbPort\": \"8080\",
  \"dbConnectionString\": \"admin:admin server1.xyz.com:8080 dbName_payments\",
  \"dbConnectionStringBackup\": \"admin:admin server2.xyz.com dbName_payments_backup\
"}" \
--user 'username':'password'

The following return results show both a successful and an error response for this request.

// Successful completion of the upload request
{
  "result": {
    "upload_id": "ec1f71f45322301096edddeeff7b12b3"
  }
}

// Error response. Payload is too large.
{
  "error": {
    "message": "Size of uploaded data:6853632.0(bytes) is greater than max allowed upload limit of 2097152.0(bytes)",
    "detail": ""
  },
  "status": "failure"
}

CdmApplicationsApi - POST sn_cdm/applications/uploads/components/file

Uploads files as part of the Configuration Data Model (CDM) to the components folder.

Use this method to upload to a components file node.

URL format

Versioned URL: POST /api/sn_cdm/{api_version}/applications/uploads/components/file

Default URL: POST /api/sn_cdm/applications/uploads/components/file

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 73. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 74. Query parameters

Name	Description
appName	Name of the application to associate with the configuration data. This application must be in the active state. Data type: String Table: CDM Application [sn_cdm_application]
autoCommit	Flag that indicates whether the changeset identified in the changesetNumber parameter is committed to the data model after upload. Valid values: true: Changeset is committed after upload. false: Changeset isn't committed after upload. Data type: Boolean Default: false
autoValidate	Flag that indicates whether the snapshots created when committed are validated. Valid values: true: Validate the snapshots. false: Don't validate the snapshots. Note: This option is only available if the autoCommit parameter is true. Data type: Boolean Default: false
changesetNumber	String that uniquely identifies the changeset associated with the application, such as Chset-102. This changeset must be in the "Open" state. Data type: String Default: Creates a changeset to use. The changeset details are returned as part of the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} results. Table: CDM Changeset [sn_cdm_changeset]
fileName	Name of the file to upload. This name can differ from than the actual file name and contain the file extension. For example, .txt/.scv/.jar. The fileName value is applied when downloading the file. Data type: String
fileNodeName	Name of the file node. This file name is used in the configuration data when exporting it. This name doesn’t require a file extension nor does it affect the download. Data type: String
namePath	Path of the targeted node under which the configuration data should be uploaded. This path is relative to the components, collection, or deployable folder (depending on the endpoint being called). You can pass the name path in any of the following formats. For example, to define the name path for the node testApp/deployables/Development1/cdi1: Backslash format: testApp/deployables/Development1/cdi1 Note: If your node name contains a backslash ("/"), you can’t use this format. Backend name path with replacement characters: testApp�deployables�​Development1​�​cdi1 Array: ['testApp','deployables','Development1','cdi1'] Note: If the specified component doesn't exist at the specified path, the system automatically creates the component at the specified path and then uploads the data. Data type: String
publishOption	Publish option for the associated configured snapshots. Valid values: publish_none: Don't publish any snapshots. publish_valid: Publish only those snapshots that pass validation after the commit. For additional information on publishing snapshots, see Publish or unpublish a snapshot. Data type: String Default: publish_none Note: This option is only available if the value for the autoCommit parameter is true.

Table 75. Request body parameters (XML or JSON)

Name	Description
Variable upload data	Configuration data to upload. By default, file size uploads are limited to 5 MB. For information about how to adjust your upload file sizes and type, see this Now Support article. Data type: String/stream

Headers

Table 76. Request headers

Header	Description
Accept	Data format of the response body. Supported types: application/json or application/xml. Default: application/json
Content-Type	Data type of the file to be uploaded. Supported types: application/zip, text/plain, application/json. Default: application/json

Table 77. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 78. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad request. Upload request has been rejected. Possible issues: Size of configuration payload is greater that the allowed maximum - 2 MB by default. Required parameters are missing from the call.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters (JSON or XML)

Name	Description
error	If an error occurred during processing, the details about the error. Data type: Object "error": { "detail": "String", "message": "String" }
error.detail	Additional information about the error. Data type: String
error.message	Error message that was generated while trying to process the request. Data type: String
status	Error status of the request. Possible values: failure Data type: String
upload_id	Sys_id of the upload request. Use this ID to call the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} endpoint to obtain the status of the upload. Data type: String

cURL request

The following example shows how to upload a content to a text file.

curl "http://instance.servicenow.com/api/sn_cdm/applications/uploads/components/file?autoValidate=true&appName=testApp&namePath=testComponent%2FfilesFolder&fileName=testFileNodeName.txt&publishOption=publish_valid&changesetNumber=Chset-108&autoCommit=true&fileNodeName=testFile.txt" \
--request POST \
--header "Accept:application/json" \
--header "Content-Type:text/plain" \
--data "This is sample content that will be uploaded to a plain text file."\
--user 'username':'password'

The following return results show both a successful and an error response for this request.

// Successful completion of the upload request
{
  "result": {
    "upload_id": "ec1f71f45322301096edddeeff7b12b3"
  }
}

// Error response. Payload is too large.
{
  "error": {
    "message": "Could not find active application with name: ‘testApp’ of type application",
    "detail": ""
  },
  "status": "failure"
}

CdmApplicationsApi - POST /sn_cdm/applications/uploads/components/vars

Submits a request to upload the passed-in configuration data under the vars folder, within the system components folder, for the specified application.

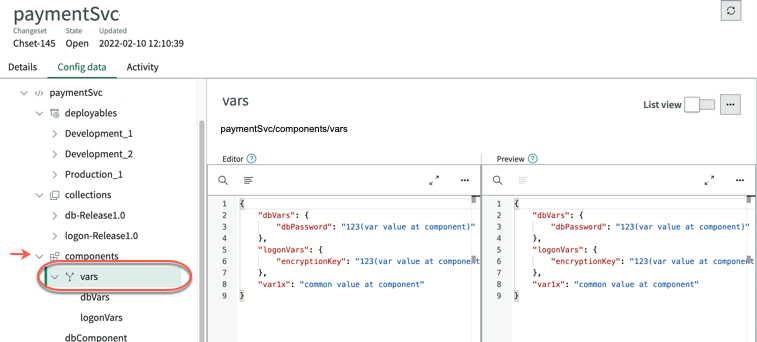

The following image shows an example of where the component's vars configuration data is uploaded in reference to the ServiceNow DevOps Config Workspace UI. Assumes the application is paymentSvc.

Note:

The maximum default upload content size is 2 MB. You can modify this default by updating the property sn_cdm.max_allowed_upload_file_size.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/uploads/components/vars

Default URL: /api/sn_cdm/applications/uploads/components/vars

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 79. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 80. Query parameters

Name	Description
appName	Name of the application to associate with the configuration data. This application must be in the active state. Data type: String Table: CDM Application [sn_cdm_application]
autoCommit	Flag that indicates whether the changeset identified in the changesetNumber parameter is committed to the data model after upload. Valid values: true: Changeset is committed after upload. false: Changeset isn't committed after upload. Data type: Boolean Default: false
autoDelete	Flag that indicates whether the existing nodes, that aren’t part of the upload content, are deleted after the processing is complete. Valid values: true: Automatically delete existing nodes. false: Don't automatically delete existing nodes. Data type: Boolean Default: false
autoValidate	Flag that indicates whether the snapshots created when committed are validated. Valid values: true: Validate the snapshots. false: Don't validate the snapshots. Note: This option is only available if the autoCommit parameter is true. Data type: Boolean Default: false
changesetNumber	String that uniquely identifies the changeset associated with the application, such as Chset-102. This changeset must be in the "Open" state. Data type: String Default: Creates a changeset to use. The changeset details are returned as part of the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} results. Table: CDM Changeset [sn_cdm_changeset]
dataFormat	Required. Format of the configuration data. Valid values: ini json properties raw xml yaml Data type: String
deleteRedundantOverrides	Flag that indicates whether to create an override where redundant values are present. Valid values: true: If redundant values are present, an override isn’t created. false: If redundant values are present, proceeds with an override. Default: true
fileName	Name of the file to upload. This name can differ from than the actual file name and contain the file extension. For example, .txt/.scv/.jar. The fileName value is applied when downloading the file. Data type: String
fileNodeName	Name of the file node. This file name is used in the configuration data when exporting it. This name doesn’t require a file extension nor does it affect the download. Data type: String
identifierKeys	List of names that indicate which key in an array child to use to identify the same node. For example, if you’re uploading: [ {"name" : "Allan, "city" : "Paris"}, {"name" : "Karen, "city" : "Sydney"} ] in the following existing model: [ {"name" : "Karen, "city" : "Manila"}, {"name" : "Allan, "city" : "Brussels"} ] and you set identifierKeys to name, it produces the following output: [ {"name" : "Karen, "city" : "Sydney"}, {"name" : "Allan, "city" : "Paris"} ] Otherwise, it produces the following output: [ {"name" : "Karen, "city" : "Manila"}, {"name" : "Allan, "city" : "Brussels"}, {"name" : "Allan, "city" : "Paris"}, {"name" : "Karen, "city" : "Sydney"} ] Data type: Array of Strings
ignoreAttributes	Flag that indicates whether the given data format supports attributes (currently only XML). Valid values: true: If the given data format supports attributes, any attributes in the input data are skipped during the upload. false: If the given data format supports attributes, any attributes in the input data are included in the upload. Data type: Boolean Default: false
namePath	Path of the targeted node under which the configuration data should be uploaded. This path is relative to the components, collection, or deployable folder (depending on the endpoint being called). You can pass the name path in any of the following formats. For example, to define the name path for the node testApp/deployables/Development1/cdi1: Backslash format: testApp/deployables/Development1/cdi1 Note: If your node name contains a backslash ("/"), you can’t use this format. Backend name path with replacement characters: testApp�deployables�​Development1​�​cdi1 Array: ['testApp','deployables','Development1','cdi1'] Note: If the specified component doesn't exist at the specified path, the system automatically creates the component at the specified path and then uploads the data. Data type: String
sharedLibraryName	Required. Name of the shared library where the component to delete is located. Data type: String Table: CDM Application [sn_cdm_application]

Table 81. Request body parameters (XML or JSON)

Name	Description
Variable upload data	Configuration data to upload. This can be any data in the format defined by the dataFormat parameter of the query parameters.

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 82. Request headers

Header	Description
Accept	Data format of the response body. Only supports application/json.
Content-Type	Data format of the request body. Supported types: text/plain and application/x-www-form-urlencoded. Default: text/plain

Table 83. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 84. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad request. Upload request has been rejected. Possible issues: Size of configuration payload is greater that the allowed maximum - 2 MB by default. Required parameters are missing from the call.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters (JSON or XML)

Name	Description
error	If an error occurred during processing, the details about the error. Data type: Object "error": { "detail": "String", "message": "String" }
error.detail	Additional information about the error. Data type: String
error.message	Error message that was generated while trying to process the request. Data type: String
status	Error status of the request. Possible values: failure Data type: String
upload_id	Sys_id of the upload request. Use this ID to call the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} endpoint to obtain the status of the upload. Data type: String

cURL request

The following example shows a vars upload request for the application Demo_App1631126164773.

curl "http://instance.servicenow.com/api/sn_cdm/applications/uploads/components/vars?changesetNumber=Chset-102&autoValidate=false&autoDelete=true&publishOption=publish_none&appName=Demo_App1631126164773&namePath=%2FSettings%2FdbSettings&autoCommit=false&dataFormat=json" \
--request POST \
--header "Accept:application/json" \
--header "Content-Type:text/plain" \
--data "{
  \"dbSettings\": {
    \"dbIPAddress\": \"10.10.10.110\",
    \"dbPort\": \"8080\",
    \"dbConnectionString\": \"username:password server1.xyz.com:8080 dbName_payments\",
    \"dbConnectionStringBackup\": \"username:password server2.xyz.com dbName_payments_backup\"
  }
}"
--user 'username':'password'

The following return results show both a successful and an error response for this request.

// Successful completion of the upload request
{
  "result": {
    "upload_id": "d21f71f45322301096eccceaff7b1ce3"
  }
}

// Error response. Payload is too large.
{
  "error": {
    "message": "Size of uploaded data:6853632.0(bytes) is greater than max allowed upload limit of 2097152.0(bytes)",
    "detail": ""
  },
  "status": "failure"
}

CdmApplicationsApi - POST /sn_cdm/applications/uploads/collections

Submits a request to upload the passed-in configuration data for a specific collection, within the system collections folder, for the specified application.

This endpoint returns the ID of the upload request. Use this ID to call the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} endpoint to obtain the status of the upload.

Note:

The maximum default upload content size is 2 MB. You can modify this default by updating the property sn_cdm.max_allowed_upload_file_size.

The following image shows an example of where the configuration data is uploaded in reference to the ServiceNow DevOps Config Workspace UI. Assumes the collection is db0Release1.0 and the application is paymentSvc.

Note:

This upload method cannot be used to modify nodes. Use the alternative CdmApplicationsApi - POST /sn_cdm/applications/uploads/collections/file method to modify nodes.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/uploads/collections

Default URL: /api/sn_cdm/applications/uploads/collections

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 85. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 86. Query parameters

Name	Description
appName	Name of the application to associate with the configuration data. This application must be in the active state. Data type: String Table: CDM Application [sn_cdm_application]
autoCommit	Flag that indicates whether the changeset identified in the changesetNumber parameter is committed to the data model after upload. Valid values: true: Changeset is committed after upload. false: Changeset isn't committed after upload. Data type: Boolean Default: false
autoDelete	Flag that indicates whether the existing nodes, that aren’t part of the upload content, are deleted after the processing is complete. Valid values: true: Automatically delete existing nodes. false: Don't automatically delete existing nodes. Data type: Boolean Default: false
autoValidate	Flag that indicates whether the snapshots created when committed are validated. Valid values: true: Validate the snapshots. false: Don't validate the snapshots. Note: This option is only available if the autoCommit parameter is true. Data type: Boolean Default: false
changesetNumber	String that uniquely identifies the changeset associated with the application, such as Chset-102. This changeset must be in the "Open" state. Data type: String Default: Creates a changeset to use. The changeset details are returned as part of the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} results. Table: CDM Changeset [sn_cdm_changeset]
collectionName	Required. Name of the collection under which to store the uploaded payload. Note: If the specified namePath does not exist under this collection, the system automatically creates the component(s) under this collection and then uploads the configuration content. For example, if you want to upload the collection collA, with the path compA/comp/compC, the data is uploaded under /collA/collections/compa/compB/compC. If compA exists but not compB and compC, then the endpoint creates these components and uploads the data under compC. Data type: String
dataFormat	Required. Format of the configuration data. Valid values: csv ini json properties raw xml yaml Data type: String
dataFormatAttributes	Only supported when the dataFormat parameter is set to csv. Attributes that define the CSV data format. For additional information, see Parsing of CSV files in CDM. Data type: Object "dataFormatAttributes" { "containsHeader": Boolean, "delimeter": "String" "headers": [Array], "securedHeaders": [Array] }
dataFormatAttributes.containsHeaders	Flag that indicates whether the data contains a header row. Valid values: true: Data contains a header row. The first row in the data is considered the header row. false: Data doesn't contain a header row. You must pass the header information in the dataFormatAttributes.headers parameter. Data type: Boolean Default: false
dataFormatAttributes.delimeter	Character to use to delineate fields within the data. Data type: String Default: Comma ","
dataFormatAttributes.headers	Required if dataFormatAttributes.containsHeaders parameter is false. Fields in the data that comprise the header. These headers are converted to the key names of the CDIs in the JSON format. The number of headers must match the number of record fields. Data type: Array Default: Empty array
dataFormatAttributes.securedHeaders	Fields in the data that are secure fields and must be encrypted in the data uploaded to CDM. The name of the secured headers must match the name of the headers in the headers attribute or data file. These fields are stored in a column of type Password (2 Way Encrypted). Note: You can only secure fields using this attribute. You can't unsecure the secured fields. Data type: Array Default: Empty array
deleteRedundantOverrides	Flag that indicates whether to create an override where redundant values are present. Valid values: true: If redundant values are present, an override isn’t created. false: If redundant values are present, proceeds with an override. Default: true
ignoreAttributes	Flag that indicates whether the given data format supports attributes (currently only XML). Valid values: true: If the given data format supports attributes, any attributes in the input data are skipped during the upload. false: If the given data format supports attributes, any attributes in the input data are included in the upload. Data type: Boolean Default: false
namePath	Path of the targeted node under which the configuration data should be uploaded. This path is relative to the components, collection, or deployable folder (depending on the endpoint being called). You can pass the name path in any of the following formats. For example, to define the name path for the node testApp/deployables/Development1/cdi1: Backslash format: testApp/deployables/Development1/cdi1 Note: If your node name contains a backslash ("/"), you can’t use this format. Backend name path with replacement characters: testApp�deployables�​Development1​�​cdi1 Array: ['testApp','deployables','Development1','cdi1'] Note: If the specified component doesn't exist at the specified path, the system automatically creates the component at the specified path and then uploads the data. Data type: String

Table 87. Request body parameters (XML or JSON)

Name	Description
Variable upload data	Configuration data to upload. This can be any data in the format defined by the dataFormat parameter of the query parameters.

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 88. Request headers

Header	Description
Accept	Data format of the response body. Only supports application/json.
Content-Type	Data format of the request body. Supported types: text/plain and application/x-www-form-urlencoded. Default: text/plain

Table 89. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 90. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad request. Upload request has been rejected. Possible issues: Size of configuration payload is greater that the allowed maximum - 2 MB by default. Required parameters are missing from the call.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters (JSON or XML)

Name	Description
error	If an error occurred during processing, the details about the error. Data type: Object "error": { "detail": "String", "message": "String" }
error.detail	Additional information about the error. Data type: String
error.message	Error message that was generated while trying to process the request. Data type: String
status	Error status of the request. Possible values: failure Data type: String
upload_id	Sys_id of the upload request. Use this ID to call the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} endpoint to obtain the status of the upload. Data type: String

cURL request

This example shows how to upload JSON-formatted dbSettings configuration date into the collections folder for the application Demo_App1631126164773.

curl "http://instance.servicenow.com/api/sn_cdm/applications/uploads/collections?dataFormat=json&autoValidate=false&changesetNumber=Chset-102&appName=Demo_App1631126164773&autoDelete=true&namePath=%2FSettings%2FdbSettings&collectionName=release-1.0&autoCommit=false&publishOption=publish_none" \
--request POST \
--header "Accept:application/json" \
--header "Content-Type:text/plain" \
--data "{
  \"dbSettings\": {
    \"dbIPAddress\": \"10.10.10.110\",
    \"dbPort\": \"8080\",
    \"dbConnectionString\": \"admin:admin server1.xyz.com:8080 dbName_payments\",
    \"dbConnectionStringBackup\": \"admin:admin server2.xyz.com dbName_payments_backup\"
  }
}" \
--user 'username':'password'

The following shows the possible responses to this call, both as a success and an error.

// Successful completion of the upload request
{
  "result": {
    "upload_id": "ec1f71f45322301096edddeeff7b12b3"
  }
}

// Error response. Payload is too large.
{
  "error": {
    "message": "Size of uploaded data:6853632.0(bytes) is greater than max allowed upload limit of 2097152.0(bytes)",
    "detail": ""
  },
  "status": "failure"
}

CdmApplicationsApi - POST /sn_cdm/applications/uploads/collections/file

Uploads a file to the collections folder in the Configuration Data Model (CDM).

URL format

Versioned URL: POST /api/sn_cdm/{api_version}/applications/uploads/collections/file

Default URL: POST /api/sn_cdm/applications/uploads/collections/file

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 91. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 92. Query parameters

Name	Description
appName	Name of the application to associate with the configuration data. This application must be in the active state. Data type: String Table: CDM Application [sn_cdm_application]
autoCommit	Flag that indicates whether the changeset identified in the changesetNumber parameter is committed to the data model after upload. Valid values: true: Changeset is committed after upload. false: Changeset isn't committed after upload. Data type: Boolean Default: false
autoValidate	Flag that indicates whether the snapshots created when committed are validated. Valid values: true: Validate the snapshots. false: Don't validate the snapshots. Note: This option is only available if the autoCommit parameter is true. Data type: Boolean Default: false
collectionName	Required. Name of the collection under which to store the uploaded payload. Note: If the specified namePath does not exist under this collection, the system automatically creates the component(s) under this collection and then uploads the configuration content. For example, if you want to upload the collection collA, with the path compA/comp/compC, the data is uploaded under /collA/collections/compa/compB/compC. If compA exists but not compB and compC, then the endpoint creates these components and uploads the data under compC. Data type: String
changesetNumber	String that uniquely identifies the changeset associated with the application, such as Chset-102. This changeset must be in the "Open" state. Data type: String Default: Creates a changeset to use. The changeset details are returned as part of the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} results. Table: CDM Changeset [sn_cdm_changeset]
fileName	Name of the file to upload. This name can differ from than the actual file name and contain the file extension. For example, .txt/.scv/.jar. The fileName value is applied when downloading the file. Data type: String
fileNodeName	Name of the file node. This file name is used in the configuration data when exporting it. This name doesn’t require a file extension nor does it affect the download. Data type: String
namePath	Path of the targeted node under which the configuration data should be uploaded. This path is relative to the components, collection, or deployable folder (depending on the endpoint being called). You can pass the name path in any of the following formats. For example, to define the name path for the node testApp/deployables/Development1/cdi1: Backslash format: testApp/deployables/Development1/cdi1 Note: If your node name contains a backslash ("/"), you can’t use this format. Backend name path with replacement characters: testApp�deployables�​Development1​�​cdi1 Array: ['testApp','deployables','Development1','cdi1'] Note: If the specified component doesn't exist at the specified path, the system automatically creates the component at the specified path and then uploads the data. Data type: String
publishOption	Publish option for the associated configured snapshots. Valid values: publish_none: Don't publish any snapshots. publish_valid: Publish only those snapshots that pass validation after the commit. For additional information on publishing snapshots, see Publish or unpublish a snapshot. Data type: String Default: publish_none Note: This option is only available if the value for the autoCommit parameter is true.

Table 93. Request body parameters (XML or JSON)

Name	Description
Variable upload data	Configuration data to upload. By default, file size uploads are limited to 5 MB. For information about how to adjust your upload file sizes and type, see this Now Support article. Data type: String/stream

Headers

Table 94. Request headers

Header	Description
Accept	Data format of the response body. Supported types: application/json or application/xml. Default: application/json
Content-Type	Content Type of the file to be uploaded. Examples: application/zip, text/plain, application/json.

Table 95. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 96. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad request. Upload request has been rejected. Possible issues: Size of configuration payload is greater that the allowed maximum - 2 MB by default. Required parameters are missing from the call.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters (JSON or XML)

Name	Description
error	If an error occurred during processing, the details about the error. Data type: Object "error": { "detail": "String", "message": "String" }
error.detail	Additional information about the error. Data type: String
error.message	Error message that was generated while trying to process the request. Data type: String
status	Error status of the request. Possible values: failure Data type: String
upload_id	Sys_id of the upload request. Use this ID to call the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} endpoint to obtain the status of the upload. Data type: String

cURL request

The following call uploads a plain text file to the CDM collections folder.

curl "http://instance.servicenow.com/api/sn_cdm/applications/uploads/collections/file?autoValidate=true&collectionName=collA&appName=testApp&namePath=testComponent%2FfilesFolder&fileName=testFileNodeName.txt&publishOption=publish_valid&changesetNumber=Chset-108&autoCommit=true&fileNodeName=testFile.txt" \
--request POST \
--header "Accept:application/json" \
--header "Content-Type:text/plain" \
--data "This is sample content that will be uploaded to a plain text file."\
--user 'username':'password'

The following return results show both a successful and an error response to this request.

// Successful completion of the upload request
{
  "result": {
    "upload_id": "ec1f71f45322301096edddeeff7b12b3"
  }
}

// Error response. Payload is too large.
{
  "error": {
    "message": "Could not find active application with name: ‘testApp’ of type application",
    "detail": ""
  },
  "status": "failure"
}

CdmApplicationsApi - POST /sn_cdm/applications/uploads/deployables

Submits a request to upload the configuration content for a specific deployable within the deployables system folder of a specified application.

This endpoint returns the ID of the upload request. Use this ID to call the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} endpoint to obtain the status of the upload.

Note:

The maximum default upload content size is 2 MB. You can modify this default by updating the property sn_cdm.max_allowed_upload_file_size.

The following image shows an example of where the deployable configuration data is uploaded in reference to the ServiceNow DevOps Config UI. Assumes the deployable is Development_1 and the application is paymentSvc.

Note:

This upload method cannot be used to modify nodes. Use the alternative CdmApplicationsApi - POST /sn_cdm/applications/uploads/deployables/file method to modify nodes.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/uploads/deployables

Default URL: /api/sn_cdm/applications/uploads/deployables

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 97. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 98. Query parameters

Name	Description
appName	Name of the application to associate with the configuration data. This application must be in the active state. Data type: String Table: CDM Application [sn_cdm_application]
autoCommit	Flag that indicates whether the changeset identified in the changesetNumber parameter is committed to the data model after upload. Valid values: true: Changeset is committed after upload. false: Changeset isn't committed after upload. Data type: Boolean Default: false
autoDelete	Flag that indicates whether the existing nodes, that aren’t part of the upload content, are deleted after the processing is complete. Valid values: true: Automatically delete existing nodes. false: Don't automatically delete existing nodes. Data type: Boolean Default: false
autoValidate	Flag that indicates whether the snapshots created when committed are validated. Valid values: true: Validate the snapshots. false: Don't validate the snapshots. Note: This option is only available if the autoCommit parameter is true. Data type: Boolean Default: false
changesetNumber	String that uniquely identifies the changeset associated with the application, such as Chset-102. This changeset must be in the "Open" state. Data type: String Default: Creates a changeset to use. The changeset details are returned as part of the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} results. Table: CDM Changeset [sn_cdm_changeset]
dataFormat	Required. Format of the configuration data. Valid values: csv ini json properties raw xml yaml Data type: String
dataFormatAttributes	Only supported when the dataFormat parameter is set to csv. Attributes that define the CSV data format. For additional information, see Parsing of CSV files in CDM. Data type: Object "dataFormatAttributes" { "containsHeader": Boolean, "delimeter": "String" "headers": [Array], "securedHeaders": [Array] }
dataFormatAttributes.containsHeaders	Flag that indicates whether the data contains a header row. Valid values: true: Data contains a header row. The first row in the data is considered the header row. false: Data doesn't contain a header row. You must pass the header information in the dataFormatAttributes.headers parameter. Data type: Boolean Default: false
dataFormatAttributes.delimeter	Character to use to delineate fields within the data. Data type: String Default: Comma ","
dataFormatAttributes.headers	Required if dataFormatAttributes.containsHeaders parameter is false. Fields in the data that comprise the header. These headers are converted to the key names of the CDIs in the JSON format. The number of headers must match the number of record fields. Data type: Array Default: Empty array
dataFormatAttributes.securedHeaders	Fields in the data that are secure fields and must be encrypted in the data uploaded to CDM. The name of the secured headers must match the name of the headers in the headers attribute or data file. These fields are stored in a column of type Password (2 Way Encrypted). Note: You can only secure fields using this attribute. You can't unsecure the secured fields. Data type: Array Default: Empty array
deleteRedundantOverrides	Flag that indicates whether to create an override where redundant values are present. Valid values: true: If redundant values are present, an override isn’t created. false: If redundant values are present, proceeds with an override. Default: true
deployableName	Required. Name of the deployable under which to store the uploaded payload. Note: If the specified namePath does not exist under this deployable, the system automatically creates the component(s) under this deployable and then uploads the configuration content.
identifierKeys	List of names that indicate which key in an array child to use to identify the same node. For example, if you’re uploading: [ {"name" : "Allan, "city" : "Paris"}, {"name" : "Karen, "city" : "Sydney"} ] in the following existing model: [ {"name" : "Karen, "city" : "Manila"}, {"name" : "Allan, "city" : "Brussels"} ] and you set identifierKeys to name, it produces the following output: [ {"name" : "Karen, "city" : "Sydney"}, {"name" : "Allan, "city" : "Paris"} ] Otherwise, it produces the following output: [ {"name" : "Karen, "city" : "Manila"}, {"name" : "Allan, "city" : "Brussels"}, {"name" : "Allan, "city" : "Paris"}, {"name" : "Karen, "city" : "Sydney"} ] Data type: Array of Strings
ignoreAttributes	Flag that indicates whether the given data format supports attributes (currently only XML). Valid values: true: If the given data format supports attributes, any attributes in the input data are skipped during the upload. false: If the given data format supports attributes, any attributes in the input data are included in the upload. Data type: Boolean Default: false
namePath	Path of the targeted node under which the configuration data should be uploaded. This path is relative to the components, collection, or deployable folder (depending on the endpoint being called). You can pass the name path in any of the following formats. For example, to define the name path for the node testApp/deployables/Development1/cdi1: Backslash format: testApp/deployables/Development1/cdi1 Note: If your node name contains a backslash ("/"), you can’t use this format. Backend name path with replacement characters: testApp�deployables�​Development1​�​cdi1 Array: ['testApp','deployables','Development1','cdi1'] Note: If the specified component doesn't exist at the specified path, the system automatically creates the component at the specified path and then uploads the data. Data type: String
publishOption	Publish option for the associated configured snapshots. Valid values: publish_none: Don't publish any snapshots. publish_valid: Publish only those snapshots that pass validation after the commit. For additional information on publishing snapshots, see Publish or unpublish a snapshot. Data type: String Default: publish_none Note: This option is only available if the value for the autoCommit parameter is true.

Table 99. Request body parameters (XML or JSON)

Name	Description
Variable upload data	Configuration data to upload. This can be any data in the format defined by the dataFormat parameter of the query parameters.

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 100. Request headers

Header	Description
Accept	Data format of the response body. Only supports application/json.
Content-Type	Data format of the request body. Supported types: text/plain and application/x-www-form-urlencoded. Default: text/plain

Table 101. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 102. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad request. Upload request has been rejected. Possible issues: Size of configuration payload is greater that the allowed maximum - 2 MB by default. Required parameters are missing from the call.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters (JSON or XML)

Name	Description
error	If an error occurred during processing, the details about the error. Data type: Object "error": { "detail": "String", "message": "String" }
error.detail	Additional information about the error. Data type: String
error.message	Error message that was generated while trying to process the request. Data type: String
status	Error status of the request. Possible values: failure Data type: String
upload_id	Sys_id of the upload request. Use this ID to call the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} endpoint to obtain the status of the upload. Data type: String

cURL request

The following example shows an upload request for the application Demo_App1631126164773.

curl "http://instance.servicenow.com/api/sn_cdm/applications/uploads/deployables?deployableName=TST-1&autoValidate=false&dataFormat=json&autoDelete=false&changesetNumber=Chset-102&appName=Demo_App1631126164773&publishOption=publish_none&autoCommit=true&namePath=%2FSettings%2FdbSettings" \
--request POST \
--header "Accept:application/json" \
--header "Content-Type:text/plain" \
--data "{
  \"dbIPAddress\": \"10.10.10.110\",
  \"dbPort\": \"8080\",
  \"dbConnectionString\": \"admin:admin server1.xyz.com:8080 dbName_payments\",
  \"dbConnectionStringBackup\": \"admin:admin server2.xyz.com dbName_payments_backup\"
}" \
--user 'username':'password'

The following return results show both a successful and an error response for this request.

// Successful completion of the upload request
{
  "result": {
    "upload_id": "ec1f71f45322301096edddeeff7b12b3"
  }
}

// Error response. Payload is too large.
{
  "error": {
    "message": "Size of uploaded data:6853632.0(bytes) is greater than max allowed upload limit of 2097152.0(bytes)",
    "detail": ""
  },
  "status": "failure"
}

CdmApplicationsApi - POST /sn_cdm/applications/uploads/deployables/file

Uploads files to the deployables folder in the Configuration Data Model (CDM).

URL format

Versioned URL: POST /api/sn_cdm/{api_version}/applications/uploads/deployables/file

Default URL: POST /api/sn_cdm/applications/uploads/deployables/file

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 103. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 104. Query parameters

Name	Description
appName	Name of the application to associate with the configuration data. This application must be in the active state. Data type: String Table: CDM Application [sn_cdm_application]
autoCommit	Flag that indicates whether the changeset identified in the changesetNumber parameter is committed to the data model after upload. Valid values: true: Changeset is committed after upload. false: Changeset isn't committed after upload. Data type: Boolean Default: false
autoValidate	Flag that indicates whether the snapshots created when committed are validated. Valid values: true: Validate the snapshots. false: Don't validate the snapshots. Note: This option is only available if the autoCommit parameter is true. Data type: Boolean Default: false
changesetNumber	String that uniquely identifies the changeset associated with the application, such as Chset-102. This changeset must be in the "Open" state. Data type: String Default: Creates a changeset to use. The changeset details are returned as part of the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} results. Table: CDM Changeset [sn_cdm_changeset]
deployableName	Required. Name of the CDM deployable for which to map the policy. Data type: String Table: CDM Deployable [sn_cdm_deployable]
fileName	Name of the file to upload. This name can differ from than the actual file name and contain the file extension. For example, .txt/.scv/.jar. The fileName value is applied when downloading the file. Data type: String
fileNodeName	Name of the file node. This file name is used in the configuration data when exporting it. This name doesn’t require a file extension nor does it affect the download. Data type: String
namePath	Path of the targeted node under which the configuration data should be uploaded. This path is relative to the components, collection, or deployable folder (depending on the endpoint being called). You can pass the name path in any of the following formats. For example, to define the name path for the node testApp/deployables/Development1/cdi1: Backslash format: testApp/deployables/Development1/cdi1 Note: If your node name contains a backslash ("/"), you can’t use this format. Backend name path with replacement characters: testApp�deployables�​Development1​�​cdi1 Array: ['testApp','deployables','Development1','cdi1'] Note: If the specified component doesn't exist at the specified path, the system automatically creates the component at the specified path and then uploads the data. Data type: String
publishOption	Publish option for the associated configured snapshots. Valid values: publish_none: Don't publish any snapshots. publish_valid: Publish only those snapshots that pass validation after the commit. For additional information on publishing snapshots, see Publish or unpublish a snapshot. Data type: String Default: publish_none Note: This option is only available if the value for the autoCommit parameter is true.

Table 105. Request body parameters (XML or JSON)

Name	Description
Variable upload data	Configuration data to upload. By default, file size uploads are limited to 5 MB. For information about how to adjust your upload file sizes and type, see this Now Support article. Data type: String/stream

Headers

Table 106. Request headers

Header	Description
Accept	Data format of the response body. Supported types: application/json or application/xml. Default: application/json
Content-Type	Data type of the file to be uploaded. Supported types: application/zip, text/plain, application/json. Default: application/json

Table 107. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 108. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad request. Upload request has been rejected. Possible issues: Size of configuration payload is greater that the allowed maximum - 2 MB by default. Required parameters are missing from the call.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters (JSON or XML)

Name	Description
error	If an error occurred during processing, the details about the error. Data type: Object "error": { "detail": "String", "message": "String" }
error.detail	Additional information about the error. Data type: String
error.message	Error message that was generated while trying to process the request. Data type: String
status	Error status of the request. Possible values: failure Data type: String
upload_id	Sys_id of the upload request. Use this ID to call the CdmApplicationsApi - GET /sn_cdm/applications/upload-status/{upload_id} endpoint to obtain the status of the upload. Data type: String

cURL request

The following request uploads a plain text file to the deployables folder of the CDM application.

curl "http://instance.servicenow.com/api/sn_cdm/applications/uploads/deployables/file?autoValidate=true&deployableName=depA&appName=testApp&namePath=testComponent%2FfilesFolder&fileName=testFileNodeName.txt&publishOption=publish_valid&changesetNumber=Chset-108&autoCommit=true&fileNodeName=testFile.txt" \
--request POST \
--header "Accept:application/json" \
--header "Content-Type:text/plain" \
--data "This is sample content that will be uploaded to a plain text file."\
--user 'username':'password'

The following return results show both a successful and an error response to this request.

// Successful completion of the upload request
{
  "result": {
    "upload_id": "ec1f71f45322301096edddeeff7b12b3"
  }
}

// Error response. Payload is too large.
{
  "error": {
    "message": "Could not find active application with name: ‘testApp’ of type application",
    "detail": ""
  },
  "status": "failure"
}

CdmApplicationsApi - PUT /sn_cdm/applications/deployables

Updates the specified shared component in an application within a specified changeset.

Allows an update to the following fields:

• Name
• Description
• Application Service\Dynamic CI Group
• Deployable identifier

The CDM Admin role is required to access this endpoint.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/deployables

Default URL: /api/sn_cdm/applications/deployables

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 109. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 110. Query parameters

Name	Description
appName	Required. Name of the CDM Application. Data type: String
name	Required. Name of the CDM Deployable. Data type: String
newDescription	Optional. A description for the CDM Deployable. Data type: String
newServiceId	Optional. The ID of the desired Application Service/Dynamic CI Group. In the cURL request, provide '’ to disconnect the Deployable from the service.
newIdentifier	Optional. The identifier of the Deployable. Data type: Choice (Development/Test/Production
newName	Optional. The new name of the Deployable. Data type: String
returnFields	Optional. Comma-separated list of fields to be returned as part of the response.

Table 111. Request body parameters (XML or JSON)

Name	Description
None

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 112. Request headers

Header	Description
Accept	Data format of the response body. Supported types: application/json

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 113. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad request. A bad request type or malformed request was detected.
500	Internal Server Error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters (JSON or XML)

Name	Description
sys_id	CDM deployable sys_Id.
name	Name of the CDM Deployable.
node	Deployable node object. { ‘value’: ‘<sysId>’, ‘link’: ‘http://localhost:8081/api/now/table/*’}
description	CDM deployable description.
identifier	An identifier for the deployable.
cmdb_ci	The app service object which is connected to a deployable. { ‘value’: ‘<sysId>’, ‘link’: ‘http://localhost:8081/api/now/table/*’}
cmdb_app	The CDM application object. { ‘value’: ‘<sysId>’, ‘link’: ‘http://localhost:8081/api/now/table/*’}
snapshot_version_counter	The count of snapshots created for a deployable.
cdi_count	The number of CDIs contained in this CDM deployable.
cdi_usage	The CDI usage percentage.
environment_type	The environment type. Possible values: development production test
state	The active or deleted state . Possible values: active deleted
sys_created_by	CDM deployable created by <username>.
sys_created_on	CDM deployable creation timestamp in the format of <yyyy-MM-dd hh:mm:ss>.
sys_updated_by	CDM deployable updated by <username>.
sys_updated_on	CDM deployable updated by timestamp in the format of <yyyy-MM-dd hh:mm:ss>.

cURL request

curl "http://localhost:8080/api/sn_cdm/applications/deployables?appName=testApp&name=Dep-1" \
--request PUT\
--header "Accept:application/json" \
--user 'cdm_admin':'password1!'

Output:

{
  "result": {
    "identifier": "identiy1",
    "cmdb_ci": {
      "value": "f5b9e00b53901110a1d3ddeeff7b12b8",
      "link": "http://192.168.0.233:8080/api/now/table/cmdb_ci_service_auto/f5b9e00b53901110a1d3ddeeff7b12b8"
    },
    "cdi_count": "3",
    "snapshot_version_counter": "1",
    "description": "cdcds",
    "sys_updated_on": "2022-07-27 13:40:13",
    "environment_type": "Test",
    "node": {
      "value": "30c00d4053015110a1d3ddeeff7b12bf",
      "link": "http://192.168.0.233:8080/api/now/table/sn_cdm_node/30c00d4053015110a1d3ddeeff7b12bf"
    },
    "sys_id": "39b9e00b53901110a1d3ddeeff7b12b7",
    "sys_updated_by": "admin",
    "cdm_app": {
      "value": "62b517a953b70110a1d3ddeeff7b128c",
      "link": "http://192.168.0.233:8080/api/now/table/sn_cdm_application/62b517a953b70110a1d3ddeeff7b128c"
    },
    "sys_created_on": "2022-06-29 12:53:57",
    "cdi_usage": "0.03",
    "name": "Dep-2",
    "state": "active",
    "sys_created_by": "admin"
  }
}

CdmApplicationsApi - PUT /sn_cdm/applications/shared_components

Updates the specified shared component in an application within a specified changeset.

The CDM Admin role is required to access this endpoint.

URL format

Versioned URL: /api/sn_cdm/{api_version}/applications/shared_components

Default URL: /api/sn_cdm/applications/shared_components

Note:

Available versions are specified in the REST API Explorer. For scripted REST APIs there is additional version information on the Scripted REST Service form.

Supported request parameters

Table 114. Path parameters

Name	Description
api_version	Optional. Version of the endpoint to access. For example, v1 or v2. Only specify this value to use an endpoint version other than the latest. Data type: String

Table 115. Query parameters

Name	Description
changesetNumber	Required. Unique identifier of the changeset associated with the component. Data type: String
returnFields	List of fields to return as part of the response. Pass the record column names such as sys_id, sys_updated_by, or state. Data type: Array Default: All fields as determined by the endpoint
sharedComponentName	Required. Name of the shared component associated with the specified application. Data type: String Table: CDM Shared Component [sn_cdm_shared_component]
sharedLibraryName	Required. Name of the shared library under which the component resides. The shared library must have the following fields defined as follows: state = active available = true type = shared_library Data type: String Table: CDM Application [sn_cdm_application]
version	Required. Version name associated with the shared component. Data type: String Table: CDM Snapshot [sn_cdm_snapshot]

Table 116. Request body parameters

Name	Description
None

Headers

The following request and response headers apply to this HTTP action only, or apply to this action in a distinct way. For a list of general headers used in the REST API, see Supported REST API headers.

Table 117. Request headers

Header	Description
Accept	Data format of the response body. Supported types: application/json or application/xml. Default: application/json

Table 118. Response headers

Header	Description
None

Status codes

The following status codes apply to this HTTP action. For a list of possible status codes used in the REST API, see REST API HTTP response codes.

Table 119. Status codes

Status code	Description
200	Successful. The request was successfully processed.
400	Bad Request. The passed changeset does not exist.
500	Internal server error. An unexpected error occurred while processing the request. The response contains additional information about the error.

Response body parameters

The response fields depend on what fields were specified in the returnFields parameter in the request. The following describes some of the more important fields.

Name	Description
changeset_id	Details of the changeset record associated with the node. Data type: Object "changeset_id": { "link": "String", "value": "String" }
changeset_id.link	Call syntax for querying this changeset record using the Table REST API. Data type: String
changeset_id.value	Unique identifier of the changeset record. Data type: String Table: CDM Changeset [sn_cdm_changeset]
description	Description of the CDM node. Data type: String
error	Only returned if an error occurred during processing. Data type: Object "error": { "detail": "String", "message": "String" }
error.detail	Details about the error that occurred. Data type: String
error.message	Message that provides an overview of the error. Data type: String
linked_to	ID of the main node associated with the shared component. Data type: String
linked_to_version	Details of the CDM snapshot record associated with the node. Data type: Object "linked_to_version": { "link": "String", "value": "String" }
linked_to_version.link	Call syntax for querying this version record using the Table REST API. Data type: String
linked_to_version.value	Sys_id of the version record. Data type: String
main	Flag that indicates whether the associated snapshot was published. Valid values: true: Snapshot was published. false: Snapshot was not published.
main_id	Unique ID of the newly created main node. Data type: String
main_id_encoded	Encoded ID of the newly created main node. Data type: String
name	Name of the CDM node. Data type: String
node	Sys_id of the shared component node. Data type: String
node_path	Path to the new linked node created when adding the shared component. Data type: String
status	Status of the node. Possible values: New Data type: String
sys_created_by	User name of the user that create the CDM node. For example, able.tuter. Data type: String
sys_created_on	Date and time when the CDM node was created. Format: YYYY-mm-DD hh:mm:ss Data type: String
sys_id	Sys_id of the node. Data type: String Table: CDM Node [sn_cdm_node]
sys_updated_by	User name of the user that last updated the CDM node. For example, able.tuter. Data type: String
sys_updated_on	Date and time when the CDM node was last updated. Format: YYYY-mm-DD hh:mm:ss Data type: String
type	Node type. Data type: String

cURL request

The following example shows how to call this endpoint to update the application "App1" with the shared component "paymentService-V1.1" under the shared library "OracleG-Library-10" within the "Chset-20" changeset.

"https://instance-name.service-now.com/api/sn_cdm/applications/shared_components?sharedComponentName=paymentService-V1.1&sharedLibraryName=OracleG-Library-10&changesetNumber=Chset-20&versionName=sComp3-v2.shc&appName=App1" \
--request PUT \
--header "Accept:application/json" \
--user 'username':'password'

Response:

"result": {
  "changeset_id": {
    "value": "7343d0f71b771110636e0fe0604bcb0b",
    "link": "https://instance-name.service-now.com/api/now/table/sn_cdm_changeset/7343d0f71b771110636e0fe0604bcb0b"
  },
  "node_path": "!2!3!&`",
  "description": null,
  "sys_updated_on": "2022-12-22 18:52:38",
  "type": "sn_cdm_node_linked_shared_component",
  "sys_class_name": "sn_cdm_node",
  "sys_id": "339314b71b771110636e0fe0604bcba3",
  "sys_updated_by": ”admin",
  "previous_version": {
    "value": "a9ce80bf1b371110636e0fe0604bcb10",
    "link": "https://instance-name.service-now.com/api/now/table/sn_cdm_node/a9ce80bf1b371110636e0fe0604bcb10"
  },
  "sys_created_on": "2022-12-22 18:52:38",
  "value": null,
  "effective_from": null,
  "linked_to": "146",
  "sys_created_by": ”admin",
  "restricted_to": null,
  "linked_to_version": {
    "value": "54115c371b771110636e0fe0604bcb77",
    "link": "https://instance-name.service-now.com/api/now/table/sn_cdm_snapshot/54115c371b771110636e0fe0604bcb77"
  },
  "level": "2",
  "conflict_type": null,
  "main_id": "166",
  "effective_to": null,
  "secure_value": null,
  "node_classifier": "/application/components",
  "main_id_encoded": "&`",
  "name": "Component_A",
  "position": null,
  "reason_for_conflict": null,
  "system_folder": false,
  "status": "updated",
  "conflict": false
}
