Java Apache Axis2 web services client examples advanced

  • Release version: Australia
  • Updated March 12, 2026
  • 2 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Java Apache Axis2 web services client examples advanced

    This document provides advanced examples and guidance for constructing and using an Apache Axis2 client to consume ServiceNow SOAP web services. Axis2 is a Java-based SOAP engine framework used to build SOAP clients, servers, or gateways. The content is tailored for system administrators with basic Java development experience.

    Show full answer Show less

    Prerequisites

    • Java JDK version 1.4.2 or higher
    • Apache Axis2 version 1.0 or higher
    • Eclipse SDK (optional) for managing Java projects and executing web requests

    Creating and Setting Up the Java Project

    • Create a Java project in Eclipse or your preferred IDE, ensuring the correct JRE version matches your Axis2 client generation method.
    • Use the wsdl2java tool from Axis2 to generate client stub classes from the ServiceNow WSDL URL or a local WSDL file.
    • Refresh your project to see the generated stub and callback handler classes.

    Using Basic Authentication

    To authenticate with ServiceNow, use the HttpTransportProperties.Authenticator class to supply the username and password, then set this authenticator on the Axis2 client options:

    HttpTransportProperties.Authenticator basicAuthentication = new HttpTransportProperties.Authenticator();basicAuthentication.setUsername("admin");basicAuthentication.setPassword("admin");ServiceNowStub proxy = new ServiceNowStub();proxy.getServiceClient().getOptions().setProperty(org.apache.axis2.transport.http.HTTPConstants.AUTHENTICATE, basicAuthentication);

    Handling HTTP Chunking

    ServiceNow does not support HTTP chunking, which is enabled by default in Axis2 versions 1.1 and higher. To ensure compatibility, chunking must be disabled either at deployment or runtime:

    • Deployment time: Remove or comment out the <parameter name="Transfer-Encoding">chunked</parameter> entry in the Axis2.xml configuration file.
    • Runtime: Disable chunking programmatically by setting the following property on the client or stub options (Axis2 1.1.1+ only):
      options.setProperty(org.apache.axis2.transport.http.HTTPConstants.CHUNKED, Boolean.FALSE);

    Creating Unique Java Packages

    To avoid naming conflicts, you can map XML namespaces in the WSDL to unique Java package names by using the namespace2package (-ns2p) parameter during client code generation. For example:

    wsdl2java.bat -u -p cr2 -ns2p http://www.service-now.com/changerequest=my.changerequest -uri changerequest

    This command generates client classes in the my.changerequest package for the specified namespace.

    Examples showing how to construct and use an Axis2 client to consume a ServiceNow Web Service.

    Axis is essentially a SOAP engine -- a framework for constructing SOAP processors such as clients, servers, or gateways. The current version of Axis is written in Java. This content is intended for system admins with a light development background in Java. To begin you would need Java JDK version 1.4.2 or higher and Axis2 version 1.0 or higher.

    Create a Java Project

    This example uses Eclipse SDK Version: 3.4.2 for managing the source code and executing the web request. Eclipse is not required.
    • Open Eclipse and from the menu select File > New > Project > Java Project.
    • Give the project a name.
    • Verify that the correct JRE is specified.
      • If using wsdl2java run "java -version" on the command line and this will be the version to specify for the project specific JRE.
      • If using the Axis2 Codegen plugin use default JRE.

    Generate your Axis2 client code

    • From a command line in the bin directory of the axis folder:
      ./wsdl2java.sh -uri https://<instance name>.service-now.com/incident.do?WSDL -o /glide/workspace/TestWebService/
    • In the above example:
      • The "-uri" is either the path where you have saved a copy of the wsdl to either ".wsdl" or ".xml", or the URL the WSDL resides at.
      • The "-o" is the path where you want the files to be written out to. If not specified, the files will be written out to the current bin location.

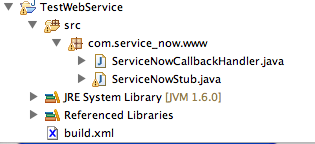

    • In Eclipse refresh the project and the generated Stub and CallbackHandler should now be displayed
      Figure 1. Axis Stub

    Basic Authentication

    HttpTransportProperties.Authenticator basicAuthentication  = new HttpTransportProperties. Authenticator ( ) ;
basicAuthentication. setUsername ( "admin" ) ;
basicAuthentication. setPassword ( "admin" ) ;
...
 ServiceNowStub proxy  = new ServiceNowStub ( ) ;
...

 proxy._getServiceClient ( ). getOptions ( ). setProperty (org. apache. axis2. transport. http. HTTPConstants. AUTHENTICATE, basicAuthentication ) ;

    Compatibility with Axis2 Versions 1.1 and higher

    Chunking support is only available in HTTP Version 1.1. By default chunking is enabled in Axis2.xml for versions 1.1 and higher. ServiceNow does not support Chunking, so you will need to disable chunking at deployment time or at runtime.
    • Deployment time: One can disable HTTP chunking by removing or commenting out the following element from Axis2.xml
      <parameter name= "Transfer-Encoding" >chunked</parameter>
    • Runtime: User can disable the chunking using following property set in Client or Stub, versions 1.1.1 and higher only
      options.setProperty (org. apache. axis2. transport. http. HTTPConstants. CHUNKED,  Boolean. FALSE ) ;

    Creating Unique Packages

    You can use the Axis2 parameter namespace2package (ns2p) to create unique package names. The parameter uses this format:
    <Axis path>\bin\wsdl2java.bat -u -p cr2 -ns2p <namespace>=<package name> -uri <wsdl to convert>
    For example:
    <Axis path>\bin\wsdl2java.bat -u -p cr2 -ns2p http://www.service-now.com/change_request=my.change_request -uri change_request
