Discovery Console for OT API

  • Release version: Australia
  • Updated July 20, 2026
  • 3 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Discovery Console for OT API

    The Discovery Console for OT API allows ServiceNow customers to access and manage Operational Technology (OT) discovery data through the Service Graph Connector (SGC). The API facilitates communication between Discovery components, the Discovery Console for OT, and the ServiceNow instance, enabling efficient data exchange and integration. It supports secure setups including indirect network connections (air-gapped environments) by enabling manual data transfers using JSON files.

    Show full answer Show less

    Key Features

    • API Settings Management: Configure active and denied tokens, manage API endpoints, and import/export tokens to control secure access to the SGC.
    • Service Graph Connector (SGC) Functions:
      • Reports user license status.
      • Imports identified software programs with detailed attributes such as software name, version, vendor, last seen date, and associated asset IDs.
      • Transfers images and screenshots from the Console to ServiceNow, supporting filters like update date, creation date, size, OCR words, and titles.
      • Pushes Discovery Sensor for OT information, including sensor IDs and asset discovery data, from the Console to the ServiceNow instance.
      • Sends VM health and host metrics for Sensors and Collectors, enhancing visibility into versioning, installed processes, and system health.
    • Air-Gapped Network Support: Generates JSON export files for manual transfer to MID Servers in isolated networks, enabling data import into ServiceNow via the SGC without direct internet connectivity.
    • Export and Scheduling: Allows scheduling exports of Discovery data as JSON files saved locally on the Discovery Console, which can then be physically transferred and imported.

    Practical Use and Next Steps

    ServiceNow customers can use the Discovery Console for OT API to automate and secure the flow of OT discovery data into their ServiceNow environments. For organizations with strict security requirements or air-gapped networks, the JSON export/import functionality ensures compliance while maintaining data freshness.

    To configure and optimize usage:

    • Set up and manage API tokens and endpoints within the Console’s API settings.
    • Utilize the SGC to synchronize software inventory, sensor data, and health metrics with ServiceNow.
    • Implement scheduled JSON exports for data handoff in disconnected environments.
    • Refer to related documentation for backing up the Console database and editing API settings for tailored integration.

    You can access the Console Discovery data via the API. On the Settings page, select the API tab to view and use the active tokens, denied tokens, and endpoints needed to communicate with the Service Graph Connector (SGC).

    Note:
    To learn more about the Service Graph Connector, see Service Graph Connector for ServiceNow Operational Technology (OT) Discovery

    API settings

    The API settings are used to set up the active tokens, denied tokens, and endpoints needed to communicate with the SGC for ServiceNow Operational Technology Discovery.

    Tokens can be imported or exported, and endpoints can be downloaded.

    The SGC enables the API to communicate data from the Discovery Console for OT and other Discovery components to the ServiceNow instance. Data can also be communicated to and from external APIs.

    Functionality

    The SGC has been enhanced for better connection to and from the Discovery components, the Discovery Console for OT API, and your ServiceNow instance.

    The SGC provides Discovery Console for OT API functions such as:
    • Sends the status of the user license.
    • Imports all software programs that are identified on the devices and returns a paginated list from the SoftwaresAPI view.
      The API ingests software and provides the following program attributes:
      • inputProduct: the software name
      • Version: the version of the installed software
      • inputVendor: the manufacturer of the software
      • lastSeenOn: the assets' LastSeenOn field added to the object
      • assetId: derived fro the _id for the asset document containing the software array.
      • _id: for the document; should be the _id for the object in the software array
    • Transfers images and screen shots from the Console to the ServiceNow instance. This returns images in a paginated list with these filters:
      • UpdateOn
      • CreatedOn
      • ScreenShot
      • Size
      • OCR Words
      • Titles
    • Pushes Discovery Sensor for OT information to the ServiceNow instance.
      • The API can be used to return the sensorId.
      • You can gather information about the Sensor and use it to discover assets.
      • Sensor information can be pushed via the API to the ServiceNow.
    • Send to the Console virtual machine (VM) health metrics and host metrics of the Sensor and the Collector. This helps with visibility of version, installed processes, and the health of the host machine of Discovery Console for OT, Discovery Sensor for OT, and OT Discovery Collector.

    Indirect network connection (air-gapped)

    For security reasons, a computer or system may not be directly connected to the internet or may be on an unsecured LAN. In such a situation, the Operational Technology Discovery components can't push files or data to the MID Server and from there via the Service Graph Connector on to the ServiceNow instance.

    To solve the air-gap issue, the Discovery Console for OT can generate JSON files. These JSON files are physical files and can be manually copied and then moved to the MID Server via an external drive. They can then be manually copied to a specific directory on the MID Server and then consumed through the SGC to the ServiceNow instance.

    Note:
    For information about installing containerized versions of the Discovery Console for OT and the OT Discovery Collector, see Air-gapped networks and OT Discovery installation.

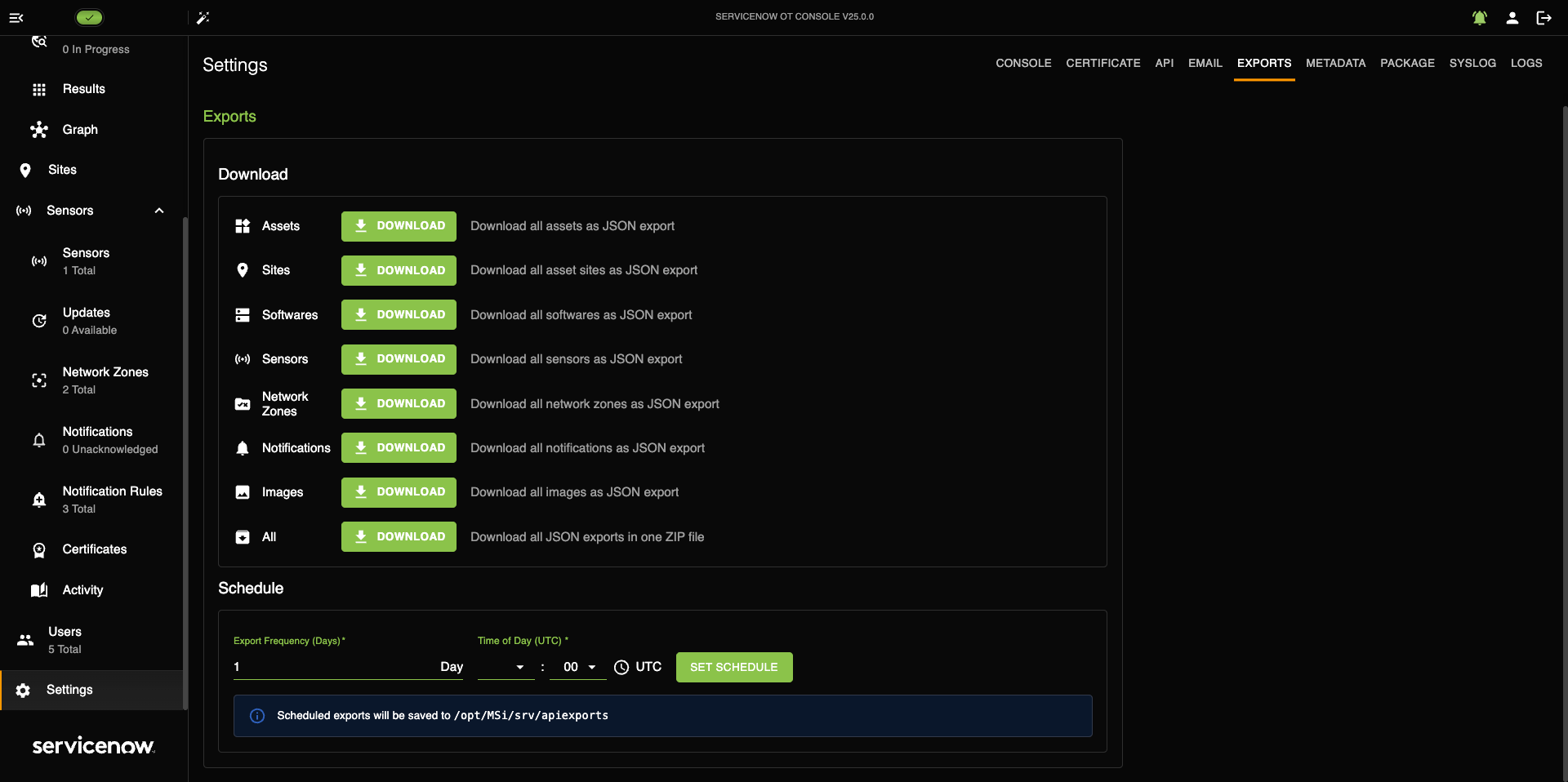

    For example, if you navigate to Settings > Exports on the Discovery Console for OT, you can download data generated by the Discovery components as a JSON export file. You can schedule the frequency of these downloads setting the number of days and time of day. These files are saved to the /opt/MSi/srv/apiexports directory. From there you can move them to physical media like a thumb drive. You can then copy or import the JSON files to the MID Server and through Service Graph Connector for ServiceNow OT Discovery and then on to the ServiceNow instance.

    For information regarding Exporting data, see Export data.

    To edit the Console API, see Edit API settings. For information on creating a Console database backup, see Create a backup for the Console.
