Assets page

  • Release version: Australia
  • Updated March 30, 2026
  • 5 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Assets page

    The Assets page in the Discovery Console for OT displays a comprehensive list of assets discovered or manually added within the system. Customers can access this page via the navigational menu by selectingAssets > Assets. Assets can be populated through native discovery by sensors and collectors, CSV imports, or by manually adding new assets using the add icon.

    Show full answer Show less

    Filtering and Viewing Assets

    A Filter panel allows customers to refine which assets are displayed, offering preset filters such as Sites and Default tabs. The panel can be opened or closed using the filter icon. Assets can be viewed in three formats: List view, Gallery view, and Map view, accessible via icons in the top right of the assets list.

    Actions Available

    The Actions button provides a dropdown menu for managing assets, including importing, exporting (in CSV or JSON), updating manufacturer data, vulnerability data, product mappings, Purdue levels, ignoring assets, and deleting assets. Inactive actions appear grayed out, ensuring clarity on available options.

    Asset Records Management

    Selecting an asset’s IP address opens the asset record, where details can be viewed and edited. Adding a new asset opens the same interface with three tabs—Details, Images, and Modules—available when viewing existing records.

    Key Sections of an Asset Record

    • Identification: Includes essential fields like IP Address (required), Hostname, Product details, Firmware Version, Network Zone, MAC Address, Serial Number, and an option to ignore the asset from auto queries.
    • Classification: Features Auto Categorization to manage asset classification fields automatically. Fields include Category (e.g., Desktop, HMI), Brand, Purdue Level, Operating System, and additional Details. Disabling Auto Categorization enables manual editing and asset deletion.
    • Timeline: Tracks asset creation, last modification, last detection, and last update timestamps.
    • Open Ports: Lists all open ports identified on the asset by Discovery.
    • Metadata: Contains Alias (user-friendly name), Description, Labels for tagging assets, and Location details.
    • Installed Software: Lists software installed on the asset. Customers can add software entries by specifying Vendor, Product, and optional Version.
    • Attributes: Shows discovered attributes with the option to add new ones by specifying Name and Value.
    • MAC Addresses: Displays all detected MAC addresses linked to the asset, with a toggle to mark the primary MAC address. Additional details include Vendor Name and detection timestamps. New MAC addresses can be added manually.
    • Comments: Provides a section to enter supplementary notes about the asset.

    Practical Benefits for ServiceNow Customers

    This comprehensive Assets page enables customers to efficiently manage and maintain their OT asset inventory within ServiceNow. The ability to edit, classify, filter, and perform bulk actions on assets streamlines asset lifecycle management and enhances visibility. The detailed asset record sections support accurate documentation and tracking, which is crucial for operational security and compliance.

    The Assets page shows a list of all available assets for the Discovery Console for OT.

    Note:
    To edit any of the fields in the Asset record, select the asset from the list and then select the Edit button. After editing, select Save to save any changes.

    Assets page overview

    The Assets page shows all assets that were automatically discovered along with all assets that were manually added to the system. To view the assets list, use the navigational menu on the left side of the screen and select Assets > Assets.

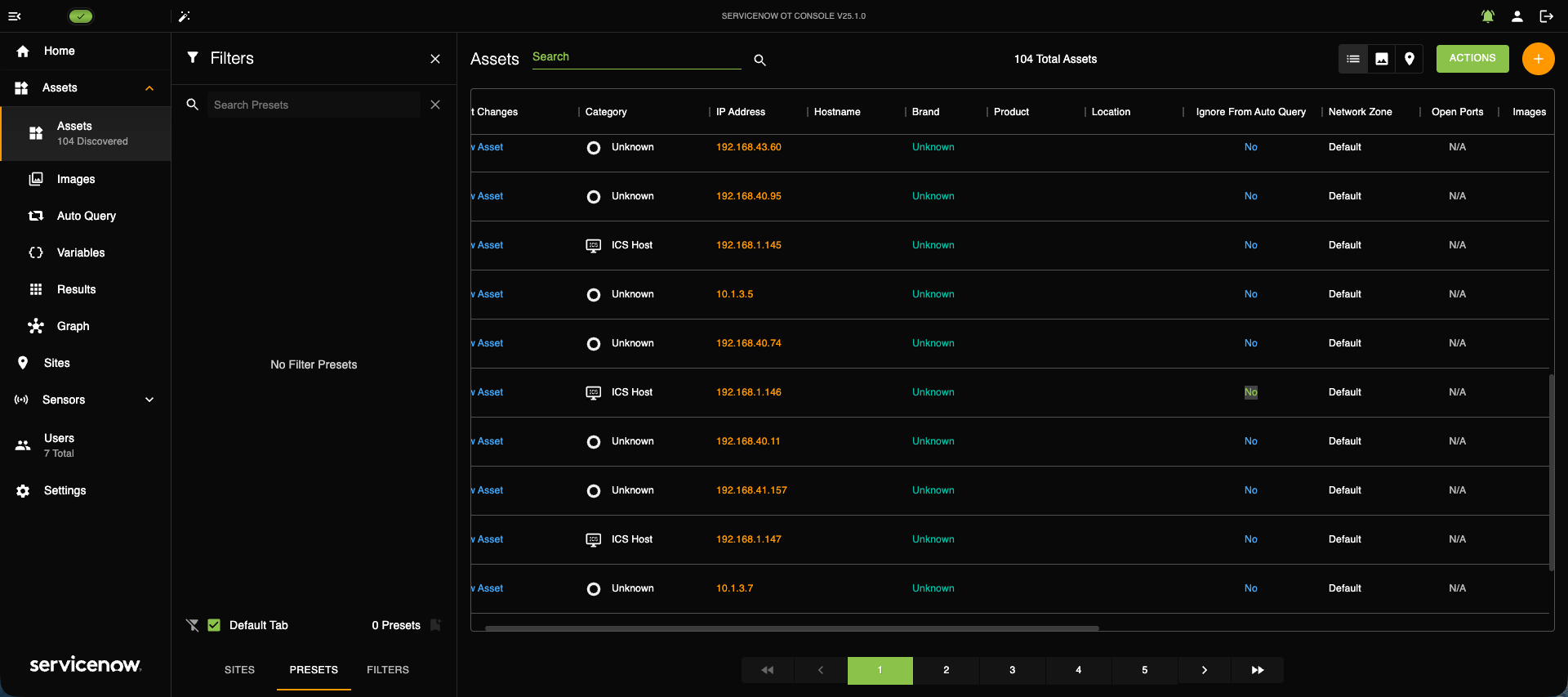

    Assets page
    You can add assets with the following methods.
    • Sensors and Collectors perform Native discovery and populate the assets.
    • Import via a CSV with assets information.
    • By selecting the add icon .
    Filter panel
    When you open the Assets page, there is a Filter panel you can use to filter which Assets appear in the list. There are preset filters which appear as tabs at the bottom of the panel. The preset filters are:
    • Sites
    • Presets (You can also check the Default Tab box above these 3 tabs.)
    • Filters

    Select the X at the top of the panel to close the filter. To open the panel, select the filter icon .

    Views

    In the top right area of the Assets list, there are different icons that control how the Assets are viewed.


    Asset views
    The views are:
    • List view
    • Gallery view
    • Map view
    Actions
    The Actions button provides a drop-down menu for manipulating the Assets. The formats for each are indicated next to the selection where applicable. The selectable actions are:
    • Import Assets
    • Import Ignore Assets (CSV)
    • Export Ignore Assets (CSV)
    • Export Assets (JSON)
    • Export Assets (CSV)
    • Update Manufacturer Data
    • Update Vulnerability Data
    • Update Product Mappings
    • Update Purdue Levels
    • Ignore Assets
    • Delete Assets
    Note:
    If an action is inactive, it appears grayed out in the menu.

    Next to the Actions button is the add icon .

    Asset records

    With an Asset record, you can view and edit the details of the selected asset. To view an asset record from the Assets page, select the IP address displayed for the asset. The following sections describe each section of an Asset record.
    Note:
    When you select the add icon , this same view opens with these same sections. However, when you open an existing asset record, you have three tabs on the upper right side of the screen. The tabs are Details, Images, and Modules.

    Identification

    The Identification section contains the following fields.
    Field Description
    IP Address [Required] IP Address assigned to the asset.
    Hostname Name of the connected device.
    Note:
    The name is populated when it is configured on the device or if the DNS server is configured.
    Product Manufacturer and model of the asset.
    Firmware Version Version of the firmware installed.
    Network Zone Network zone of the asset.
    MAC Address MAC address that is associated with a given asset.
    Serial Number Serial number associated to the asset.
    Ignore from Auto Query Option to mark devices that need to be ignored from the auto queries. This field is automatically set to inactive,

    Classification

    The Classification section contains the following fields.
    Field Description
    Auto Categorization

    Feature that enables the Discovery Console for OT to manage and update the Description, Category, and Operating System fields through the automatic classification system.

    Set to Yes or No.

    Note:
    If Auto Categorization has been enabled, then editing is turned off for the Category, Brand, Operating System, and Details fields.

    Users can select Edit and then modify the values during editing.

    To delete an asset, set Auto Categorization to No. The Delete button then appears in the right-most column allowing you to delete the asset.

    Category Category or classification indicates the function of the device or class that the asset belongs to. For example, Desktop, HMI, PLC, or SCADA.
    Brand Name of the manufacturer that produced the asset.
    Purdue Level N/A by default. See image of drop-down choices.
    Operating System Operating system of the asset. For example, IOS, Linux, or Windows.
    Details Section for additional details to describe the classification for this asset.

    Timeline

    The Timeline section contains the following dates and times related to the asset.
    Table 1. Timeline
    Field Description
    Created When the asset was created.
    Modified The last time the asset was modified.
    Last Seen The last time the asset was detected.
    Updated The last time the asset was updated.

    Open Ports

    The Open Ports section lists all open ports available on the asset that were identified by Discovery and shown on the Discovery Console for OT.

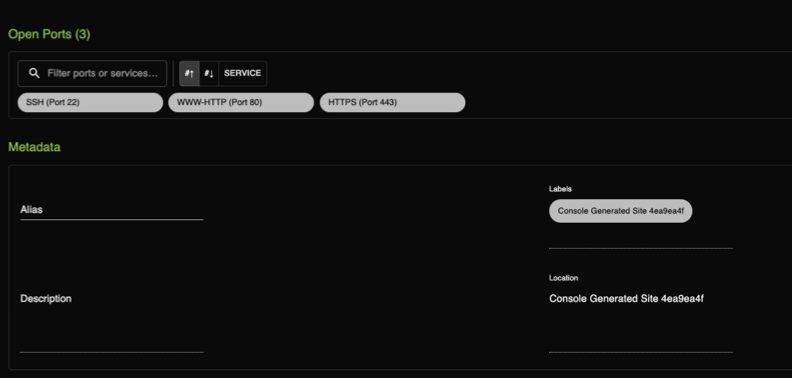

    Ports and Metadata sections

    Metadata

    The Metadata section contains the following fields.
    Field Description
    Alias Alternate name given to the asset.

    Where possible, the alias is displayed instead of the IP Address or MAC address to provide a user-friendly way to identify the asset.
    Description Description of the asset.
    Labels Tag that you can add to an asset to assist in identifying and finding assets with the tagged properties within the system.
    Location Description of the physical location of the asset.
    Installed software
    The Installed Software section includes a list of all software installed on the asset. To add software, complete the following actions.
    1. Select the Edit button.

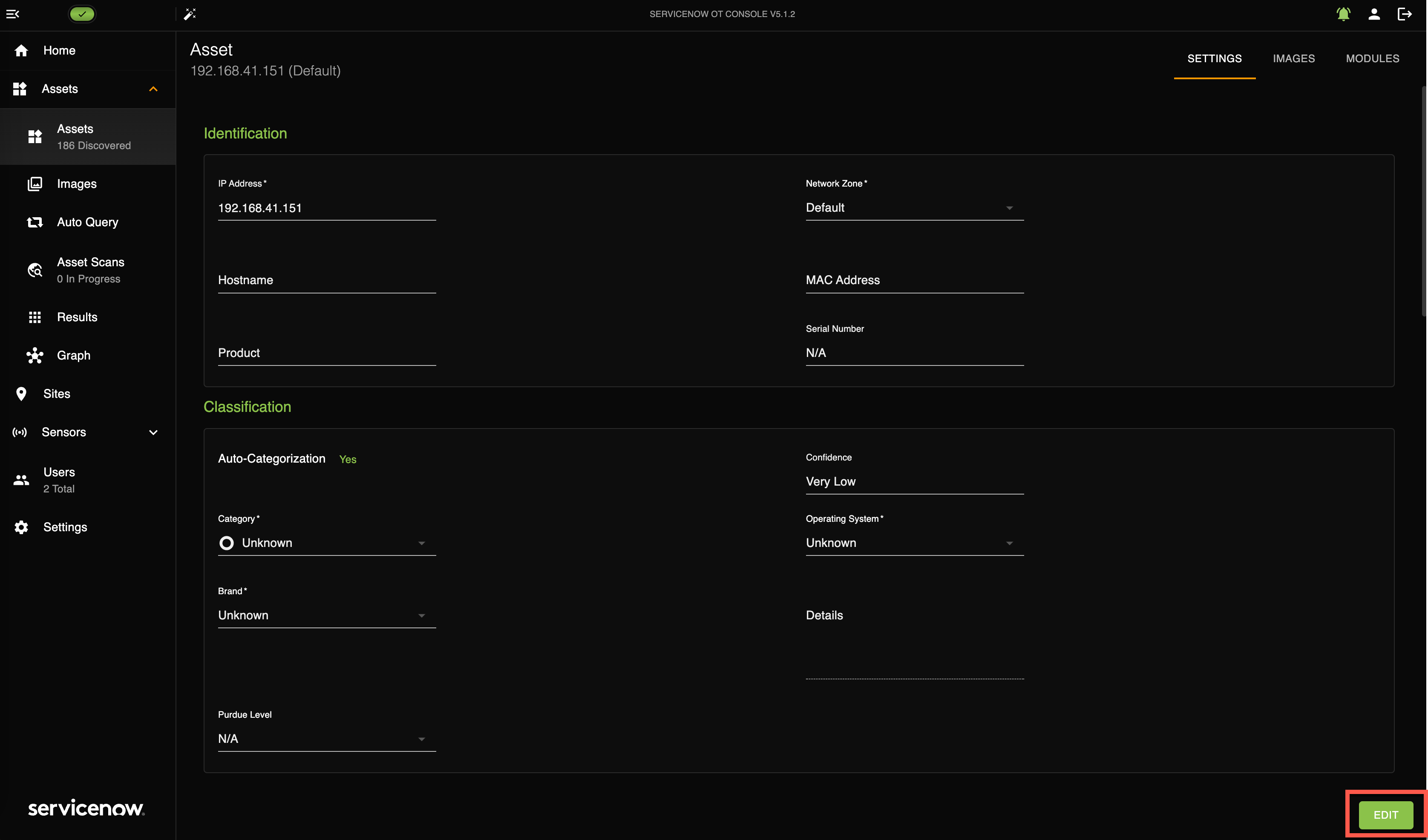

      Select the Edit button

    2. Scroll to the Installed Software section and select Add Software.

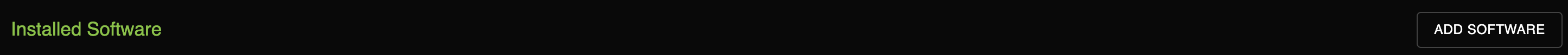

      Add Software

    3. In the Add Software modal window, enter the Vendor, Product, and Version (optional) of the software being added.
    4. Select Save.
    The added software displays in the Installed Software list.
    Attributes
    The Attributes section contains the attributes discovered by the Discovery process. To add an attribute, complete the following actions.
    1. Select the Edit button.
    2. Scroll to the Attributes section and select Add Attribute.

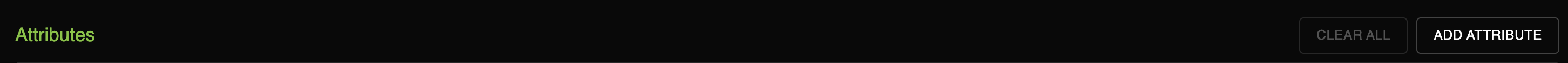

      Add attribute

    3. In the Attribute modal window, enter the Name and Value of the attribute.
    4. Select Add Attribute.
    5. Select Save.
    MAC Addresses
    The detected MAC Addresses section includes a list of all the MAC addresses that are associated with a given asset. The Real Address toggle is used to indicate that a MAC address belongs to an asset and should be considered the primary or main MAC address. Each detected MAC address in the list includes the Vendor Name, Vendor Address, First Detected On, and Last Detected On fields.

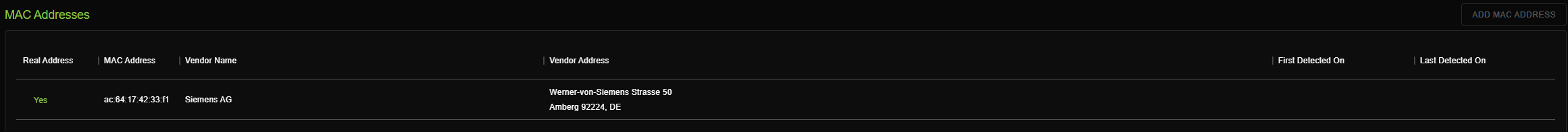

    MAC address
    To add a MAC address, complete the following actions.
    1. Select the Edit button.
    2. Scroll down to the MAC Addresses section and select Add MAC Address.
    3. In the Add MAC Address modal window, add the name of the MAC Address.
    4. Select Add Mac Address.
    5. Select Save.
    Comments
    The Comments section provides an area to enter additional information about the assets. To add a Comment, complete the following actions.
    1. Select the Edit button.
    2. Scroll to the Comments section and select Add Comment.

      Add comment

    3. In the Add Comment modal window, enter a comment.
    4. Select Save.
    The added comment is listed in the Comments section of the asset.
