Install the Discovery Sensor for OT

Download the Discovery Sensor for OT package and install the ISO image. Then install the Discovery Sensor for OT.

Before you begin

Role required: admin

About this task

You can register the Sensor after you have installed the OT Discovery Console and system. Before you can register a Sensor to the Console, you must confirm that you have completed the following.

• From the Downloads page, download the Sensor package; the Sensor ISO file is in the same package.
• Install the ISO image.
• Determine if you're using the ISO as a Virtual Machine (VM) or are installing the ISO on hardware. If you're using the ISO as a VM, you can use any of the following VMs.
  • VWware
  • Hyper-V
  • Proxmox
  • Linux KVM

    If you choose to install the ISO on hardware through BareMetal, you must use a tool to create a USB ISO installer.

• You must open both the Console and the DMI interfaces to complete the Sensor registration.

Procedure

1. On your instance, navigate to the Service Graph Connector for ServiceNow Operational Technology Discovery Guided Setup page.
2. Select the Get Started.
   The Download & Deploy OT Discovery page opens.
3. In the first section of the setup, select Download & Deploy OT Discovery.

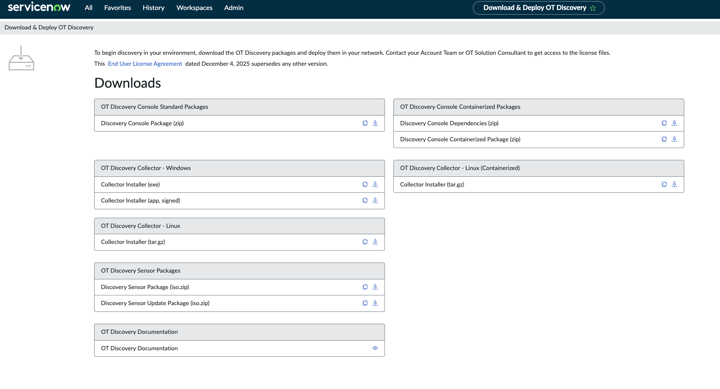

4. Select Configure and the Downloads page opens.




   Note:

   Read the End User License Agreement (EULA) carefully and then check Agree.
5. Download the Discovery Sensor for OT installation and deployment package.
6. Unzip the Sensor package.
   The ISO image is included in the Sensor package.
7. Create the virtual machine for the Discovery Sensor for OT.
8. Install the Discovery Sensor for OT.
9. Select the default answers for all prompts.
10. Upload the ISO image to your virtualization platform.

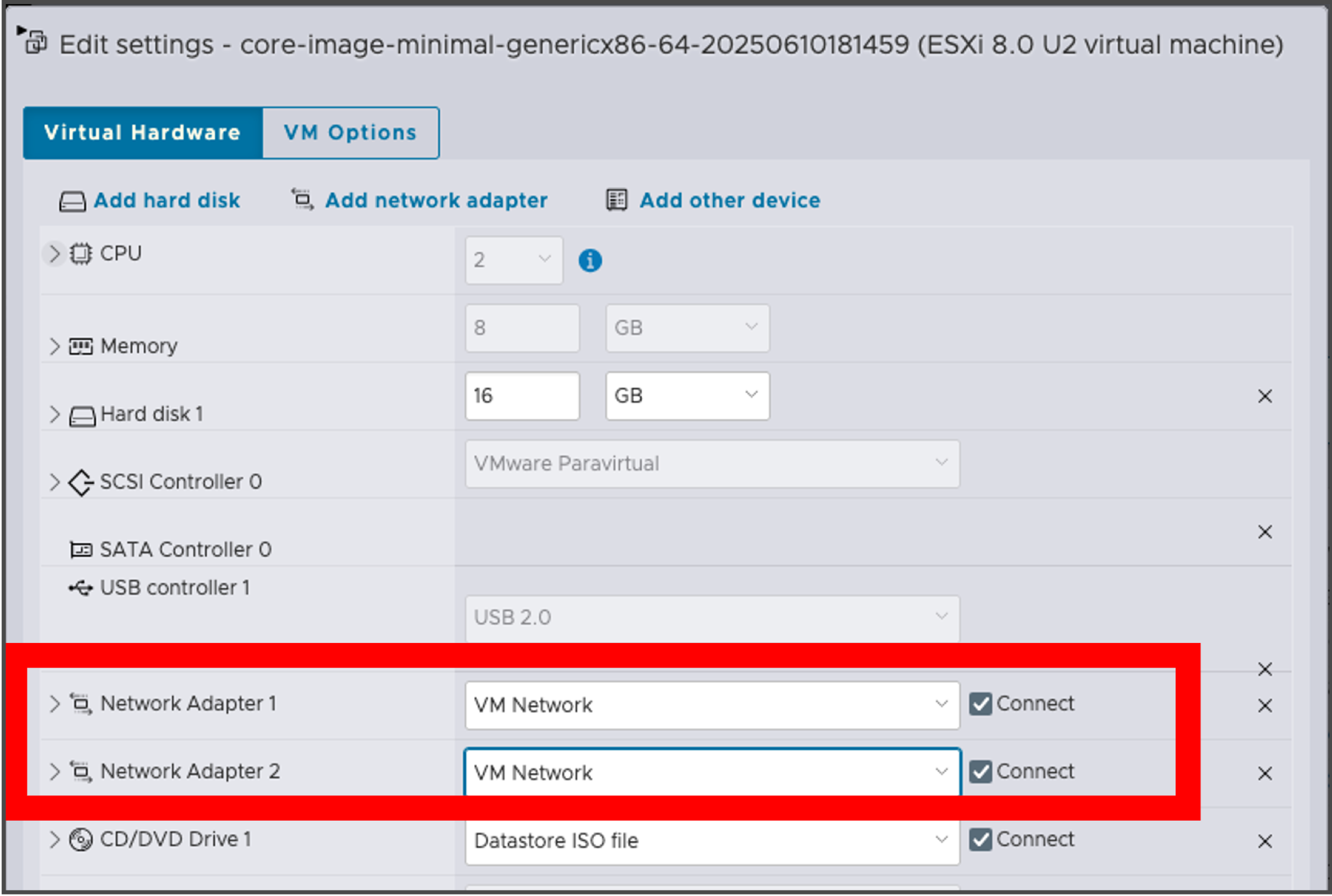

11. Create the hardware NICs which the VM uses to communicate with the Sensor.
    Note:

    The following images are examples specific to an ESXi 8.0 U2 virtual machine.





    Note:

    For communications to work between Discovery components, two network adapters should be connected on the VM.





    Note:

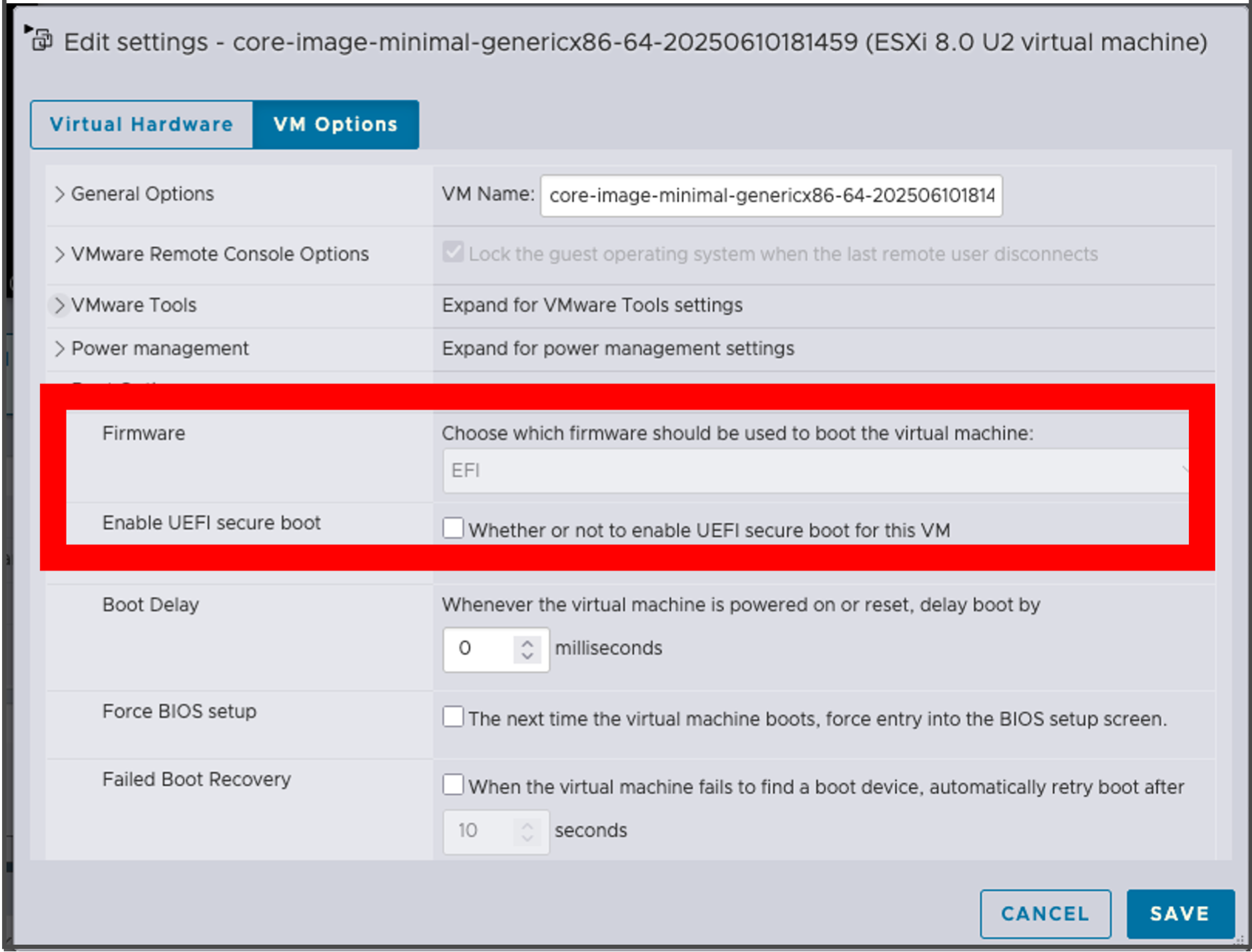

    For other VM options, confirm that EFI is selected (and not BIOS) as the Firmware and that the "Enable Secure Boot" flag is not selected.
12. Install the ISO image.

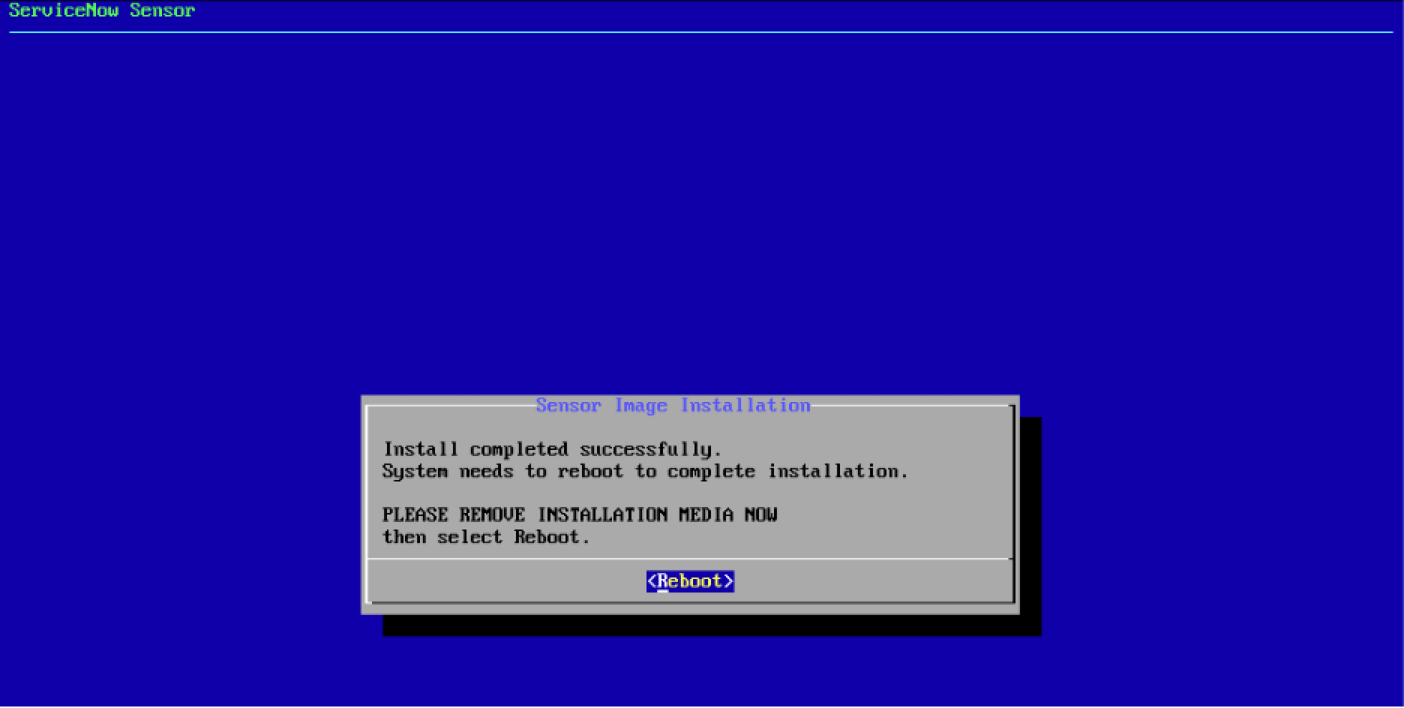

13. After installing, when alerted, remove any install media.
    The alert message is: "System needs to reboot to complete installation. Please remove all install media and once complete press any key to reboot."
14. Reboot the system.
15. After removing any install media, the install process starts for the Sensor.
16. Create the virtual machine for the Sensor.
17. Select the OS as Other Linux 64-bit.
18. Attach the Sensor ISO to the CD/DVD to boot the VM.
19. Create 2 hardware NICs specifically for the VM.
20. For other VM options, confirm that EFI is selected (and not BIOS) as the Firmware and that the "Enable Secure Boot" flag is not selected.
21. Assign a minimum of 8 GB RAM and 60 GB HDD for the installation.
22. Power on the VM and the install starts.

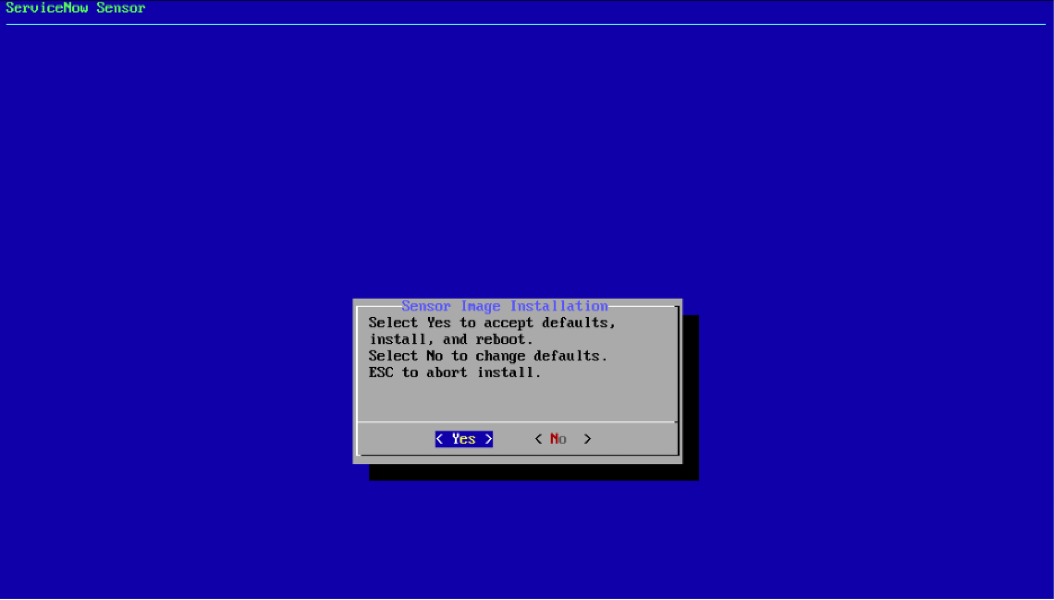

    You see this screen:


23. Select Yes to start the install.
24. Once the install is complete, select Enter to reboot the VM.

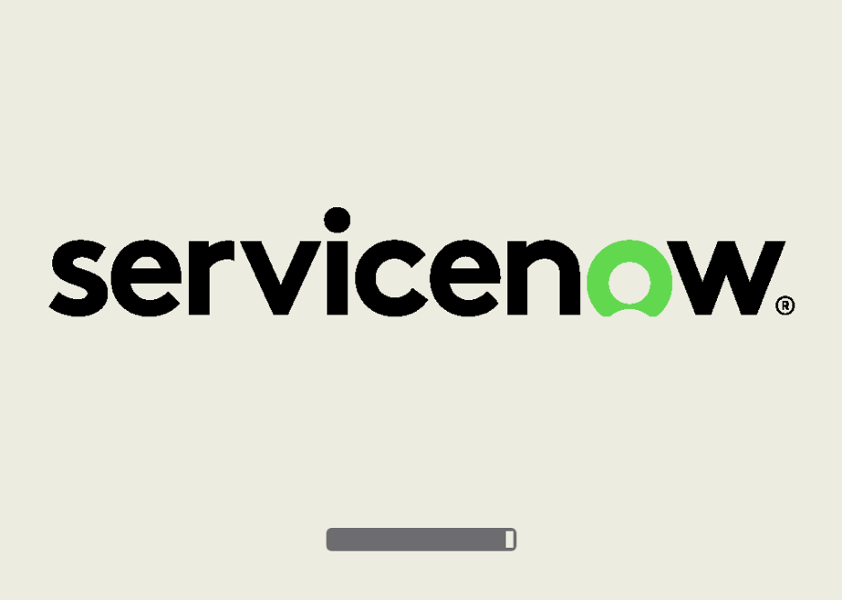

    This screen displays after the Sensor boots up.

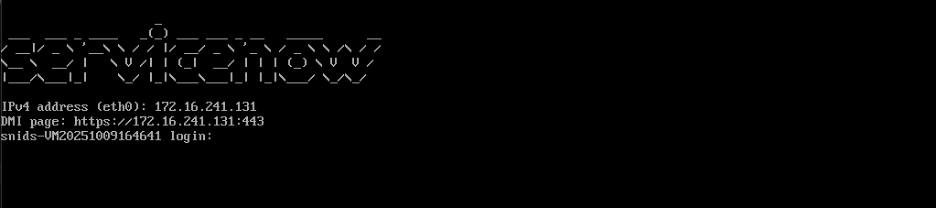

25. On the VM page, the DMI page URL displays.


26. Use this URL to log into the DMI and register your Discovery Sensor for OT to the Console.
    See Register the Discovery Sensor for OT on how to register the Sensor.

What to do next

Register the Discovery Sensor for OT
