View insights of the report
View the details of the reports generated by you.
Before you begin
Role required: sn_ac.automation_business_user, sn_ac.automation_technical_user, or sn_ac.automation_admin
Procedure
-
Select the Migration accelerator icon (
) on the side bar.
-
The dashboard is displayed with insights and a list of automations.

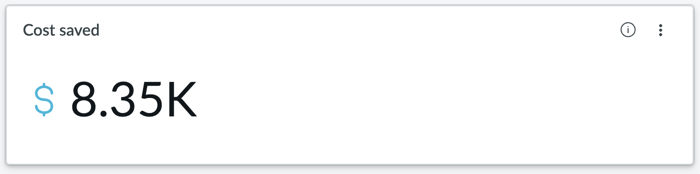

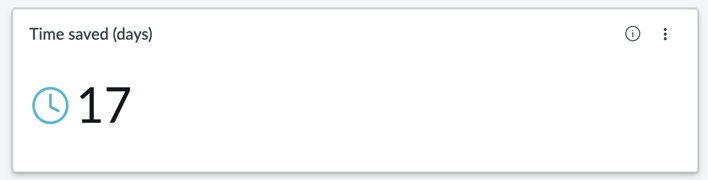

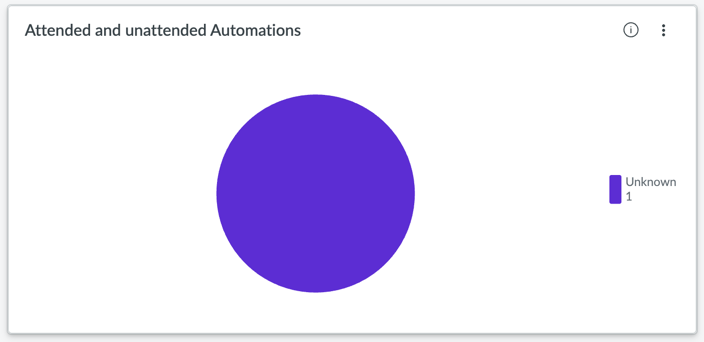

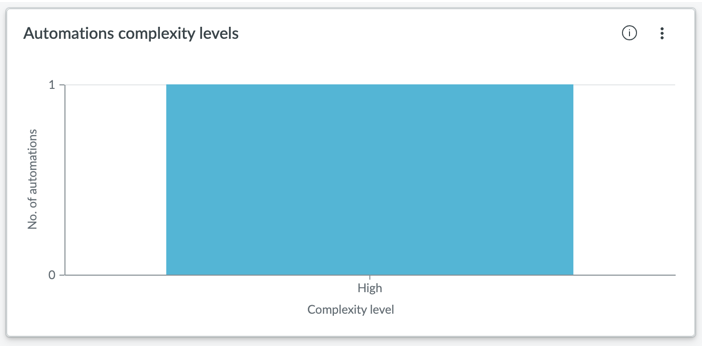

Table 1. Insights section Description Illustration Time saved (days): The estimated time saved by automating the migration. Cost saved: The estimated cost saved by automating the migration. Automations complexity levels: Displays the complexity levels of the automations. The higher the complexity, the lower the migration rate. Attended and unattended Automations: The number of automations that require user input (attended) versus the automations that run independently (unattended). This information helps to plan deployment and testing. Conversion rate (%): The percentage of automations that are ready for migration without significant changes. A higher rate means fewer manual adjustments. Conversion breakdown: Details about how each automation converts—from fully compatible to needing manual adjustments—so you can identify where additional effort is required. This field has two values. Total conversion % as 78%.
In Conversion breakdown area, you see two values for fully convertible. First is 60 and the other 76.92%.
The first value means that out of 78, 60 were fully converted. The second value (%) is derived out of the box from UIB showing 60/78 *100 = 76.92%. 78 here came from two values in graph 60 (full convertible) + 18 (partially convertible) although that is the total value, but it isn’t provided explicitly. There’s no configuration available to show the value and not the %.

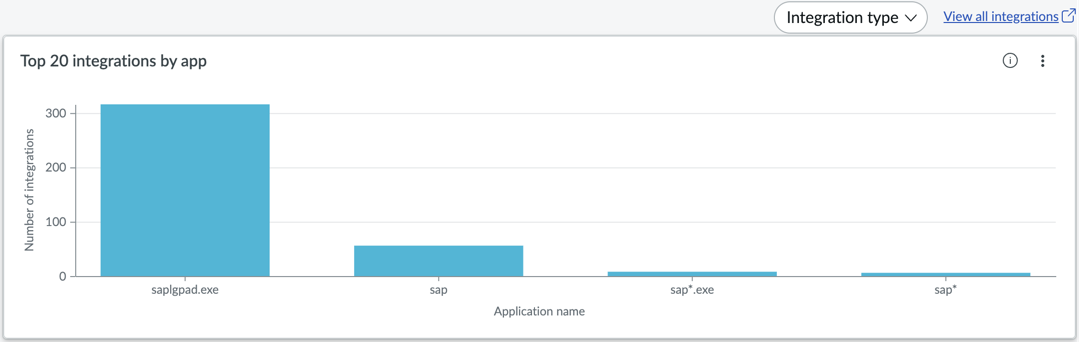

Total integrations: The total number of integrations found in the automations. Useful for identifying potential migration challenges tied to external systems. Top 20 integrations by app: Details about how integrations are distributed across different apps. Helps you to see which third-party platforms require additional planning or validation. You can select the type of integration in the Integration type.
Select View all integrations to view the list of integrations.
On the All automations tab, you can view the list of automations that you want to migrate with all the details.
You can select the automation that you want to migrate from this list.
