Zero Copy Connector for ERP scheduled extraction field descriptions

  • Release version: Zurich
  • Updated March 12, 2026
  • 3 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Zero Copy Connector for ERP scheduled extraction field descriptions

    The Scheduled Extraction form in the Zero Copy Connector for ERP module allows ServiceNow customers to create and manage jobs that extract ERP data at defined regular intervals. This functionality is essential for automating data integration processes between ERP systems and ServiceNow, ensuring timely and consistent data updates.

    Show full answer Show less

    Key Features

    • Name: Assign a unique identifier to each scheduled extraction job for easy reference.
    • Active: Enable or disable the scheduled extraction to control execution.
    • Extraction Table: Select the specific ERP extraction table as the data source; this links to the configured ERP system.
    • ERP System: Choose the pre-configured ERP system connected to the extraction table.
    • Application: Automatically set to Zero Copy Connector for ERP, read-only for users.
    • Maximum Number of Retries on Error: Define up to 10 retry attempts if the job fails, noting that each retry reprocesses the entire job.
    • Extraction Will Retry After: Specify the waiting interval before retrying extraction, applicable when retries are enabled.
    • Encoded Query: Input a filter query string to refine data extraction from the ERP table.
    • Generate Encoded Query Script: Create a script to fetch data, which overrides the basic encoded query string if used.
    • After Extraction: Chain scheduled jobs by selecting a preceding job that triggers this extraction upon its completion, avoiding execution loops.
    • Run As: Assign the user identity under which the extraction job runs, ensuring appropriate permissions.
    • Run (Schedule Options): Flexibly schedule the extraction using multiple options:
      • Daily: Run at a specified time every day.
      • Weekly: Run on a selected day and time each week.
      • Monthly: Run on a specific day of the month and time.
      • Periodically: Run at defined intervals combining days, hours, minutes, and seconds.
      • Once: Run a single extraction at a specified date and time.
      • On Demand: Execute extraction immediately via a manual trigger.
      • Business Calendar Entry Start/End: Schedule extractions aligned with business calendar entry start or end dates, useful for fiscal periods or other business cycles.
    • Time and Time Zone: Specify the exact time (24-hour format) and time zone to ensure accurate execution according to business requirements.

    Practical Use and Benefits

    ServiceNow customers can leverage this form to automate ERP data extraction seamlessly, ensuring data freshness and integrity without manual intervention. The retry and scheduling features provide robustness and flexibility, accommodating varied business needs and error handling scenarios. The ability to chain jobs and use business calendar scheduling enhances alignment with business processes and dependencies.

    The Scheduled extraction form in Zero Copy Connector for ERP enables you to create and edit jobs to extract data at regular intervals.

    For process details, see Create a scheduled extraction in Zero Copy Connector for ERP.

    Table 1. ERP scheduled extraction table fields
    Field Description
    Name A unique name that identifies this scheduled extraction.
    Active Option that indicates the scheduled extraction is active and should be executed at the specified frequency and time.
    Extraction table Name of the ERP extraction table from which to pull data.
    ERP system ERP system that the extraction table is linked to. The system must already be configured.
    Application This field is read only and is filled in automatically with Zero Copy Connector for ERP.
    Maximum no of retries on error If the job fails, set the maximum number of retries (from 0 through 10) the scheduled job should attempt before stopping.
    Note:
    Each retry uses the same query and retries the entire job. For example, if the total job contains 5000 records and the job fails after 2000 records are successfully processed, the entire job runs again on the next retry. For more information, see Import sets key concepts.
    Extraction will retry after If the Maximum no of retries on error field is set to a number between 1-10, specify the amount of time (in days, hours, minutes, and seconds) the system should wait before attempting the extraction again.
    Encoded query Create an encoded query string using a filter on the extraction table list and paste the string into this field. For example:

    Sample encoded query.

    For more information, see Encoded query strings.

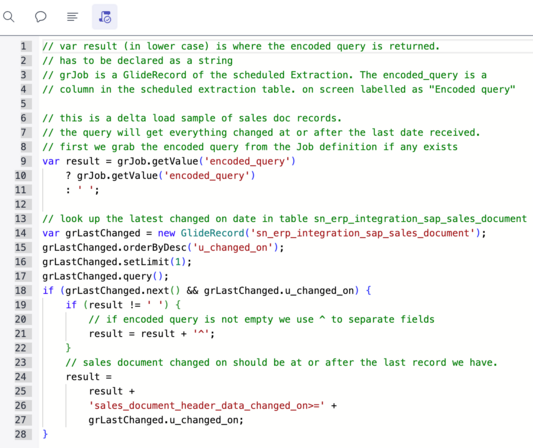

    Generate encoded query script Generate an encoded query script to use on the extraction table to fetch the data. For example:

    Sample generated encoded query script.

    The script entered in Generate encoded query script takes precedence over information entered into the Encoded query field. You can append the encoded query to the script (as in the example).
    After extraction Select an existing job that, when it completes, the new job you're creating should start. The job you specify must be active.
    Note:
    If you don't see the job that you want to use listed, check if the job is already scheduled before or after another job. Only jobs that won't create a loop are permitted.
    Run as Specify the user name to associate with the scheduled extraction.
    Run When to run the extraction.
    • Daily: Specify the next scheduled start in hours, minutes, and seconds to repeat daily. For example, adding 20:30:00 starts the scheduled extraction the next time the clock reaches 20:30:00 (9:30 pm) and then every subsequent day at 20:30:00 in the time zone specified.
    • Weekly: In Day, select the day of the week to run the scheduled extraction. Specify the next scheduled start in hours, minutes, and seconds to repeat weekly. For example, selecting Sunday and specifying 03:00:00 starts the scheduled extraction the next Sunday at 3:00 am and then every subsequent week on Sunday at 3:00 am in the time zone specified.
    • Monthly: In Day, select the day of the month to run the scheduled extraction. Specify the next scheduled start in hours, minutes, and seconds to repeat monthly. For example, selecting 5 and specifying 03:00:00 starts the scheduled extraction the fifth day of the next month at 3:00 am and then every subsequent fifth of the month at 3:00 am in the time zone specified.
    • Periodically: In Repeat Interval, select the days, hours, minutes, and seconds to repeat periodically. For example, start the scheduled extraction every 3 days, 4 hours, 30 minutes, and 30 seconds.
    • Once: In Starting, click inside the field, select a day and type in a time for the extraction to run once.
    • On Demand: Select the Run now button (next to the Save button) to run the extraction immediately.
    • Business Calendar:Entry Start: Runs on the starting entry dates for the business calendar that you select in the Business Calendar field. A scheduled job runs for the starting date of each of the business entries that you defined for the business calendar. For example, if the business calendar represents a fiscal year, and the starting date of each entry is a fiscal month, the scheduled job runs on the first day of each month.
    • Business Calendar:Entry End: Runs for the ending date for the business calendar that you select in the Business Calendar field. This selection runs in the same manner as Business Calendar:Entry Start, but for the end dates of the associated business calendar entries.
      Note:
      To learn more about creating and using business calendars and defining business calendar entries, see Creating business calendars.
    Time Time, in 24-hour format, for when the scheduled extraction should run.
    Time zone Specify the time zone for the scheduled extraction.
