Set up the Workday Financials spoke

Integrate the ServiceNow instance Workday instance by using the WS-Security Username Profile to authenticate ServiceNow requests.

Before you begin

• Request an Integration Hub subscription.
• Activate the Workday Financials spoke.
• Role required: admin

Provide the Workday Financials base URL

Provide the base URL of your Workday Financials instance in the Connection Details [connection_details] table. Spoke actions based on the SOAP API, use these details for the action execution.

Before you begin

Role required: admin.

Procedure

1. Navigate to All > System Definition > Tables.
2. Filter and search for the Connection Details table.
3. Click the Show List related list.
4. Click New.
5. On the form, fill these values.

   Table 1. Connection Details form

   Field	Description
   Base URL	Base URL of the Workday instance or tenant name.
   Version	Version of the API. For example, enter v33.2.

6. Click Save.

Create a WS-Security Username Profile for the Workday Financials spoke

Create a WS-Security Username Profile to provide your Workday credentials to authenticate requests from ServiceNow.

Before you begin

Role required: admin.

Procedure

1. Navigate to All > IntegrationHub > SOAP Integrations > WS-Security Username Profiles.
2. Click New.
3. On the form, fill these values.

   Field	Description
   Name	Name to uniquely identify this credential. For example, enter WorkdayFinancials User.
   Application	Application in which the record is applicable. Select Workday Financials Spoke.
   Username	Workday user who has integration rights using Workday Web Services.
   Password	Password of the Workday user.

4. Click Save.

Configure the SOAP security policy for the Workday Financials spoke

Configure the SOAP security profile by adding the security user name profile you had created to authenticate requests from ServiceNow.

Before you begin

Role required: admin.

Procedure

1. Navigate to All > IntegrationHub > SOAP Integrations > SOAP Security Policies.
2. Open the record, WorkdayFinancials.
3. For WS-Security Username Profile, select the security username profile you had created for the Workday Financials spoke.
   See Create a WS-Security Username Profile for the Workday Financials spoke for more information.
4. Do not provide value in WS-Security X.509 Profile.
5. Right-click the form header and click Save.

Generate client ID and client secret for Workday Financials spoke

Register Workday Financial spoke as the API client in your Workday account and generate client ID, client secret.

Before you begin

Role required: admin

Procedure

1. Log into your Workday tenant.

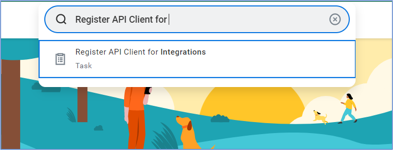

2. Navigate to Search and enter Register API Client for Integrations task.

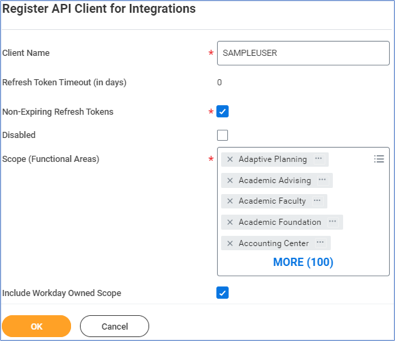

3. On the Register API Client for Integrations form, fill in the details.

   Field	Description
   Client Name	Client name of the app. For example, enter Workday Financials spoke.
   Non-expiring Refresh Tokens	Option to enable refresh tokens that do not expire.
   Scope (Functional Areas)	Select the required functional areas.
   Include Workday Owned Scope	Option to select Workday owned scope.


4. Click OK.

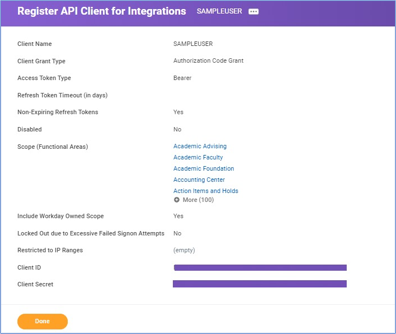

   Client ID and Client Secret are generated after the registration is successful.
5. Click the ellipsis button after the specified client name.

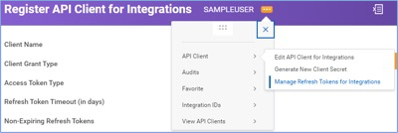

6. Select API Client >Manage Refresh Tokens for Integrations.
7. Select your Workday Account and click OK.
   Delete or Regenerate Refresh Token screen displays.

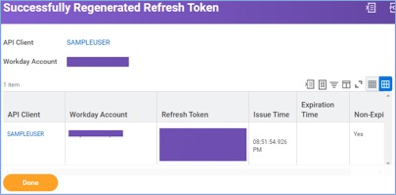

8. Select Generate New Refresh Token option and click OK.

Result

A new refresh token is generated. Copy and store the refresh token for configuring system property.

Generate token URL for Workday Financials spoke

Register API client in your Workday account and generate a token URL for Workday Financials spoke.

Before you begin

Role required: admin

Procedure

1. Log into your Workday tenant.
2. Navigate to Search and enter Register API Client task.
3. On the Register API Client, fill in the details.

   Field	Description
   Client Name	Client name of the app. For example, Workday Financials spoke.
   Client Grant Type	Select Authorisation Code Grant.
   Access Token Type	Access Token Type: Select Bearer
   Redirection URI	Enter your ServiceNow URL in this format: https://<instance>.service-now.com/oauth_redirect.do.
   Non-Expiring Refresh tokens	Option to enable refresh tokens which do not expire.
   Scope (Functional Areas)	Select the required functional areas.
   Include Workday Owned Scope	Option to select scope that are owned by Workday.

4. Click OK.

Result

Copy and store the generated Token Endpoint value for configuring system property.

Configure system properties for Workday Financials spoke

Configure the system properties to enable OAuth for SOAP APIs based actions for Workday Financials spoke.

Before you begin

• Generate client ID and client secret for Workday Financials spoke
• Generate token URL for Workday Financials spoke
• Role required: admin

Procedure

1. Navigate to All > System Properties > All Properties.
2. In the Application column, search for Workday Financials Spoke.
3. Open the sn_workdayfin_spke.glide.hub.clientid system property.
4. Enter the Client ID generated from the Workday account in the Value field and click Update.
5. Open the sn_workdayfin_spke.glide.hub.clientsecret system property.
6. Enter the Client secret generated from the Workday account in the Value field and click Update.
7. Open the sn_workdayfin.glide.hub.refreshtoken system property.
8. Enter the refresh token generated from the Workday account in the Value field and click Update.
9. Open the sn_workdayfin_spke.glide.hub.tokenurl system property.
10. Enter the token URL generated from the Workday account in the Value field and click Update.

Result

The required system properties are configured for the Workday Financials spoke.

Create a credential record

Create a Basic Auth credential record to use the RaaS-report based actions. The Workday Financials spoke connection and credential alias uses these credentials to authorize actions.

Before you begin

Role required: admin

Procedure

1. Navigate to All > Connections & Credentials > Credentials.
2. Select New.

   The system displays this message: What type of Credentials would you like to create?

3. Select Basic Auth Credentials.
4. On the form, fill these values.

   Name	Name to identify the credential record. For example, Workday Financials Cred.
   User name	User name of the Workday user with access to the RaaS reports.
   Password	Password of the Workday user with access to the RaaS reports.

5. Right-click the form header and select Save.

Configure a connection record

Create and configure a Workday Financials spoke connection to authenticate ServiceNow requests.

Before you begin

Role required: admin

Procedure

1. Navigate to All > Connections & Credentials > Connections & Credentials Aliases.
2. Open the alias record, for example, WorkdayFinancials.
3. From the Connections tab, select New.
4. On the form, fill these values.

   Field	Description
   Name	Name to identify the connection record. For example, Workday Financials Conn.
   Credential	Required credential record of the Basic Auth type. Select the credential record you had created for the Workday Financials spoke. For example, Workday Financials Cred. For more information, see Create a credential record.
   Connection URL	Base URL to connect to your Workday instance.

5. For tenant_name in the Attributes tab, enter the value of your Workday tenant name.
6. Right-click the form header and select Save.

Configure the To Do report

Create and configure the To Do report to retrieve worker's finance related inbox items suc as, to-dos, action items, approval, and so on.

Before you begin

Role required: User with access to create report and the Business process event steps report data source.

Create all the required calculated fields.

1. Calculated field 1:

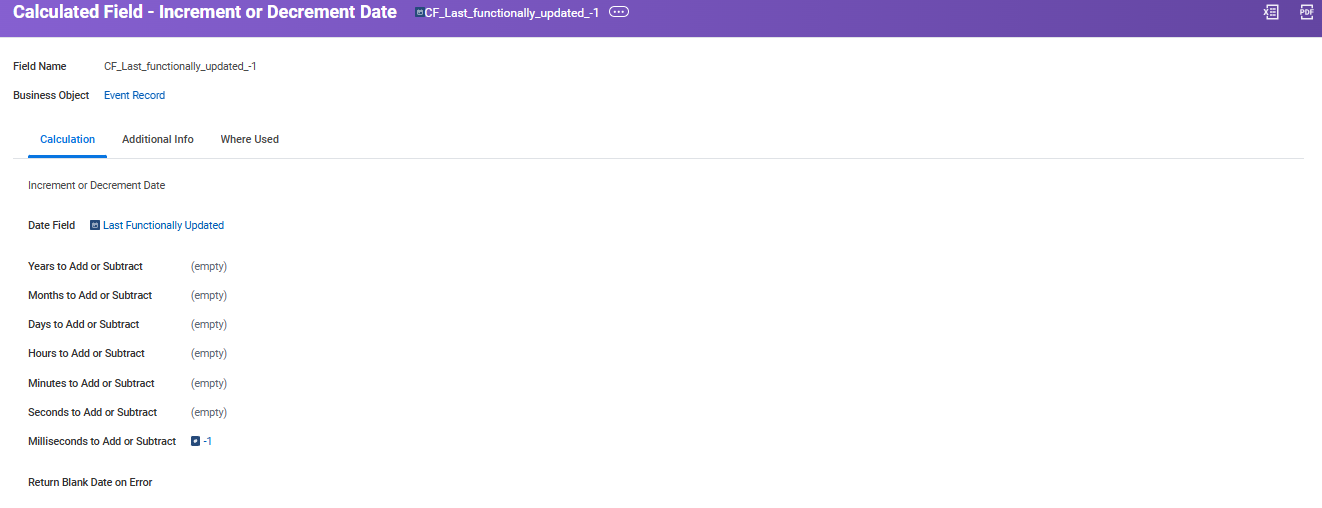

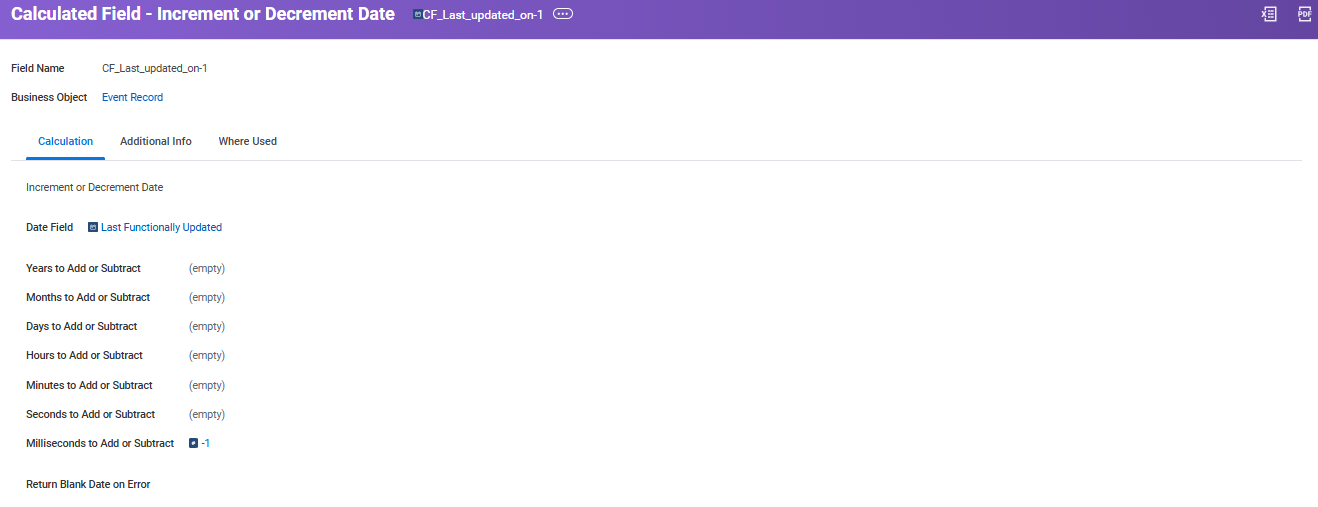

   1. Create increment and decrement type calculated field named CF_Last_functionally_updated_-1.

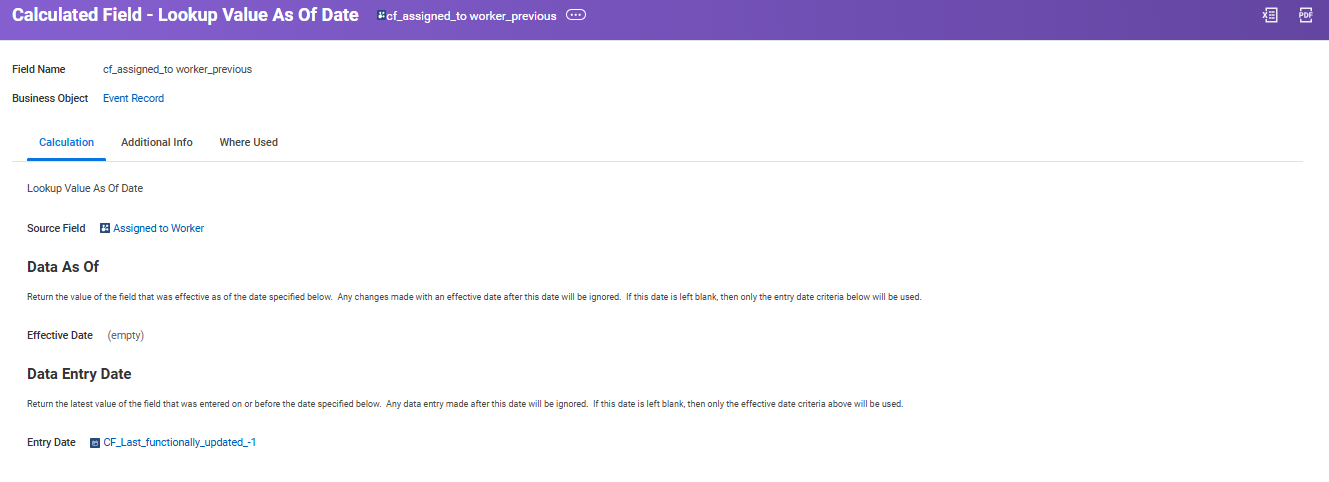

   2. Create Lookup Value As Of Date type calculated field named cf_assigned_to_worker_previous and use CF_Last_functionally_updated_-1 in this field.



2. Calculated field 2:

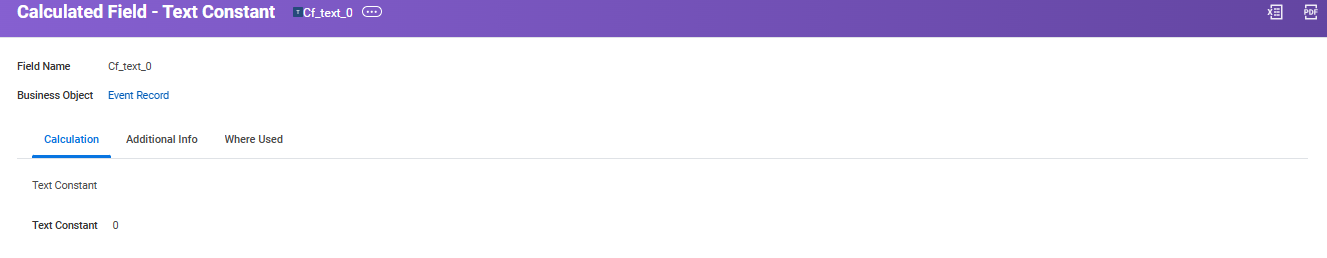

   1. Create text constant type calculated field named Cf_text_0.

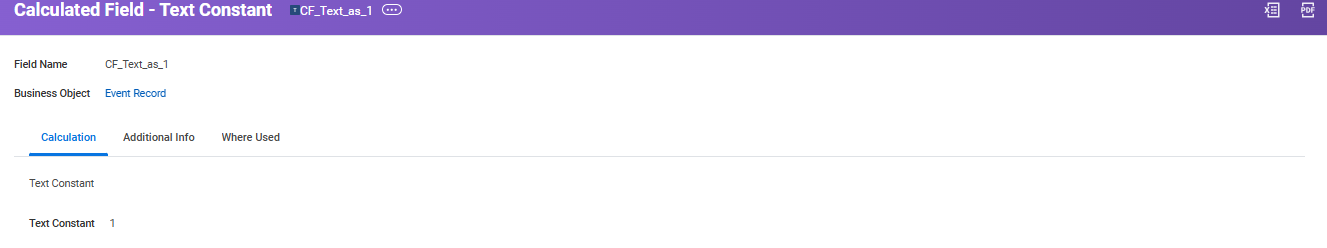

   2. Create text constant type calculated field named CF_Text_as_1.

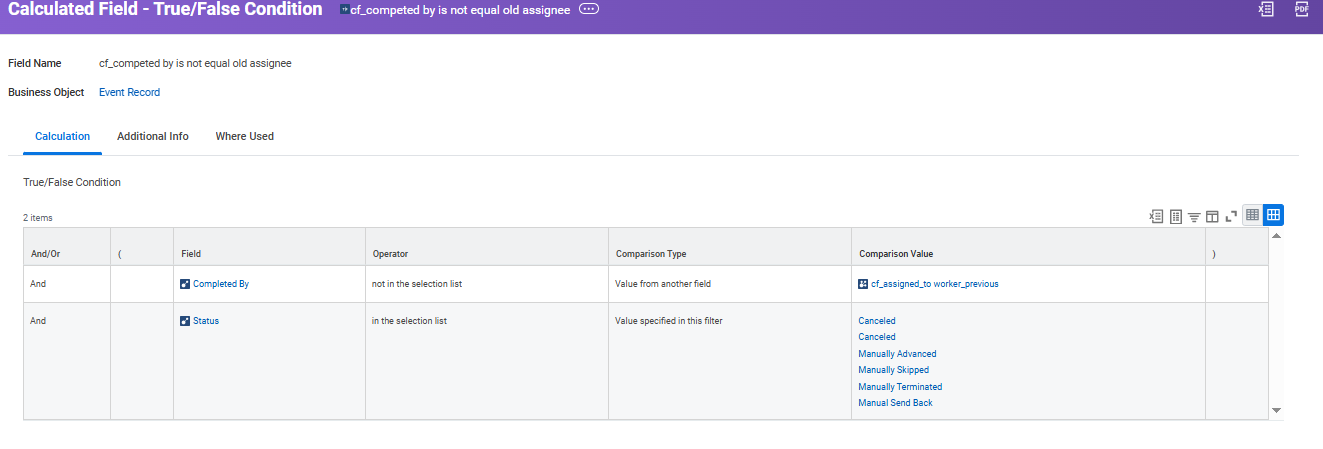

   3. Create true/false condition type calculated field named cf_competed_by_is_not_equal_old_assignee.

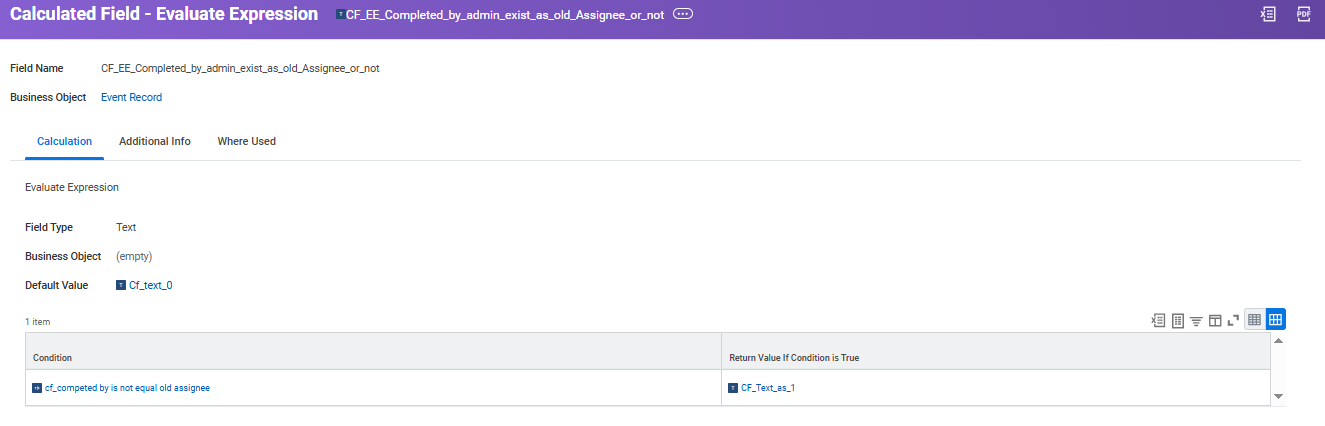

   4. Create evaluate expression calculated field named CF_EE_Completed_by_admin_exist_as_old_Assignee_or_not.



3. Calculated field 3:

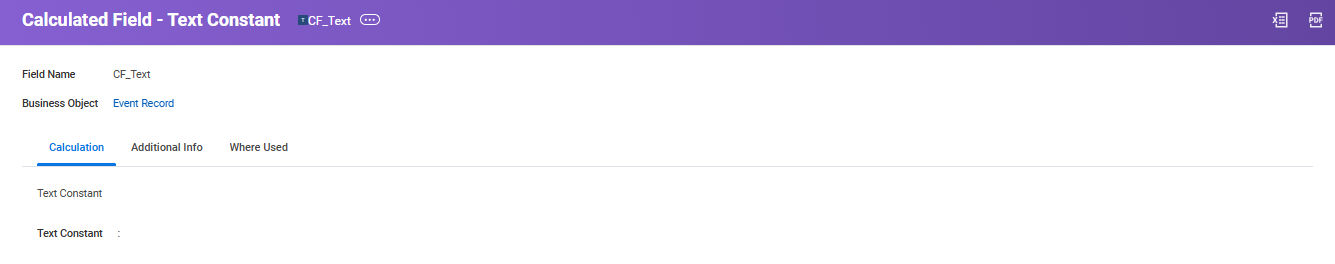

   1. Create text constant type calculated field named CF_Text.

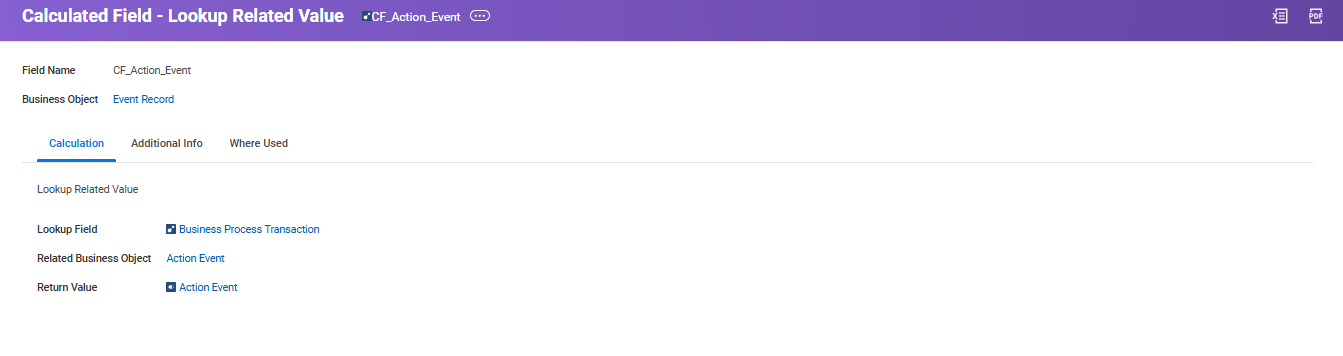

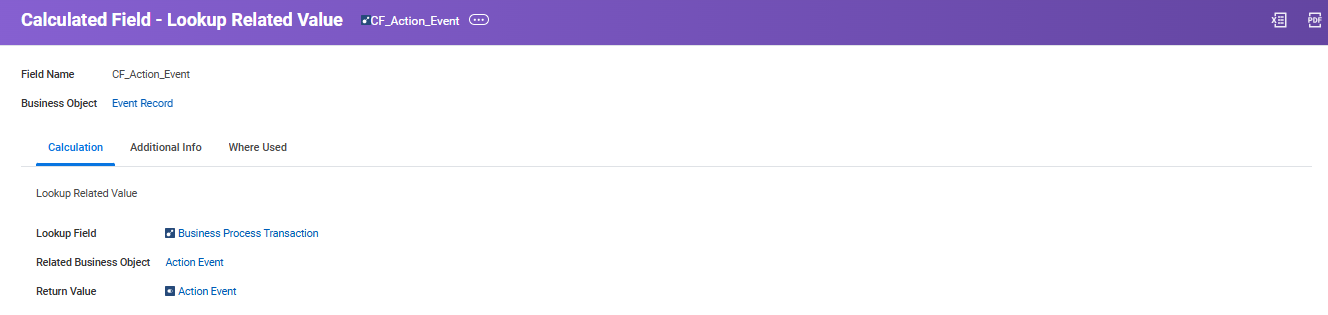

   2. Create Lookup related value type calculated field named CF_Action_Event.

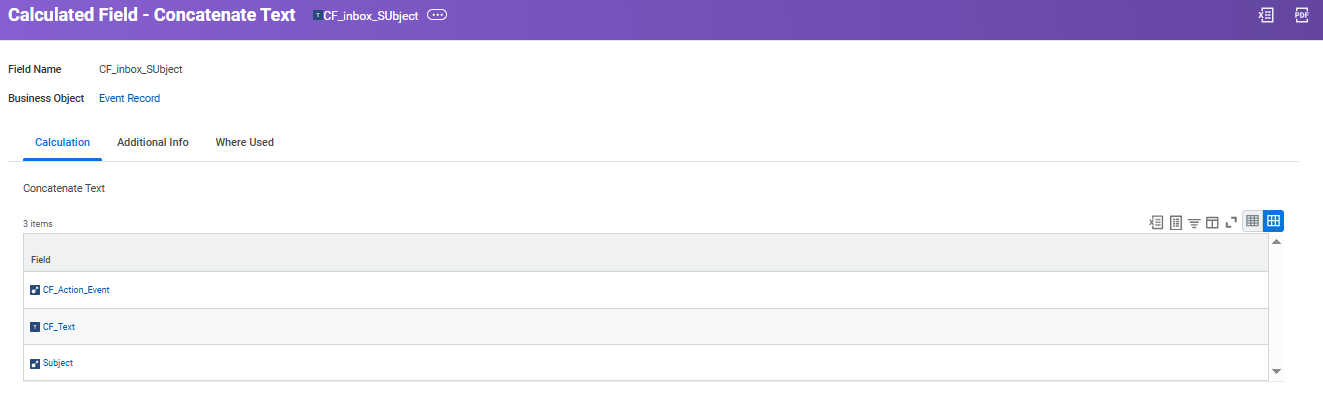

   3. Create Concatenate text type calculated field named CF_inbox_SUbject.



4. Calculated field 4:

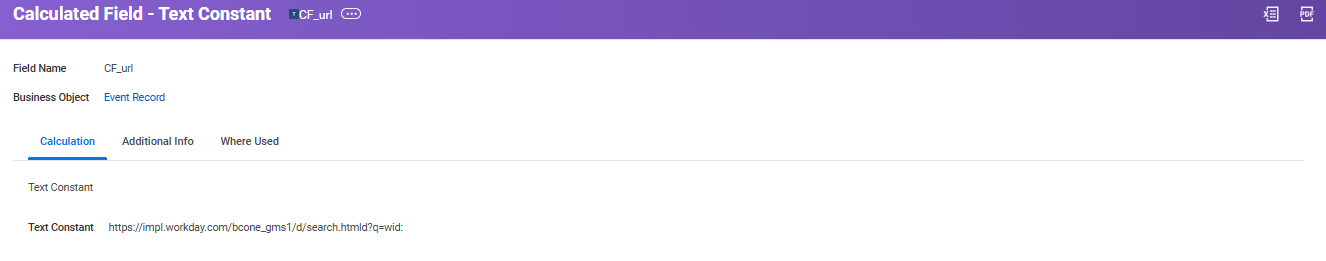

   1. Create text constant type calculated field named CF_url.

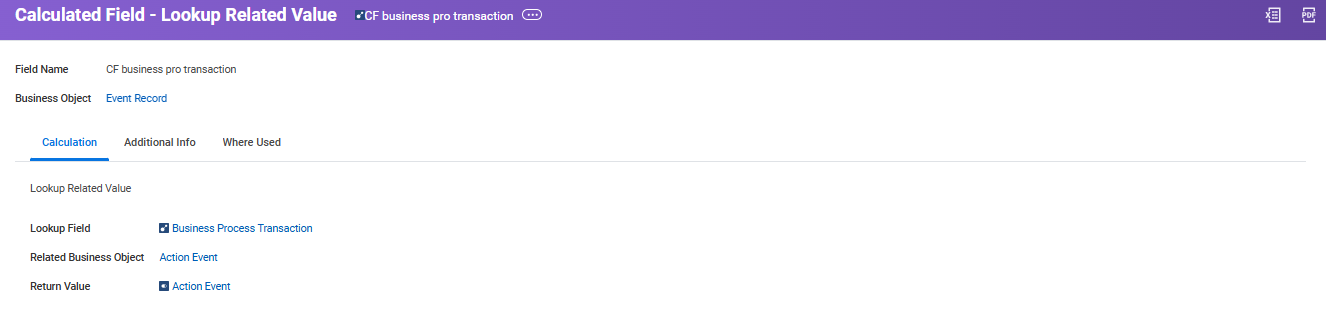

   2. Create Lookup related value type calculated field named CF_business_pro_transaction.

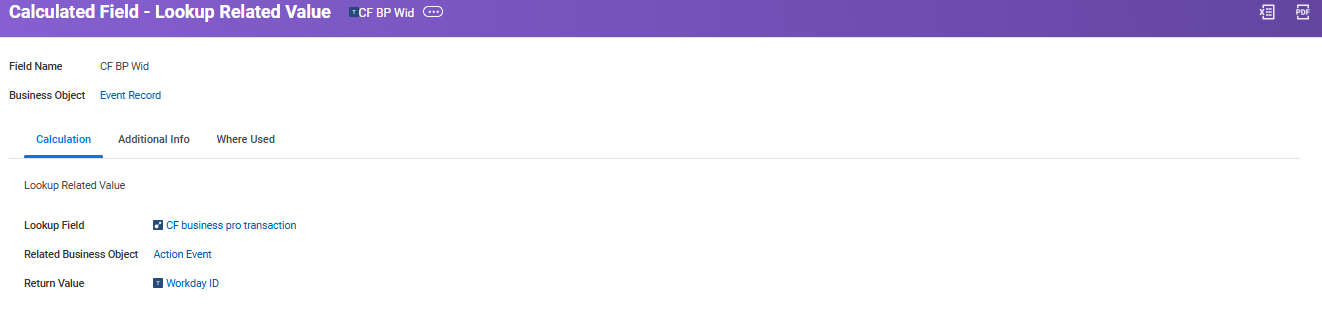

   3. Create Lookup related value type calculated field named CF_BP_Wid.

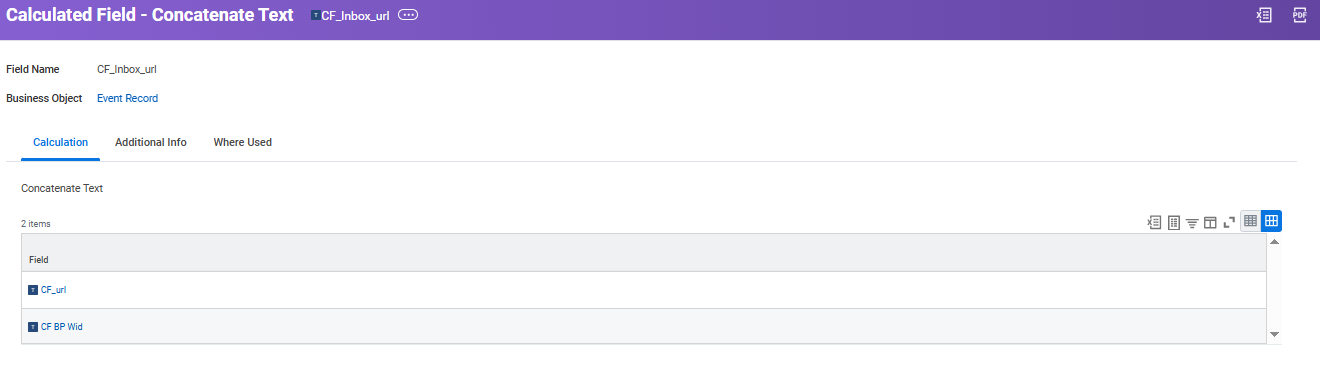

   4. Create Concatenate text type calculated field named CF_Inbox_url.



5. Calculated field 5:

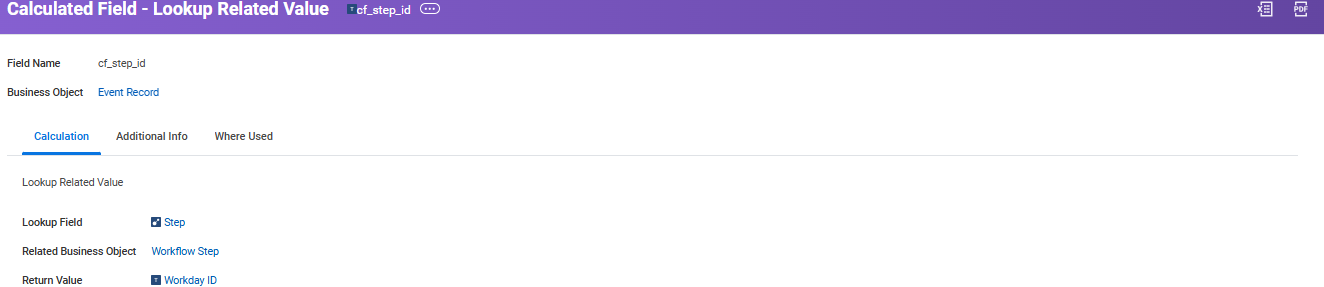

   1. Create Lookup related value type calculated field named cf_step_id.

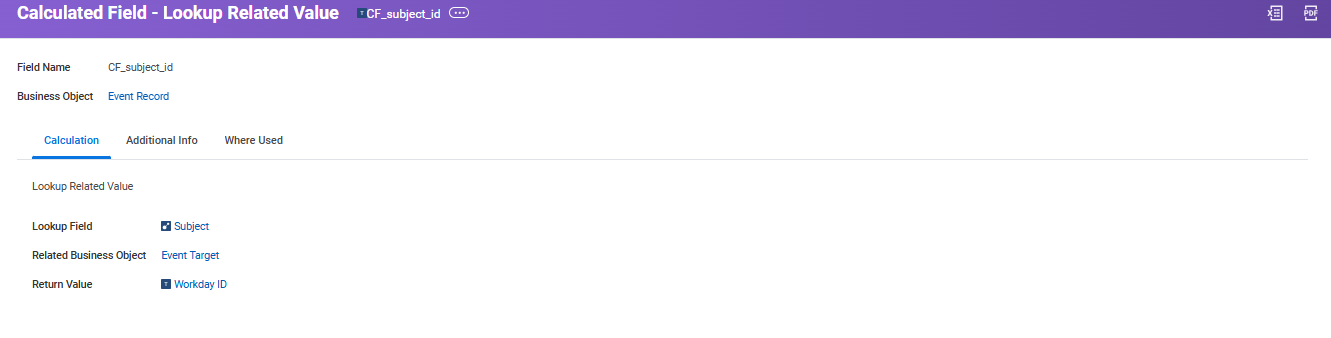

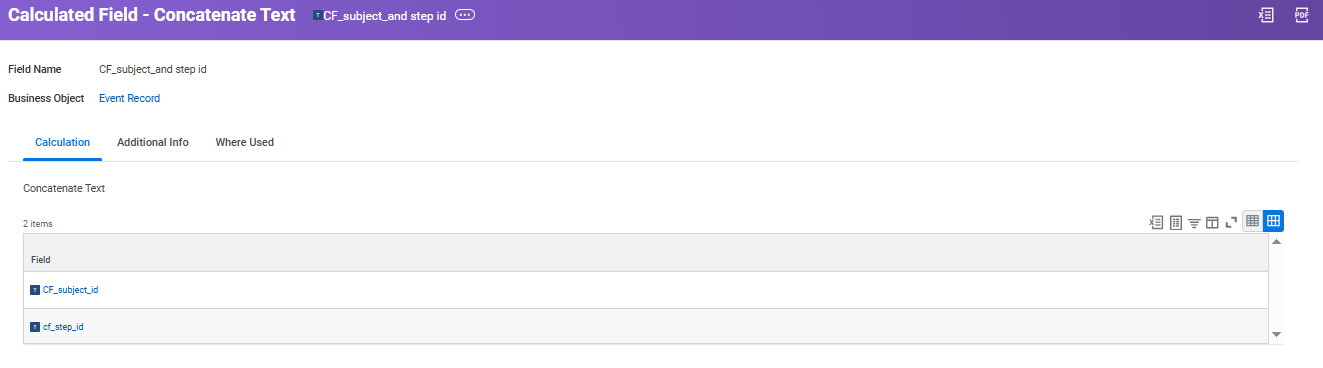

   2. Create Lookup related value type calculated field named CF_subject_id.



   3. Create Lookup related value type calculated field named CF_subject_and_step_id.



6. Calculated field 6: Create Lookup related value type calculated field named CF_sent_back.



7. Calculated field 7:

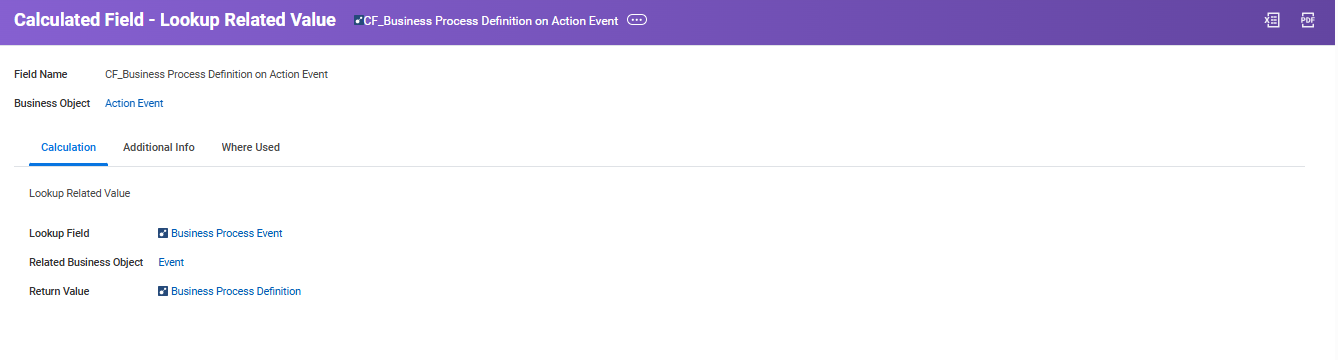

   1. Create Lookup related value type calculated field named CF_Business Process Definition on Action Event.

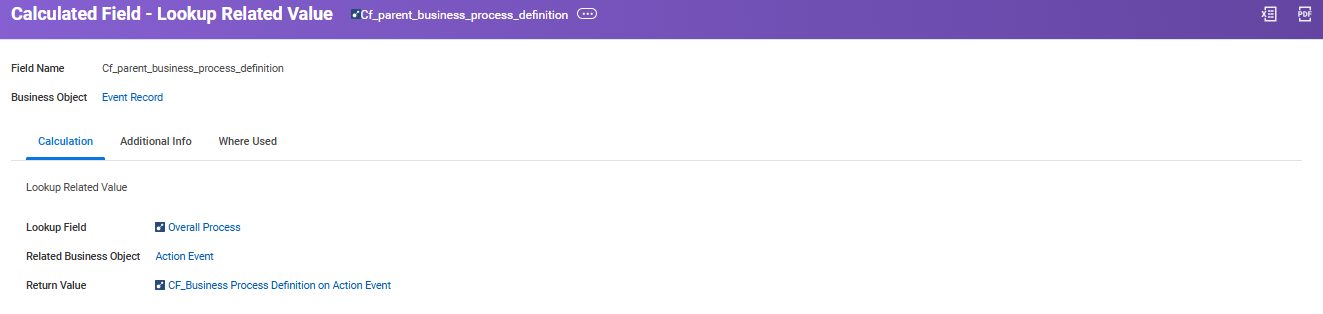

   2. Create Lookup related value type calculated field named Cf_parent_business_process_definition and use CF_Business Process Definition on Action Event in it.



8. Calculated field 8:
   1. Create increment and decrement type calculated field named CF_Last_updated_on-1.

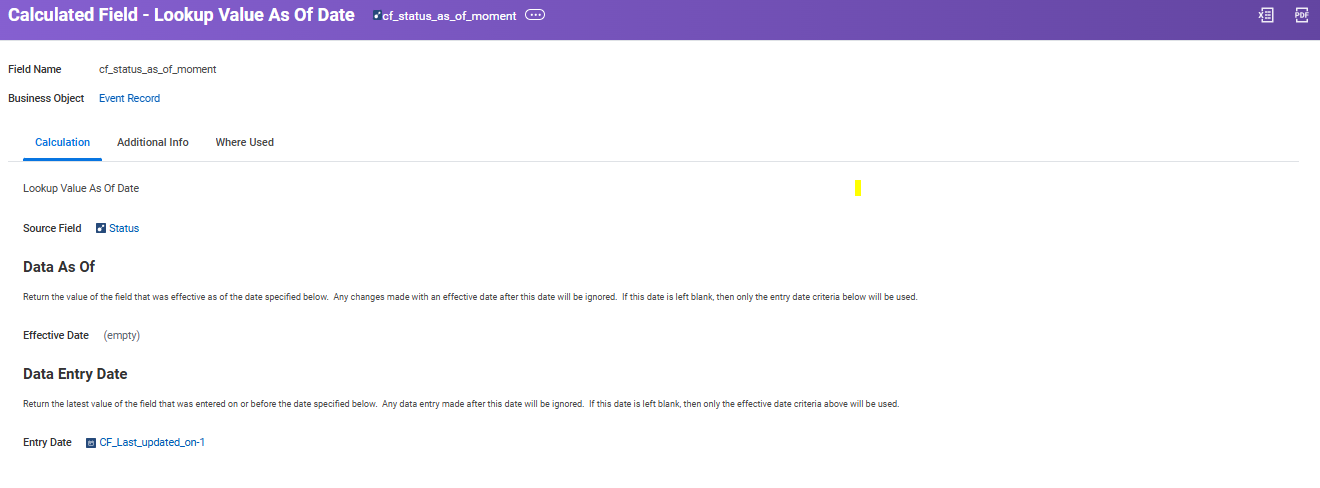

   2. Create Lookup Value as of date type calculated field named cf_status_as_of_moment and use CF_Last_updated_on-1 in this field.



9. Calculated field 9: Create Lookup Value as of date type calculated field named CF_Action_Event.



10. Calculated field 10: Create Lookup Value as of date type calculated field named CF_worker and use CF_Action_Event as lookup field.

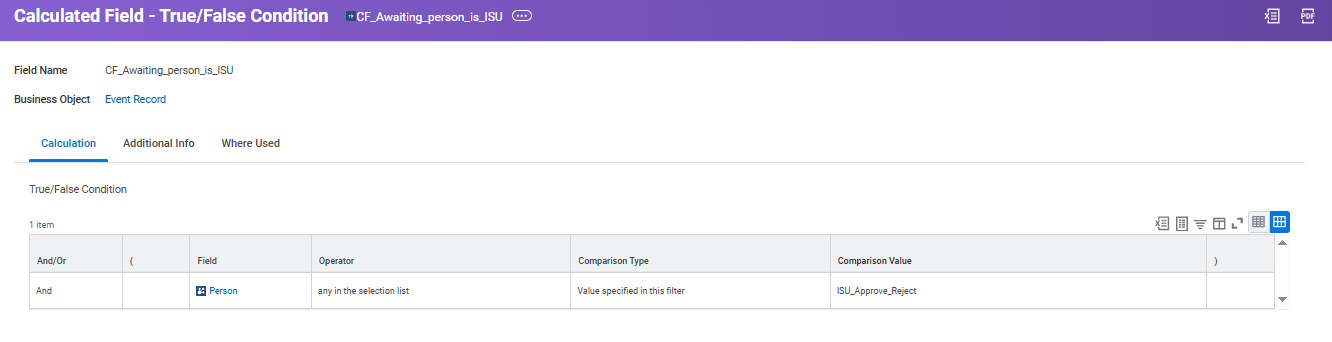

11. Calculated field 11: Create True/False condition type calculated field named CF_Awaiting_person_is_ISU.



About this task

• For identification purpose, all calculated field names starts with CF.
• Create all calculated fields required for this report before developing the report to ensure that they are available while creating the report.
• While creating the report, you can select a different report name. However, ensure that the report field names or column heading override for the respective field (if given in the report document) should be same as it is in report document.
  Important:

  Report field label must be same as in report document. Else, the action fails.
• Group Column Heading for each business object in the Group Column Heading section should be blank.
• While creating filter, ensure that you add parenthesis on filter.
• All reports must be shared or owned by ISU user which will be used for accessing these action on the ServiceNow platform.
• In the Advanced section, select the Enable as webservice option.

Procedure

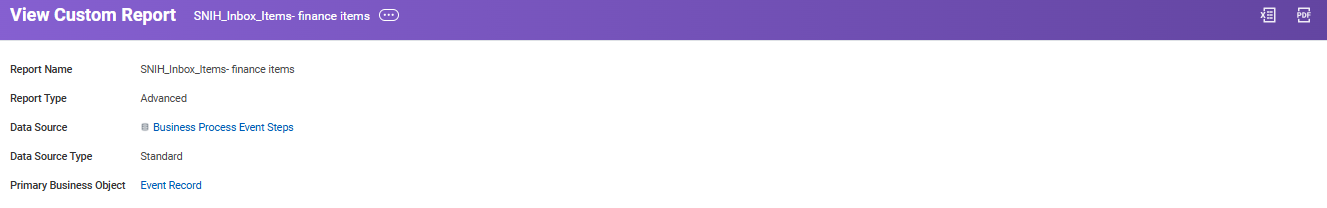

1. Access the Create Custom Report task.
2. Provide the report name.
   For example, SNIH_Inbox_Items- finance items.
3. Select report type as Advanced.
4. Clear the Optimized for performance option.
5. Select Data Source as Business Process Event steps.
6. Ensure that the temporary report option is cleared and click Ok.

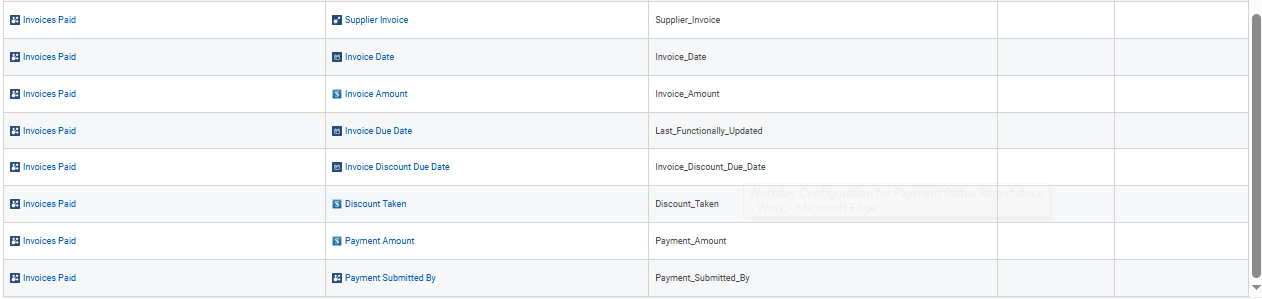

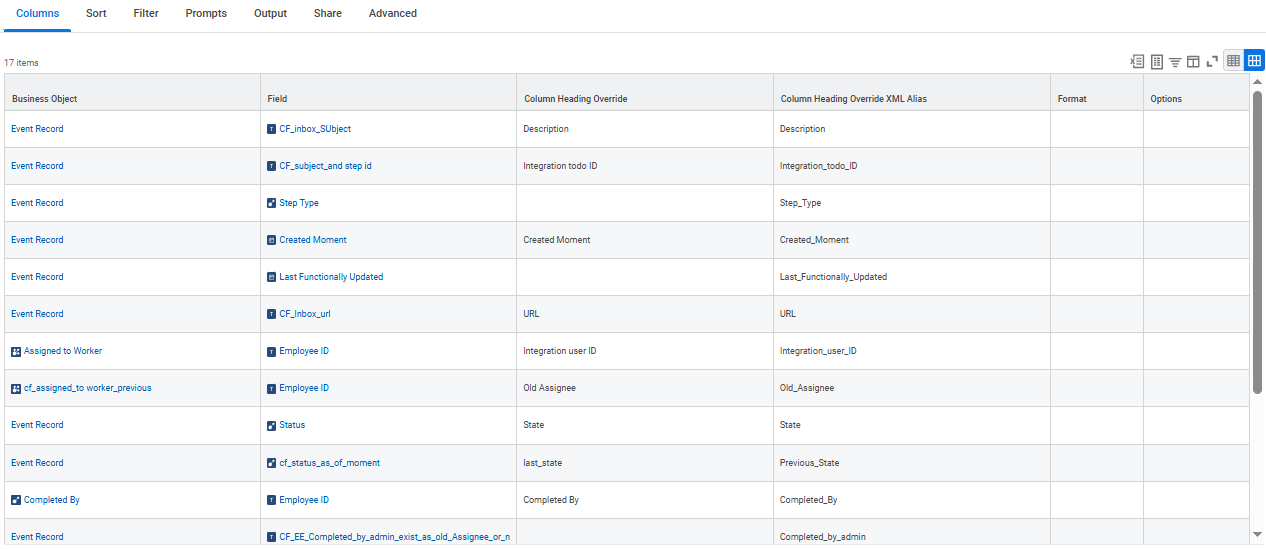

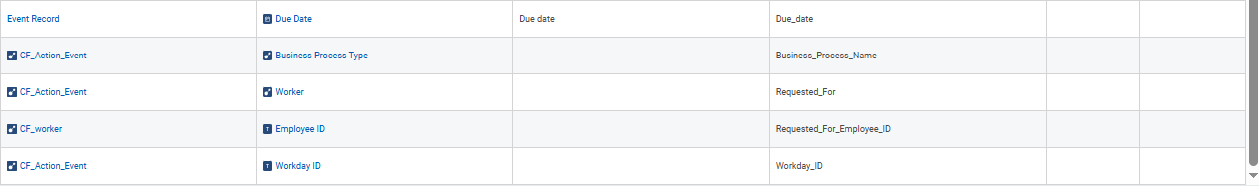

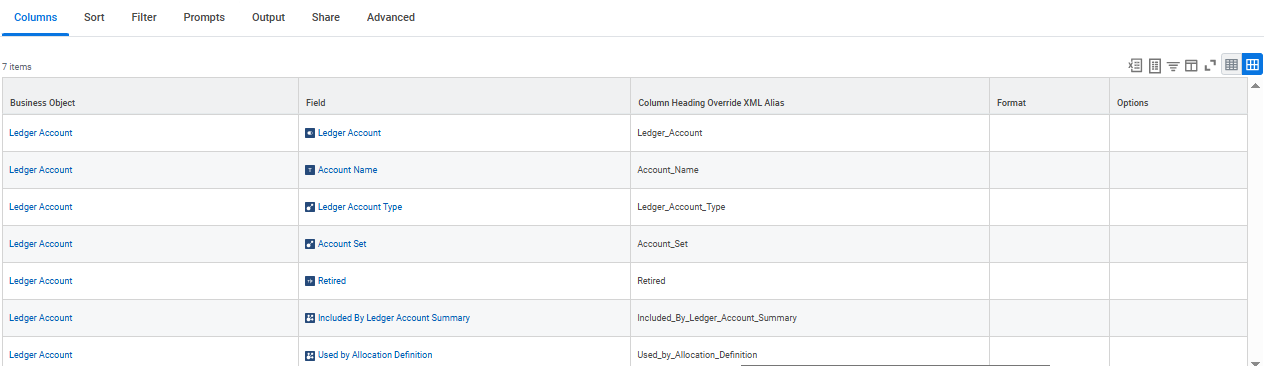

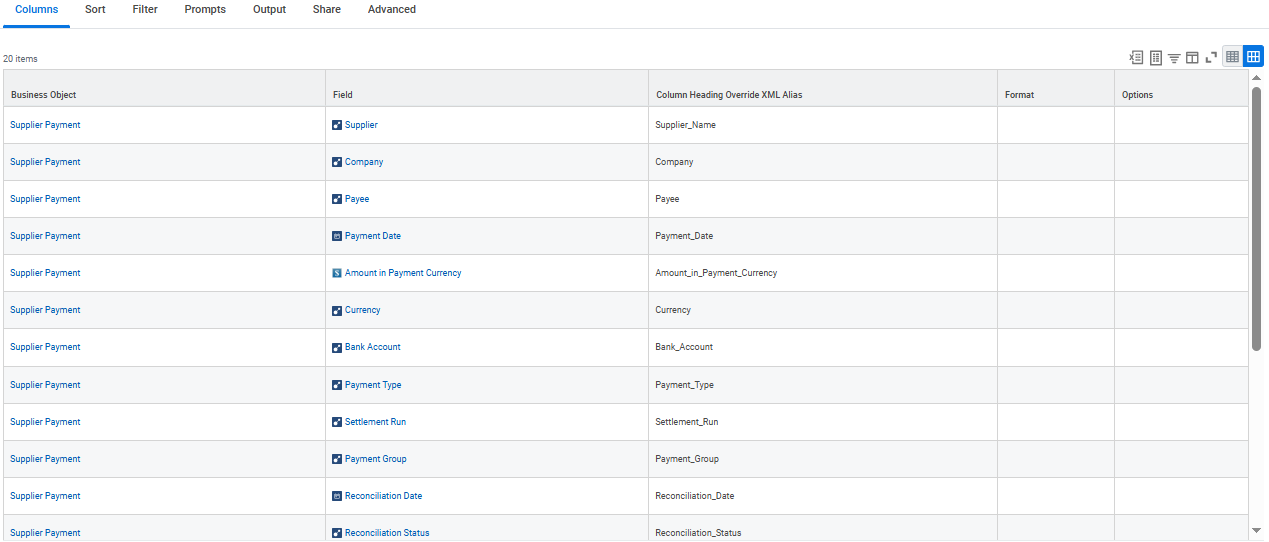

7. Select the report business object and report fields.

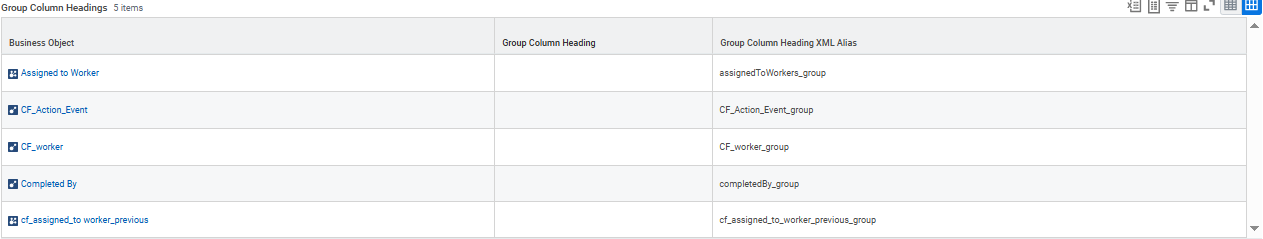

8. In Group column heading section, select all business objects.
   Group Column heading for each business object should be blank.

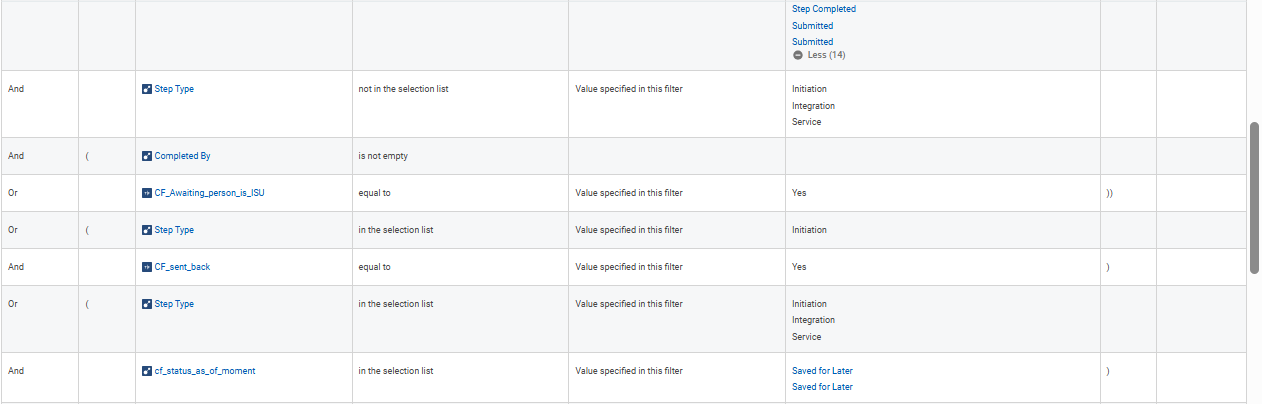

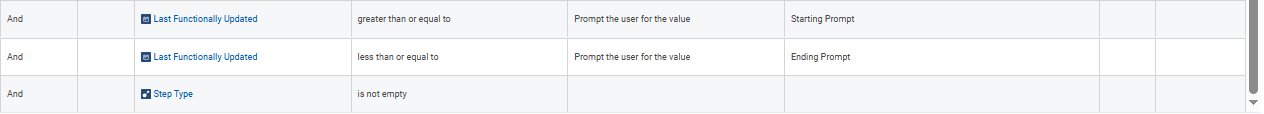

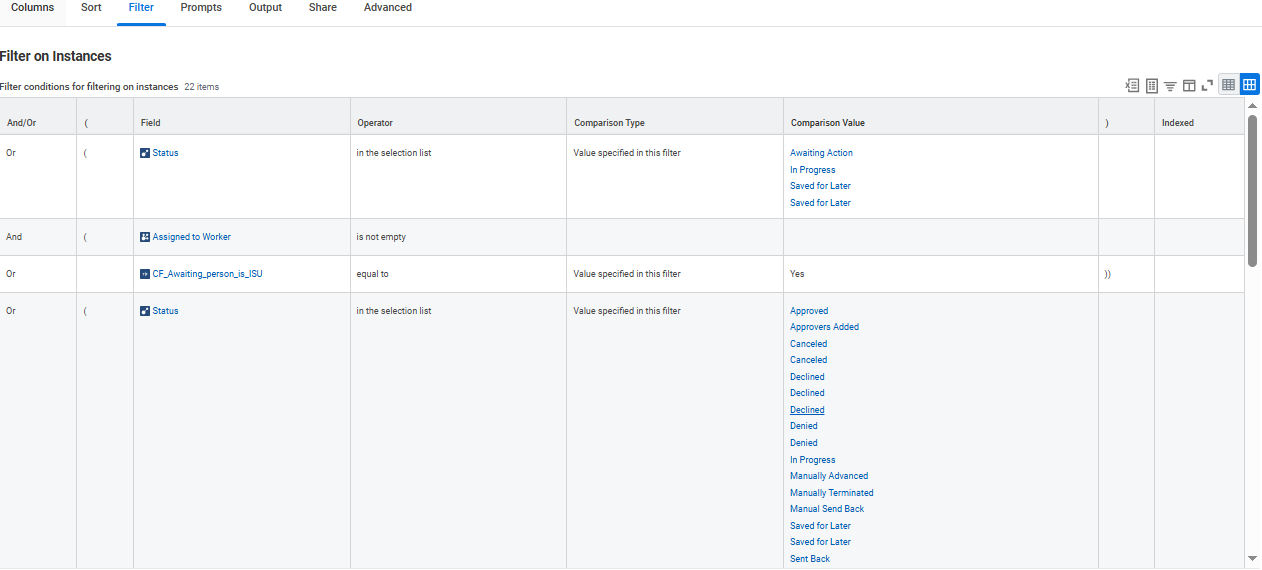

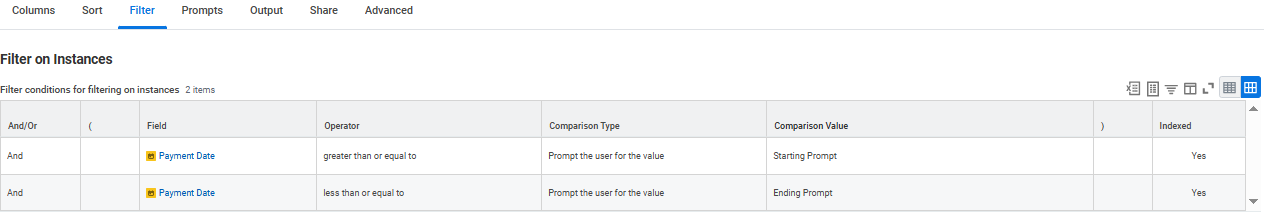

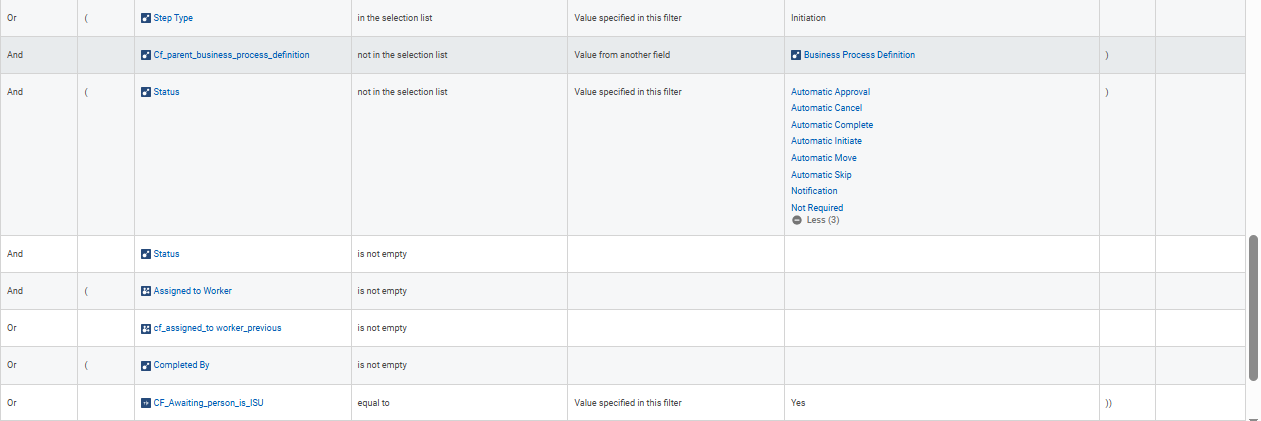

9. In the Filter section, select the value as shown and ensure that you add parenthesis.

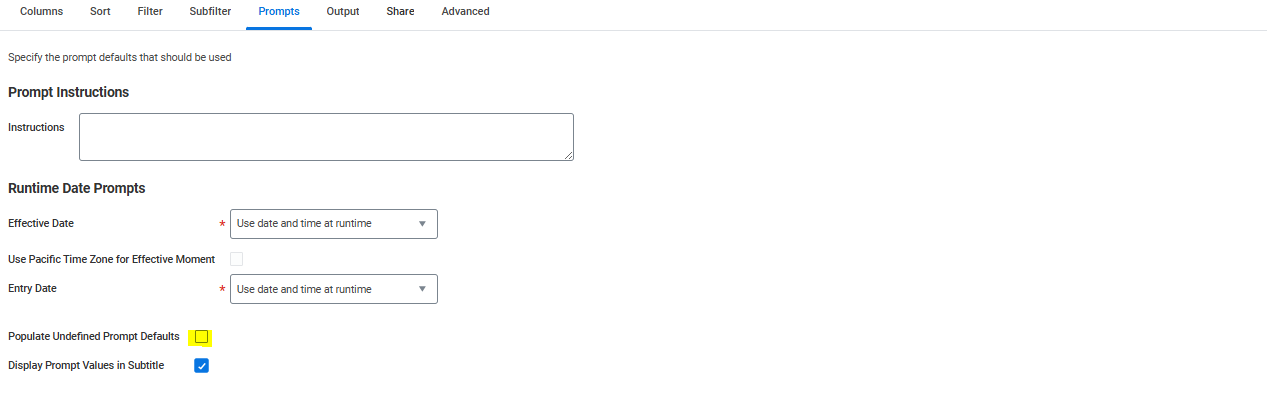

10. In prompt section, clear the Populate Undefined Prompt Defaults check box.

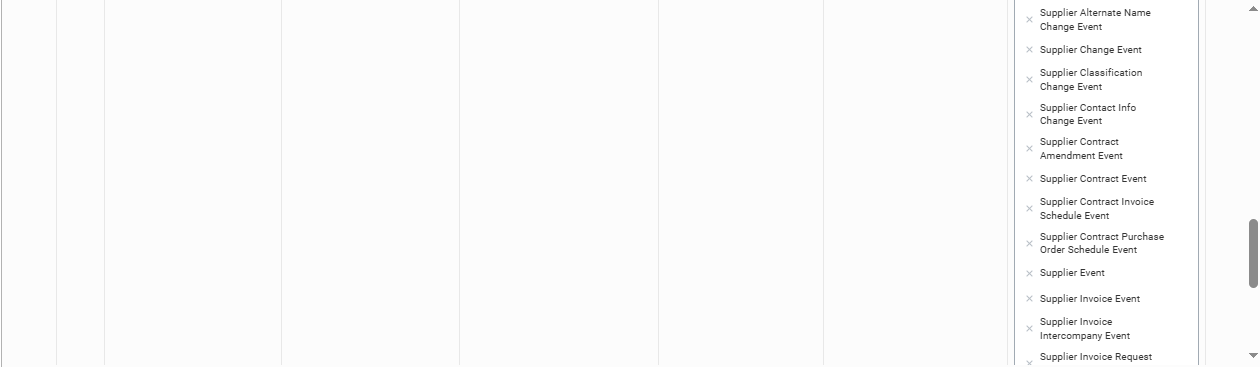

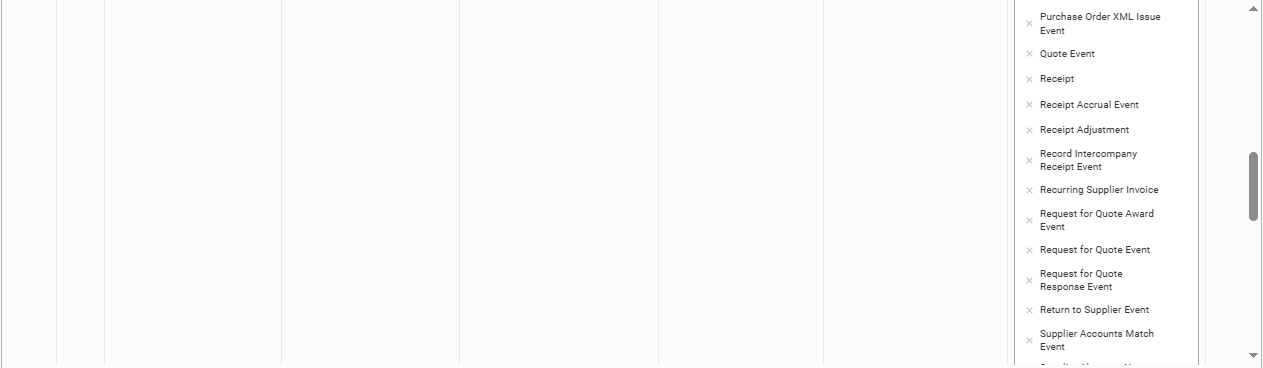

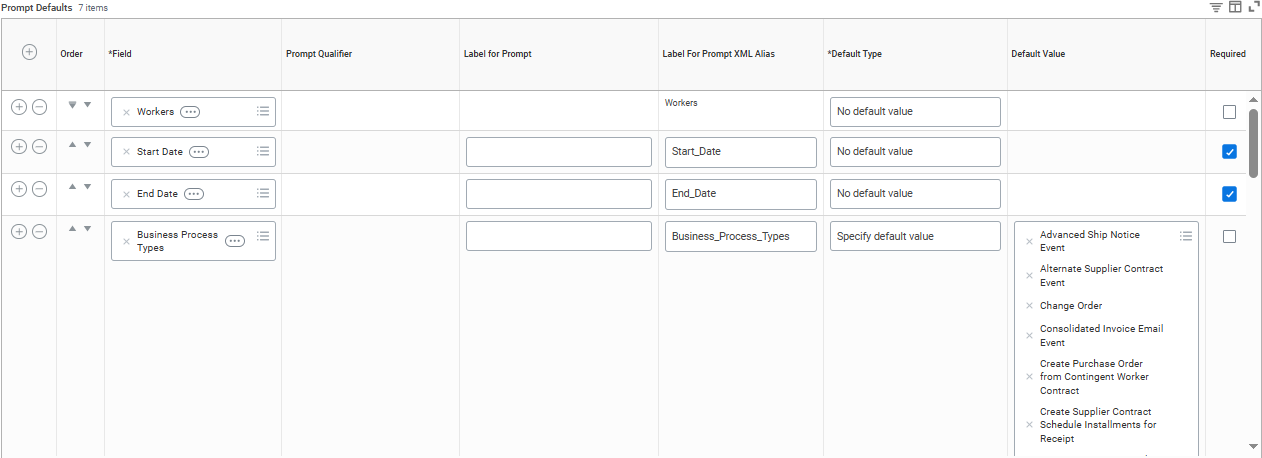

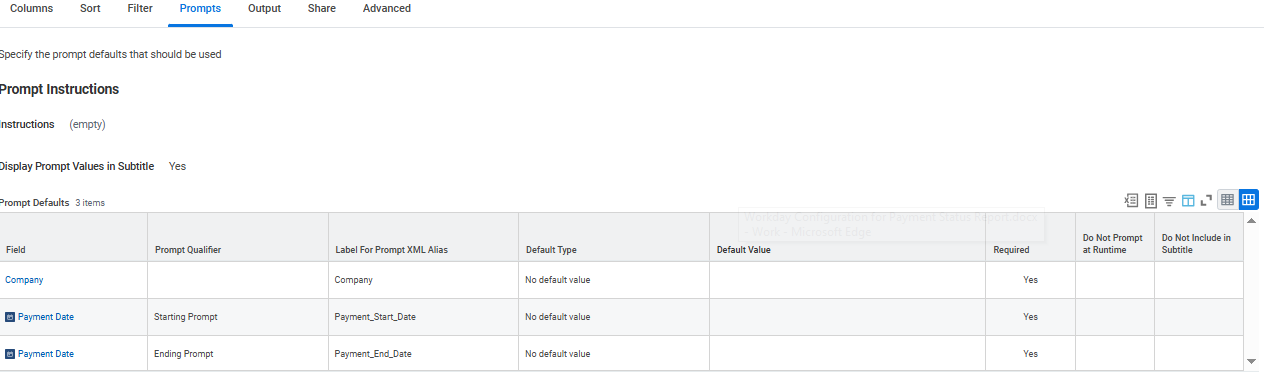

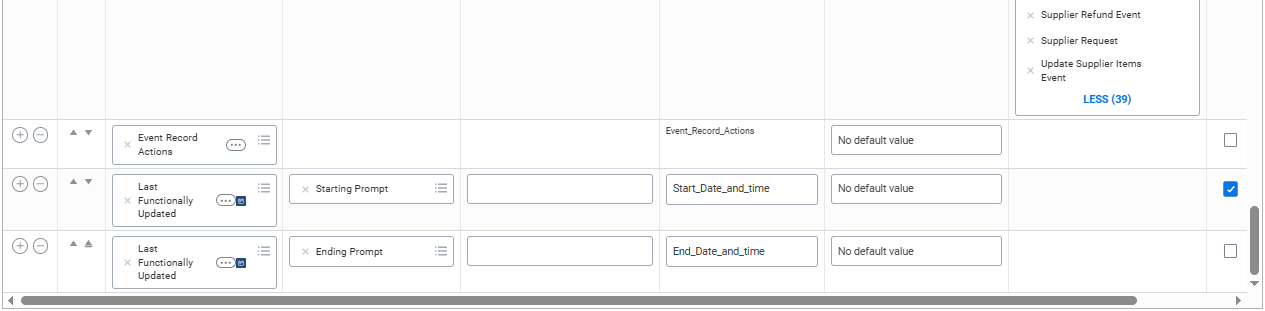

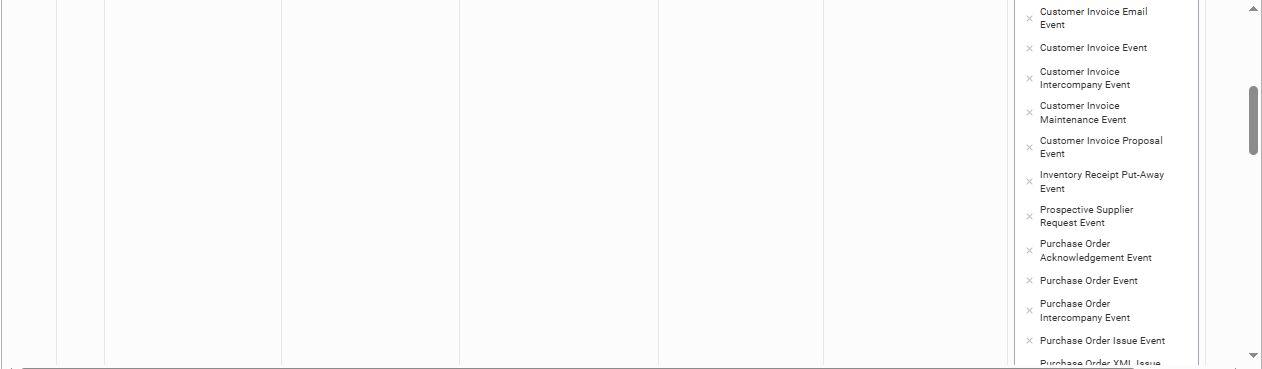

11. Select the value of prompts in the Prompt Defaults section.

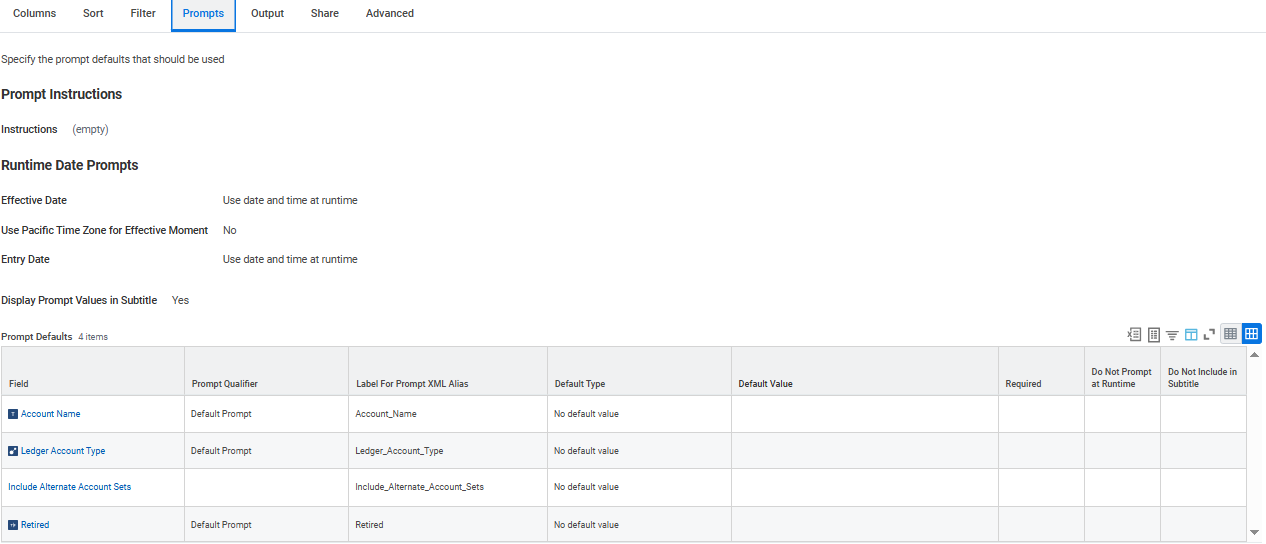

    Ensure that the Label For Prompt XML Alias of all prompt fields must be same as shown.



    Note:

    In Business Process Types, few finance business process type in default value column are included here. You can add more finance business process types as per your requirement.
12. In the Advanced section, select Enable as webservice option and click OK.

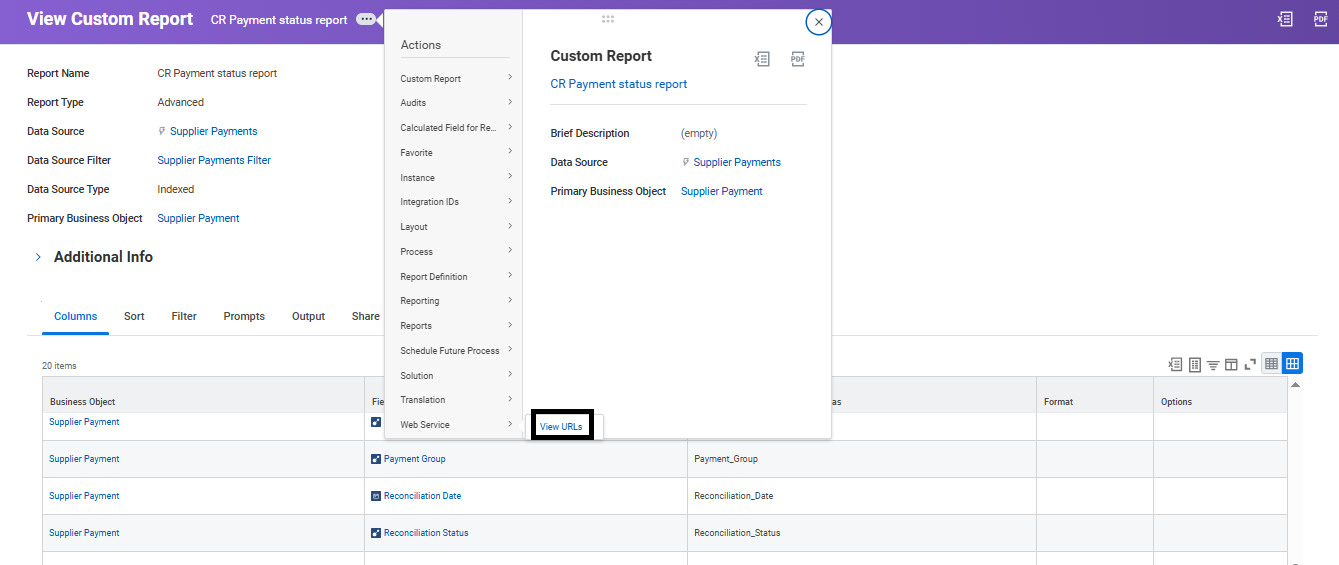

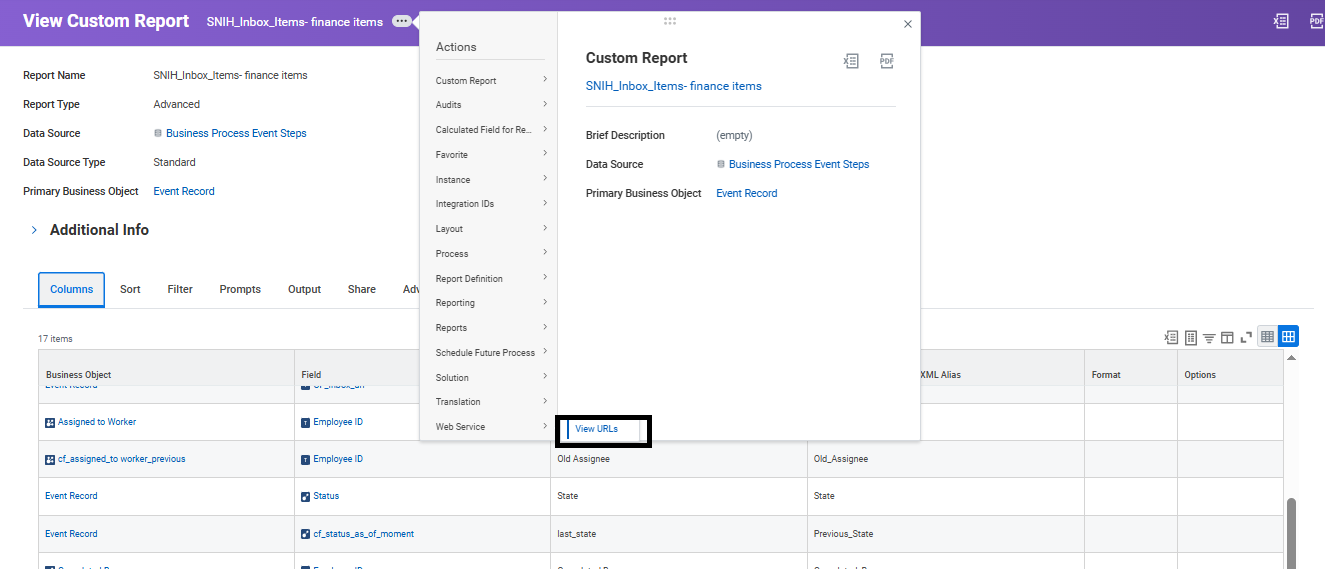

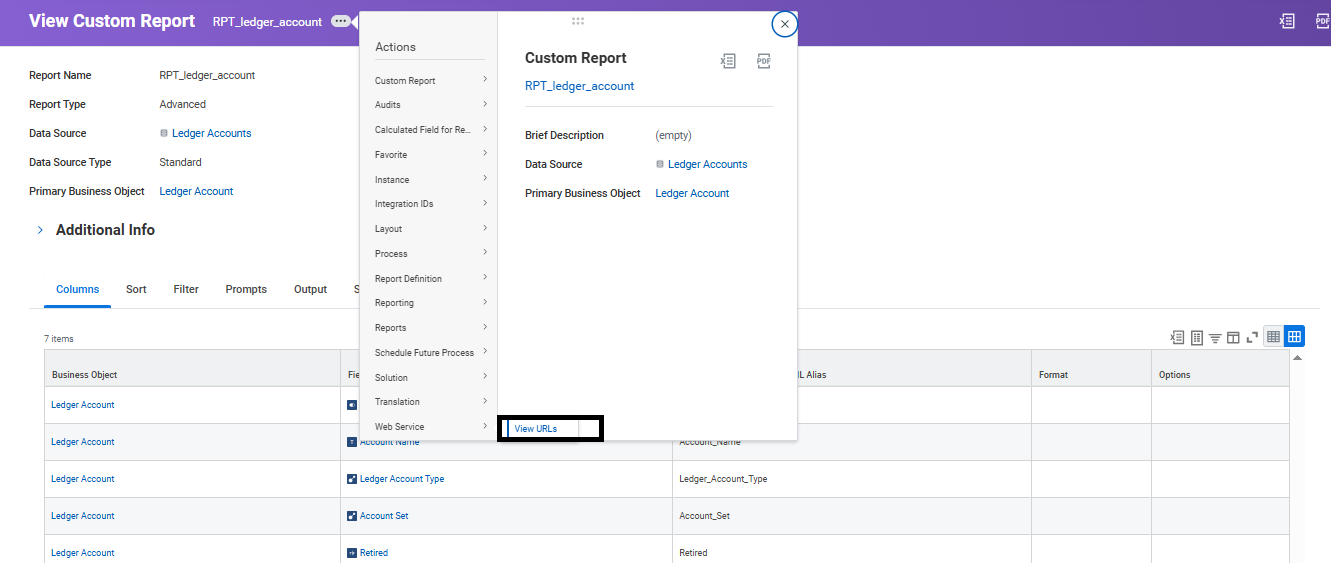

13. After report configuration is done, click the three dots icon and navigate Web Service > View URLs.

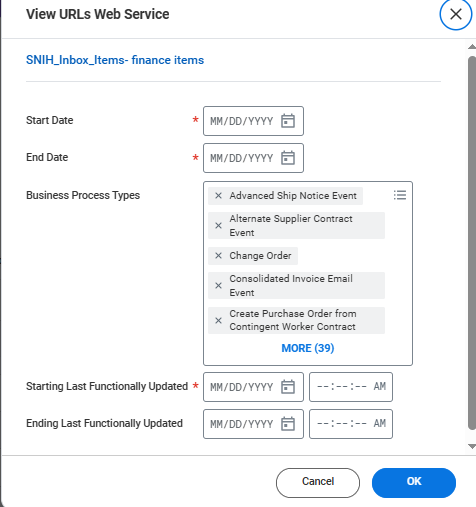

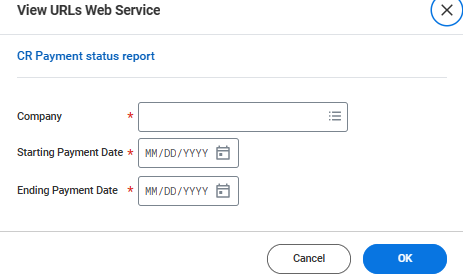

14. Select the required date time range in below parameters and click OK.

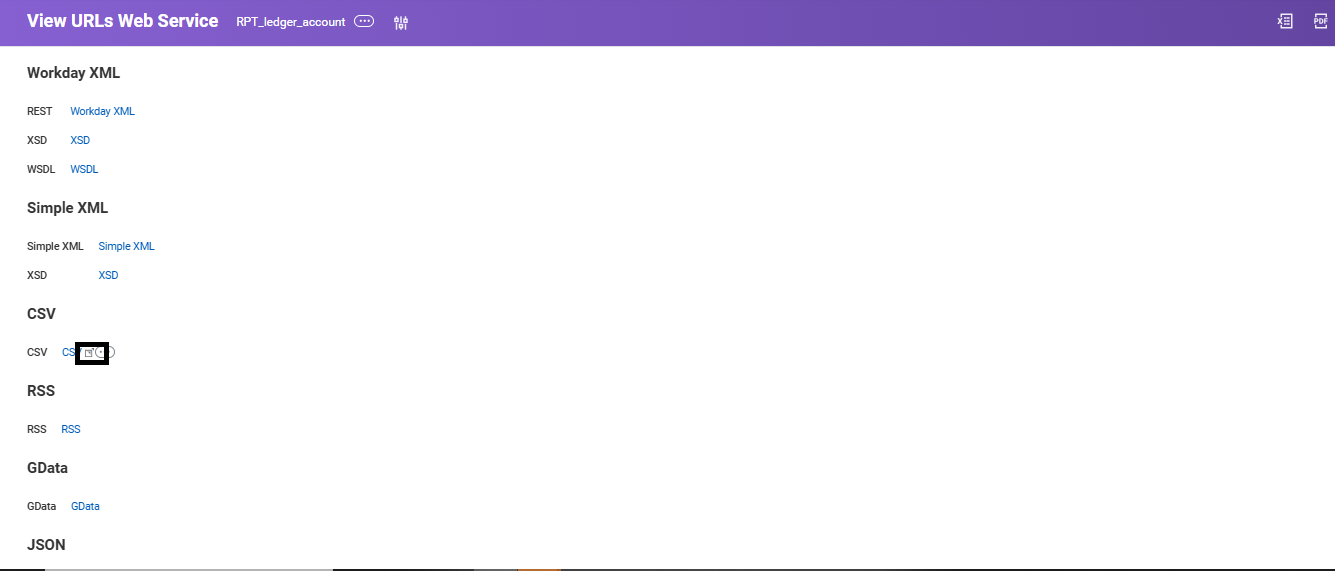

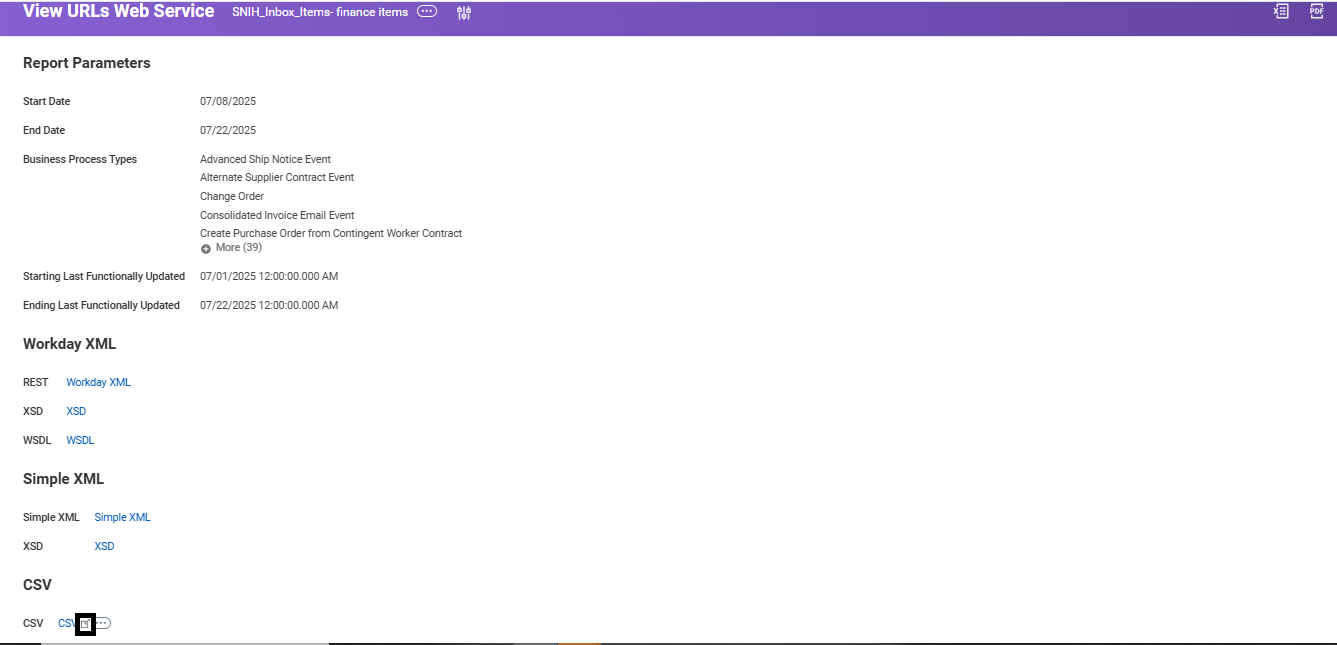

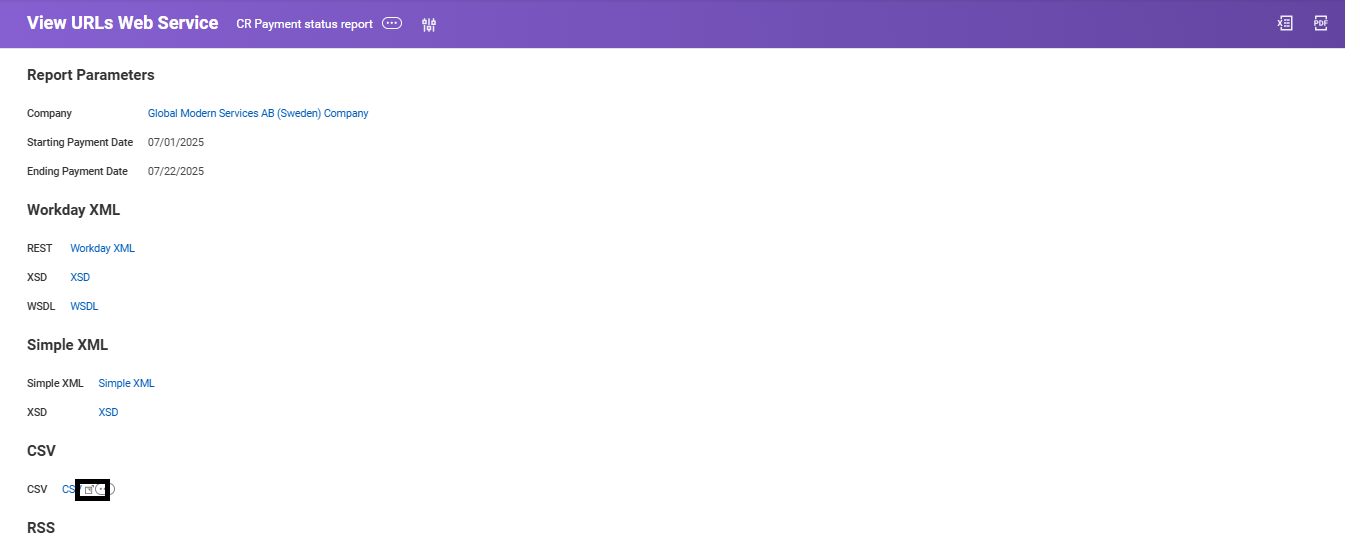

15. In View URLs Web Service page, click the marked icon under CSV section.



    The report is displayed in a new browser tab. You can see the RaaS URL of the report in browser tab and can obtain these details from this link.

    • https://wd2-impl-services1.workday.com is the base URL of customer’s workday tenant.
    • Tenant_Name is the customer’s workday tenant.
    • Report_Owner_user_name is the user name of the report’s owner.
    • SNIH_Inbox_Items-_finance_items is the report name.



Configure the Ledger Account report

Create and configure the Ledger Account report to retrieve the ledger account details.

Before you begin

Role required: User with access to create report and the Ledger Account report data source.

About this task

• For identification purpose, all calculated field names starts with CF.
• Create all calculated fields required for this report before developing the report to ensure that they are available while creating the report.
• While creating the report, you can select a different report name. However, ensure that the report field names or column heading override for the respective field (if given in the report document) should be same as it is in report document.
  Important:

  Report field label must be same as in report document. Else, the action fails.
• Group Column Heading for each business object in the Group Column Heading section should be blank.
• While creating filter, ensure that you add parenthesis on filter.
• All reports must be shared or owned by ISU user which will be used for accessing these action on the ServiceNow platform.
• In the Advanced section, select the Enable as webservice option.

Procedure

1. Access the Create Custom Report task.

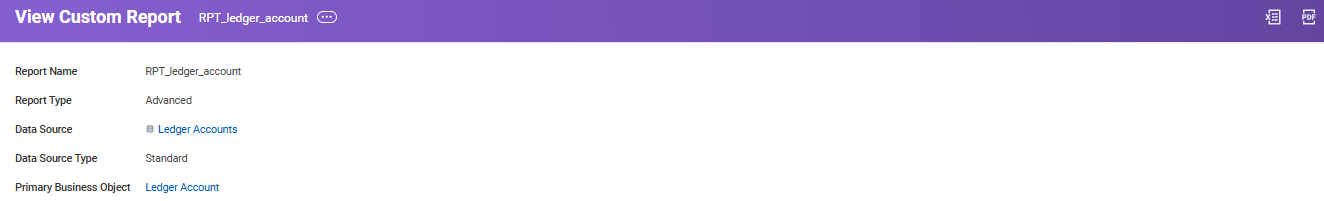

2. Provide the report name.
   For example RPT_ledger_account.
3. Select report type as Advanced.
4. Clear the Optimized for performance check box.
5. Select Data Source as Ledger Accounts.
6. Clear the Temporary Report check box and click OK.



7. Select the report business object and report fields.

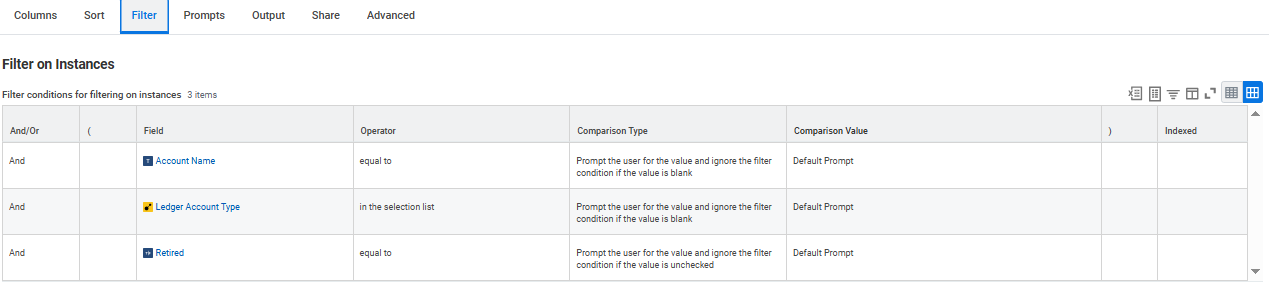

8. In Filter section, select the value as shown and ensure that you add parenthesis.



9. In prompt section, clear the Populate Undefined Prompt Defaults check box.



10. Select the value of prompts in the Prompt default section.
    Ensure that the Label For Prompt XML Alias of all prompt fields must be same as shown.



11. In the Advanced section, select Enable as webservice option and click OK.
12. After report configuration is done, click the three dots icon and navigate Web Service > View URLs.



13. Select the required date time range in below parameters and click OK.



14. In View URLs Web Service page, click the marked icon under the CSV section.



    The report is displayed in a new browser tab. You can see the RaaS URL of the report in browser tab and can obtain these details from this link.

    • https://wd2-impl-services1.workday.com is the base URL of customer’s workday tenant.
    • Tenant_Name is the customer’s workday tenant.
    • Report_Owner_user_name is the user name of the report’s owner.
    • RPT_ledger_account is the report name.



Configure the Payment Status report

Create and configure the Payment Status report to retrieve the supplier payment information within the specified date range.

Before you begin

Role required: User with access to create report and the Supplier Payments report data source.

About this task

• For identification purpose, all calculated field names starts with CF.
• Create all calculated fields required for this report before developing the report to ensure that they are available while creating the report.
• While creating the report, you can select a different report name. However, ensure that the report field names or column heading override for the respective field (if given in the report document) should be same as it is in report document.
  Important:

  Report field label must be same as in report document. Else, the action fails.
• Group Column Heading for each business object in the Group Column Heading section should be blank.
• While creating filter, ensure that you add parenthesis on filter.
• All reports must be shared or owned by ISU user which will be used for accessing these action on the ServiceNow platform.
• In the Advanced section, select the Enable as webservice option.

Procedure

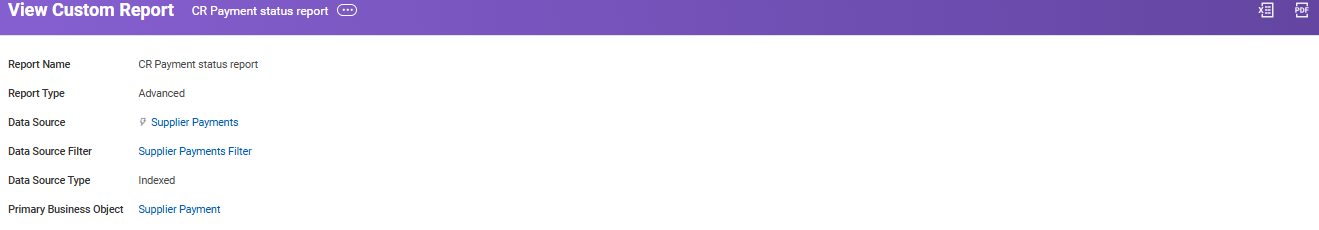

1. Access the Create Custom Report task.
2. Provide the report name.
   For example CR Payment status report.
3. Select report type as Advanced.
4. Clear the Optimized for performance check box.
5. Select Data Source as Supplier Payments.
6. Clear the Temporary Report check box and click OK.



7. Select the report business object and report fields.





8. In Group column heading section, select all business objects.
   Group Column heading for each business object should be blank.



9. In Filter section, select the value as shown and ensure that you add parenthesis.



10. In prompt section, clear the Populate Undefined Prompt Defaults check box.



11. Select the value of prompts in the Prompt default section.
    Ensure that the Label For Prompt XML Alias of all prompt fields must be same as shown.



12. In the Advanced section, select Enable as webservice option and click OK.
13. After report configuration is done, click the three dots icon and navigate Web Service > View URLs.



14. Select the required date time range in below parameters and click OK.



15. In View URLs Web Service page, click the marked icon under CSV section.



    The report is displayed in a new browser tab. You can see the RaaS URL of the report in browser tab and can obtain these details from this link.

    • https://wd2-impl-services1.workday.com is the base URL of customer’s workday tenant.
    • Tenant_Name is the customer’s workday tenant.
    • Report_Owner_user_name is the user name of the report’s owner.
    • CR_Payment_status_report is the report name.
