ServiceNow Studio for App Engine Studio (AES) developers
Summarize
Summary of ServiceNow Studio for App Engine Studio (AES) developers
ServiceNow Studio offers advanced development capabilities for users familiar with App Engine Studio (AES), while retaining core AES features. It provides a reorganized interface and supports a broader range of app files and development functions, enabling AES developers to transition smoothly and enhance their app-building experience.
Show less
Key Features
- App Creation and Management: You can create applications in ServiceNow Studio similarly to AES. However, not all apps appear by default; use the Navigator panel’s Apps section and filter for custom apps to locate them. Bookmarking apps and files is recommended for quick access.
- File Types and Creation: ServiceNow Studio supports the four AES file categories—Data, Experiences, Logic and Automation, Security—and many additional types. Unlike AES, files can be created from the home page and assigned to an app later or from the App details page by adding files per category.
- Scope Management: Scope is automatically updated based on the app you are working on, eliminating manual switching. The current scope and update set appear at the bottom left. Color-coded tabs indicate the scope and file type, helping you manage files across different scopes, including global scope files editable in Studio.
- Integrated Tools and Builders: Some builders like Table Builder override automatic scope switching and provide integrated editing experiences within Studio.
- Source Control and Collaboration: Core features such as source control integration and collaborative development work the same way as in AES, facilitating team workflows.
- App Templates and Gallery: Unlike AES, ServiceNow Studio does not provide app templates. Instead, the App Gallery offers completed app examples and metadata files for reference, accessible when creating a new app. Note that apps cannot be created directly from gallery files.
What to Expect
ServiceNow Studio enhances the development experience for AES users by supporting familiar core features while expanding capabilities with more file types, improved scope handling, and integrated development tools. This enables efficient app development, easier file management, and better collaboration. While direct app creation from templates is not available, the App Gallery serves as a valuable resource for learning and inspiration.
If you currently develop in App Engine Studio, use ServiceNow Studio to access advanced development capabilities while retaining the core features you already use.
ServiceNow Studio is organized differently from App Engine Studio. Use the following sections to find the features you are familiar with from App Engine Studio.
What features work the same way in ServiceNow Studio?
Where are my apps?
When you first open ServiceNow Studio, not all of your apps are visible by default. To find them, open the Navigator panel, select the Apps section, and filter for custom apps.
To access frequently used apps, app files, and lists quickly, bookmark them. For more information, see Bookmark apps and files in ServiceNow Studio and Bookmark lists in ServiceNow Studio.
How do I work with different file types in ServiceNow Studio?
In AES, you can create files in four categories: Data, Experiences, Logic and Automation, and Security.

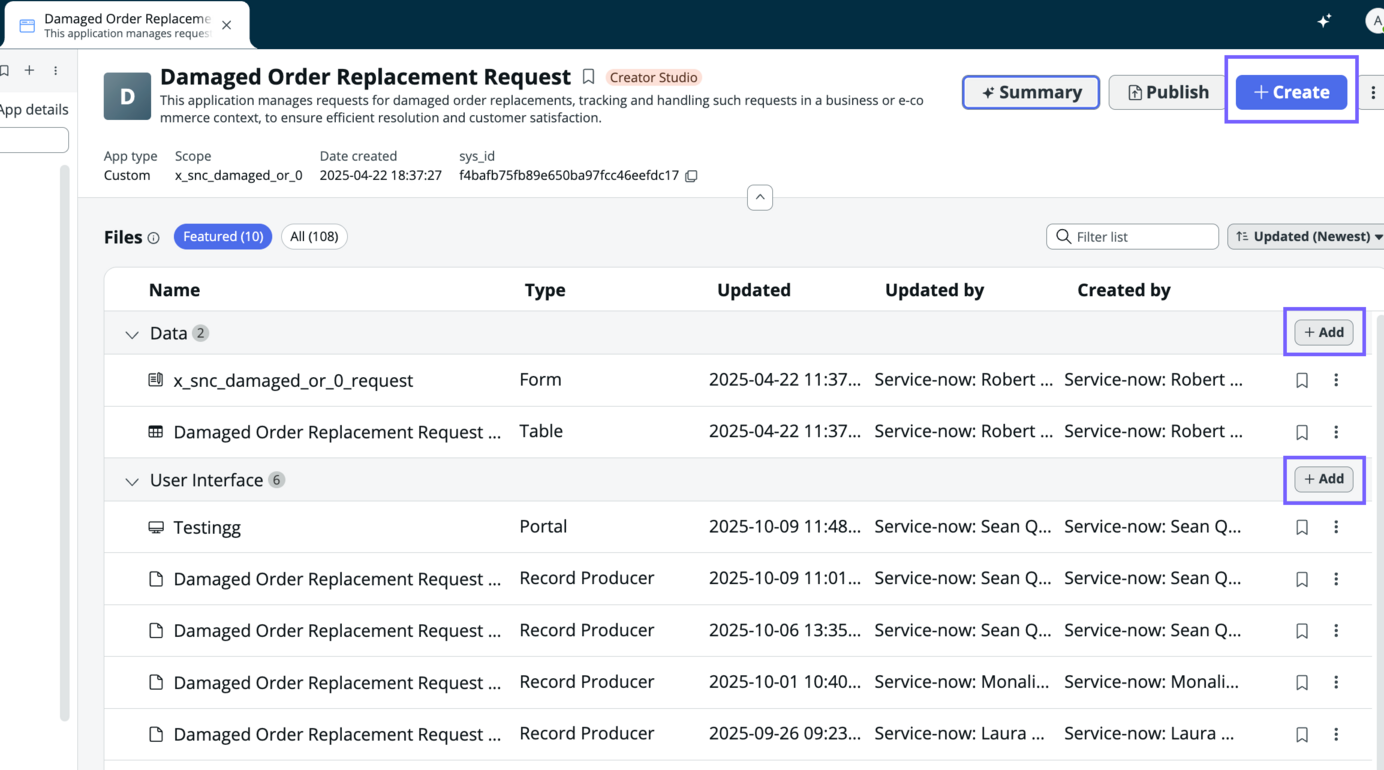

ServiceNow Studio supports all four of those categories and many additional file types. Unlike AES, where you must be inside an app to create a file, ServiceNow Studio lets you create files from the home page and specify the application afterward. You can also select Add next to any category on the App details page to create a file of that type.
App files define how an application functions. For example, add a business rule to perform server-side actions when a record changes, or add AI files to automate tasks.
How does scope work in ServiceNow Studio?
In ServiceNow Studio, the scope updates automatically based on which app you are working in — you do not need to switch it manually. The current scope and update set appear at the bottom left of the page for each open application.
- Any file in a scoped app opens in a color-coded tab with information about what kind of file it is. In this instance, the playbook opened in an integrated tab, where you can update it using the Workflow Studio interface.
- Tabs without colors indicate that the file is in the global scope. You can edit global files in ServiceNow Studio.
- Any tab that's actively open in the canvas shows a contrasting color to indicate the open state.
- Tabs that are color-coded and grouped are in the same scope. In this example, both actions are in the same application, so they open in the same color tab.
Some builders override automatic scope switching. For example, when you use Table Builder to edit a form or table file, a message indicates that the scope is controlled by the builder.
For more information, see Open apps and app files across scopes in ServiceNow Studio and Access integrated development tools and builders in ServiceNow Studio.
Where are app templates?

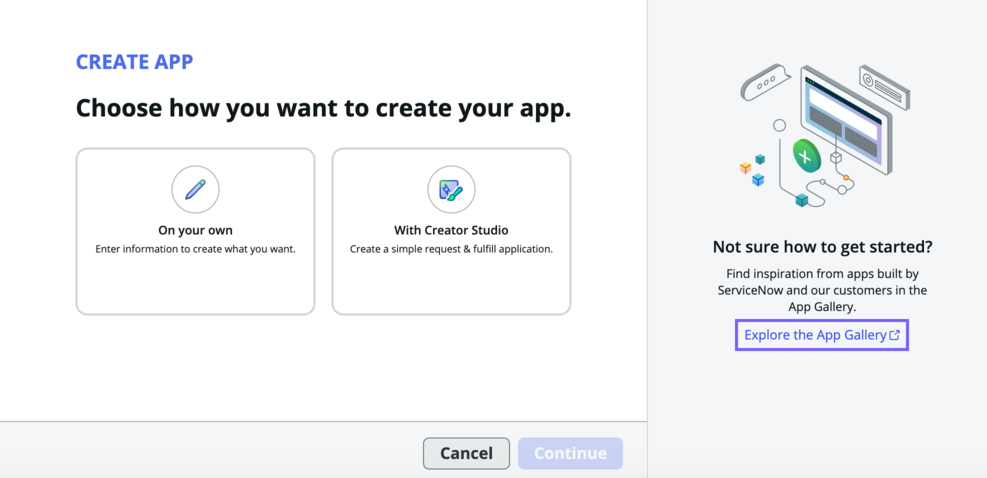

AES provides a library of application templates for creating apps. ServiceNow Studio does not have templates, but the App Gallery provides examples of completed apps and metadata files you can use for reference. To access the App Gallery, select and select the App Gallery link on the right side of the page.
