ServiceNow Studio user interface

  • Release version: Australia
  • Updated March 12, 2026
  • 2 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of ServiceNow Studio user interface

    ServiceNow Studio is a unified interface designed for building, managing, and deploying applications within the ServiceNow platform. It requires users to have admin or delegateddeveloper roles with access to at least one application. The interface can be customized to align with your workflow, providing a streamlined environment for application development and deployment tasks.

    Show full answer Show less

    Key Features

    • Home Page: Central hub offering access to all tools and services. It includes the Navigator panel for quick navigation through apps, files, collections, and recently accessed items.
    • Navigator Panel: Enables you to filter, sort, and open lists such as apps, files, and collections. Key navigation items include:
      • Search functionality across scopes for files, apps, metadata, or tools.
      • Create button to start new apps or files.
      • Access to organized collections and recent files.
    • User Preferences: Allows selection between light or dark themes and setting Build Agent as the default AI-assisted app generation tool.
    • Toolbar: Provides quick access to the Home page, Tools page (with documentation for integrated development tools), and Deployment page (for managing update sets, applications, and deployment requests).
    • Create Button: Facilitates creation of new apps and app files or importing apps from source control repositories.
    • Resources Section: Links to ServiceNow Community site, App Gallery, Script Debugger, and product documentation for Studio applications.

    Scope and Update Set Management

    When working on an app or file, the status bar displays the current application scope and the associated update set. You can change or create new update sets directly within the app by opening the default update set and selecting another. Additionally, you can view all updates linked to the current update set for better change management.

    Use the ServiceNow Studio interface to build, manage, and deploy applications — and customize the interface to match your workflow.

    ServiceNow Studio is a single interface for building, managing, and deploying applications. Access requires an admin or delegated_developer role with access to at least one application.

    What is on the ServiceNow Studio home page?

    The home page provides access to all tools and services in ServiceNow Studio.

    • The Navigator panel shows all your apps, files, collections, recents, and tools. Filter or sort the lists, or select Open list to open any list in the platform view.
      Table 1. Navigator panel tools
      Icon Navigation item Description
      Open/Hide Navigator panel Expand or collapse the Navigator panel.
      Search Search for any file, app, metadata, or tool in any scope on the platform.
      Create Create a new app or file.
      Apps View all apps.
      File Categories View, sort, and filter all files and metadata.
      Collections Access organized collections of bookmarks, files, and apps.
      Recent Access recently opened files.
    • The user preferences menu provides access to ServiceNow Studio preferences, where you can select light or dark theme and choose whether you want to use Build Agent as your default AI-assisted app generation tool.

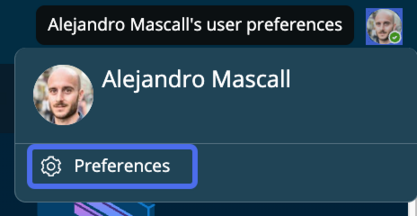

      The user preferences menu provides access to ServiceNow Studio settings.

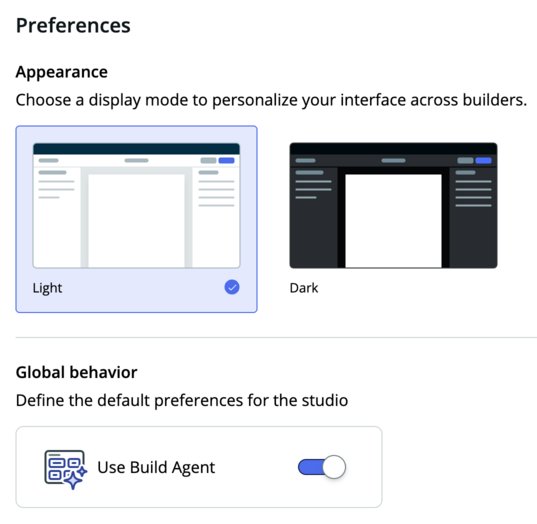

      Personalize your interface by choosing light or dark theme. Build Agent is active by default, but you can turn it off to continue using Now Assist for app generation.

    • The toolbar provides access to the home page, Tools page, and Deployment.

      ServiceNow Studio tool bar

      Table 2. Toolbar
      Page Description
      Home Main landing page for ServiceNow Studio. Access the Navigator panel, recently opened files and apps, and other tools and resources.
      Tools Access documentation for the tools and builders in ServiceNow Studio. For more information, see Integrated development tools for ServiceNow Studio.
      Deployment See lists of update sets, applications, and deployment requests on the Deployment page. For more information, see App deployment in ServiceNow Studio.
    • Use the Create button to create apps and app files or import a new app from source control.

      In the Create menu, you can create a new app or file or import a new app from source control.

    • The Resources section at the bottom of the home page links to the ServiceNow Community site, the App Gallery, and the Script Debugger tool. It also provides access to product documentation for ServiceNow Studio and Creator Studio applications.

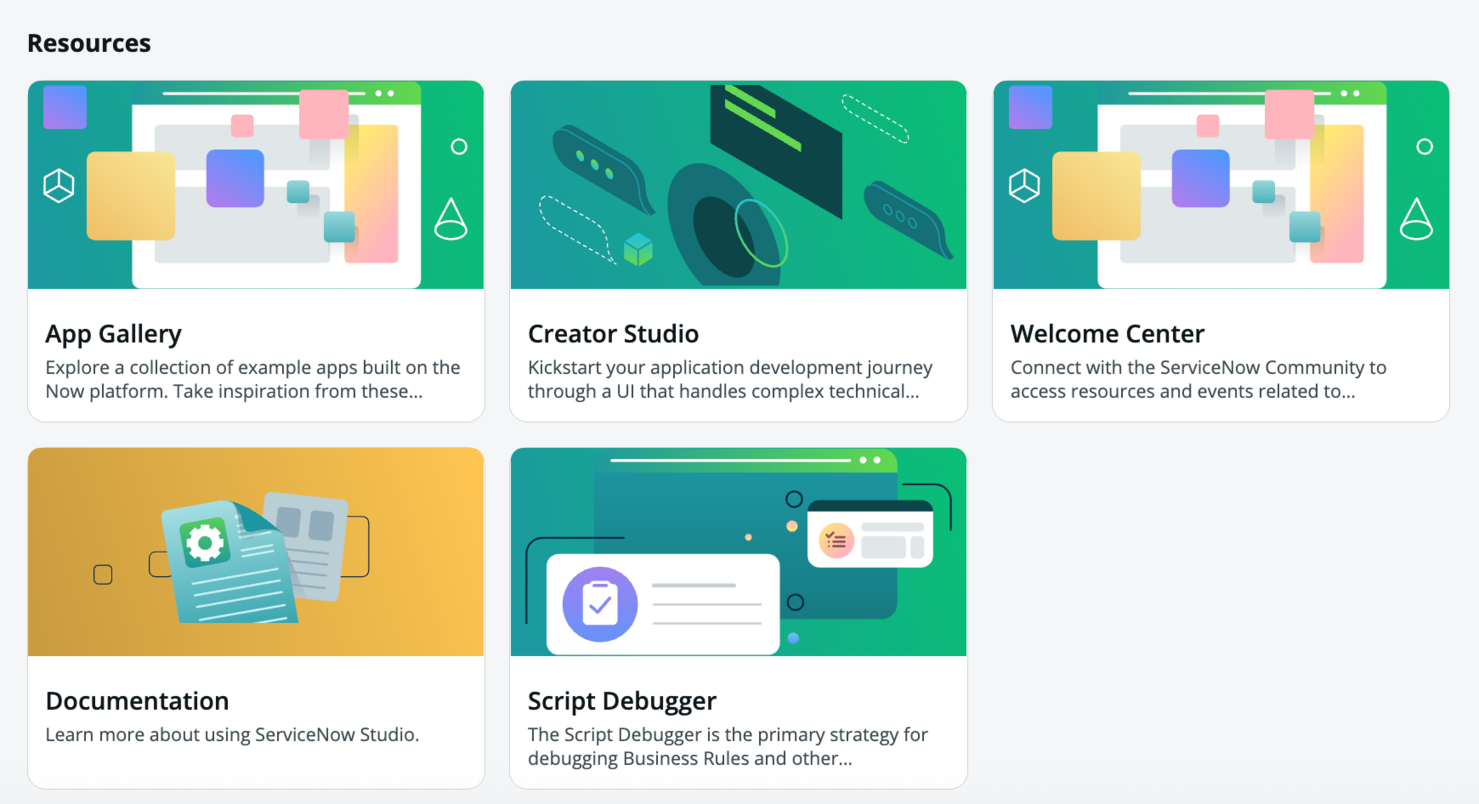

      The Resources section provides several links to tools, products, and documentation.

    How do I view the scope and update set?

    When you have an app or file open, the status bar shows the current scope and the update set associated with the application. To change the update set or create a new one, open the default update set and select a different one directly within the app. To see all updates associated with the current update set, select View update set.

    Each app shows its scope and update set at the bottom of the canvas. Select a new update set or create one to change it.

    For more information, see Update sets in ServiceNow Studio.
