Generate workflow activity

The Generate activity immediately creates task or approval records from any task or approval activities placed after the Generate activity in the workflow path. These pre-generated tasks and approvals start when the task and approval activities are reached during flow execution. This allows a task to have a set of associated pre-generated sequential tasks or approvals, but still require them to be completed in order.

Note:

This activity is only available when the workflow runs on a table that extends Task.

By default, the workflow does not create any tasks or approvals until it reaches them in the workflow.

The Generate activity follows all transitions through the workflow to each activity. For each activity:

• If it is a task activity, creates the task and sets:
  • The State to Pending
  • The Expected Start Date
  • The Due Date
  Note:

  Task activities run as the user whose actions complete the task the workflow was waiting for and advances the workflow.
• If it is an approval activity, creates the approvals and sets:
  • The approval State to Not Requested
  • The Expected Start Date
  • The Due Date
  Note:

  Approval activities run as the user whose actions match the approve or reject conditions the workflow was waiting for and advances the workflow.

Expected start dates and due dates are calculated based on the Expected Duration of all of the tasks and approvals between the Generate activity and the activity being updated. In the case of a branched path (between a Branch and Join activity), the longer duration will be used for any post-branch activities.

The Generate activity can be used more than once, and any tasks or approvals will be refreshed with updated information. This is useful in situations where the list of approvers or other important information is still editable while the workflow is in process and it may be necessary to update or correct the generated approvals or tasks.

To exclude a set of activities from the Generate activity, select the Skip during generate check box on any condition and its transitions will not be followed during the generate process. By default, the following conditions have the Skip during generate check box selected:

• Rejected (for any of the approval activities)
• No condition of If activity
• Continue condition of Turnstile activity
• Incomplete condition of Join activity

Input variables

Input variables determine the initial behavior of the activity.

Table 1. Generate activity input variables

Field	Description
Generate approvals	If selected, approvals are created when running the Generate activity. If cleared, the approvals are used to compute their estimated duration, but no approvals are created.
Generate tasks	If selected, tasks are created when running the Generate activity. If cleared, the tasks are used to compute their estimated duration, but no tasks are created.

States

The activity state tells the workflow engine what to do with the activity.

Table 2. Generate activity states

State	Description
Executing	The activity is executing.
Finished	The activity finished running. See the result value for the outcome of the activity.
Cancelled	This activity, or the workflow that contains this activity, was canceled.

Example

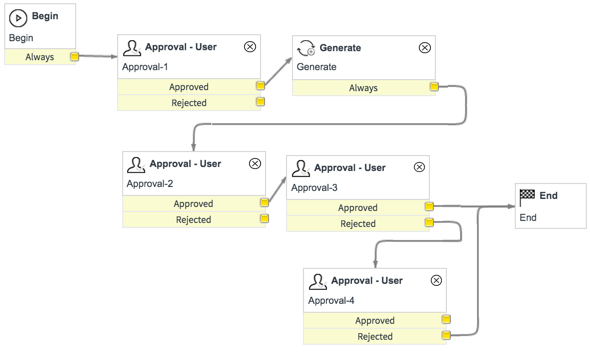

Figure 1. Generate workflow

In this example, the following approvals are generated:

• Approval-2
• Approval-3

Approval-4 is skipped since the Rejected condition of Approval-3 has Skip during generate selected.

Here is an example of using the Generate activity that describes the expected start and due dates:

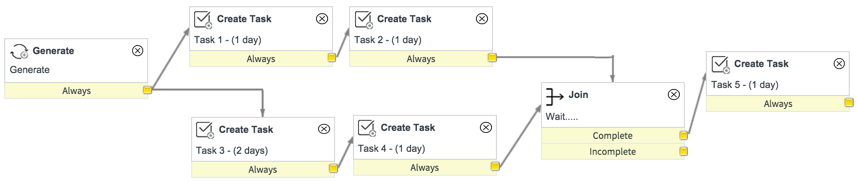

Figure 2. Generate workflow start and due date

In this example, if the Generate activity is run on Jan 1, 2016, the following expected start dates and due dates would be set for the generated tasks.

Task	Expected Start Date	Reason	Due Date
Task 1 (1 day)	Jan. 1, 2016		Jan. 2, 2016
Task 2 (1 day)	Jan. 2, 2016	Task 1 is 1 day	Jan. 3, 2016
Task 3 (2 days)	Jan. 1, 2016		Jan. 3, 2016
Task 4 (1 day)	Jan. 3, 2016	Task 3 is 2 days	Jan. 4, 2016
Task 5 (1 day)	Jan. 4, 2016	Task 4 ends the latest before the Join	Jan. 5, 2016

Notice that Task 5 starts on Jan. 4, 2016 since the longest path (based on due dates) to the Join is Task 3/Task 4.
