Do the following in parallel flow logic

  • Release version: Australia
  • Updated March 12, 2026
  • 2 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Do the Following in Parallel Flow Logic

    The Do the Following in Parallel flow logic enables you to execute actions and subflows in separate paths simultaneously within a single flow. This feature allows for efficient task management, as multiple actions can progress independently, even if some actions are delayed.

    Show full answer Show less

    Key Features

    • Parallel Execution: Actions and subflows run concurrently in separate paths, enhancing workflow efficiency.
    • Single Thread Context: Although paths are parallel, they operate within a single thread, meaning they do not run in multiple threads and are processed sequentially by the system.
    • No Field Inputs: This flow logic does not require field inputs; instead, it allows you to create paths using a plus ( ) icon.
    • Path Outputs: While the flow logic itself does not produce outputs, actions and subflows within each path can generate outputs that remain accessible only within their respective paths until the flow completes.

    Key Outcomes

    With this flow logic, you can effectively create and manage tasks in parallel upon events such as a new change request. Each task can be assigned to different groups and utilize data from the triggering event, like the change request number.

    To ensure optimal performance, avoid data dependencies between paths, as the order of execution can vary. Additionally, sharing data across paths is not supported to prevent conflicts in data processing.

    Run actions and subflows in separate paths within an isolated flow logic block.

    With this flow logic, you can run actions and subflows in separate paths. If any action within the Do the following in parallel flow logic block must wait, other actions run until all paths within the block finish processing.

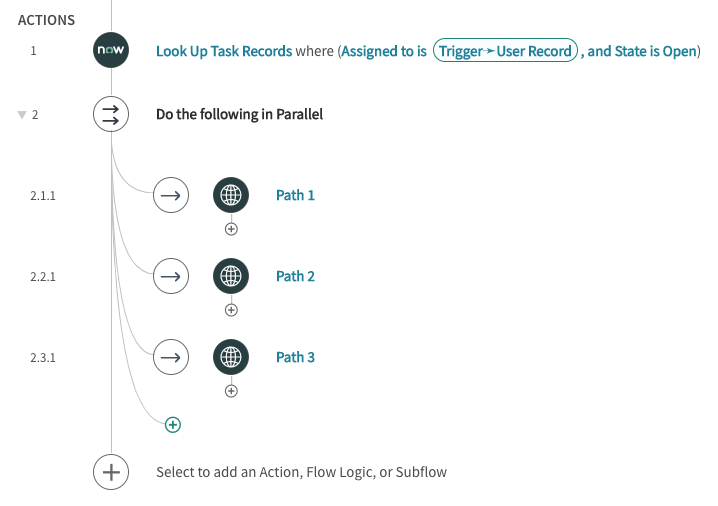

    Figure 1. Paths in a Do the following in parallel flow logic block
    Multiple paths in a Do the following in parallel flow logic block
    Note:
    Paths in a Do the following in parallel flow logic block do not run in multiple threads, since a flow execution context runs in a single thread. However, there may be times when you want to run flows within separate contexts even though this may consume more of your instance's resources. To run subflows in separate flow contexts within the same flow, see Dynamic flows.

    Inputs

    Do the following in parallel flow logic does not have field inputs. Instead, it displays a plus (New Branch Icon) icon that enables you to create a path with actions or subflows.

    The actions and subflows in each path run until all tasks within the flow logic block have completed.

    Outputs

    This flow logic has no outputs, but actions and subflows in each path may have outputs. While the flow is running, outputs from a path are only accessible to other actions in the same path. After the Do the following in parallel flow logic completes, its final outputs are accessible to the rest of the flow.

    Create two tasks in parallel when a change request is created

    In this example, a flow triggers when a new change request is created. Using Do the following in Parallel, two tasks are created in separate paths and are assigned to different groups. The flow uses the Number field data pill from the triggering change request to display the number in the short description for the task record.

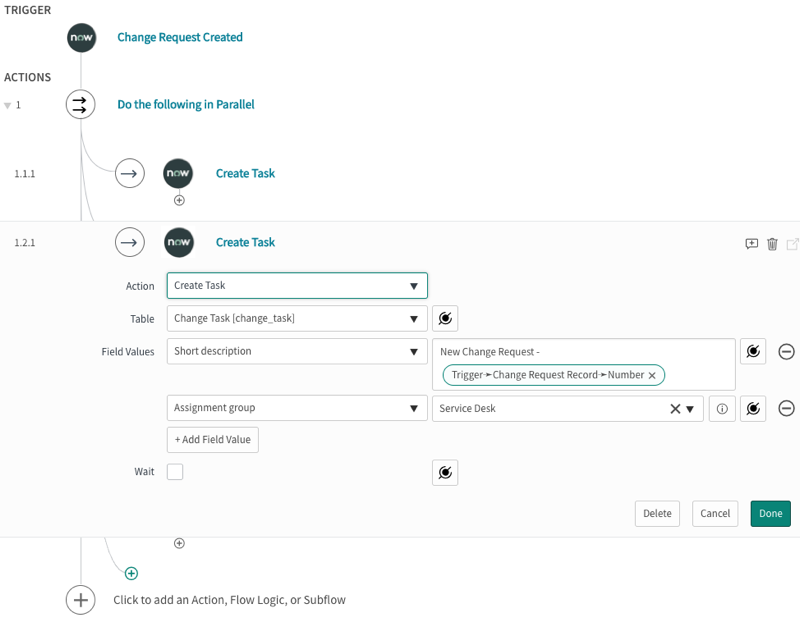

    Figure 2. Do the following in parallel flow logic inputs
    Do the following in parallel example

    Execution details

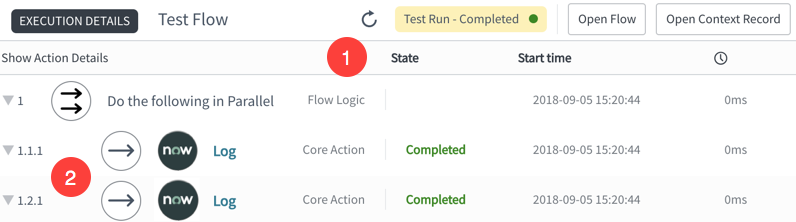

    Figure 3. Do the following in parallel execution details
    Example execution details for a do the following in parallel flow
    1. The header shows the state, start time, and runtime for the flow logic.
    2. The Configuration Details section shows the state, start time, and runtime for each path in the flow logic block.

    General guidelines

    Avoid creating data dependencies between paths
    Since a flow can run paths in any order, avoid creating data dependencies between separate paths. For example, do not have one path that creates a record and another path that updates the same record. The update record path may run before the create record path.
    Do not share data between paths
    Workflow Studio prevents you from dragging data pills between paths because the system cannot determine which path will finish first to supply the output value.
