Utilities transform functions

Use utilities transform functions to return a Complex Object from an Array, or a value associated with a specific key.

Utilities transform functions require an Array, Name-Value Pair, String, Integer, or Choice input data pill. Make sure to use the correct input data pill type when applying utilities transform functions. If a utility transform function is applied to an improper data type, the data is not transformed at runtime and the input value is returned instead. For more information on confirming your flow runtime values, see Test a flow.

Get First Item from Array

Returns the first item from the input array as a complex object.

Input data pill	Output data pill
Array	Complex Object - First item found in the input array

Get Item from Array

Returns a Complex Object from the input Array. Enter a value for the Nth Item in the input Array that you want to return. The Nth Item represents the Array index, starting at 0.

Input data pill	Parameters	Output data pill
Array	Nth Item - Enter the index of the target object in the input Array. The Array index starts at 0.	Complex Object

Get Item from Name/Values

Returns a value that is associated with a matching key from a map of Name-Value Pairs.

Input data pill	Parameters	Output data pill
Name-Value Pairs	Key - Name of the key that is used to look up its corresponding value Default - The value returned when there is no matching key	String associated with the matching key

Note:

When applying the Get Item from Name/Values transform function, consider that the runtime value might be the system value, not the display value. For example, if mapping the Priority field in the Incident table to a similar field in a remote table, the returned runtime value might be 2, not 2 - High.

Example usage:

• Input: "username":"abel.tuter"
• Key: username
• Default: example.username
• Output: abel.tuter

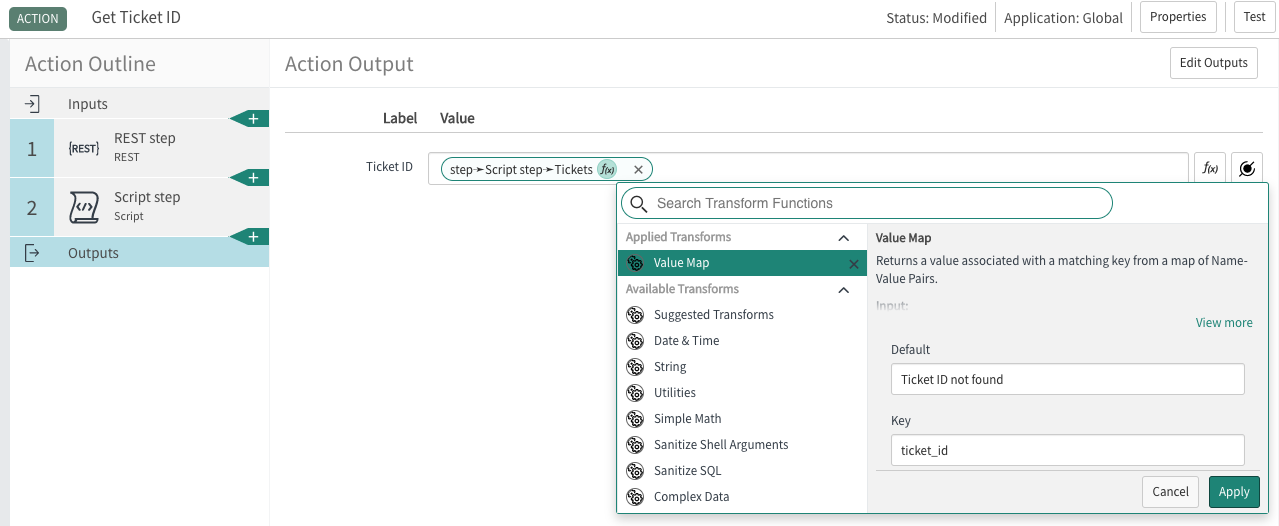

In this example, an action makes a REST call to a third-party system and GETs ticket data as a map of Name-Value Pairs. A Ticket ID is provided as an output for this action. The Get Item from Name/Values transform function returns either the value that is associated with the ticket_id key or Ticket ID not found.

Get Last Item from Array

Returns the last item from the input array as a complex object.

Input data pill	Output data pill
Array	Complex Object - Last item found in the input array

Is Blank

Returns true when the input is blank. A string input is blank when it is an empty string. An integer input is blank when it is zero. A Boolean input is blank when it is false.

Note:

This transform function doesn't support reference inputs.

Input data pill	Output
Any	Returns true or false

Example usage:

• Input: an integer data pill with 0
• Output: true

Is False

Returns true when the input is false. A string is false when it is an empty string. An integer is false when it is zero. A Boolean input is false when it is false.

Input data pill	Output data pill
Any	Returns true or false

Example usage:

• Input: an integer data pill with 13
• Output: false

Is Not Blank

Returns true when the input is not blank. A string is not blank when it is not an empty string. An integer is not blank when it is anything but zero. A Boolean input is not blank when it is true.

Note:

This transform function doesn't support reference inputs.

Input data pill	Output data pill
Any	Returns true or false

Example usage:

• Input: an integer data pill with 13
• Output: true

Is Null

Returns true when the input value is null. An input is null if it is not initialized, or if it is a null object or reference.

Input data pill	Output
Any	Returns true or false

Example usage:

• Input: an integer data pill with 725
• Output: false

Is True

Returns true when the input is true. A string is true when it is not an empty string. An integer is true when it is anything but zero. A Boolean input is true when it is true.

Input data pill	Output data pill
Any	Returns true or false

Example usage:

• Input: an integer data pill with 13
• Output: true

Key Value Map

Returns a value associated with a matching key, or a default value if there is not a match.

Input data pill	Parameters	Output data pill
String or Integer	Name - The key that is used to find the corresponding value Value - The value matched to a specific key Default - The value returned when there is no matching name	String associated with the matching key

Example usage:

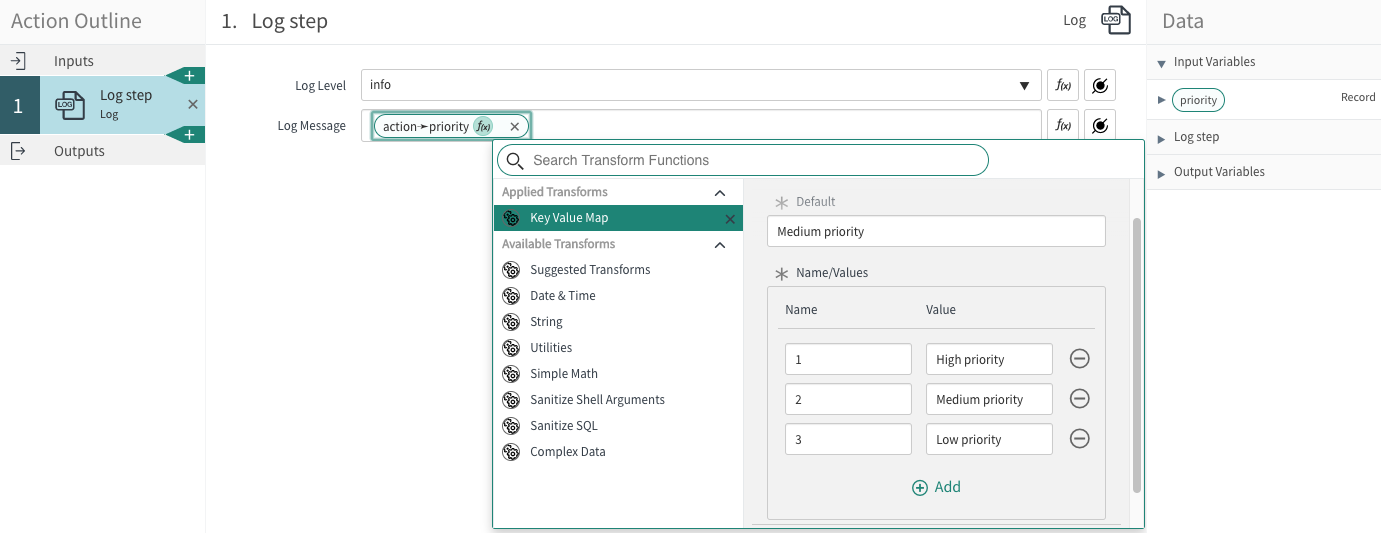

In this example, a log action stores a record's priority as a message. In the Name-Values section, each priority is mapped to a corresponding string value. When the flow runs, the record's priority number is transformed to a string, and the string is logged to a message.

Sort

Sorts the specified array in ascending or descending order.

Input data pill	Parameters	Output data pill
Array.String, Array.Integer, Array.Boolean, or Array.Datetime. - Unsorted array	Sort Order - Ascending or descending	Array - Sorted array

Note:

Sort function is case-sensitive for array.strings.

Example usage:

• Input: [7, 2, 3, 1, 7, 9]
• Parameter: Ascending
• Output: [1, 2, 3, 7, 7, 9]

Unique

Removes the duplicate elements from the specified array.

Input data pill	Output data pill
Array.String, Array.Integer, Array.Boolean, or Array.Datetime.	Array - After duplicated elements are removed

Example usage:

• Input: [7, 2, 3, 2, 7, 9]
• Output: [7, 2, 3, 9]

Join

Concatenates the individual elements of the specified array with the specified delimiter and returns the concatenated string.

Input data pill	Parameters	Output data pill
Array.String, Array.Integer, Array.Boolean, or Array.Datetime.	Delimiter - Character that separates the individual elements after concatenation.	String - String after a delimiter is added.

Example usage:

• Input: [1, 2, 3]
• Parameters: <
• Output: 1<2<3
