Platform Analytics dashboard overview

  • Release version: Washingtondc
  • Updated February 1, 2024
  • 2 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Platform Analytics Dashboard Overview

    The Platform Analytics dashboard offers a structured layout featuring data, utilities, and controls, designed to provide users with insightful visualizations of their instance data. It is essential for effective data representation and decision-making within ServiceNow.

    Show full answer Show less

    Key Features

    • Dashboard Components: Includes a title, refresh information, and certification badge indicating company approval.
    • Refresh Button: Allows users to update all visualizations on the dashboard.
    • Insights Button: Displays configured insights cards for enhanced analytics.
    • Editing Capabilities: Users with edit rights can modify dashboard content.
    • Filters: Users can apply data and domain filters on individual tabs or globally across the dashboard.
    • Data Visualizations: Users must create data visualizations instead of using reports or Performance Analytics widgets.

    Key Outcomes

    By utilizing the Platform Analytics dashboard, users can efficiently visualize data, apply relevant filters, and tailor insights to better understand their ServiceNow instance. This functionality empowers organizations to make informed decisions based on real-time data analysis.

    Platform Analytics dashboards have a shared layout of data, utilities, and controls.

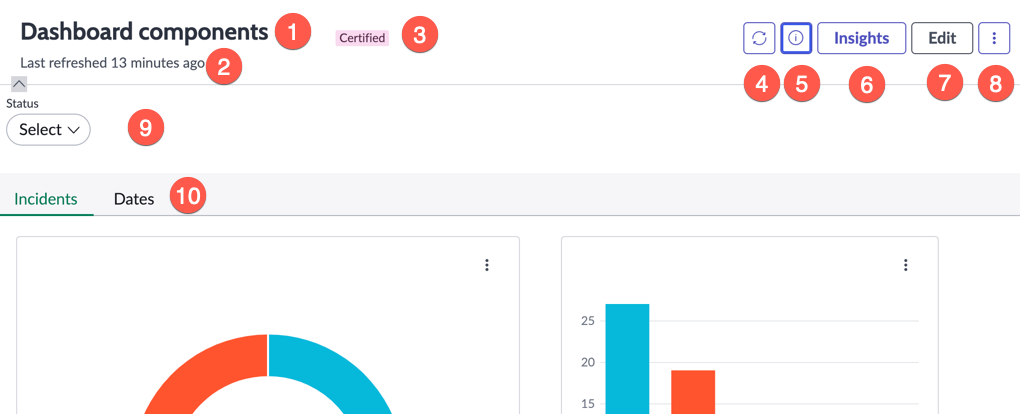

    Dashboard components

    When the dashboard is being viewed, rather than edited, it has the following components.

    1. Dashboard title
    2. Refresh information

      Indicates how long ago the dashboard was refreshed. Admins can configure refresh intervals. For more information, see Configure Platform Analytics dashboard settings.

    3. Certification badge.

      Certification indicates that the dashboard is company-approved and recommended for use.

    4. Refresh button

      Select to refresh all of the visualizations on the dashboard.

    5. Details button

      Select to show ownership and sharing information about the dashboard. To learn more, see Configure Platform Analytics dashboard details.

    6. Insights button

      Shows configured insights cards. For more information, see Proactive analytics insights on dashboards.

    7. Edit button

      Enables users who own or who have been given edit rights to edit the content on the dashboard.

    8. More actions button

      Opens menu to create a dashboard, duplicate, share, and print the dashboard, clear the filters, as well as bookmark, and delete the dashboard.

    9. Top stage

      Elements in this section are visible no matter which tab has focus. Filters in this section apply to visualizations on all of the tabs.

    10. Tabs

      Tabs help you to manage information on your dashboard and keep related information in the same place.

    Dashboard elements

    Dashboards contain a combination of visual elements to show data.

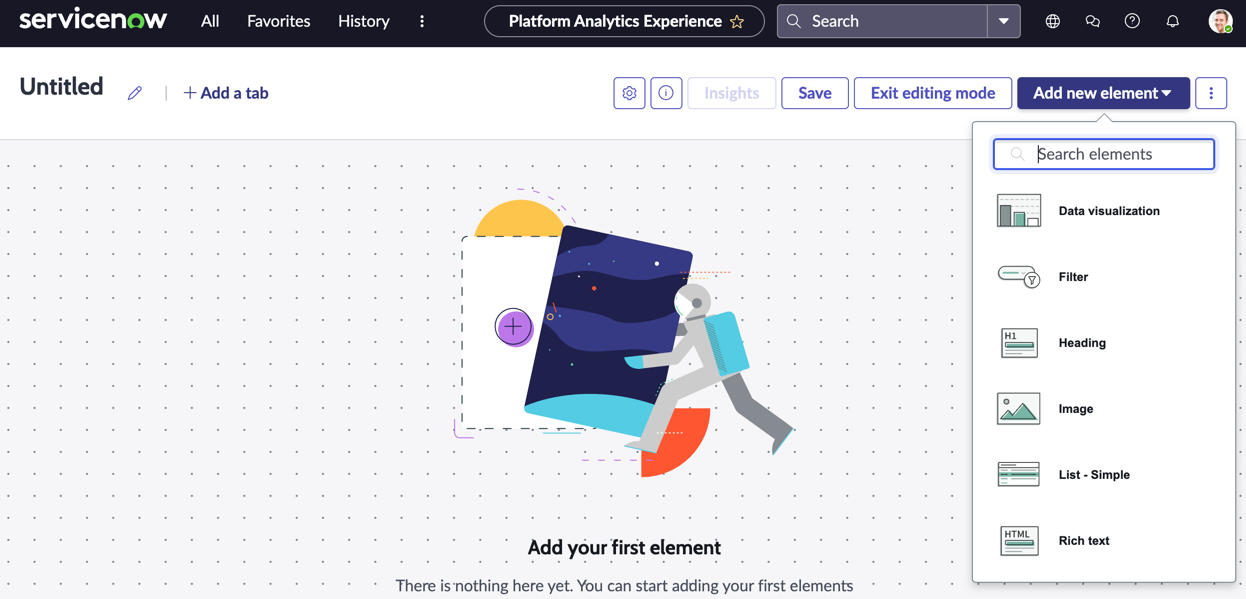

    Untitled dashboard with the Add new element menu expanded to show elements you can add to the dashboard

    Data visualization
    Data visualizations enable you to present a visual representation of current instance data or temporary data that you’ve imported. Data visualizations include visualizations that you create in the dashboard designer and data visualizations from the library.
    Important:
    You cannot place reports or Performance Analytics widgets on a Platform Analytics dashboard. You must create data visualizations instead.
    Filter
    Filters enable users to filter the visualizations on a dashboard based on specified criteria. You can put filters either on the individual tabs or above the tabs so that the filter applies to elements every tab. Filters include both data filters and domain filters. You can create filters in the dashboard designer or select them from the library.
    Heading
    Headings provide a place for text at the top of a dashboard or section of a dashboard. Formatting for headings is limited to six heading levels.
    Image elements hold static or animated images on the dashboard.
    List - Simple
    Simple lists show table data that you can customize for the dashboard audience.
    Rich text
    Rich text elements hold text that you can format either as text or as html, including font selection, text size, highlighting, and hyperlinks.

    Default element dimensions

    Each element has a default height and width when you place it on the stage to configure. Select and drag an element's handlebar to resize it.
    Filter
    six columns by three rows
    List, Multipivot, and Indicator Scorecard visualizations
    48 columns by 18 rows
    All other components
    11 columns by 11 rows
