Viewing metrics and activity transitions

View metrics and activity transitions you have defined.

View metrics

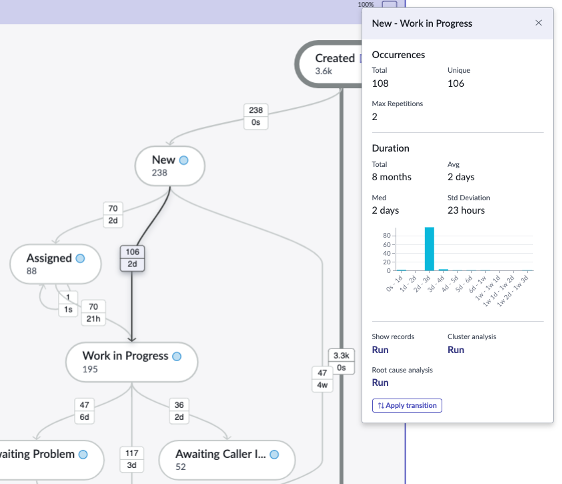

View your selected metrics, or the full list of metrics for an activity or connection. The metrics box () on a route shows the primary and secondary metrics selected to show on the process map.

Select an activity or connection to see a full list of metrics.

Viewing activity transitions

View activity transitions you've defined from the Bottleneck Analysis feature.

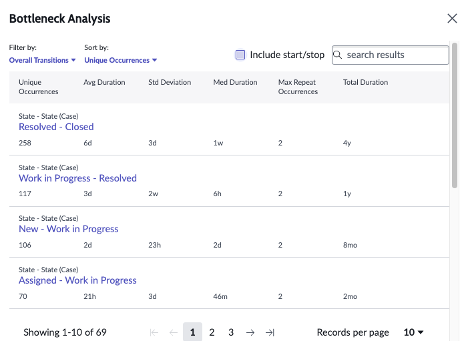

Expand the Bottleneck Analysis box to see the top five overall and specified activity state transitions across these specific metrics.

• Unique Occurrences
• Maximum Repeat Occurrences
• Average Duration
• Total Duration
• Total Occurrences

View selected transitions and metrics from the lists.

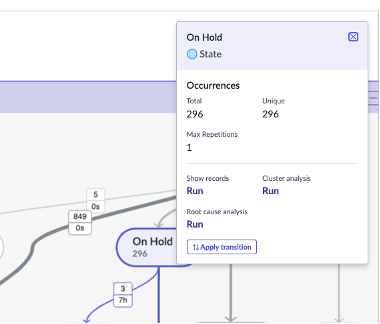

Select a transition link from the list to edit activities for the selected filter.

Related concepts

• Apply a transition filter on an activity

Viewing records for an activity or connection

See the list of records which passed through an activity or connection to analyze data in more detail.

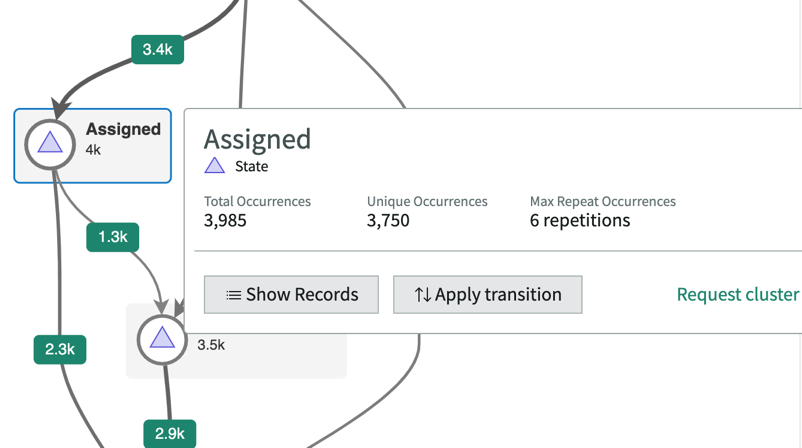

Select an activity or connection on a route to display the metrics box. You can then also select Show Records to open the list of records that passed through it.

Note:

The Show Records link displays for a maximum of 100,000 records returned for an activity or connection. An administrator can add and the promin.show_records.limit system property to change this limit. The sn_process_optimization_analyst role must have read access to the promin.show_records.limit system property.​ For instructions on adding properties, see Add a system property.
