Data visualizations in Platform Analytics

  • Release version: Washingtondc
  • Updated January 3, 2025
  • 1 minute to read

    • Data Visualizations use graphics to show table, indicator, and other data. They combine and extend the functions of reports and Performance Analytics widgets from the Core UI.

    Important:
    You cannot place reports or Performance Analytics widgets on a Platform Analytics dashboard. You must create data visualizations instead.

    To access data visualizations, navigate to All > Platform Analytics > Library > Data Visualizations. Owners of a data visualization can access and share that visualization. Users whom the owner has shared a visualization with can access that visualization. Any user with access to data can create a data visualization based on that data.

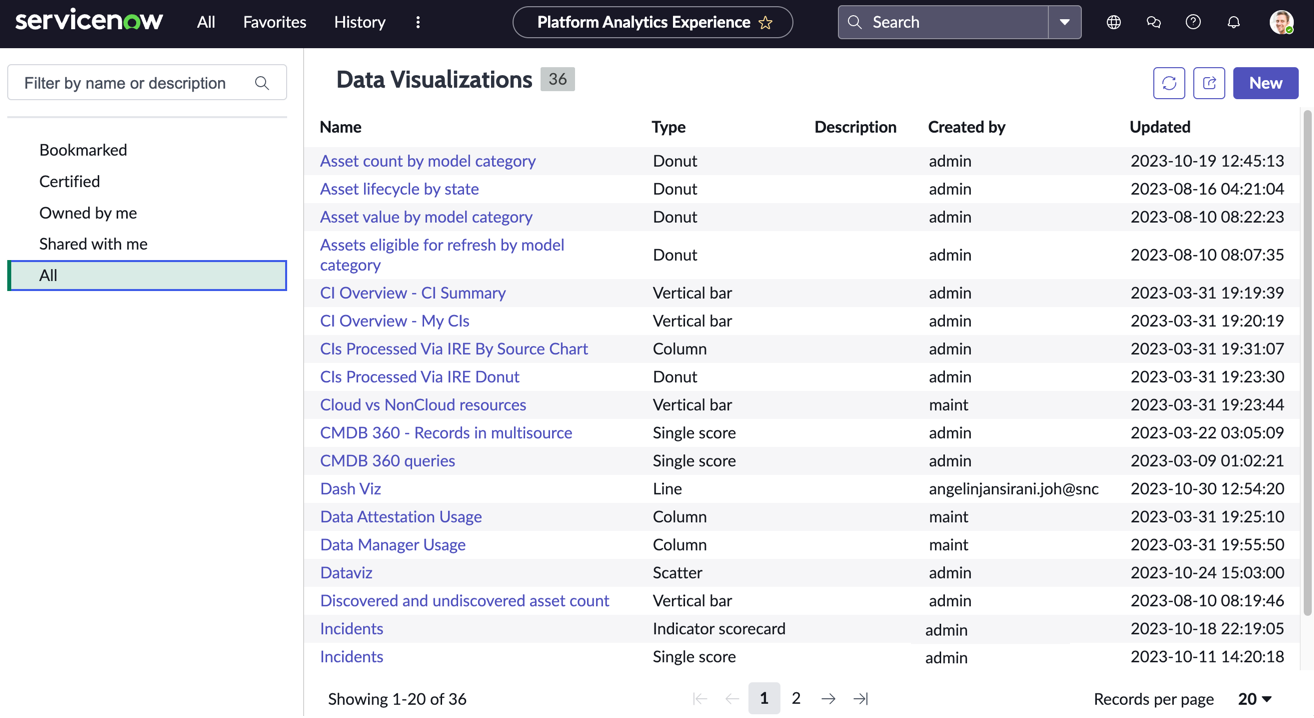

    Figure 1. Analytics Overview Data Visualizations tab features
    Analytics Center Data Visualizations tab

    List actions

    A set of buttons enables you to take the following actions on the Data Visualization list:
    Refresh list The Refresh List button.
    There can be a lag in the list of visualizations after you create or delete a visualization. Select Refresh List to update the list.
    Copy URL for data visualizations Copy URL button.
    Copies the data visualizations library URL to the clipboard.
    New
    Create a data visualization, as described by visualization type in the subtopics of this section. For information on who can create data visualizations,see Platform Analytics roles.

    List filters

    A search box lets you filter the list of data visualizations by name or description. The filter panel shows you which filters are being applied. By default, the filter Active = true is always applied. For example, filtering on the word Data shows the following filters in the panel:
    • Active = true
    • Name contains Data
    • Description contains Data
    Alternatively, you can select one of these predefined filters:
