Legacy CI relations formatter

  • Release version: Washingtondc
  • Updated February 1, 2024
  • 1 minute to read

    • On instances that do not meet the internet browser requirements for the latest CI relations formatter, the default CI form includes the legacy CI relations formatter instead.

    This element contains the list of related CIs and a toolbar with controls for viewing the relationships between the current CI and related CIs. For information about the latest CI relations formatter, see CI relations formatter.

    Figure 1. Related items field
    Select the controls to configure the view.
    Note:
    The legacy BSM map provides a more complete view of CI relationships.

    Configure the controls in this formatter with two properties that restrict varying aspects of the view.

    Flat layout

    Click the flat layout icon (Flat layout icon) to group related CIs by relationship.

    Figure 2. Flat layout view
    Related CIs in flat layout view.

    Tree layout

    Click the tree layout icon (Tree layout icon) to group related CIs in a hierarchical tree.

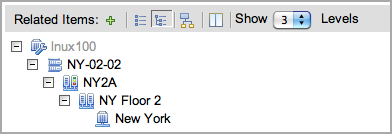

    Figure 3. Tree Layout view
    Related CIs in tree view.
