Exploring Service Reliability Management

Service Reliability Management (SRM) provides a self-serve, guided experience for teams to autonomously manage the health of their technical services. The experience is built using the Service Operations Workspace application and combines ITOM and ITSM capabilities into a single service operations workflow.

SRM overview

Optimize service health with Service Reliability Management (SRM) for teams in IT adopting site reliability engineering (SRE) practices. SRM is a single operations workspace that empowers teams to improve the reliability of digital services with SRE.

• Use on-call escalations to respond to issues identified by your monitoring and ITOM alerts in a timely manner.
• Reduce setup friction with guided self-service to onboard distributed teams with separated data, empowered access, and minimal governance from central IT.

When SRM is activated, several plugins and applications are also installed. For more information, see Plugins or applications installed with ITOM Health.

SRM users

Table 1. Users

Users	Description	Contains Roles
admin	A ServiceNow administrator is responsible for the administration, development, operation, education, and maintenance of the ServiceNow platform. Responsible for installation and can perform Service Operations Workspace Admin Center configuration of SRM.	All
Administrator [srm_admin] Note: Not the ServiceNow admin role	SRM Administrators can manage account settings, configurations, and users. Administrators can perform the following actions: Access, create, edit, or delete all SRM configurations. Add or manage integrations. Create Integrations with Application Performance Monitoring (APM) tools Set up and maintain Reliability Indicators. Set up and maintain Error Budget Policies.	Manager Responder
Manager [srm_manager]	Managers oversee a team of SREs. Managers assign SREs to the team on-call schedule, monitor their performance, create procedures to deal with incidents, and develop solutions. Managers ensure resilience across all the systems and the DevOps workflows. Managers can perform the following actions within the context of their teams: Define and set up and teams, on-call schedules, and services. Add and delete users such as responders, and managers for the teams the are a part of. Add or manage integrations. Create Integrations with Application Performance Monitoring (APM) tools Set up and maintain Reliability Indicators. Set up and maintain Error Budget Policies.	Responder
Responder [srm_responder]	A Service Reliability Engineer (SRE) that uses SRM to perform everyday tasks. Responders are the individuals who are on call and diagnose and remediate incidents. Responders can only access configurations that they’re a part of. They can only access the alerts or incidents for which they have permissions. SREs can perform the following actions, within the context of their teams: Set up services, teams, and integrations Confirm their on-call schedules Manage incident and alert records Update teams that they’ve created Add other responders Create Integrations with Application Performance Monitoring (APM) tools Set up and maintain reliability metrics Set up and maintain error budget actions	Inherits 17 roles including the following: cmdb_read sn_sow.sow_user sn_sow_srm.srm_responder workspace_user slo_operator

For more information, see SRM roles and responsibilities.

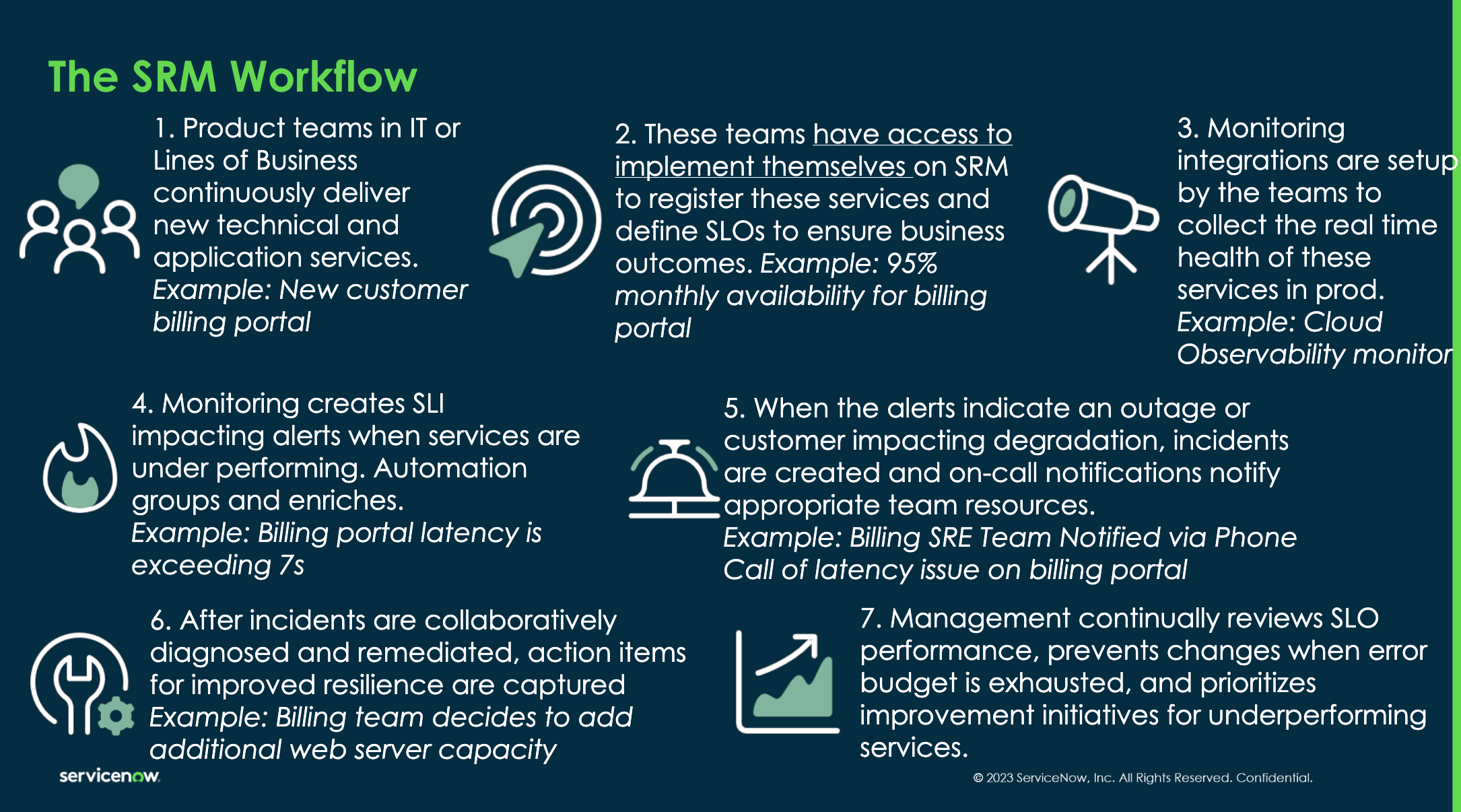

SRM workflow

1. Product teams in IT or Lines of Business continuously deliver new technical and application services. Example: New customer billing portal.
2. Along with SLO Management, teams have access to implement themselves on SRM to register these services and define service level objectives (SLO) to ensure business outcomes. Example: 95% monthly availability for billing portal.
3. Monitoring integrations are set up by the teams to collect the real-time health of these services. Example: Cloud Observability.
4. Monitoring creates service level indicator (SLI) impacting alerts when services are under-performing. Automation groups and enriches. Example: Billing portal latency is exceeding 7 s.
5. When the alerts indicate an outage or customer impacting degradation, incidents are created and on-call notifications notify appropriate team resources. Example: A Billing SRE team is notified via phone call of a latency issue on the billing portal.
6. After incidents are collaboratively diagnosed and remediated, action items for improved resilience are captured. Example: The Billing team decides to add additional web server capacity.
7. Management continually reviews SLO performance, helps to prevent changes when the error budget is exhausted, and prioritizes improvement initiatives for under-performing services.

SRM benefits

Table 2. SRM benefits

Benefit	Feature	Users
Team-based experience	Working with SRM teams	Service Reliability Responder, Manager, and administrator
Service registration	Working with SRM services	Service Reliability Responder, Manager, and administrator
Prebuilt integrations	Working with SRM integrations	Service Reliability Responder, Manager, and administrator
Measure service health	Working with Reliability metrics	Service Reliability Responder, Manager, and administrator
On-call coverage	Create your SRM On-call schedule	Service Reliability Responder, Manager, and administrator
Remediate high severity alerts and incidents	Working with SRM reliability tasks	Service Reliability Responder, Manager, and administrator

What to explore next

To learn more about configuring and using SRM, see:

• Configuring Service Reliability Management
• Using Service Reliability Management
• Service Reliability Management reference

• Get started with Service Reliability Management
  SRM accelerates your path to viewing service health in the context of service level objectives and incident resolution. Helps IT Operations and DevOps teams deliver on the promise of agility, performance, and uptime.
• SRM alert workspace
  The alert workspace contains various areas containing alert details and possible actions.
• SRM incident workspace
  The incident workspace contains various panels containing incident details and possible actions.
