Configure Lens launcher using scripted screen

Configure a ServiceNow AI Lens launcher button with scripted screen.

The following example adds a button instance to the “top-icon” location of the scripted screen. The highlighted portions indicate the updates needed in an existing scripted screen to add the ServiceNow AI Lens Launcher button.

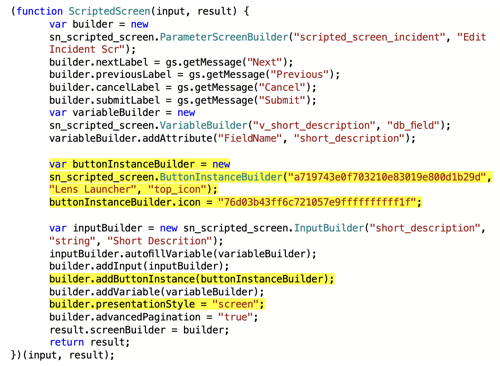

Figure 1. Lens launcher configured with scripted screen

(function ScriptedScreen(input, result) {
var builder = new sn_scripted_screen.ParameterScreenBuilder("scripted_screen_incident", "Edit Incident Scr");
builder.nextLabel = gs.getMessage("Next");
builder.previousLabel = gs.getMessage("Previous");
builder.cancelLabel = gs.getMessage("Cancel");
builder.submitLabel = gs.getMessage("Submit");
var variableBuilder = new sn_scripted_screen.VariableBuilder("v_short_description", "db_field");
variableBuilder.addAttribute("FieldName", "short_description");

var buttonInstanceBuilder = new sn_scripted_screen.ButtonInstanceBuilder("a719743e0f703210e83019e800d1b29d", "Lens Launcher", "top_icon");
buttonInstanceBuilder.icon = "76d03b43ff6c721057e9ffffffffff1f";

var inputBuilder = new sn_scripted_screen.InputBuilder("short_description", "string", "Short Descrition");
inputBuilder.autofillVariable(variableBuilder);
builder.addInput(inputBuilder);
builder.addButtonInstance(buttonInstanceBuilder);
builder.addVariable(variableBuilder);
builder.presentationStyle = "screen";
builder.advancedPagination = "true";
result.screenBuilder = builder;
return result;
})(input, result);

In this example, a719743e0f703210e83019e800d1b29d is the sys_id of the sys_sg_button of type lens_launcher. The button must be created declaratively.

76d03b43ff6c721057e9ffffffffff1f is the sys_id of the sys_sg_icon.

PresentationStyle should be screen to support a button instance on an input form screen or scripted screen.

The third parameter in ButtonInstanceBuilder() is the location. The location can be either top_icon or top.
