Relationships between configuration records

  • Release version: Australia
  • Updated March 12, 2026
  • 1 minute to read

    • The Application File Types table defines parent-child relationships between configuration records.

    The system uses this structure to keep configuration records that normally belong together in the same application.

    Note:
    Do not modify the Application File Types table as it provides system functionality.

    For example, consider the parent-child relationships for a UI policy.

    • The UI policy is a child of the application table.
    • UI policy actions are children of the UI policy.
    • UI policy actions have a parent UI policy and a grandparent application table.
    • The UI policy actions and the UI policy are all descendants of the application table.

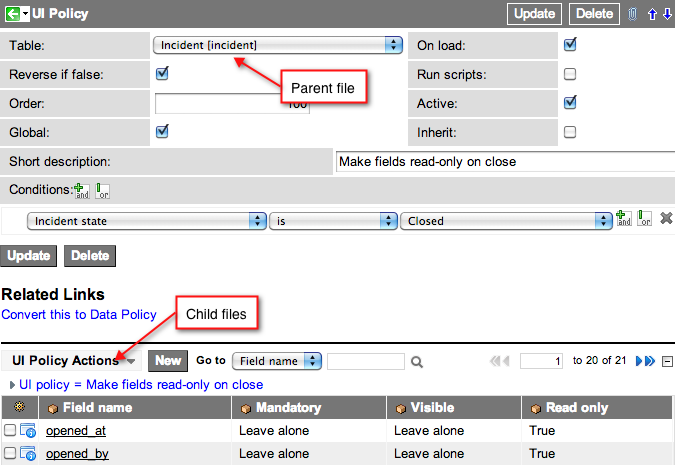

    Figure 1. Sample configuration record relationships
    Relationships in a sample configuration record
