Connect Build Agent to a Figma MCP server

  • Release version: Australia
  • Updated June 16, 2026
  • 6 minutes to read

    • Connect the Figma Model Context Protocol Server Console (MCP) server to Build Agent to convert Figma designs into enterprise-grade applications on the ServiceNow AI Platform.

    Before you begin

    Role required: admin

    About this task

    Connecting the Figma MCP server to Build Agent enables Build Agent to access design data from Figma files. The connection helps Build Agent interpret the design intent and create applications that match the design.

    Visit the Figma Developer Portal to connect the Figma MCP server to Build Agent. Create an OAuth app to obtain your Client ID and Client Secret. Then, configure ServiceNow Studio or the ServiceNow IDE to handle the OAuth process using the credentials.

    Procedure

    1. Configure an OAuth app in Figma
    2. Configure OAuth provider in ServiceNow Studio
    3. Connect Figma MCP server to Build Agent

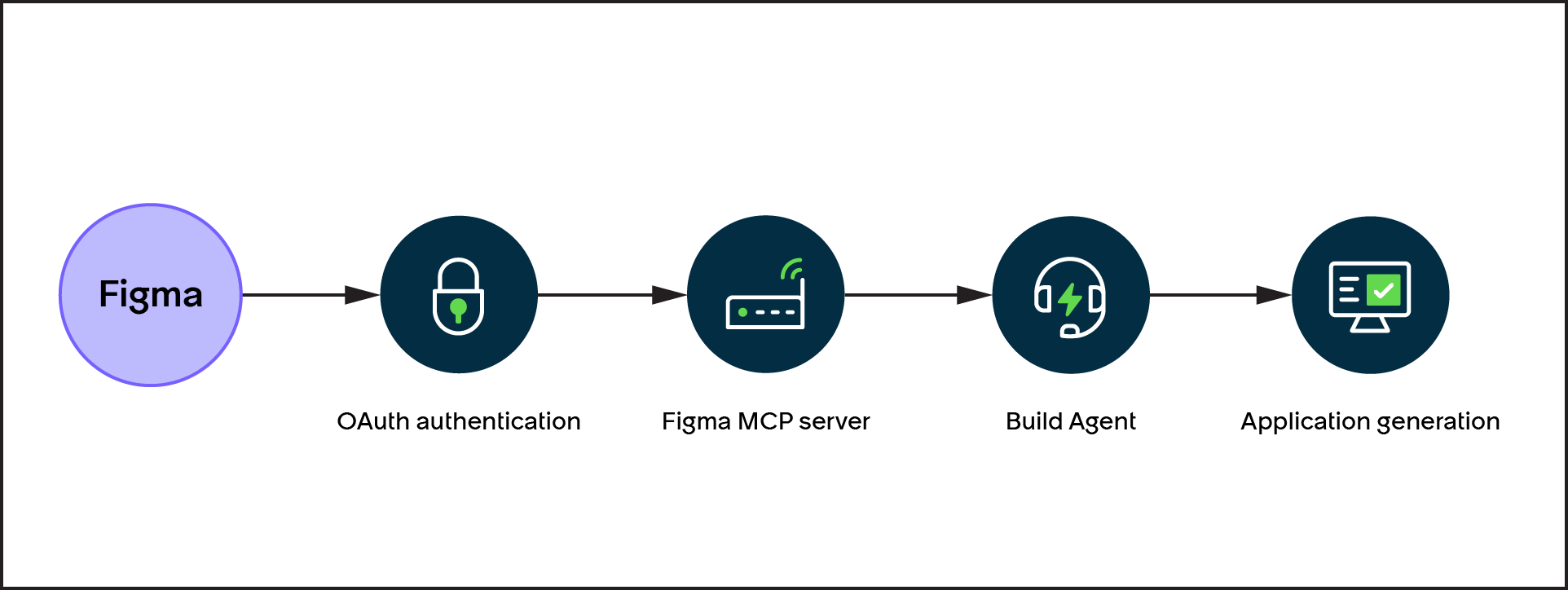

      Figure 1. Application generation workflow using Figma and Build Agent
      Flowchart showing the build agent process from Figma to application generation. For detailed process steps, refer to the surrounding text.

    Configure an OAuth app in Figma

    Create an OAuth application in Figma to enable the Figma MCP server to authenticate users via OAuth and grant Build Agent access to Figma designs.

    Before you begin

    You must have a Dev or Full seat on a Figma Pro, Org, or Enterprise plan.

    Role required: admin

    About this task

    The Figma MCP (Model Context Protocol) server uses OAuth for authentication and makes the Figma design data accessible to Build Agent after installation. To connect the Figma MCP server with Build Agent, you must create an OAuth app in Figma, which generates a Client ID and Client Secret. The ServiceNow AI Platform uses those credentials to initiate the OAuth process and authenticate users with their Figma accounts.

    Procedure

    1. Create an OAuth application in Figma to obtain the Client ID and Client Secret.
      1. Go to the Figma Developers Page.
      2. Select Create a new app.
      3. Enter the following information in the form.
        Table 1. Figma app information
        Field Description
        Name Name for your application; for example, ServiceNow Integration.
        Choose an owner for your app

        Team or organization that owns the app.

        Note:
        The value that you enter is permanent, and can't be changed.
      4. Select Create app.
        Figma generates a Client ID and Client Secret.
      5. Store the Client ID and Client Secret securely, because you need them for the OAuth setup in the ServiceNow AI Platform.
        Note:
        The Client Secret is not displayed again after you close this window.
      6. Select Done.
    2. Configure and publish the OAuth App in Figma.
      1. Open the application that you created.
      2. Optional: In the General tab, upload a logo for your app and provide a description.
      3. Add the following URL to the Redirect URLs field in the OAuth credentials tab: https://<instance name>.service-now.com/oauth_redirect.do, replacing <instance name> with the actual ServiceNow instance name.
        The OAuth flow works only in ServiceNow instances that are included in the list of Redirect URLs. Add all instances where you want the OAuth flow to function to this list.

        You can add a redirect URL at any time.

      4. Select the mcp:connect check box in the OAuth scopes tab, under the MCP section.
        Note:
        If the MCP section isn't visible, contact your ServiceNow account manager or ServiceNow Support (Contact ServiceNow Support) to enable the MCP connect scope. Share your Client ID with them so they can enable the MCP feature.
      5. Confirm that the Private check box is selected in the Publish tab.
      6. Select Publish.

    Configure OAuth provider in ServiceNow Studio

    Set up an OAuth application registry and credentials to enable Build Agent in ServiceNow Studio or the ServiceNow IDE to connect to your Figma MCP server.

    Before you begin

    Role required: admin

    Procedure

    1. Create an Application Registry record.
      1. Navigate to System OAuth > Application Registry.
      2. Select New.
      3. Select Connect to a third-party OAuth Provider on the interceptor page.
      4. On the form, fill in the following fields.
        Table 2. Application Registry form
        Field Description
        Name Unique name. For example, Figma OAuth Provider.
        Client ID Client ID that you obtained from the Figma app.
        Client Secret Client secret that you obtained from the Figma app.
        Default Grant Type Grant type for the OAuth flow. Set to Authorization Code.
        Authorization URL https://www.figma.com/oauth
        Token URL https://api.figma.com/v1/oauth/token
        Redirect URL Redirect URL that you added in the Figma app.
        Send Credentials Method for sending credentials. Set to As Basic Authorization Header.
      5. Select Submit.
    2. Define the OAuth scope.
      1. Navigate to the related lists on the Application Registry record.
      2. Select the OAuth Entity Scopes tab.
      3. Select Insert a new row to add a row to the OAuth Entity Scopes list.
      4. Enter the following values in the new row.
        Table 3. OAuth Entity Scopes row
        Field Description
        Name A name; for example, Figma MCP Connect.
        OAuth scope Exact scope name that you defined in Figma (mcp:connect).
      5. Select Update.

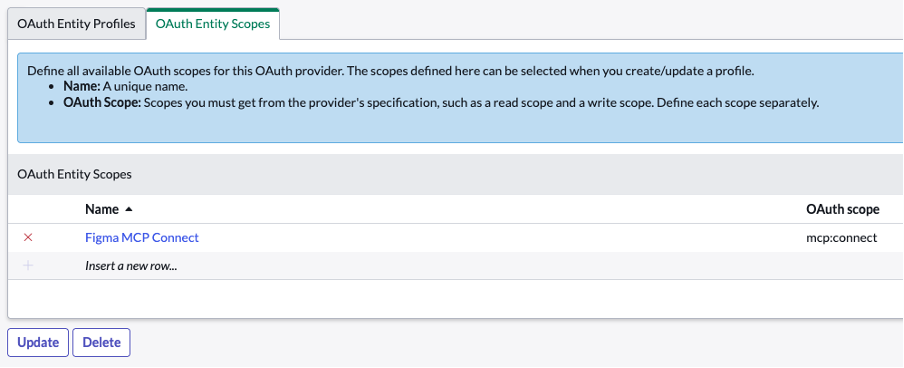

        Configuration tab for OAuth entity scopes shows the "Name" and "OAuth Scope" fields, an example "Figma MCP Connect: mcp:connect," and options to add, update, or delete scopes.
    3. Configure the OAuth entity profile.
      1. Select the OAuth Entity Profiles tab on the same Application Registry record.

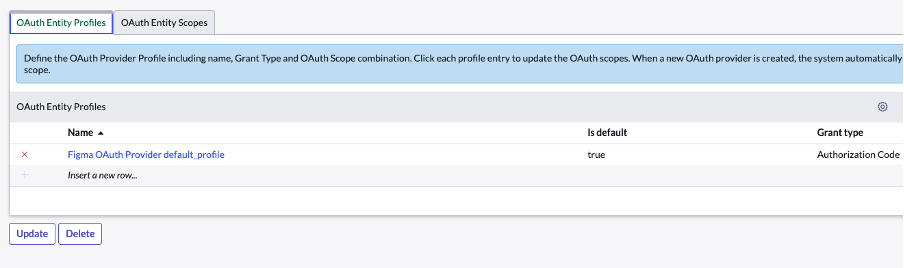

        OAuth Entity Profiles tab showing a default profile entry with Authorization Code grant type, and options to update or delete.
      2. Select the profile name to open the record.
      3. Rename the default profile to figma_profile.
      4. Select Insert a new row under the OAuth Entity Profile Scopes related list.
        The option appears under the OAuth Entity Profile Scopes related list.
      5. Search for Figma MCP Connect and select it.

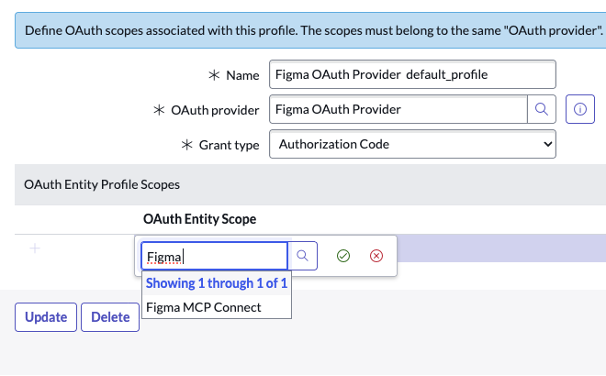

        OAuth Entity Profile form with the OAuth Entity Scope field showing a search for "Figma" and the result "Figma MCP Connect."
      6. Select Save.
      7. Save the profile by selecting Update.

    Result

    The default profile is connected to the MCP scope.

    Connect Figma MCP server to Build Agent

    Connect the Figma Model Context Protocol (MCP) server to Build Agent in ServiceNow Studio to make Figma designs accessible for application creation.

    Before you begin

    Navigate to All > System OAuth > Application Registry to verify that the OAuth app is created and configured on Figma. For configuration steps, see Configure an OAuth app in Figma and Configure OAuth provider in ServiceNow Studio.

    Role required: admin

    About this task

    After the OAuth connection is set up between your ServiceNow instance and Figma, you can link Build Agent to your Figma account to begin using the Figma MCP Server.

    Procedure

    1. Enable the Figma MCP server on ServiceNow IDE.
      Note:
      This step is only for the ServiceNow IDE, not ServiceNow Studio.
      1. Select the gear icon in ServiceNow IDE, and then select Settings.
      2. Search for Build Agent.
      3. Enable the Figma MCP server by selecting the Build-agent: Enable MCP Servers check box.
    2. Open the Build Agent chat panel in either ServiceNow Studio or the ServiceNow IDE.
    3. Select the MCP icon in the chat panel.
    4. Trigger the OAuth authentication flow by selecting Connect for the Figma option.
    5. Authorize your ServiceNow application by logging in to Figma.
    6. Approve the ServiceNow connection request.
      The status of Figma MCP Server indicates that it's connected to Figma, and all available tools are listed. The generated token is saved in the IDE Git Credential table on the ServiceNow IDE.

    Result

    You can interact with the Figma MCP server using natural language through Build Agent.

    For example, enter a prompt like Create a UI page and build <figma link>. Build Agent retrieves the design context from Figma and creates an application that matches the design.

    Note:
    The extent to which the application aligns with the original design is largely influenced by the complexity and the overall structure of the design. When the design is uncomplicated, the application is close to the intended design. Conversely, if the design is intricate, the application may diverge more significantly from the original design.

    To better organize your Figma files, refer to Structure your Figma file for better coding and Write effective prompts to guide the AI.

    Table 4. Troubleshooting: Build Agent issues
    Issue Description Solution
    Unauthorized access error The MCP server can become inactive, resulting in an unauthorized access error when Figma rejects the token created after completing the OAuth flow.
    1. Navigate to the IDE Git Credential table in the ServiceNow IDE.
    2. Find the relevant token.
    3. Switch the value of the Active column from true to false for the token.
    4. Return to the Build Agent chat panel.
    5. Select the MCP icon in the chat panel.
    6. Select Connect to trigger the OAuth authentication flow.
