Execute RFC in the Source-to-Pay with SAP integration

Execute RFC from the available list.

Process flow:

Step 1 - Create a record for the SAP system in the Connection and Credential alias table.

Step 2 - Create Credential for connecting to the SAP system.

Step 3 - Add MID Server and credentials to the connection.

Step 4 - Create ERP Source is an ERP source configuration table.

Step 5 - Create a Service, add flow and give the necessary inputs in the fields.

Name: ZSN_BAPI_GET_DATA

Table 1. Query parameters to execute RFC

Title	Type	Description
Input
1	Connection Alias -	Connection Alias for SAP ECC – RFC
2	RFC	The Reference to records (SAP RFC Name and Application component) in SAP RFC Table
3	Input	Input fields for the selected RFC, represented in a flat structure
Output
1	Response	The response for the execution of selected RFC at SAP
2	Action Status	If the request is executed successfully, Status is set to “Success”. If there’s a failure in SAP ECC - RFC, Status is set to “Error"
3	Error Message	Reason for error. Populated only when an error occurs. Error returned from SAP in the RETURN parameter. No or empty response received from SAP

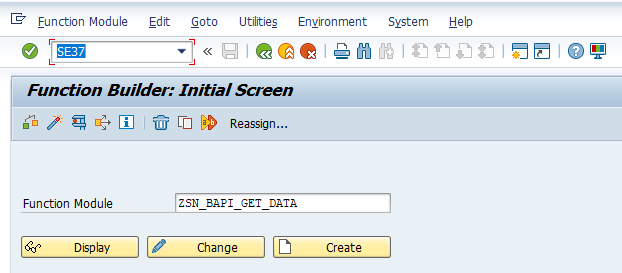

• Figure 1. Function Builder Initial Screen

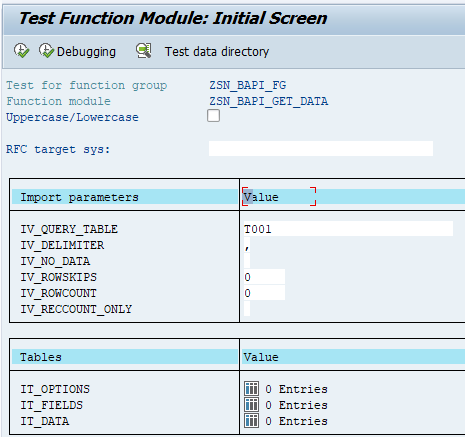

• Figure 2. Enter the IMPORT, CHANGING, and TABLES parameters

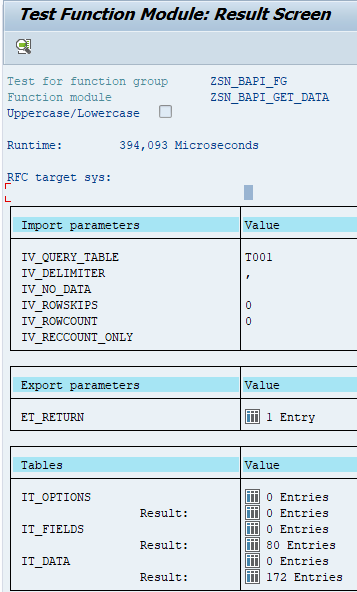

• Figure 3. Results data

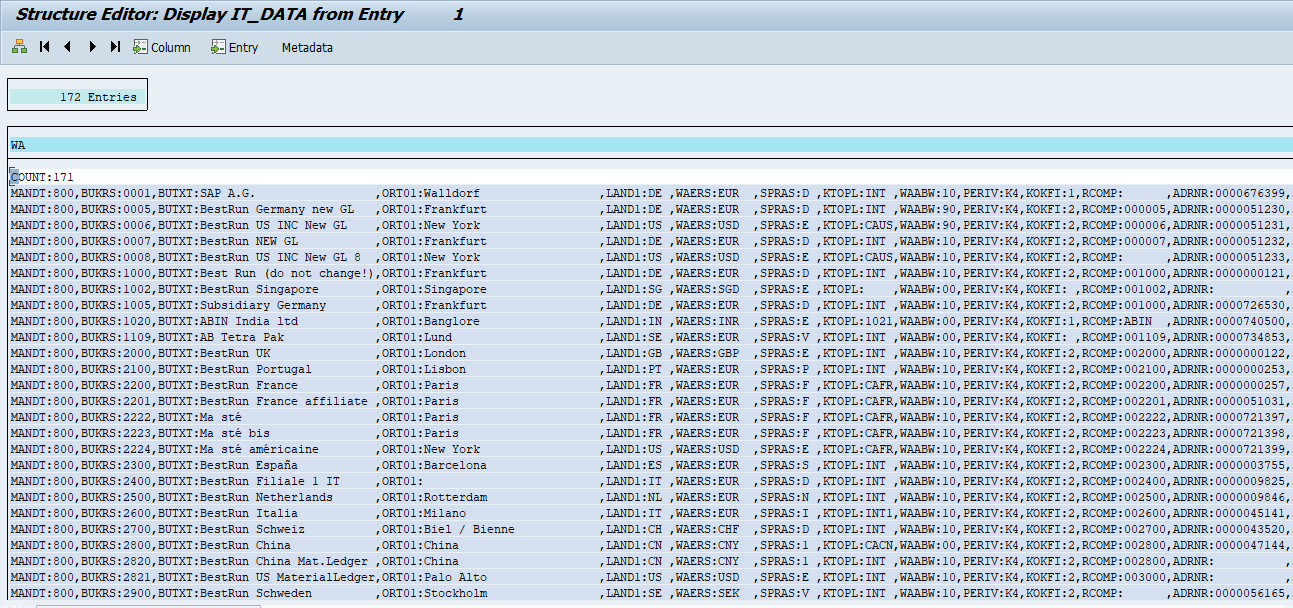

• Figure 4. Results data



  Figure 5. Results data
