View dependent application services in classic Service Mapping

Check which application services depend on an application service and open maps for dependent application services.

Vorbereitungen

Roles required: service_mapping_user

Warum und wann dieser Vorgang ausgeführt wird

The service that contains a reference to another service instance, becomes a dependent service. The service that you include as a reference is a contained service.

Abbildung : 1. Dependent service map with a reference to a contained application service

Prozedur

1. Open the service instance map.
   1. Navigate to All > CSDM > Manage Technology Management Services > Service Instance.
   2. Select the needed service instance.
   3. On the service instance page, select View Map.

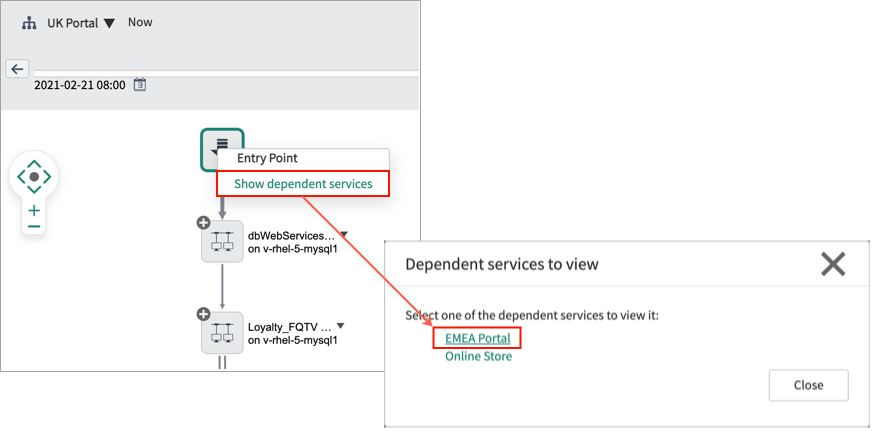

2. Right-click the entry point and select Show dependent services.
   The pop-up window displays the links to all dependent services for this application service.
3. Select the link for the dependent service whose map you want to view.




   The map window shows the map for the dependent service you selected.

Zugehörige Tasks

• Link application services
