Create a connection and credential in Virtual Agent Bot Interconnect

Create a connection and credential in Virtual Agent Bot Interconnect (primary instance) to enable uploading of attachments in the secondary bot.

Before you begin

Role required: admin

Procedure

1. Navigate to All > Connections & Credentials > Connection & Credential Aliases.
2. Click the Bot Interconnect VA API Attachment record to open it.
3. In the Connections related list, click New.
4. On the form, fill in the fields.

   Field	Description
   Name	Enter a unique name, such as SNowSecondaryBotAttachment.
   Credential	Leave this blank for now.
   Connection alias	Use the default value.
   Connection URL	Enter the URL of your secondary instance. For example, enter https://secondary-instance-name.service-now.com/.

5. Click Submit.
6. Navigate to All > Connections & Credentials > Credentials.
7. On the Credentials page, click New.
8. Click either Basic Auth Credentials or OAuth 2.0 Credentials as the type.
9. On the form, fill in the fields.

   Field	Description
   Name	Enter a unique name for the credential. For example, SNowSecondaryBotAttachmentToken.
   Basic Auth Credentials
   Username	Enter the username you want to send as basic authentication credential..
   Password	Enter the password you want to send as basic authentication credential.
   OAuth 2.0 Credentials
   OAuth Entity Profile	In the OAuth profile field, select the OAuth 2.0 profile that specifies the credentials you want to send.

10. Click Submit.
11. Navigate to All > Connections & Credentials > Connection & Credential Aliases.
12. Click the Bot Interconnect VA API Attachment record to open it.
13. In the Connections related list, open the new connection record you created in an earlier step.
14. In the Credential field, enter the name of the record that contains the static token or hash token.
    For example, SNowSecondaryBotAttachmentToken.

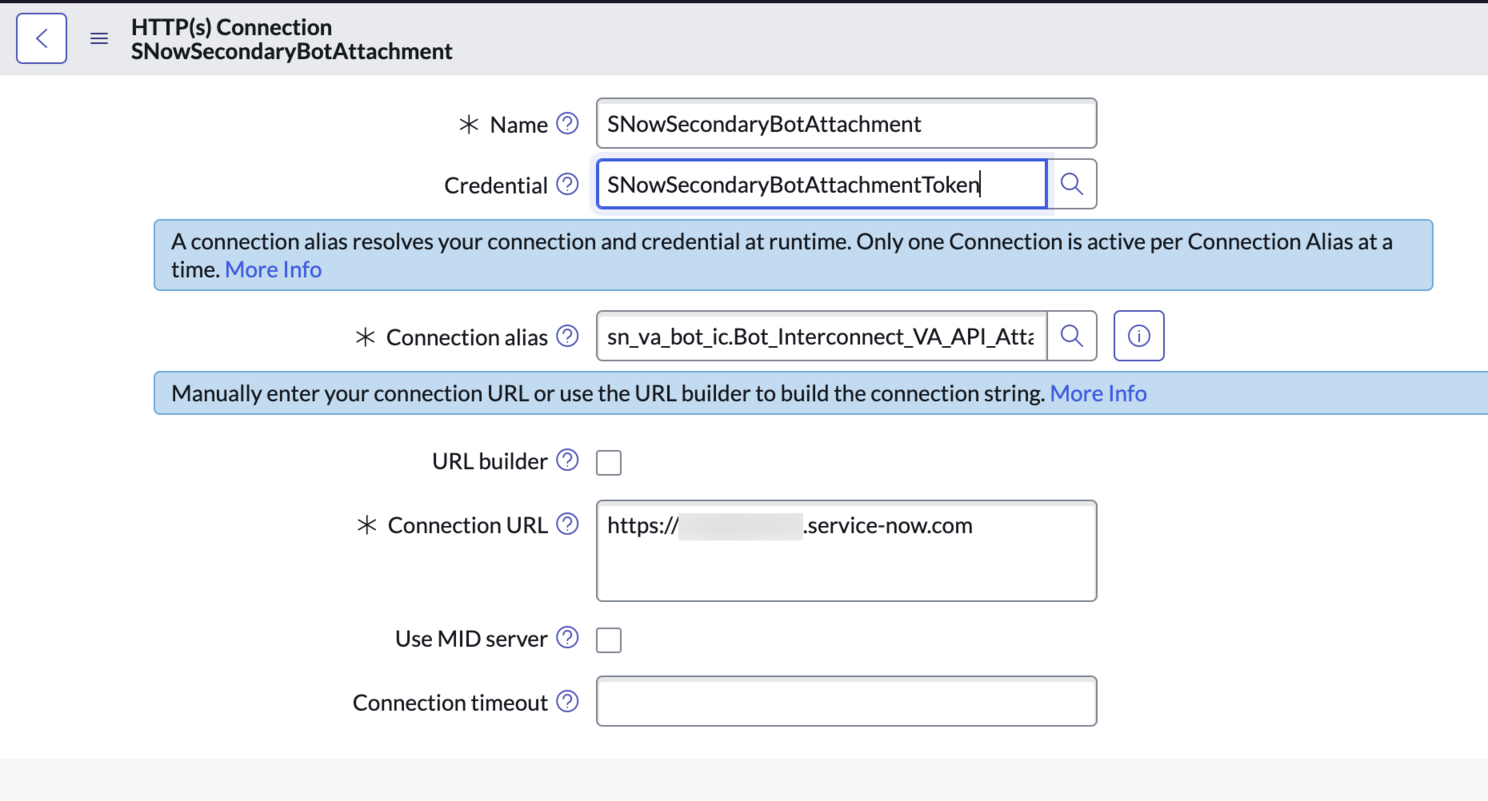

    Figure 1. Connection and credential record in the ServiceNow Bot Interconnect instance



15. Click Update.
