Anomalous behavior in a CI or a service can indicate an important issue. For example, a
spike in the frequency or number of messages of a particular type can indicate a
problem.
Understanding anomalies
To build models of expected behavior, the system monitors the log stream to learn baselines
for patterns, metrics, and gauges over various time periods. Time periods can be hourly,
daily, weekly, or unlimited. Behavior that departs from the learned models is considered
anomalous behavior.
Types of log property
Pattern
A pattern is a value or rate that repeats, whether in text, time, or
relationships.
Meter
A meter property is a numeric or text value. For example, a status code, a response
code, an action, or a pattern.
Gauge
A gauge property has a numerical value that is reported continuously. Gauge properties
represent operations that consume resources. For example, CPU usage, memory usage, or
response time.

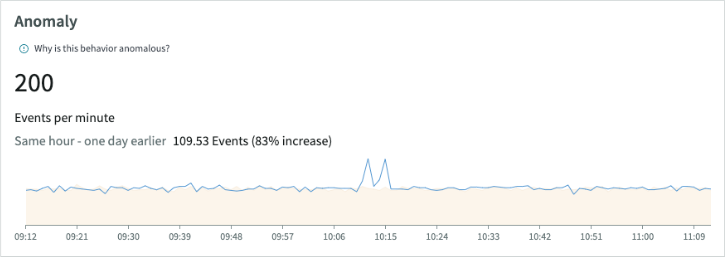

How anomalies appear in the Service Operations Workspace
The
Anomaly card illustrates the anomalous activity that led to the alert.
The blue line shows the recent anomalous activity.
On some charts, the lightly shaded area indicates the expected (learned
baseline) behavior.
A peach-shaded area represents the
baseline values for the same hour one day earlier. A pink-shaded area shows
the values for the same period in the previous week.
Click the information icon to see how the anomaly was identified: .
In
this example, the peach-shaded area shows the same data for the same hour one day
earlier. The spike in the metric value (events per minute) is clearly visible.Figure 1. Anomaly card
Kinds of anomalies
Table 1. Some of the kinds of anomalies
Behavior
Description
New behavior
A pattern that has not ever been seen. The New Behavior alert type does not
display a chart.
Signal dead/Stopped appearing
All pattern or log data from a source has stopped. There has been no signal
for at least five minutes.
Signal alive/Appearing again
A pattern or log data from a "dead" source is appearing again. For a
baseline of one hour, a pattern is "dead" if it appears less than once per
minute.
Anomaly above average or below average
Activity that deviates from expected baseline behavior for pattern or meter
or gauge metrics, such as keywords metrics or severity metrics.
Baseline reference increase or decrease
An increase or decrease in the value or volume of a log property as compared
to the one-hour or one-week baseline.
Correlation of severity and keyword alerts
An increase in the volume of a severity level or keyword.
.
