Red Hat Virtualization (RHV) extension classes

The CMDB CI Class Models app adds or updates classes for Red Hat Virtualization (RHV) OLVM or RHV.

CMDB CI Class Models is a ServiceNow Store app that adds class models that extend the CMDB class hierarchy. The new or updated classes include class descriptions, identification rules, identifier entries, and, if applicable, dependent relationships. You can use the added classes just like any other CMDB class. Applications such as Discovery and Service Mapping Patterns can use the class extensions to populate CIs and discover technologies and software.

Starting with version 1.28.0, Discovery and Service Mapping Patterns supports both OLVM and RHV discovery. For more information, see Oracle Linux Virtualization Manager and Red Hat Virtualization discovery. The RHV patterns, tables, and related items have been renamed to oVirt.

See the full release notes for all CMDB CI Class Models.

Request apps on the Store

Visit the ServiceNow Store to view all the available apps, and for information about submitting requests to the store. For cumulative release notes information for all released apps, see the ServiceNow Store version history release notes.

Red Hat Virtualization (RHV)

Red Hat Virtualization (RHV) is a virtualization product that is based on the Kernel-based Virtual Machine (KVM) hypervisor. RHV uses the SPICE protocol and Virtual Desktop Server Manager (VDSM) with a RHEL-based centralized management server. The RHV solution is based on two primary software components: Red Hat Virtualization Manager (RHV-M) and Red Hat Virtualization Hypervisors or hosts: Red Hat Enterprise Linux or RHV Host (RHV-H).

注:

The Discovery application uses patterns to find RHV components. Discovering some of these resources may require updating to the latest version of the Discovery and Service Mapping Patterns application from the ServiceNow Store. For more information, see Oracle Linux Virtualization Manager and Red Hat Virtualization discovery

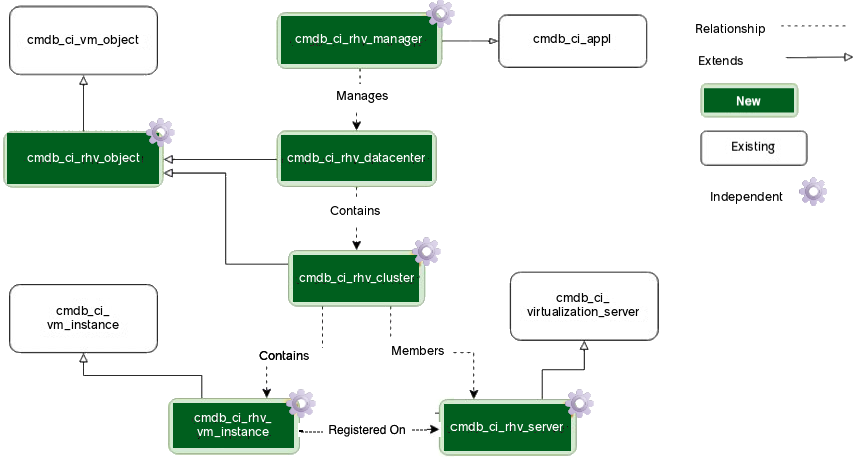

図 : 1. RHV classes integrated with the CMDB class hierarchy

Classes

This section lists the classes that the CMDB CI Class Models app adds or updates. See the class columns table for further details about the columns added for each class.

CMDB CI Class Models: Release 1.8.0 adds the following classes for RHV. For the list of classes in the base system, including classes that this app might extend, see CMDB tables descriptions.

Class	Extends	Description
RHV LDC [cmdb_ci_rhv_ldc]	Logical Datacenter [cmdb_ci_logical_datacenter]	RHV logical datacenter.
RHV Datacenter [cmdb_ci_rhv_datacenter] This class is deleted.	N/A	N/A

CMDB CI Class Models: Release 1.6.0 adds the following classes for RHV.

Class	Extends	Description
RHV Server [cmdb_ci_rhv_server]	Virtualization Server [cmdb_ci_virtualization_server]	The RHV virtualization host.
RHV Object [cmdb_ci_rhv_object]	Virtual Machine Object [cmdb_ci_vm_object]	A base class for other classes to derive from.
RHV Manager [cmdb_ci_rhv_manager]	Application [cmdb_ci_appl]	RHV Manager instance.
RHV Cluster [cmdb_ci_rhv_cluster]	RHV Object [cmdb_ci_rhv_object]	RHV cluster.
RHV Datacenter [cmdb_ci_rhv_datacenter] 注: This class is being deleted in the CMDB CI Class Models 1.6.0 release.	RHV Object [cmdb_ci_rhv_object]	RHV datacenter.
RHV Virtual Machine Instance [cmdb_ci_rhv_vm_instance]	Virtual Machine Instance [cmdb_ci_vm_instance]	RHV virtual machine instance.

Class columns

CMDB CI Class Models: Release 1.6.0 adds the following columns to the respective classes.

表 : 1. RHV Server [cmdb_ci_rhv_server] class

Added columns	Description
url	URL used to access the object.

表 : 2. RHV Object [cmdb_ci_rhv_object] class

Added columns	Description
href_id	Href ID.
manager_id	Manager ID.
url	URL to access the object (used in child classes).

表 : 3. RHV Manager [cmdb_ci_rhv_manager] class

Added columns	Description
url	URL of the manager.
product_name	Product name.

表 : 4. RHV Cluster [cmdb_ci_rhv_cluster] class

Added columns	Description
cpu_type	CPU type.
cpu_architecture	CPU architecture.
ksm	Enabled state of kernel same-page merging (KSM) memory policy.
fencing_policy	Fencing policy.
memory_overcommitment	Amount of over-commitment memory allowed on the cluster.
transparent_huge_pages	Transparent huge memory pages policy.
ballooning	Memory ballooning for guests.
compatibility_version	Compatibility version.

表 : 5. RHV Virtual Machine Instance [cmdb_ci_rhv_vm_instance] class

Added columns	Description
mgmt_url	Management URL.
cpu_architecture	CPU architecture.
delete_protected	Delete protected (true/false).
ha_priority	HA priority.
high_availability	High availability (true/false).
memory_policy_guaranteed	Amount of memory guaranteed (MB).
memory_policy_max_mb	Maximum memory in the dynamic memory allocation policy.
multi_queues	Multi queues.
placement_policy	Placement policy.
cpu_sockets	Number of CPU sockets.
stateless	Stateless (true/false).
storage_error_resume_behaviour	Behavior of a virtual machine that is paused due to storage I/O error. For examples, AUTO_RESUME, LEAVE_PAUSED, and KILL.
start_time	Start time.
stop_time	Stop time.
threads	Number of threads.
time_zone	Time zone.
usb	USB enabled state.
run_once	Run once.
type	RHV type.

The following class was deleted in the CMDB CI Class Models 1.6.0 release.

表 : 6. RHV Datacenter [cmdb_ci_rhv_datacenter] class

Added columns	Description
quota_mode	Quota mode policy.
