View the attributes of a CI or a relationship
Open the Attributes panel in Unified Map to view attributes like location and life cycle stage for a CI or a relationship.
시작하기 전에
Role required:
- To access maps: sn_cmdb_user, sn_cmdb_editor or sn_cmdb_admin
- To access maps with operational service instances: app_service_user, and sm_user or sm_admin
- To access maps with operational and non-operational service instances: app_service_admin, and sm_user or sm_admin
- To access and view related items: itil
이 태스크 정보
When you select a group CI such as a service instance or a dynamic CI group as the home node, the Attributes panel shows the attributes of the group CI itself and a card for each CI and relationship member of the group. When you open a map for a service instance CI, a badge on group CIs shows the number of members. Select a badge to expand or collapse the group.
프로시저

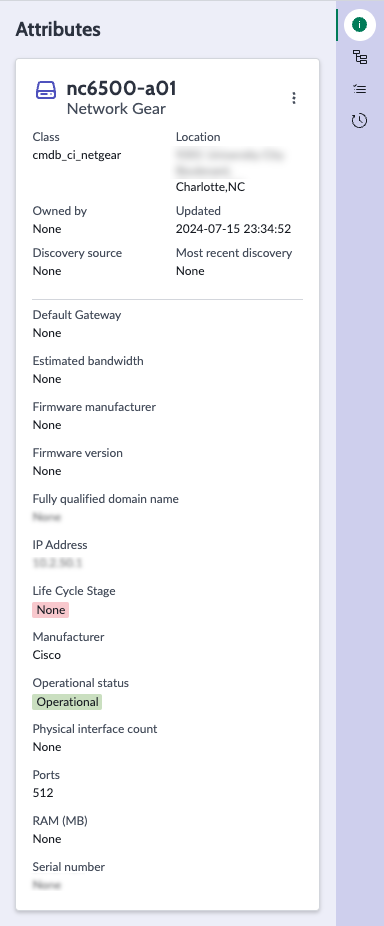

While working in a map, select a CI or a relationship on the map and then select the Attributes icon
.
.
- For a non-group CI: The top section displays base properties — common key attributes, such as Class and Discovery source that appear for CIs of any class (other than service instance CIs). You cannot change the group of properties that appear in this section.
- The bottom section displays extended properties — attributes that uniquely extend the class of a CI in the CMDB hierarchy. You can specify the properties that should appear in this section. For more information, see Configure which attributes to display in the Attributes panel.
- For a group CI: The top card shows attributes of the group CI. The cards in the Configuration items section display attributes for each of the group member CIs.
- For a single relationship: A card with the attributes for the selected relationship.
- For a multi-relationship badge: A card for each of the relationships in the relationship set that shows the attributes for the relationship. The number of cards is equal to the number on the relationship badge, which is a count of the different types of relationships between the two CIs in that direction. Relationship connections are based on records in the CI Relationship [cmdb_rel_ci] table.
다음에 수행할 작업
In a CI card on the Service instances panel, select the Actions menu and then select any of the following options:
- Select View CI details to open the CI form for the CI.
- Select Open in new map to open an additional map with the current CI set as the home node.
- Select Set CI as home to set the selected CI as the home node for the map.
Select a mapped service instance (formerly application service) CI [cmdb_ci_service_discovered] on the map to display its entry points on the Attributes panel.
