Configure the start node for cardholder and transaction details

Add questions to ask for credit cardholder details and transaction details and configure answer types in a start node in Decision Tree Builder.

始める前に

Role required: admin, sn_gd_core.decision_tree_author

このタスクについて

In the question node, you can add the questions that you want to ask customers or details that you want to collect. For example, you can ask for the type of credit card or whether any amount is debited. Based on the answers provided, the path to a next question or guidance node is taken.

手順

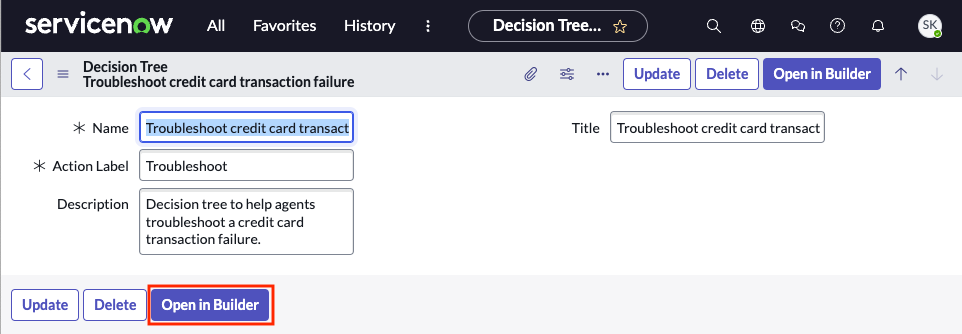

1. Select Open in Builder.

   The new decision tree opens in Decision Tree Builder in a new tab.


2. Select New node, which is a start node of your decision tree.
3. In the Node name field, enter Ask card holder and transaction details.

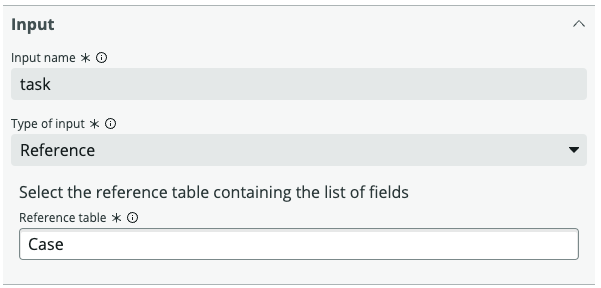

4. In the Input section, in the Reference table field, select the Case table.


   The reference table doesn’t necessarily have to be a task table. For example, you can select a case, incident, or interaction table for the record context to recommend this decision tree in a workspace.

   注:

   You must select the same table as the reference table for the context record in Recommended Actions.

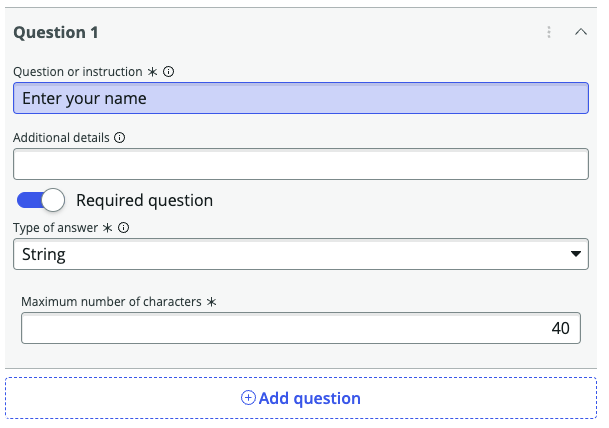

5. Configure question 1.
   1. In the Question or instruction field, type Enter your name.
   2. Make this question a required question by selecting the Required question field.
   3. In the Type of answer field, select String.

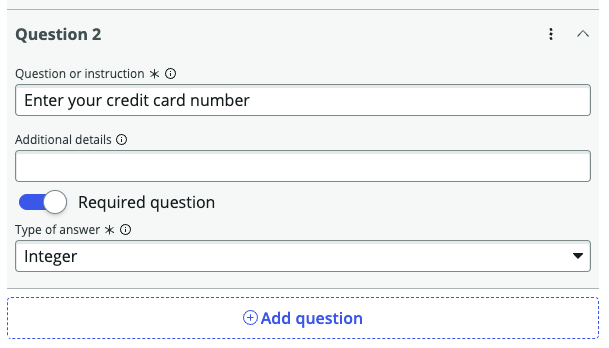

6. Configure question 2.
   1. Select the Add question button.
   2. In the Question or instruction field, type Enter your credit card number.
   3. Make this question a required question by selecting the Required question field.
   4. In the Type of answer field, select Integer.

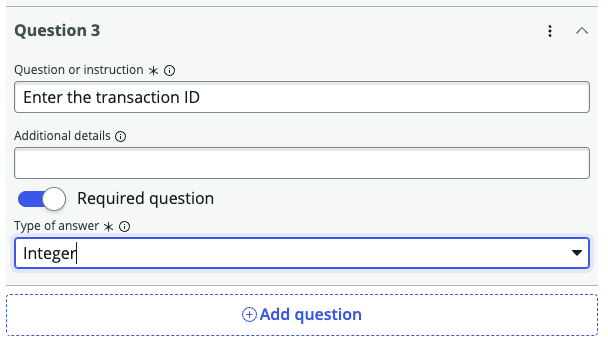

7. Configure question 3.
   1. Select the Add question button.
   2. In the Question or instruction field, type Enter the transaction ID.
   3. Make this question a required question by selecting the Required question field.
   4. In the Type of answer field, select Integer.

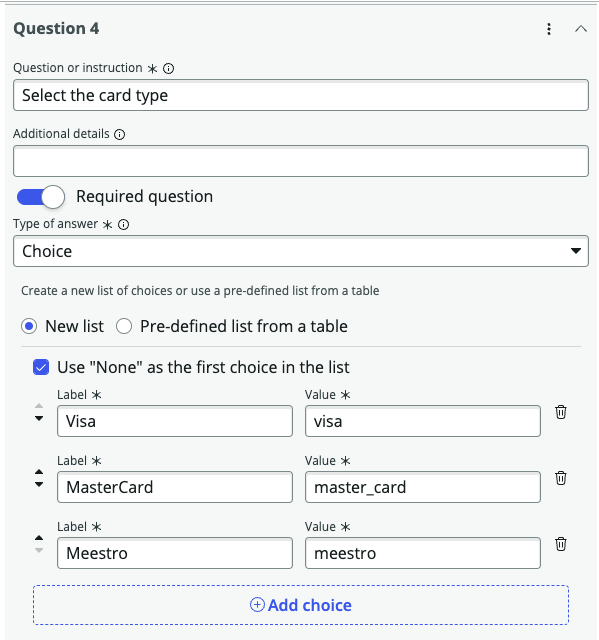

8. Configure question 4.
   1. Select the Add question button.
   2. In the Question or instruction field, type Select the card type.
   3. Make this question a required question by selecting the Required question field.
   4. In the Type of answer field, select Choice.
   5. In the Label field, enter Visa for the first option in the list.
   6. Select Add choice.
   7. In the Label field, enter MasterCard for the second option in the list.
   8. Select Add choice.
   9. In the Label field, enter Meestro for the third option in the list.

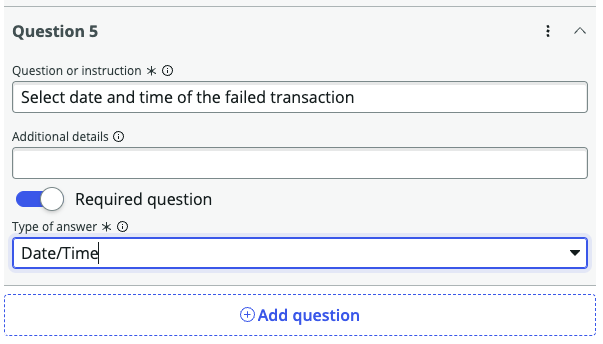

9. Configure question 5.
   1. Select the Add question button.
   2. In the Question or instruction field, type Select date and time of the failed transaction.
   3. Make this question a required question by selecting the Required question field.
   4. In the Type of answer field, select Date/time.

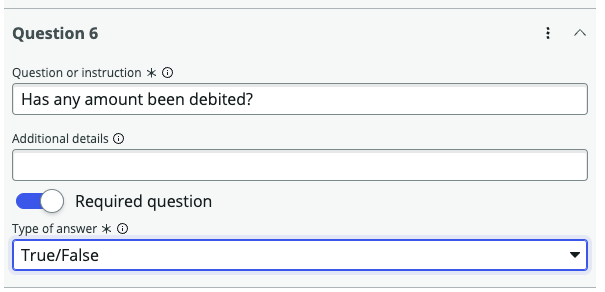

10. Configure question 6.
    1. Select the Add question button.
    2. In the Question or instruction field, type Has any amount been debited?.
    3. Make this question a required question by selecting the Required question field.
    4. In the Type of answer field, select True/False.

11. Select Save and close.

次のタスク

Add paths and configure conditions for transactions when the next question or guidance node is displayed in a decision tree.
