Create a pivot table data visualization in the Visualization Designer

Create a pivot table visualization to summarize large data sets by breaking them down by multiple dimensions in a single table. Cells show each row and column value combination and can also show subtotals.

Before you begin

Role required: Anyone with access to data can create a visualization of that data on any dashboard that they can edit. Users with the itil, report_user, admin, or viz_creator role can create a visualization in the Visualization Designer. When you create a visualization in the Visualization Designer, it is saved to the Library. For more information on access, see Report_view access control and Platform Analytics roles.

About this task

For information about the use of a Pivot visualization in a dashboard, see the Developer Site. This site gives information about Pivot data visualization components in the UI Builder, and some configuration options may differ from the Visualization Designer.

Procedure

1. Navigate to All > Platform Analytics > Library > Data Visualizations, or open an in-line dashboard and select Edit.
2. Select Create data visualization.
3. Select the Pivot Table () visualization type.
4. Configure the Header and border. Header and border options are the same for all data sources.

   Header and border fields	Description
   Show header	The visualization header, including title and icons.
   Show header separator	Option to display a line separating the header from the rest of the component.
   Chart title	Title of the visualization.
   Description	A short overview about the visualization that the end user sees. Descriptions help users find the visualization.
   Wrap title	Option to wrap long titles onto a second line. If false, displays an ellipsis to truncate long titles.
   Wrap labels	Select to wrap long elements labels on the axis.
   Max label size, px	Specify the maximum label size for element names on the axis. Default=100 px.
   Truncation type	Specify where to truncate long labels with an ellipsis. Options are Beginning, Middle, and End.
   Show border	Option to display a line around the component.
   Bare	Option to remove padding around data visualization to provide more compact positioning on the page. Only available when Show border is turned off.
   Show refresh option	Option to show or hide the refresh option from data visualizations. If cache is enabled on a dashboard, the Refresh option is always hidden.
   Show export options	Option to show or hide the visualization's export types.
   Header background color	Specify the color behind the title of the visualization.
   Title color	Specify the text color of the title. The default title color is black, but you can choose a color that contrasts better with the header background. Only available when Header background color is selected.

5. Choose a data source.
   For general descriptions of the data sources, see Data sources for data visualizations.

   • Table (available in the base system). When you select a table, you can filter it by custom or preconfigured conditions. Custom conditions can include questions or Service Catalog variables.

     Configured report sources appear in the Predefined conditions list. For more information, see Report sources.

     To help you create a custom filter, there is a preview list of records that would be included in the visualization. You can change which fields are shown as columns and the width of columns in the list actions.


   • Indicator (available in the base system). You can filter the indicator scores by breakdowns and elements.
     Note:

     Benchmark indicators are not supported.



     Note:

     You might have a multiple select (is one of) or dynamic (is (dynamic)) operator on the breakdown element filter. These operators require the indicator and breakdown to support them. For more information about the configurations that support these operators, see "Is one of" and "Is (Dynamic)" operators on breakdown conditions in data visualizations.

   • Usage Insights (available with the User Experience PAR Integration application, to users with a required role). Choose one of up to three KPIs included with this application, depending on the visualization type. For more information, see User Experience Analytics data sources for data visualizations.
   Note:

   You can choose multiple data sources for this visualization. However, all data sources must be of the same type: table, indicator, or Usage Insights. For more information, see Multiple data sources.
6. Select the options for your data source.
   • If your visualization represents table data, go to Table data options for pivot table visualizations.
   • If your visualization represents indicator data, go to Indicator data options for pivot table data visualizations.
   • If your visualization represents Usage Insights data, go to Usage Insights data options for pivot table data visualizations.
7. Under Presentation, provide display and color information.

   Field	Description
   Display settings
   Freeze row header	Allows users to keep the header visible while scrolling to another area in the visualization.
   Freeze row footer	Allows users to keep the footer visible while scrolling to another area in the visualization.
   Freeze first column	Keeps the first column visible while scrolling.
   Show alternative row colors	Toggles a background color for alternative rows to make reading the visualization easier.
   Show alternative column colors	Toggles a background color for alternative columns to make reading the visualization easier.
   Display row lines	Displays border lines to separate rows.
   Display column lines	Displays border lines to separate columns.
   Table size settings
   Truncate first column [truncateFirstColumn]	When true, limits the width of the first column. First column contents beyond this width are truncated. First column headers are not truncated. Specify this width limit in First Column max width, in px.
   First Column max width, in px	The maximum width of the first column, beyond which its contents are truncated. This maximum width cannot be less than the width of the first column header, which is never truncated. Values lower than the header width are ignored. Only takes effect when Truncate first column is active. Default value is 200px.
   Wrap column headers	Breaks header text into lines matching content width, with a minimum limit of 100px. Does not apply to first column. You cannot both wrap and truncate column headers.
   Truncate column headers	Truncates header text into lines matching content width, with a minimum limit of 100px. Does not apply to first column. You cannot both wrap and truncate column headers.
   Colors
   Set color type	Default: A color or set of colors that come from the UX Theme that is applied to the instance. For more information, see Working with themes in Next Experience. Single color/Colors per metric: Select a single color in the Set value color field. Interacting with that field opens a selector where you can choose the color from either a set of icons or from a list. You can also search for a color. Entering a search value has the selector show you a list of colors filtered by that search value. If the visualization has more than one metric, you see the Colors per metric option instead. This option lets you select a single color for each metric. Alternatively, you can add a rule to define a dynamic color. For more information, see Create coloring rules for data visualizations.

8. Under Chart interaction, set what if anything happens when a viewer clicks a chart or a chart segment on the visualization.

   Field	Description
   Allow chart interaction	Enable an event to occur when a user clicks in a visualization or one of its segments.
   Action	Choose the event that occurs when a user clicks in a visualization or one of its segments. Choices depend on the visualization type and data source. Applies only when Allow chart interaction is on. For more information, see Chart interactions in a data visualization. Go to data view opens a list view, KPI Details page, or Usage Insights overview page relevant to the associated segment or visualization. For table data, a system property determines whether a Core UI list or a Platform Analytics list opens. For more information, see Data views for different data sources. Go to URL opens the specified URL, which can be on the instance or external. You have the option of specifying a page name to appear in the tooltip, for those visualizations with tooltips. Drill down to chart (Visualization Designer only) Opens a different data visualization that is filtered by the selected data. You can add a drill-down visualization for each metric on the parent visualization. Note: The last level of drill down in the Platform Analytics experience is always a Core UI list. Records do not open in Workspace embedded lists. Drill down to chart supports only table data sources.

9. Select Save.
   Navigate to All > Platform Analytics > Library > Data Visualizations to return to the Data Visualization list.

Pivot table with multiple data sources

Consider a case where you want to present the following information, split up for each assignment group:

• Number of assigned open incidents
• The average age of the assigned open incidents
• The average number of times an incident was reassigned

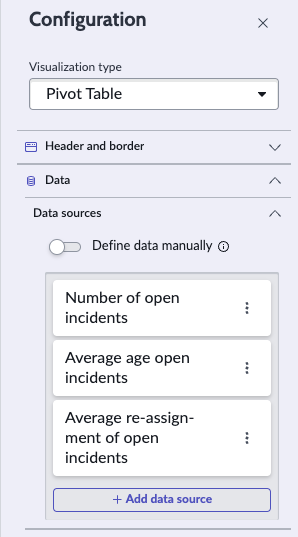

You can present this information in a single pivot table. Each set of information is going to come from a different data source. You have to find either three tables or three Performance Analytics indicators with this information. You cannot mix and match different types of data sources! Fortunately, you find three appropriate indicators already defined in your instance. You select them as your data sources for a pivot table.

You want to see these indicator scores broken down by assignment group. Therefore, you select Assignment Group under Group By. Your three data sources are going to show as three columns, so you skip the Column field and select Assignment Group as a row.

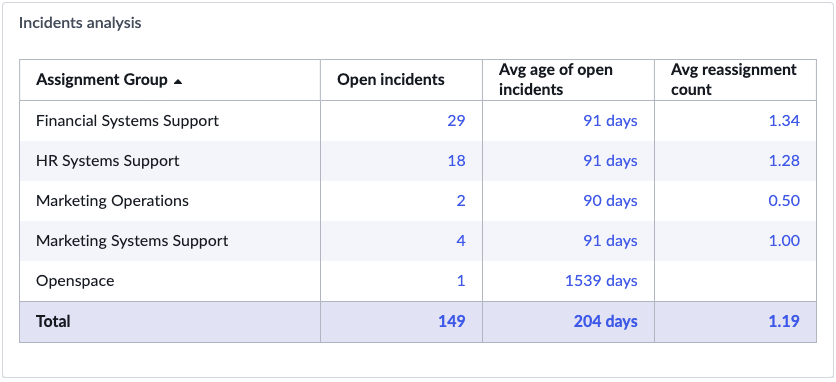

Now you are done. Save the data visualization and use it in a dashboard.

What to do next

• Add a visualization to a dashboard from the Visualization Designer
• Share a data visualization in the Visualization Designer
• Bookmark a visualization in the Visualization Designer

• Table data options for pivot table visualizations
  When you select a table data source for a pivot table visualization, the following Data configuration options are available.
• Indicator data options for pivot table data visualizations
  When you select an indicator data source for a pivot table visualization, the following Data configuration options are available.
• Usage Insights data options for pivot table data visualizations
  When you select a Usage Insights data source for a pivot table visualization, the following Data configuration options are available.
• Pivot visualization example
  Pivot tables show multiple dimensions or variables of a data set. This visualization displays separate cells for each row and column value combination, as well as a column subtotal for each first-level row. Aggregate information is presented in the upper left.
