Report ranges

Use a report range to define intervals that break up continuous timespan data in table fields. It is necessary to break this data into discreet chunks for presentation.

Sometimes it can be helpful to group results into ranges or buckets rather than viewing every result as an individual score. Think of a bar or pie chart which shows the business duration of incidents. By default each individual value would be a separate slice, creating an unnecessarily crowded-looking visual. However, segmenting the results into logical groups of scores can add context and help the audience understand which ranges are good, bad, or concerning. A report range is used to define data intervals for the following charts:

• Core UI: Bar, pie, and donut reports
• Platform Analytics: All relevant data visualization types including heatmap and time series, when the data source is a table.

Example use case: There is a significant cost involved to a business each time a SLA is breached at a company. A Service Manager can understand which SLAs are being easily met versus which ones are being breached, or are coming close to being breached by viewing how many tasks were completed well within the SLA versus how many elapsed during the SLA.. This information helps them identify which SLAs may need to be adjusted.

Note:

It is not possible to set report ranges for dates in the future.

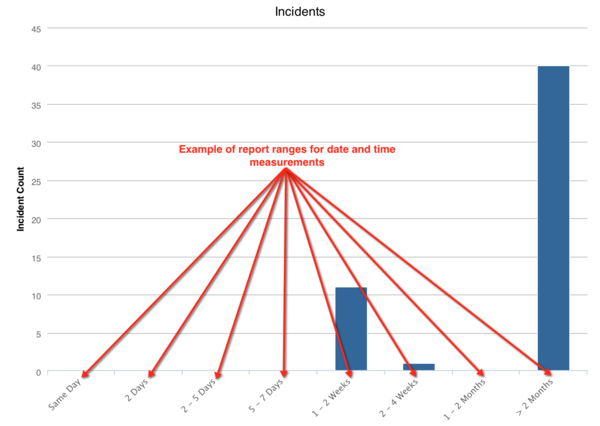

Figure 1. Incidents created date with ranges

How report ranges work

Report ranges work with elements that hold only dates, lists, or integers.

Table 1. Report range elements list

Type	Examples
Dates	Using the Created field in the Incident table: Same Day, 2 Days, 2–5 Days, 5–7 Days, 1–2 Weeks, 2–4 Weeks, 1–2 Months, > 2 Months
Lists	Using the Priority field in the Incident table: Low, Moderate, High, Critical, Planning
Integers	Using the Count field in the Incident table: Overloaded, Optimized, Under Utilized

Report ranges can be globally applied to all date type fields (date, due date, duration, date/time, date time), or you can limit report ranges to a specific table.

View all report ranges

To view all currently configured report ranges, navigate to All > Reports > Administration > Report Ranges. If your instance is migrated to Platform Analytics experience, navigate instead to All > Platform Analytics Administration > Color Settings > Report ranges.

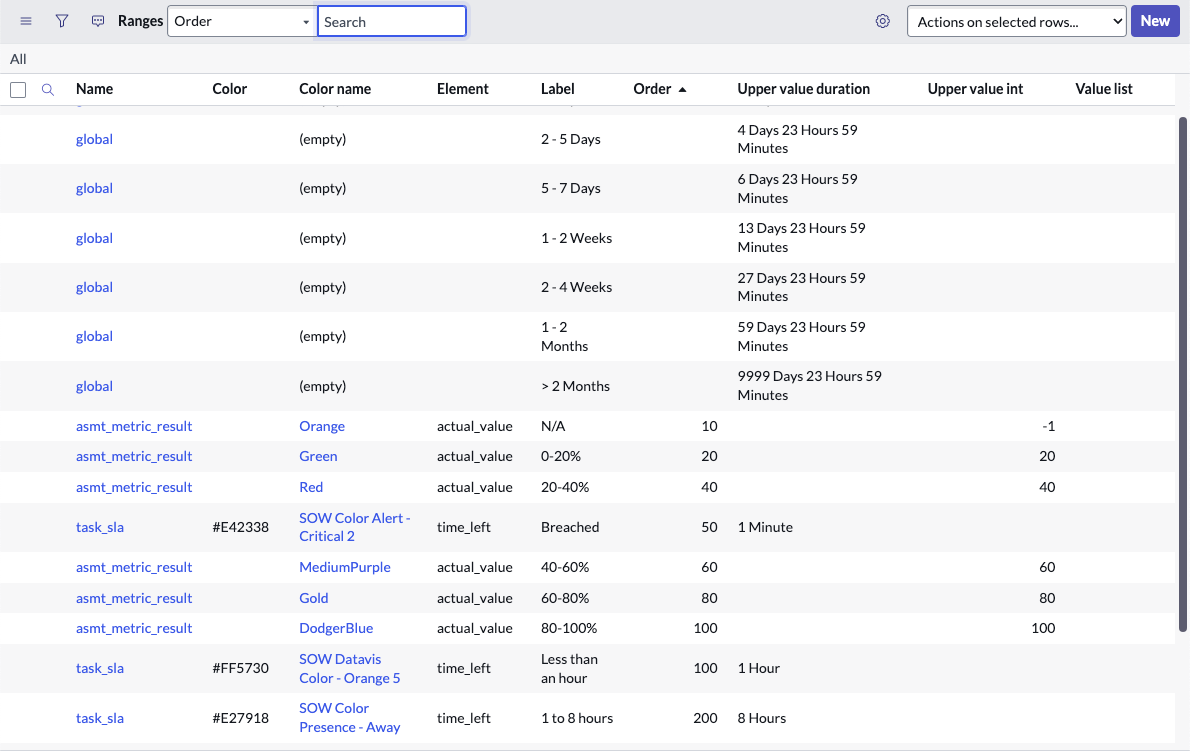

Figure 2. Report ranges list

The following are important columns and their associated data types:

Table 2. Report range list field

Field	Corresponding data type
Name	Name of the table if specified, or Global. Global ranges apply to all applicable fields on the instance.
Element	If a table is specified, the field on the table that the report range applies to.
Upper value duration	Date - works with elements that store dates.
Upper value int	Integer - works with elements that store numbers.
Value list	Value list - works with elements that store a list of table sysIds.

Create a report range

Create a report range to define data intervals that are used in bar and pie charts.

Before you begin

Role required: itil, report_user, report_group, report_global, report_admin, or admin.

Procedure

1. Navigate to All > Reports > Administration > Report Ranges.
   If your instance is migrated to Platform Analytics experience, navigate to All > Platform Analytics Administration > Color Settings > Report ranges.
2. Select New.

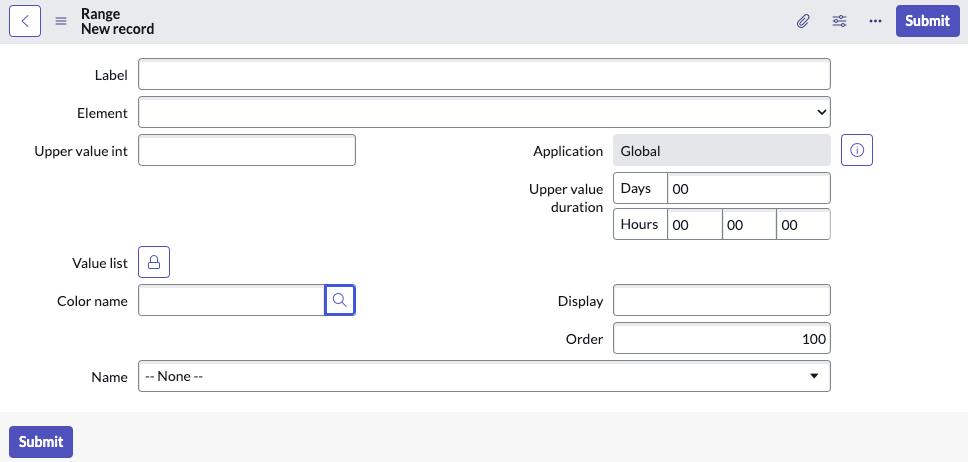

3. Fill in the form (see table):



   Use the following fields to refine the data displayed in the report and to design the appearance of your report visualization:

   Table 3. Report range form fields

   Field	Description
   Name	The name of the table to draw the values from, or Global [global] to apply to all relevant fields on all tables. Note: This field is required before you can select from the Element list.
   Element	The table field to draw the values from. Cannot be specified for Global [global] ranges.
   Label	The name for the report range that is displayed in reports.
   Value list	For list elements, this field defines which values are within the range. After the range is saved, the value list is populated with the choices of the element.
   Color name	The color to display this report range in. The color appears in the Display field. If you enter a color name, you do not need to enter a color value. Note: When creating reports, colors may not display as specified for ranges on Group by report fields selected via dot-walking. For this feature to work appropriately, select applicable Group by fields from the base table only.
   Color	The hexadecimal value for the color to report this report range in. The color appears in the Display field. If you enter a value for color, you do not need to enter a color name. Note: When creating reports, colors may not display as specified for ranges on Group by report fields selected via dot-walking. For this feature to work appropriately, select applicable Group by fields from the base table only.
   Upper value int	For integer-type elements, this field defines the upper limit of the range. The upper value of the report range with nearest lower Order defines the lower limit of this range. If no range with a lower Order exists, the lower limit is zero. Example: One report range has an upper limit of 10 and an Order of 20. A second report range has an upper limit of 5 and the Order of 19. The first report shows values from 6 to 10 in the formatting specified by this range. The second report shows values of 5 or less.
   Upper value duration	For duration-type elements, this field defines the upper limit of the range. The upper value of the report range with nearest lower Order defines the lower limit of this range. If no range with a lower Order exists, the lower limit is zero. Example: One report range has an upper limit of 10 and an Order of 20. A second report range has an upper limit of 5 and the Order of 19. Values from 5 to 10 display the formatting specified by this range.
   Display	Read-only. Shows the color that is used for the specific report range.
   Order	The order in which the report ranges are used. If a value is defined within more than one label, it is reported under the report range with the lowest order.

   Note:

   Once configured, a report range will show as empty if there's no data available in your report. Context fields such as data labels or legend related to the configured report range will still show and be highlighted.

Enable the report range module

To use report ranges in your Core UI bar and pie visualizations, you must enable the report range module.

About this task

The report range module only applies to Core UI visualizations.

Before you begin

Role required: admin

Procedure

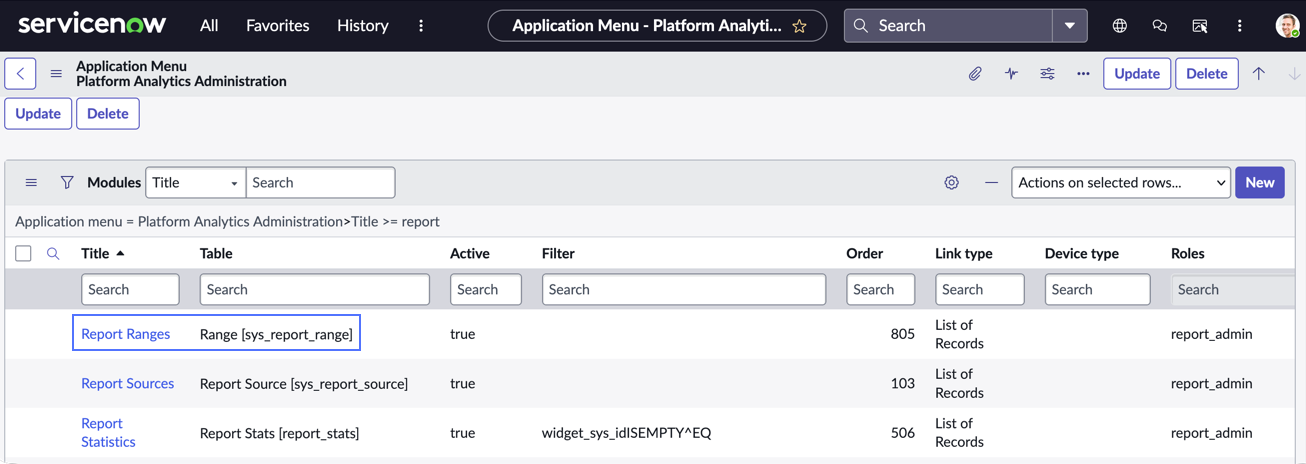

1. Navigate to All > System Definition > Application Menus.
2. Open the Platform Analytics Administration application menu.
3. In the Modules related list, set the Active field to true to enable the Report Ranges module.
   The Modules related list may have over 100 entries. Filter it on the word range to shorten your search.

Result

You can define report ranges for your Core UI pie and bar charts.
