Configure a process for a clustering solution

Configure a process to be able to generate a cluster analysis.

Before you begin

Note:

• You can create one configuration per table for each project based on a process.
• Role required:
  • The sn_process_optimization_admin and sn_process_optimization_power_user roles can associate a clustering solution definition with a project, but cannot create a definition.
  • The sn_process_optimization_analyst role can view a clustering solution definition, but cannot create, edit, associate, or delete a definition.

Procedure

1. Navigate to All > Process Mining > Process Configurations.
2. Open the process configuration for which you want to configure the cluster analysis.
   Alternately, you can also choose to create a new process configuration by selecting New. For more information, see Create process configuration using Classic view.

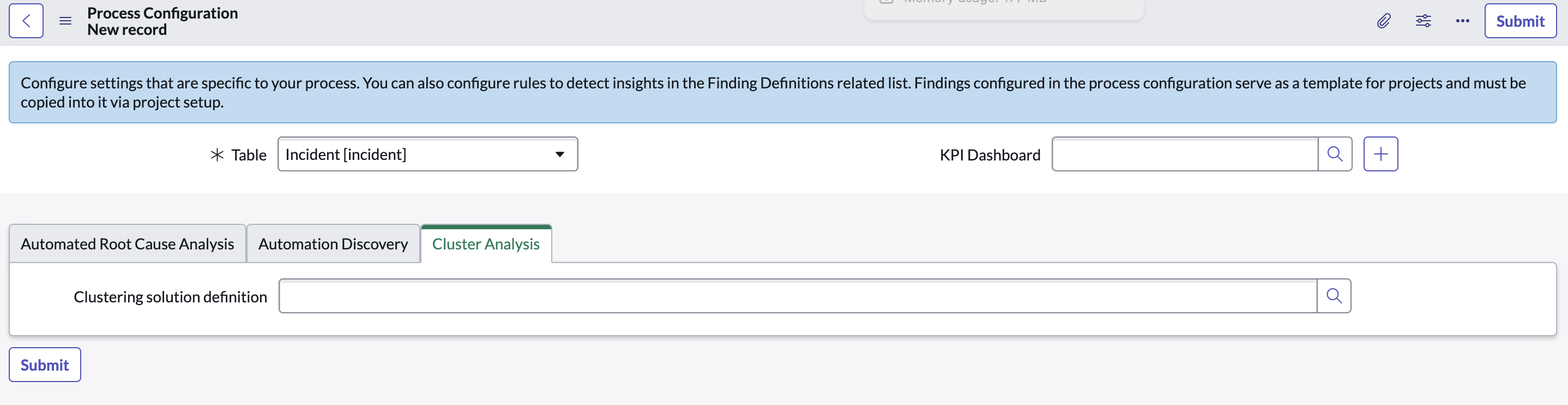

3. In the Cluster Analysis tab, select the search icon from the Clustering solution definition field.
4. From the Clustering Definitions list, select an existing definition from the list, or select New to create a new clustering solution definition form.
   • The administrator and ml_admin roles can create a new clustering solution definition.
   • If creating a new definition, configure the fields per guidance in creating and training a clustering solution.
5. Select Submit.
   A clustering solution definition is associated with the process for the selected table.

What to do next

Perform a cluster analysis
