Navigation paths

  • Release version: Zurich
  • Updated July 31, 2025
  • 1 minute to read

    • Navigation paths enable you to quickly understand and isolate users' journeys through your web or mobile application. Assess the most and least common navigation paths your users take and how you can improve them.

    Navigation paths give insights into the paths users follow from a root screen. These can help you:
    • Identify user journeys that show user confusion, for example, navigation back and forth between two screens.
    • Identify critical journeys that end prematurely.
    • Understand the effect of pop-ups on user navigation.
    A navigation path shows the frequency of specific, ordered paths within the application, enabling you to see the most common paths that users take. Each screen can appear multiple times within a navigation path.
    Note:
    Navigation path data is sampled to 15% by default. Toggle Use data sampling off to analyze the full data set.

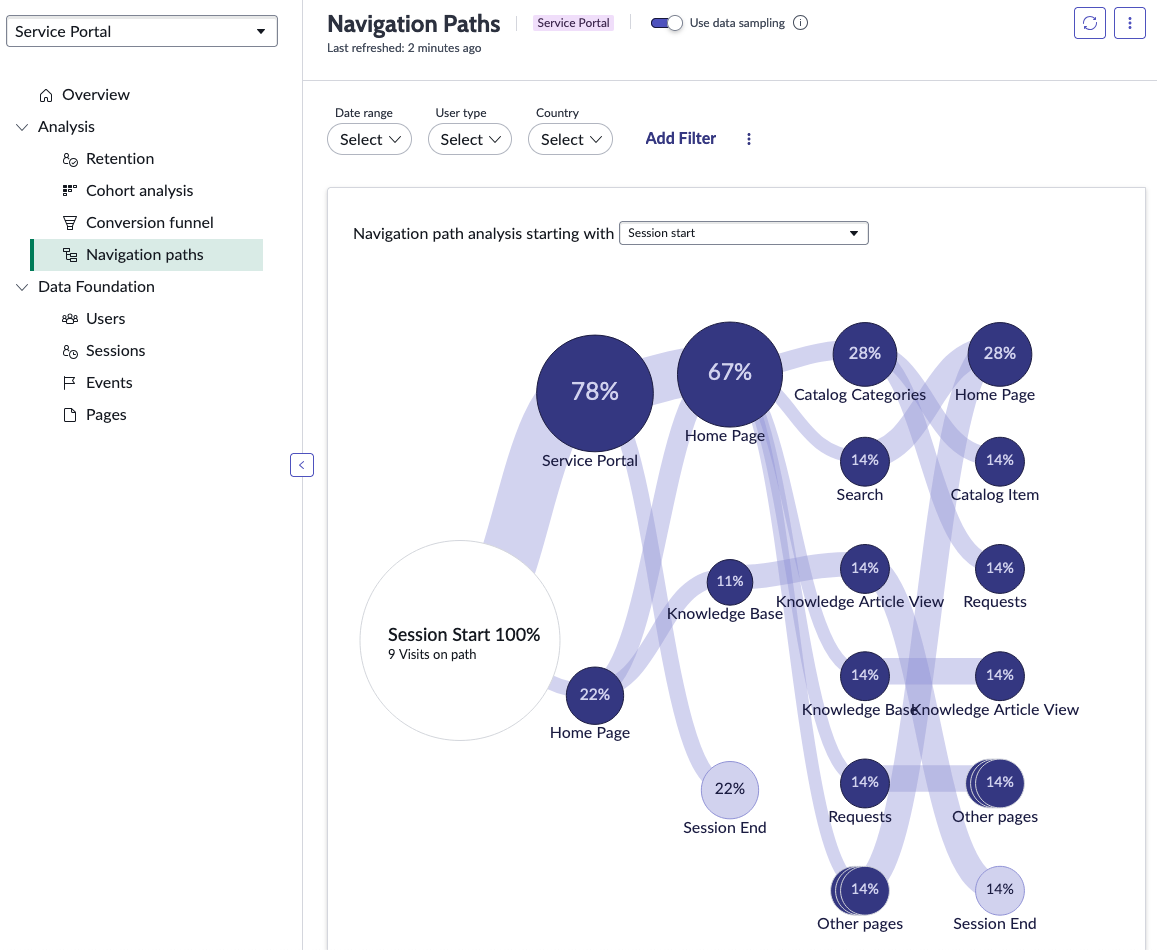

    Navigation path visualization

    Viewing and interacting with a navigation path

    The Navigation Paths screen shows an initial visualization which contains data for all screens contained in the selected application. Each circle on the visualization represents a navigation level, and shows the numbers of navigations from the previous screen, up to five levels. You can choose whether to display the visualization with analytics for All Users, New users, or Returning users.

    You can interact with a navigation path in these ways.
    Action Step
    Filter the navigation path visualization Choose to filter on Date Range, User type, and Country. Select Add Filter to add filters to the current session that are appropriate to the application you're analyzing.

    The User type filter enables you to select New or Returning. Clear the selection to show analytics for all users.
    Change the root screen to see navigation paths from that screen onward. Change the root screen several ways:
    • Choose a start screen from the list labeled Navigation path analysis starting with.
    • Select any node and select it a second time to make that node the root.
    Choose Session start from the Navigation path analysis starting with list to return to the full navigation path analysis.
