Configure recommendations setup

Set up recommendations to simplify project creation and get help in the analysis.

Before you begin

Role required: sn_process_optimization_power_user or sn_process_optimization_admin

Procedure

1. Navigate to Workspaces > Process Mining Workspace.
2. On the side of the page, select the Process configurations icon ().
3. Open a table from the Configurations tab.
   The Process details page is displayed. Select Recommendations setup from the left bar.

   If you’re proceeding from the Process details page, then you come to this page. For more information, see Configure process details.

   The Recommendations setup page has three sections:

   • Activity fields
   • Breakdown fields
   • Child tables

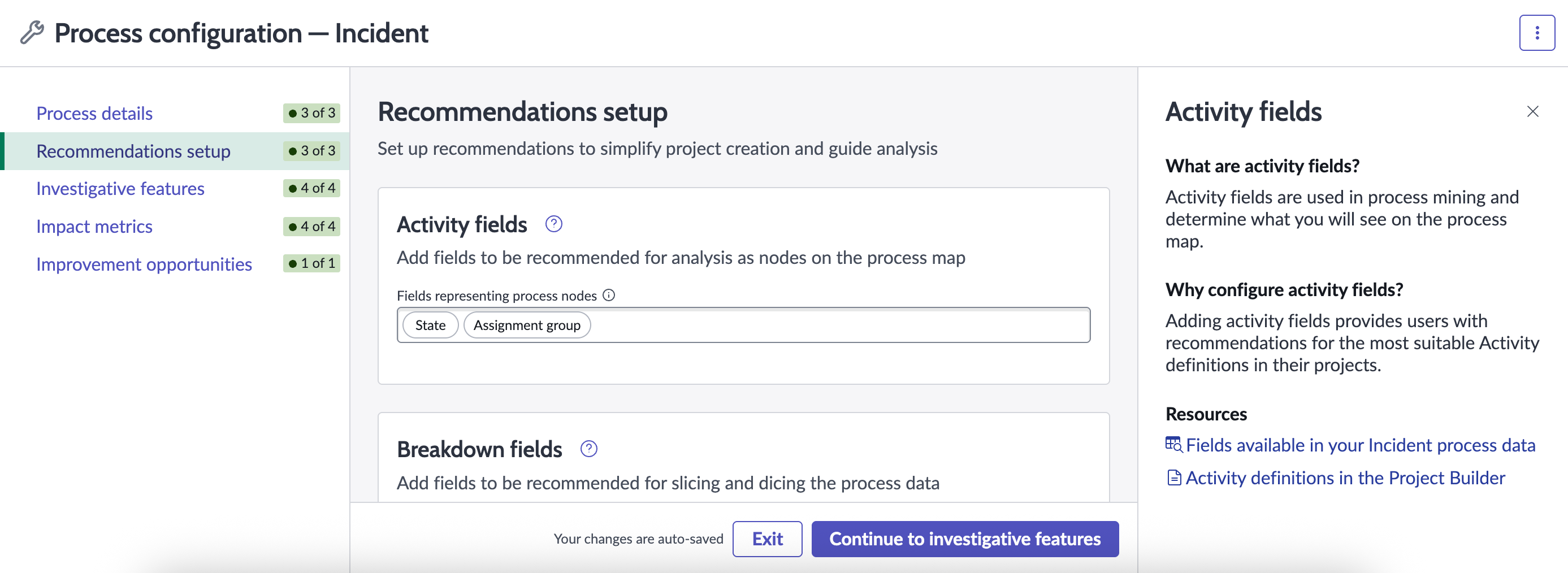

4. Fill the details in the Activity fields section.


   Activity fields are the most important fields in a project. They determine what kind of data you see on the process map.

   Provide columns in the Fields representing process nodes field.

   The columns that you had selected in the State definition and Team definition fields in the Process details tab, are automatically populated in the Activity fields area. You can add any other columns that you think are important for your process.

   The fields provided here are available as recommendations in for activity definition when creating a project on this table. For more information about how the recommended fields are displayed when setting activity definitions, see the table in the Set activity definitions section.

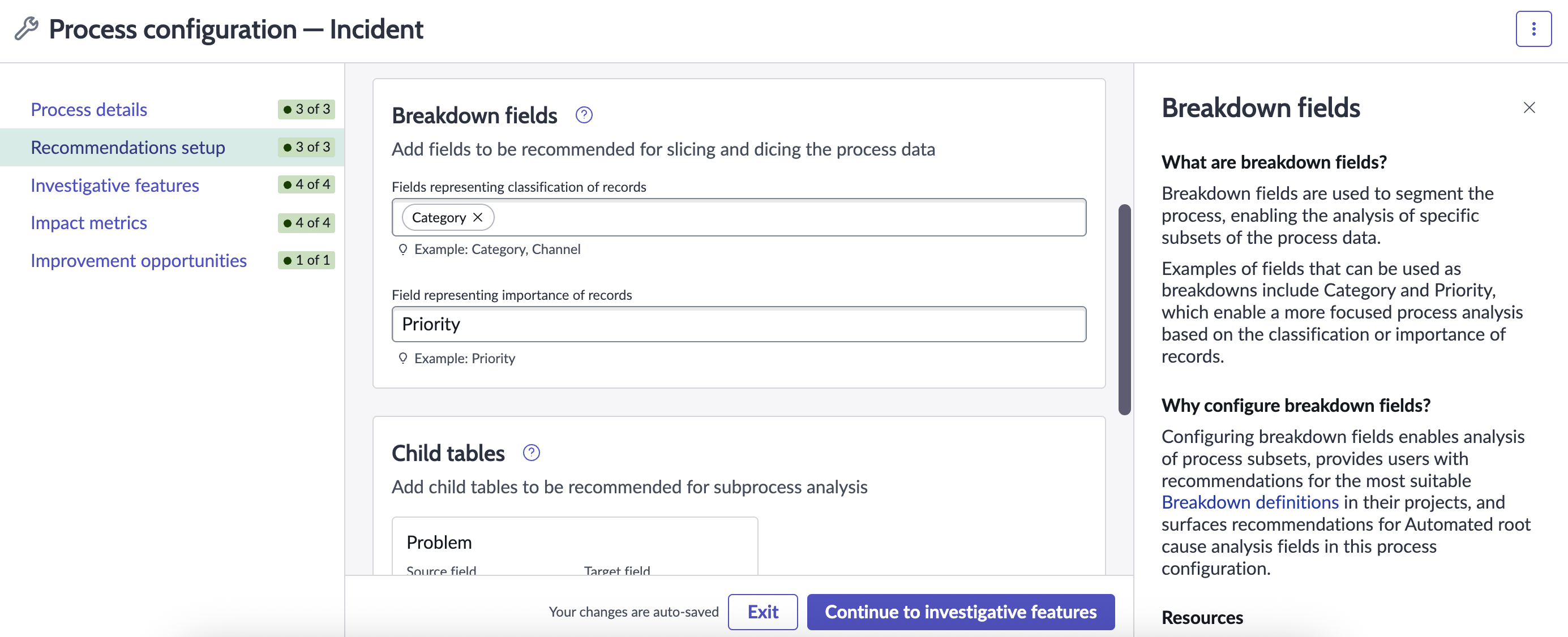

5. Fill the details in the Breakdown fields section.


   Breakdown fields are used to segment the process, enabling the analysis of specific subsets of the process data. Configuring breakdown fields enables analysis of process subsets. It provides you with recommendations for the most suitable breakdown in your projects, and surfaces recommendations for automated root cause analysis fields in this process configuration.

   Note:

   • Only fields that have a maximum column length of 250 characters are allowed.
   • For parent table configurations, all the string breakdowns (such as short description) combined, a total of 6400 values are allowed.
   • For child table configurations, breakdowns that are over the limit are excluded and no statistics are generated for them. For string breakdowns, fields are excluded when there are more than 640 unique values per field.
   • For child table configurations, for non-string breakdowns, a maximum of 5000 unique values are allowed per field.
   • If the total number of unique breakdown values for all child entities (string and non-string) is above 100k, all breakdowns for child tables is excluded regardless of whether or not they are over limit.

   For information about how these recommendations are provided when setting the breakdown definitions in a project, see Set breakdown definitions.

   Table 1. Breakdown fields

   Field	Description	Example
   Fields representing classification of records	Select the fields that describe how records are classified. The limit for dot-walking is 3 levels. For example: CI.BusinessService.assignment group. The fields selected here are used as recommendations for automated root cause analysis during process configuration.	Category, Channel
   Field representing importance of records	Select the fields that describe the importance of the records.	Priority

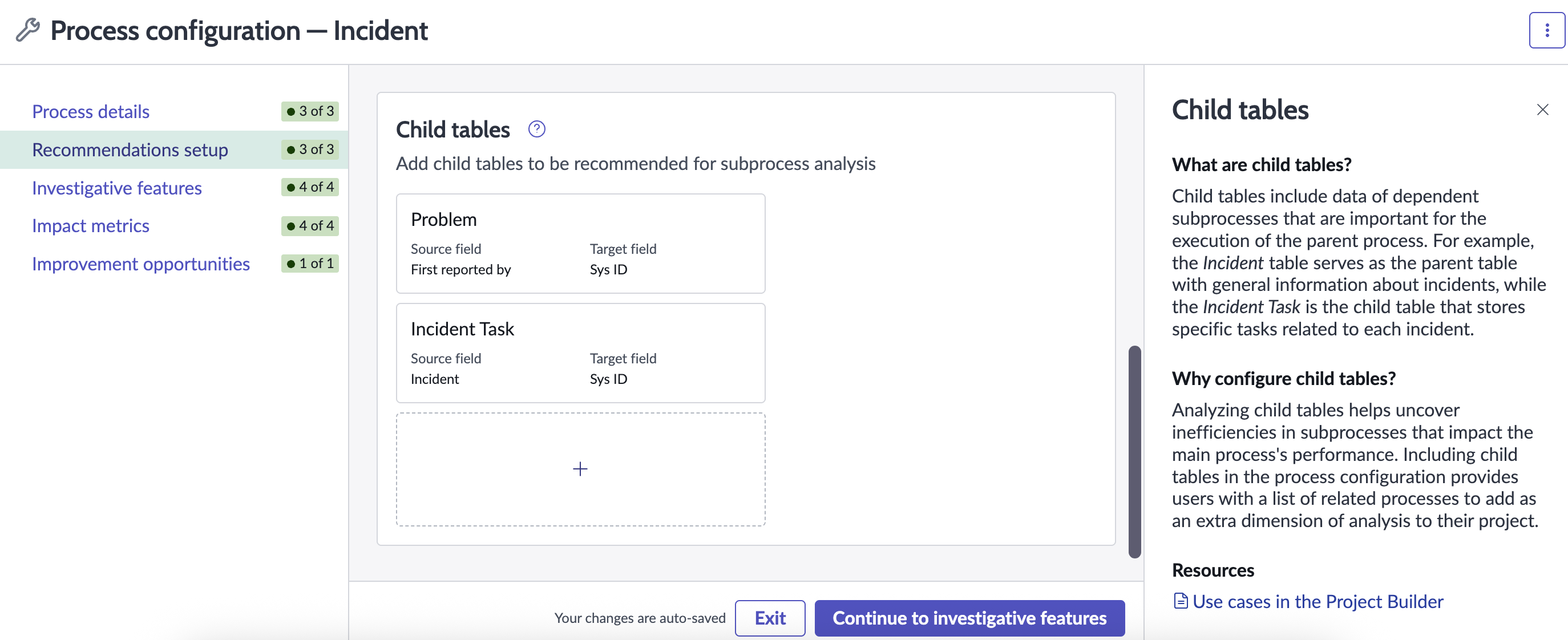

6. Fill the details in the Child tables section.



   Child tables include data of dependent subprocesses that are important for the execution of the parent process. Analyzing child tables helps uncover inefficiencies in subprocesses that impact the main process's performance. Including child tables in the process configuration provides you with a list of related processes to add as an extra dimension of analysis to your project.

   For example, the Incident table serves as the parent table with general information about incidents. The Incident Task is the child table that stores specific tasks related to each incident.

   For more information about how these settings are available in the child tables when creating a project, see Set use cases.

   1. Select the + sign in the field.
      The Add child table dialog box is displayed.
   2. Select a table.
   3. Select a Source field value to identify the relationship.
   4. The Target field is populated by default.
7. Select Continue to investigative features.
