Install the Agent Client Collector on a Windows machine manually

Install the Agent Client Collector on a Windows machine manually when you want to test the agent on a single system.

Avant de commencer

1. Ensure that you’ve configured the Agent Client Collector web server. For details, see Configure the websocket server on the MID Server.
2. Verify your server's OS and version.
3. When using Microsoft Internet Explorer, do the following to prepare the Agent Client Collector installation file:
   1. Navigate to Server Manager > Local Server.
   2. Turn off IE Enhanced Security Configuration.
   3. Download the installation file.
   4. Change the extension of the installation file from .man to .msi

Role required: agent_client_collector_admin

Procédure

1. Navigate to Agent Client Collector > Agent Downloads.
2. To perform installation using the wizard:
   1. Download the .msi file that is accessible from the link on the UI.
      The Installation Wizard opens.

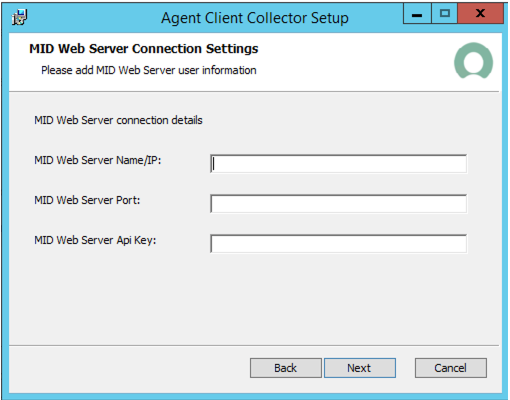

   2. Select Next until you reach the MID Web Server Connection Settings page.









   3. Enter the relevant parameters in the dialog box fields:

      Tableau 1. MID Web Server Connection Settings fields

      Field name	Description
      MID Web Server Name/IP	IP address of the MID Web server.
      MID Web Server Port	Port number of the MID Web server. Use a number between 1024-49151.
      MID Web Server API Key	API key to access the MID Web server.

   4. Select Next.

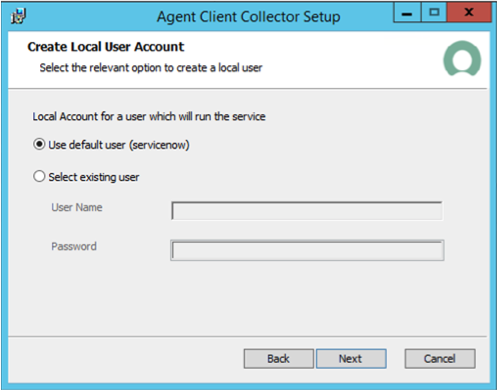

      The Create Local User Account page appears.









   5. Select the relevant option in the dialog box.

      Tableau 2. Create Local User Account dialog box

      Option	Description
      Use default user (servicenow)	Default user with which to run the Agent Client Collector on a Windows machine. Selecting this option creates a local user called servicenow as part of the installation. The servicenow user password is randomly generated and is not stored in the system. A security event is created on the host machine which, if repeated, requires opening a support case. For details, see KB1649116 article in the HI Knowledge Base.
      Select existing user	When selecting this option, configure the following subfields: User Name: User name to log in to the Windows environment. Password: Password of the selected user. The user can be one of the following: Local user (created by the virtual machine owner; provides added resiliency). Domain user (created by IT personnel). Group Managed Service Account (gMSA): Enter the name of the group managed service account in the User Name field and leave the Password field empty. Local Service Account: Enter LOCALSERVICE in the User Name field and leave the Password field empty. Local System Account: Enter SYSTEM in the User Name field and leave the Password field empty. Due to Windows UAC restrictions, running the agent as a local SYSTEM account is necessary to perform an upgrade via msiexec.

      Remarque :

      Using a Local System account creates the local group ServiceNow Users, and adds the created user to the group. The ServiceNow Users group has access to Agent Client Collector directories and has the following privileges:

      • Performance Monitor: Comes with the base system; enables viewing all performance counters in the system.
      • Log on as a service: Enables starting network services and services that run continuously, even when no one is logged onto the console.
      • Debug programs: Enables debugging processes and reading process details for users outside the ServiceNow user group.
   6. Select Create User.
      The system creates a Windows user with the specified credentials, and the Agent Client Collector Configuration page appears.

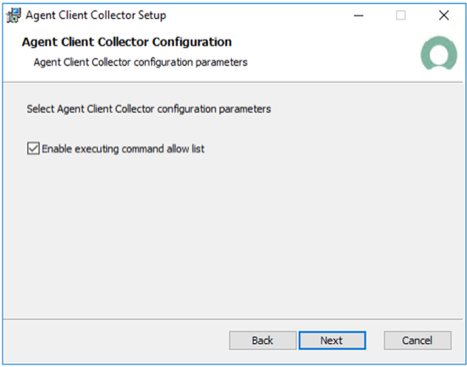

   7. To enable the Allow-List containing the checks enabled to run after setup, select the Enable executing command allow list check box on the resulting page.









   8. Select Next to open the installation page.

      When installation completes, click Next to complete and exit the wizard.

      After a successful installation, the service starts automatically and generates the following:

      • User: Default = servicenow (an existing user can also be configured to manage the service). The servicenow user belongs to the local user group ServiceNow Users.
      • Service: AgentClientCollector
      • File location:
        • Default for installation = C:\Program Files\ServiceNow\agent-client-collector
        • Default for service files = C:\ProgramData\ServiceNow\agent-client-collector, which holds the cache, config, and log folders.
3. To run Silent installation to disable installation reports, run the command line appearing in the Silent installation section of the procedure, as follows:
   msiexec /i <msi_file_path> /quiet /qn /norestart ACC_API_KEY=<key_value> ACC_MID=wss://<mid_ip>:<websocket_port>/ws/events ACC_ALLOW_LIST=False

   To enable the allow list of specified checks when running Silent installation, set the ACC_ALLOW_LIST parameter to True.

4. To configure multiple MID Servers with Silent installation, run the command line appearing in the Silent installation section of the procedure with comma-separated values, as follows:
   msiexec /i <msi_file_path> /quiet /qn /norestart ACC_API_KEY=<key_value> ACC_MID="wss://<mid1_ip>:<websocket1_port>/ws/events,wss://<mid2_ip>:<websocket2_port>/ws/events"

   Insert the following parameter values in the command:

   Tableau 3. Command parameters

   Parameter	Value
   ACC_API_KEY	The API key used to access the MID Server websocket.
   ACC_MID	The URL of the MID Server websocket.
   DENY_LOCAL_LOGON	When set to True, prevents any user other than the default servicenow user from logging onto the service. Default value: False
   PASSWORD_NEVER_EXPIRES	When set to True, the password for the default servicenow user never expires. Default value: False
   START_SERVICE	When set to True, the Agent Client Collector service automatically starts after installation. Default value: True
   LOCALUSERNAME	Account running the Agent Client Collector as a Windows service. Possible values: SYSTEM LOCALSERVICE DOMAIN\gMSA$ string (local username) Default = servicenow When using the SYSTEM, LOCALSERVICE, or DOMAIN\gMSA$ accounts, you do not have to configure a password.
   LOCALPASSWORD	Password for the user specified in the LOCALUSERNAME parameter.

   The configured MID Server values are automatically added to the acc.yml file. The agent connects to the first available MID Server in the list.

   To configure a secondary MID server, enter the following syntax in the backend-url section of the acc.yml file, per the .yml standard: - "wss://<MID IP>:<Web socket port>/ws/events" (with the quotation marks).

• Upgrade the Agent Client Collector manually on a Windows system
  Perform a manual upgrade of your existing Agent Client Collector version on a system running a Windows OS.
• Uninstall the Agent Client Collector manually from a Windows machine
  Uninstall the Agent Client Collector from a Windows machine manually instead of using the single-line procedure. Use the manual procedure if the command script is unavailable due to the specific agent not being connected to the instance.
