Improved query performance with direct field population in CI tables

  • Release version: Australia
  • Updated March 12, 2026
  • 2 minutes to read

    • The Populate Service Account and LDC IN CMDB scheduled job populates the Service Account and Logical Datacenter fields in cloud configuration item (CI) tables, and the Virtual Machine Object field in the Hardware [cmdb_ci_hardware] table. This direct population reduces query complexity and improves query performance.

    Cloud Service Account (such as AWS Account, Azure Subscription, or GCP Project) and Logical Datacenter (such as AWS, Azure, or GCP Regions) information is stored separately from cloud CIs. To retrieve account or datacenter information for a cloud resource, queries require joins across multiple tables, including the relationship table that connects CIs. Similarly, Virtual Machine Object information is stored separately from the Hardware CI, requiring additional joins to retrieve data from the Virtual Machine Object [cmdb_ci_vm_object] table. With potentially millions of records in the relationship table, these joins could increase query time for teams working with cloud infrastructure data.

    Starting with the Discovery and Service Mapping Patterns version 1.30.2, you can enable a feature that denormalizes cloud CI tables by populating the Service Account [cloud_service_account] and Logical Datacenter [logical_datacenter] fields directly in cloud CI tables. The scheduled job also references tables extended from the Virtual Machine Object [cmdb_ci_vm_object] table via the Virtual Machine Object reference field in the Hardware [cmdb_ci_hardware] table. Populating these fields directly reduces the need for complex joins, supporting more efficient queries for reporting, analytics, and operational workflows involving cloud resources. After you enable this feature, Discovery populates these fields for both existing and newly discovered CIs.

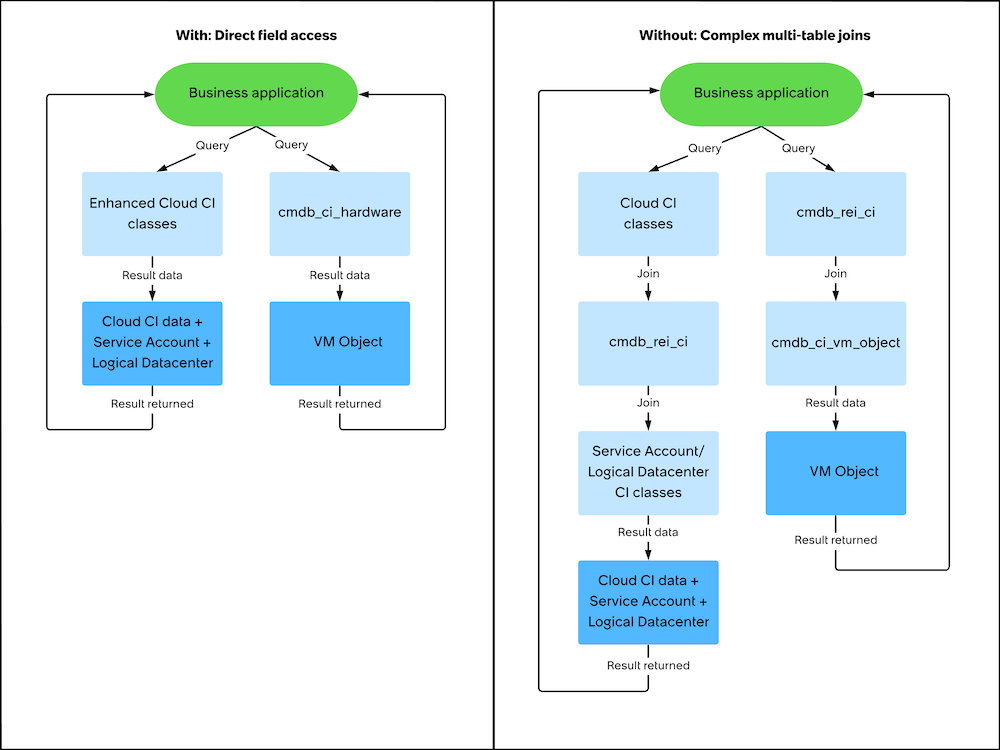

    Figure 1. Query process with and without field population
    Comparison between complex multi-table joins without the feature versus direct field access with the feature

    For information about enabling this feature, see Enable direct field population for query performance.

    Supported Cloud CI tables

    Service Account and Logical Datacenter fields are added to the following cloud CI tables:

    Table 1. Cloud CI tables with Service Account and Logical Datacenter fields
    Table label Table name
    Cloud Subnet cmdb_ci_cloud_subnet
    Cloud Network cmdb_ci_network
    Virtual Machine Instance cmdb_ci_vm_instance
    Hardware Type cmdb_ci_compute_template
    Cloud Hardware Type cmdb_ci_cloud_hardware_type
    Compute Security Group cmdb_ci_compute_security_group
    Image cmdb_ci_os_template
    Cloud Image cmdb_ci_cloud_os_image
    Cloud Load Balancer cmdb_ci_cloud_load_balancer
    Cloud Resource cmdb_ci_cmp_resource
    Cloud File Service cmdb_ci_cloud_file_service
    Cloud Mgmt Network Interface cmdb_ci_nic
    Endpoint cmdb_ci_endpoint
    Cloud Function cmdb_ci_cloud_function
    Cloud Object Storage cmdb_ci_cloud_object_storage
    Cloud Gateway cmdb_ci_cloud_gateway
    Database Instance cmdb_ci_db_instance
    Cloud DataBase cmdb_ci_cloud_database
    DynamoDB Table cmdb_ci_dynamodb_table

    Supported virtual machine tables

    The following virtual machine tables are referenced in the Virtual Machine Object [cmdb_ci_vm_object] field in the Hardware table:

    Table 2. Referenced virtual machine tables
    Table label Table name
    Windows Server cmdb_ci_win_server
    Linux Server cmdb_ci_linux_server
